MCS MIDI Classic

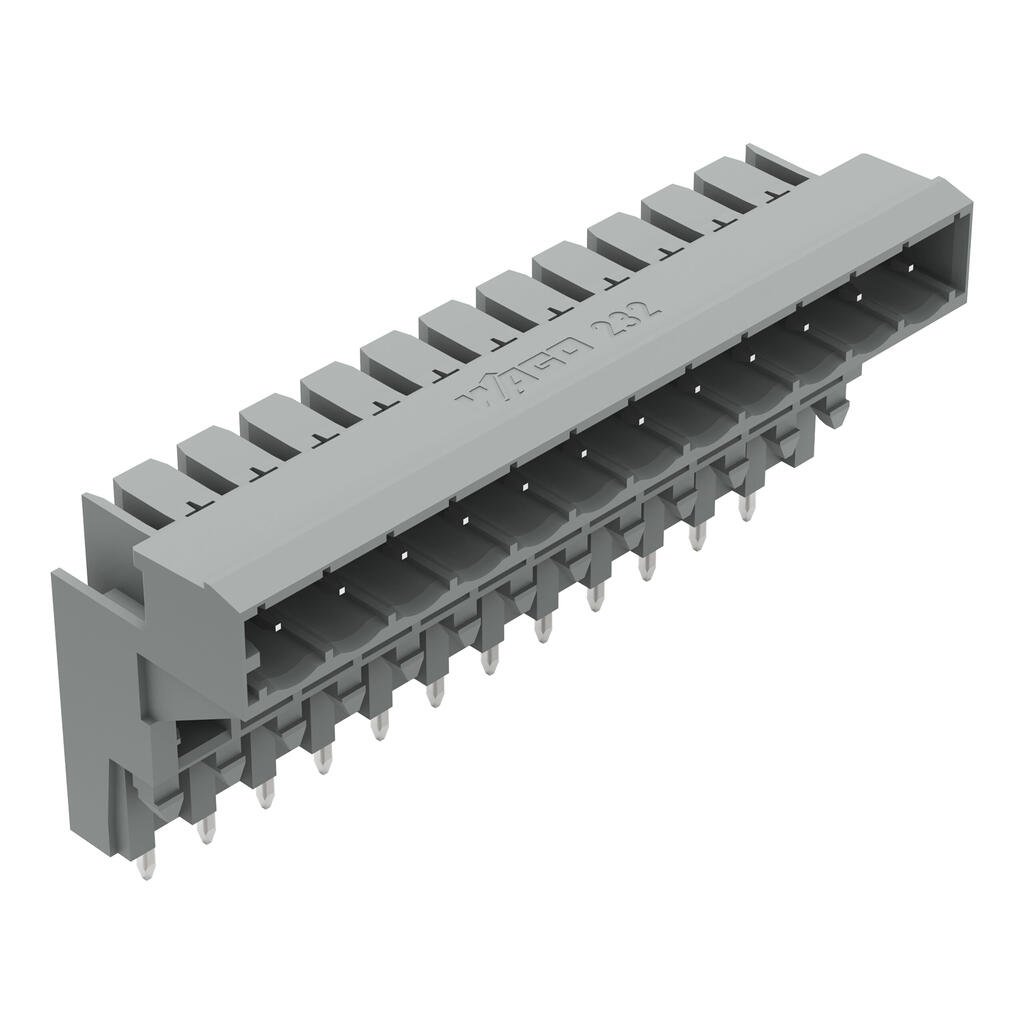

THT male header for double-deck assembly; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5 mm; 12-pole; gray
Dimensions in mm
Length = (pole no. – 1) x pin spacing + 8.2 mm
The solder pins of the “lower” male headers are in line.
The solder pins of the “lower” female headers are staggered by half a pin spacing.
Length = (pole no. – 1) x pin spacing + 8.2 mm
The solder pins of the “lower” male headers are in line.
The solder pins of the “lower” female headers are staggered by half a pin spacing.
