Perfect Pluggable Electrical Installation – with WINSTA®

Pluggable electrical installation is cutting edge within modern building installation and is becoming increasingly popular. And with good reason: It is based on well-structured advanced planning and factory pre-assembly of cables and pluggable connectors. Thanks to this “plug and play” approach, all that remains is to plug them together at the construction site. That saves time, prevents errors and simplifies maintenance.

Discover in our new panorama world where WINSTA^® shows its strengths and review specific applications for simple installations in offices and hotels.

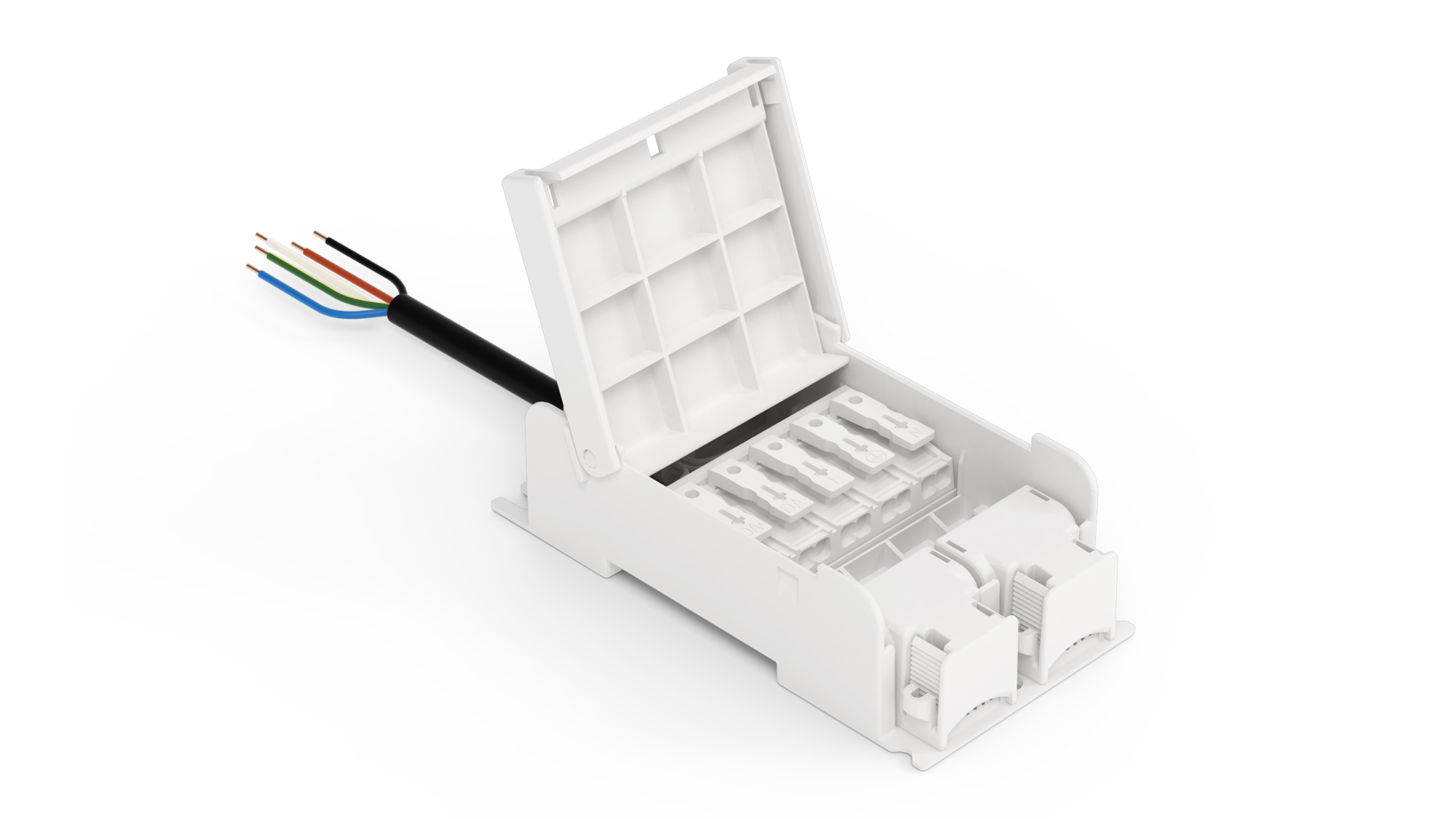

WINSTA^® boxes are suitable for a wide range of applications. For example, the WINSTA^® Distribution Box supports control of multiple sunblind drives via SMI and connection of DALI lights. The system box allows you to implement large-scale distribution boxes, as well as small controllers and switching solutions. Our project service offers tailored planning and production of WINSTA^® on the basis of the customer’s specific requirements.

The Benefits for You:

• Compact solution with pluggable outlets

• Central, clearly organized electrical installation thanks to WINSTA^® boxes

• WINSTA^® Distribution Boxes also available for self-assembly

• WINSTA^® System Box: DIN-rail-mount components can be installed thanks to TS-35 adapter

The cable assemblies are available for many families within the WINSTA^® pluggable connector portfolio. The catalog range already includes a large selection of different cable types and lengths. In addition, custom solutions can be created as needed, precisely tailored to the specific application. The customer-specific solution is ready for installation upon delivery and can be integrated into the installation with an easy, direct plug-and-play approach.

The Benefits for You:

• Ready to install: quick and easy installation at the construction site

• Less waste: precisely fitting solutions avoid cable waste

• Time savings: no further on-site cable processing necessary

The circular connectors are ideal for installation in empty conduits, e.g., in prefabricated house construction. Thanks to their round shape, this family’s assembled cables fit easily through appropriately sized holes and installation pipes.

The Benefits for You:Conductor cross-section range: up to 2.5 mm² (14 AWG)Rated current: 16 A / 20 APortfolio of 3- and 4-pole pre-assembled cables with 17.5 mm outer diameter for easy plug-and-play connectionPluggable integration into the electrical installation of components like wall outlets via adapter

The solution for standardized bus systems in building and industrial automation like KNX, LON^® and ETHERNET

The Benefits for You:

• For extra-low voltages up to 50 V

• Nominal current: 3 A

• Compact design, standardized interface

• Two codings for customization with protection against mismating

Underfloor boxes, for example, are powered through flat cables from 1.5 mm² to 16 mm² and the associated connection components, which can be combined with WINSTA^®MIDI and WINSTA^® KNX pluggable connectors.

The Benefits for You:

• With one turn per pole, you can reliably connect the WINSTA^® IDC feed-in or tap-off modules at any point on the corresponding flat cable.

• Suitable for bus and power lines or for bus and power combined in one cable

• Easy installation without cable interruption thanks to convenient insulation displacement connection (IDC) technology

Would you like to see what solutions using pluggable connector systems look like in practice? Here you’ll find a selection of highlights involving WINSTA^® projects implemented with pluggable building installation. Discover the versatility of pluggable electrical installation!

WINSTA^® makes electrical installation fast, safe and error-free. Many well-known companies rely on our connection system for electrical installation and have integrated WINSTA^® connections into their portfolios. Click here for an overview of our system partners.

We get many questions about pluggable electrical installation. Many of these are easy to answer in advance. Get the answers by clicking on the specific question in the list below.

Get to know our pluggable connection system! This brochure provides an overview of our WINSTA^® products and highlights applications where they offer particular benefit.

Plannable electrical installations are becoming more and more important in an increasingly digitalized building industry (so-called Building Information Modeling) – reason enough to be familiar with the concept of pluggable electrical installation. In our new Magalog (a magazine/catalog hybrid), we have summarized the most important facts about this topic and our WINSTA® Pluggable Connection System. Learn how the system works, what its ideal uses, what specific applications look like and what other services you can benefit from. Enjoy!

Print it out and hang it up – with our detailed WINSTA® poster, you have the most important installation setups, including matching parts lists, ready to hand.
