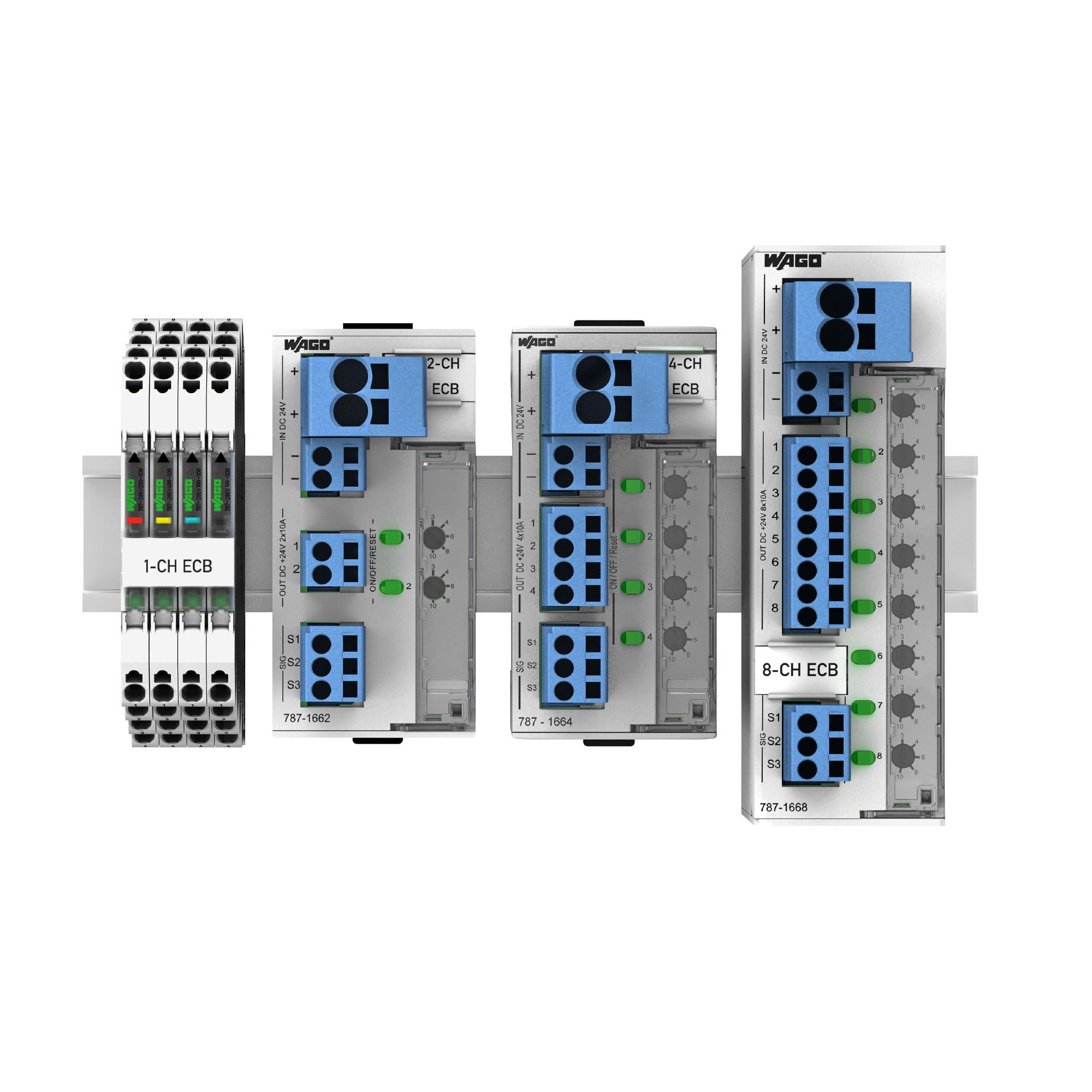

Electronic Circuit Breakers (ECBs)

The new modules are just 6 mm (0.236 inch) wide, making them the slimmest ECBs currently available on the market. They are approximately 66 % smaller than miniature circuit breakers, saving even more space, particularly when used in control cabinets. These ECBs allow high-capacitance loads greater than 50,000 μF to be switched on – helping you reduce false tripping due to inrush currents.

The Benefits for You:

• 24 VDC; six versions available for rated currents of 1 to 8 A

• Devices color coded according to rated current

• An extremely slimline design

• Switch-on capacity: > 50,000 µF

• Wide surrounding air temperature range: −25 … +70 °C (−13 … +158 °F)

• Resetting, on/off switching directly on the module or remotely via digital input signal

• Triggered signal output – can also be commoned as a group signal for up to 30 devices

• Approvals: CE, UL 61010, UL 2367

WAGO’s space-saving ECBs provide reliable protection with a superior price–performance ratio. They offer both outstanding features and reliable protection against overload and short circuits. With a maximum width of 45 mm (1.772 inches), these ECBs feature high channel density to save space in the control cabinet.

The Benefits for You:

• Two-, four- and eight-channel protective switch with currents adjustable from 0.5 to 12 A

• High switch-on capacity: > 50,000 µF

• Communication capability: remote monitoring and reset

• Optional active current limitation

• Approvals: CE, UL 60950, UL 2367, GL
