Miniature Rail-Mount Terminal Blocks – a Real Wizard at Saving Space

The WAGO Miniature Rail-Mount Termnal Blocks TOPJOB® S with operating slots or push-buttons feature a compact design, making them ideal for connections in the cramped terminal boxes of motors or pumps, for example.

The compact design of the TOPJOB® S Miniature Rail-Mount Terminal Blocks makes them especially suitable for connections inside the cramped terminal boxes of motors or pumps, for example.

At a Glance:

  • Nominal cross-section: 1 (1.5) mm² | 2.5 (4) mm²,
    Rated current: 13.5 (17.5) A | 24 (32) A
    Rated voltage: 500 V | 800 V IEC
  • Custom mounting options
  • Push-in CAGE CLAMP® termination

Show product list

Product Overview

Miniature Rail-Mount Terminal Blocks in Use

Device Connection in Building Technology – the Outdoor Unit of a Split Air-Conditioning System

Small components, big marking – the ample marking surface of the TOPJOB® S Miniature Rail-Mount Terminal Blocks provides clear organization quickly in compact subsystems.

Learn more

Device Connection in Control Cabinets

A smaller size means a better fit – TOPJOB® S Miniature Rail-Mount Terminal Blocks offer a compact design for device connection in control cabinets.

Learn more

DISCOVER THE DIVERSITY OF OUR MINIATURE TERMINAL BLOCKS

Convenient Connection with a Compact Design

With lengths of 33 mm (nominal cross-section: 1 mm²) and 36.5 mm (nominal cross-section: 2.5 mm²), the new Miniature Rail-Mount Terminal Blocks are very compact, making connection especially convenient in the cramped terminal boxes of motors or pumps, for example.

2.5 mm² Miniature Rail-Mount Terminal Blocks are 25 % shorter than standard TOPJOB® S Rail-Mount Terminal Blocks (e.g., 2252-1201 to 2202-1201).

Show product list
MM-32260 website update Mini terminal blocks_1_2000x1125_.jpg

1 mm² (2250-1201 ) 2.5 mm² (2252-1201)

Mounting Variants for Every Application

WAGO’s Miniature Rail-Mount Terminal Blocks offer several mounting options for exceptional flexibility. They can be mounted directly on a 15 x 5.5 mm (0.5 x 0.27 in.) DIN-15 rail or on a mounting plate with a flange or snap-in mounting foot.

Show product list

Push-in CAGE CLAMP® Actuation Variants

WAGO’s Miniature Rail-Mount Terminal Blocks are available with two actuation types: push-buttons or operating slots. Both types allow Push-in CAGE CLAMP® termination.

Advantages of push-buttons:

  • Use any standard operating tool.
  • The orange color highlights the actuator, giving users a clear overview at a glance.
  • The push-button has become synonymous with convenience, making it the industry’s go-to solution for in-the-field wiring.

Advantages of operating slots:

  • The tool remains in the operating slot – both hands are free for wiring.
  • After insertion, the operating tool marks the clamping point and keeps it open.
Show product list

A Comprehensive Range of Accessories

The WAGO Miniature Rail-Mount Terminal Block is the smallest version in the TOPJOB® S portfolio. Since it’s part of the same portfolio, the industry-trusted TOPJOB® S accessories are also compatible with the Miniature Rail-Mount Terminal Blocks:

  • Range of jumpers: The standard TOPJOB® S Jumpers can be used. For example, use the pre-assembled jumpers for a star connection (2000-405/011-000) or a delta connection (2000-406/020-000).
  • Marking strips: Using WAGO’s continuous marking strips saves time and money – mark up to three lines at once.
Show product list

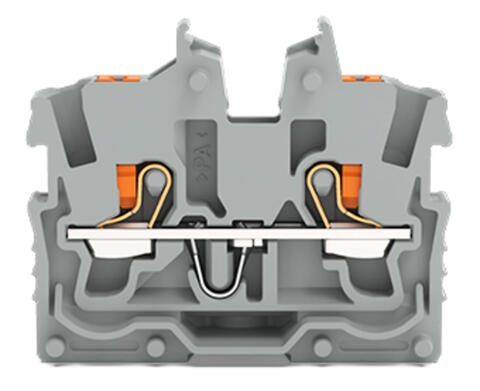

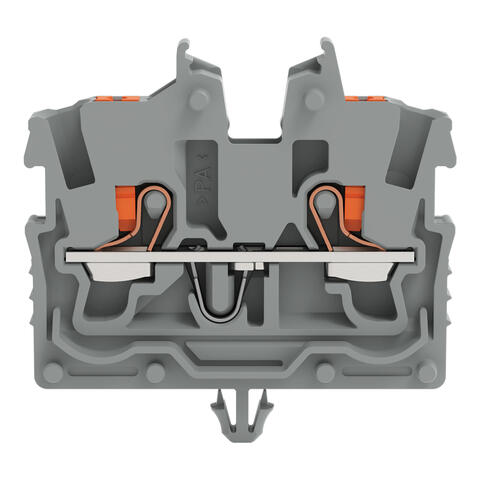

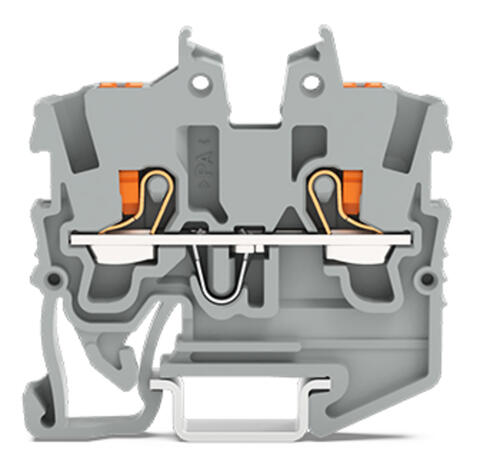

2-conductor miniature through terminal block; with push-button; 1 mm²; with test port; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP®; 1,00 mm²; gray

Item no.: 2250-1201

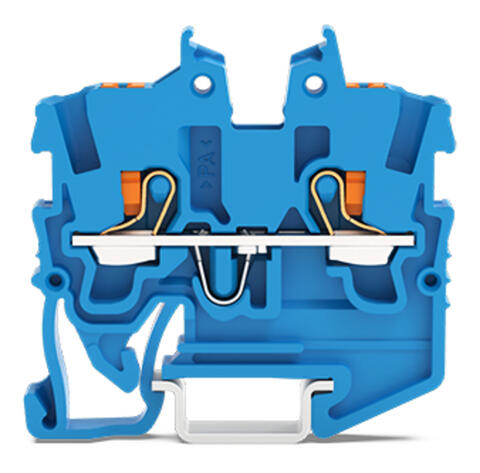

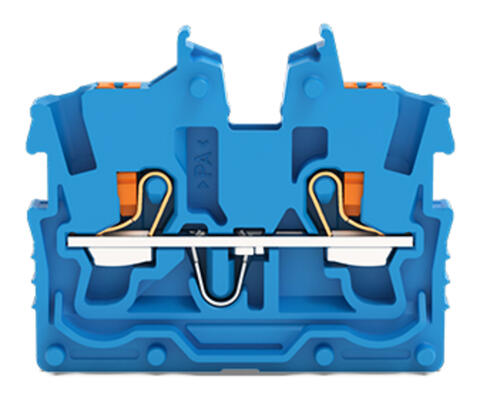

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; with test ...

2-conductor miniature through terminal block; with push-button; 1 mm²; with test port; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP®; 1,00 mm²; blue

Item no.: 2250-1204

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; with test ...

2-conductor miniature through terminal block; with push-button; 1 mm²; End terminal block with mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; gray

Item no.: 2250-301

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; End ...

2-conductor miniature through terminal block; with push-button; 1 mm²; End terminal block with mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; blue

Item no.: 2250-304

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; End ...

2-conductor miniature through terminal block; with push-button; 1 mm²; End terminal block with mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow

Item no.: 2250-307

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; End ...

2-conductor miniature through terminal block; with push-button; 1 mm²; with snap-in mounting foot; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; gray

Item no.: 2250-311

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; with ...

2-conductor miniature through terminal block; with push-button; 1 mm²; with snap-in mounting foot; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; blue

Item no.: 2250-314

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; with ...

2-conductor miniature through terminal block; with push-button; 1 mm²; with snap-in mounting foot; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow

Item no.: 2250-317

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; with ...

2-conductor miniature through terminal block; with push-button; 1 mm²; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; gray

Item no.: 2250-321

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; Center ...

2-conductor miniature through terminal block; with push-button; 1 mm²; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; blue

Item no.: 2250-324

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; Center ...

2-conductor miniature through terminal block; with push-button; 1 mm²; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow

Item no.: 2250-327

2-conductor miniature through terminal block ; with push-button ; 1 mm² ; Center ...

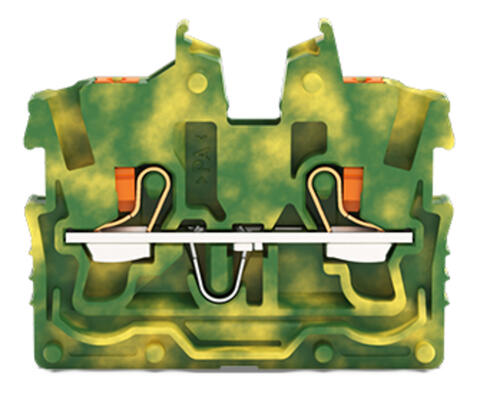

2-conductor miniature ground terminal block; with push-button; 1 mm²; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow

Item no.: 2250-1207

2-conductor miniature ground terminal block ; with push-button ; 1 mm² ; side and ...

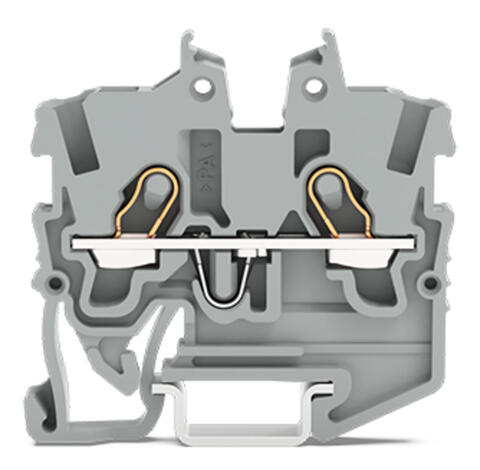

2-conductor miniature through terminal block; with operating slots; 1 mm²; with test port; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP®; 1,00 mm²; gray
