Electrical Interconnections
Green Range 221
Nothing is too small to make a positive impact on our environment. Therefore, we have reimagined one of our best-known products – the 221 Series Splicing Connector.

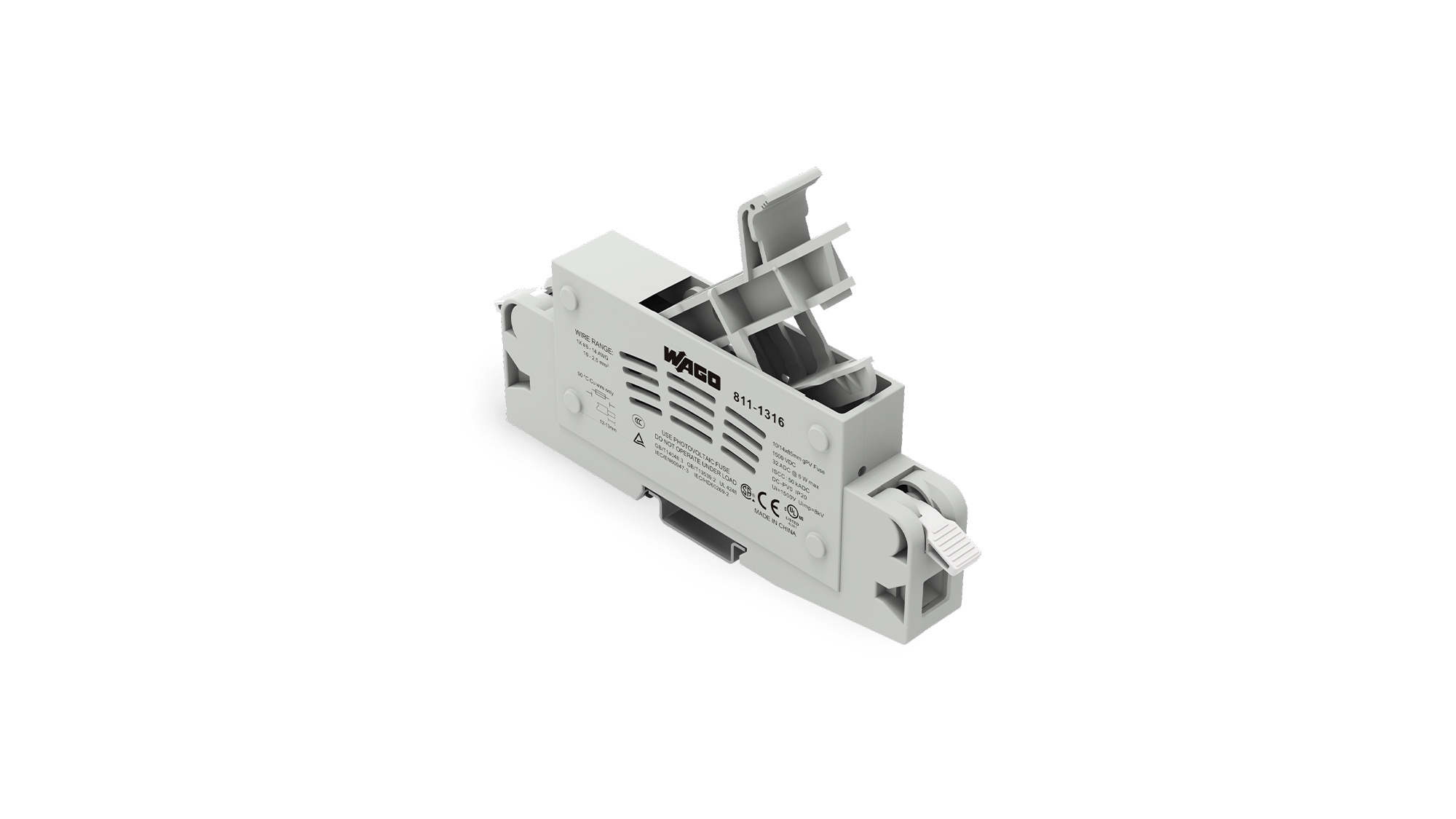

811-1316 Fuse Holders
WAGO’s DIN-Rail mount 811 series fuse holders provide users with maintenance-free, vibration-proof, and corrosion-resistant connection using Class CC & 10 x 38 mm fuses. This new addition has a max voltage of 1,500 V DC, and UL 4248 certified, making it perfect product for high voltage applications seen in motor control, power distribution and the solar industry.
207 Series Gelbox
When moisture meets electricity, a short circuit can happen quickly. Encapsulation is a proven solution. But now reliable moisture protection for splicing connectors can be achieved even more quickly and easily with the WAGO Gelbox. It is ready for immediate use in a wide range of low- and extra-low voltage applications.

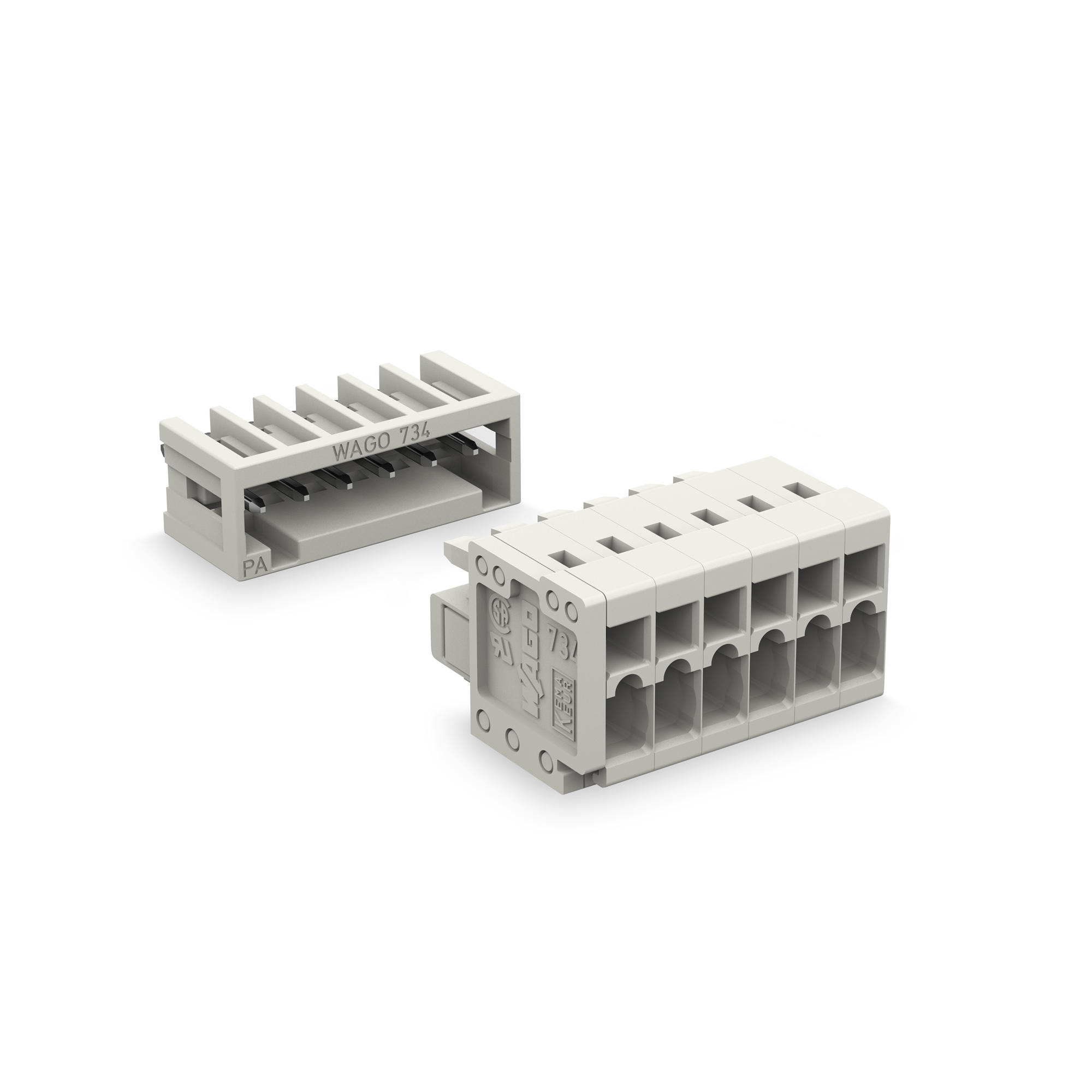

MCS MINI Connectors
With both vertical and horizontal CAGE CLAMP® actuation and 3.5mm pin spacing, WAGO’s MCS Mini Connectors take up little space on the board. These connectors are 100% protected against mismating and offer Wire-to-board, wire-to-wire, board-to-board and board-to-wire connections.

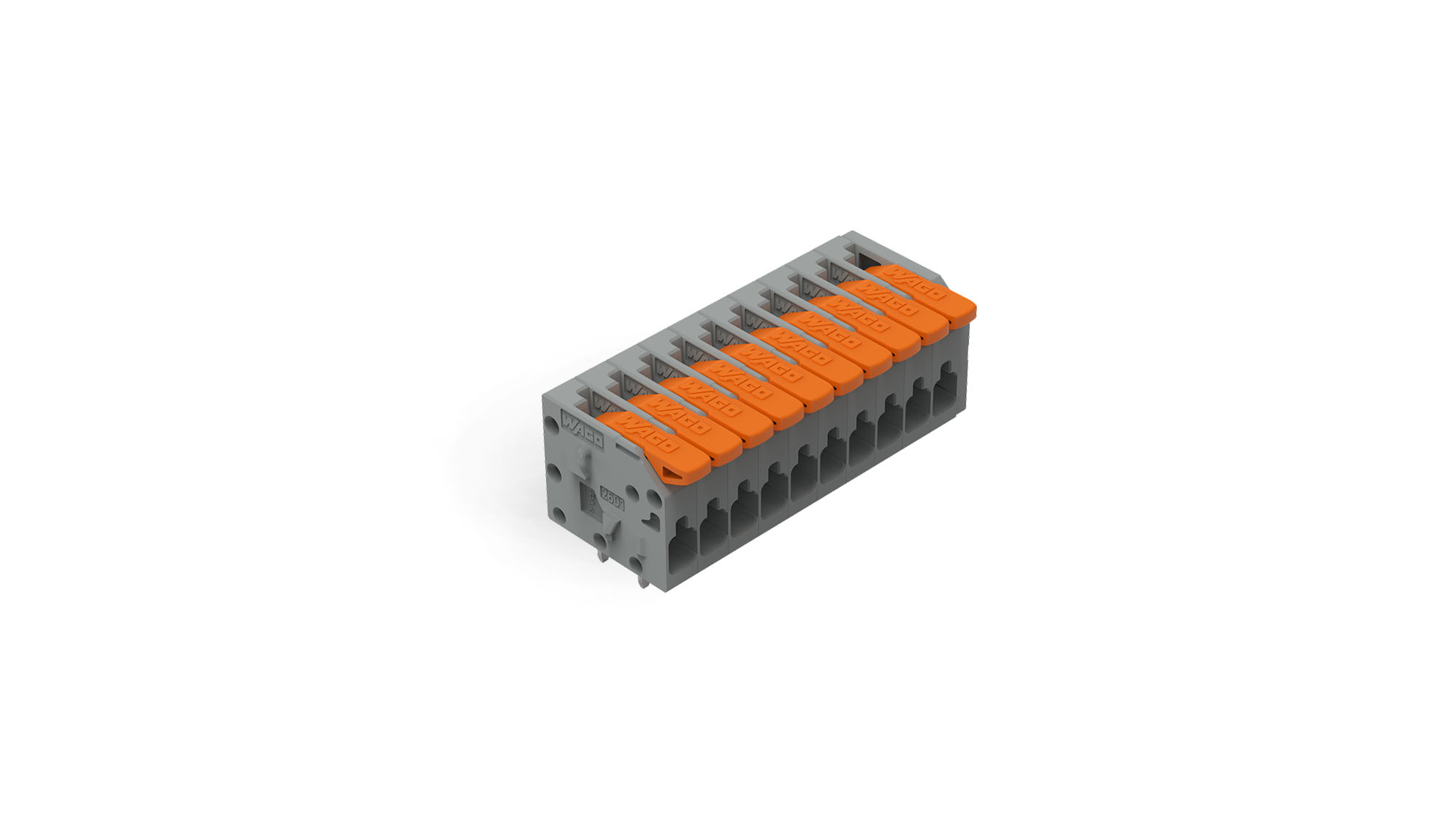

PCB Terminal Blocks and Pluggable Connectors
WAGO’s new 2601 Series is the first super-compact, tool-free PCB terminal block with lever technology, allowing quick and easy wiring for cross-sections from 26 to 14 AWG. The levers ensure that the contact point is always secure; making them ideal for device connections in the field, no matter the performance class.

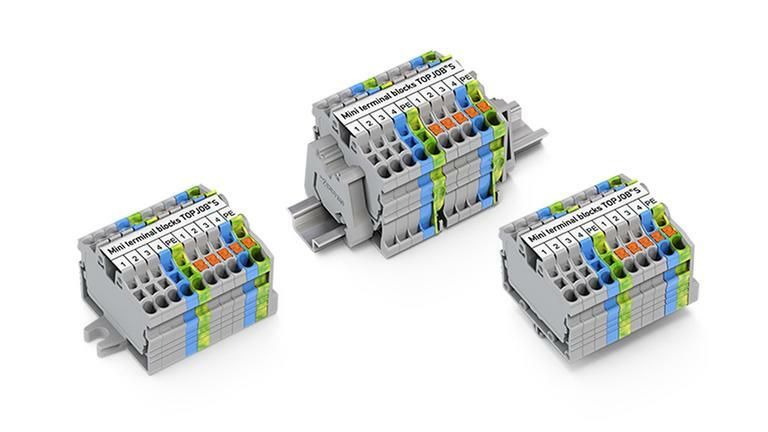

TOPJOB® S Mini Rail-Mount Terminal Blocks
WAGO’s TOPJOB® S Mini terminal blocks come in two sizes for conductor types (24-16 AWG and 22-12 AWG). They have all of the advantages of standard TOPJOB® S Rail-Mount Terminal Blocks but with a smaller footprint, making them perfect where space is limited or use of a standard DIN rail isn’t possible.
Interface Electronics

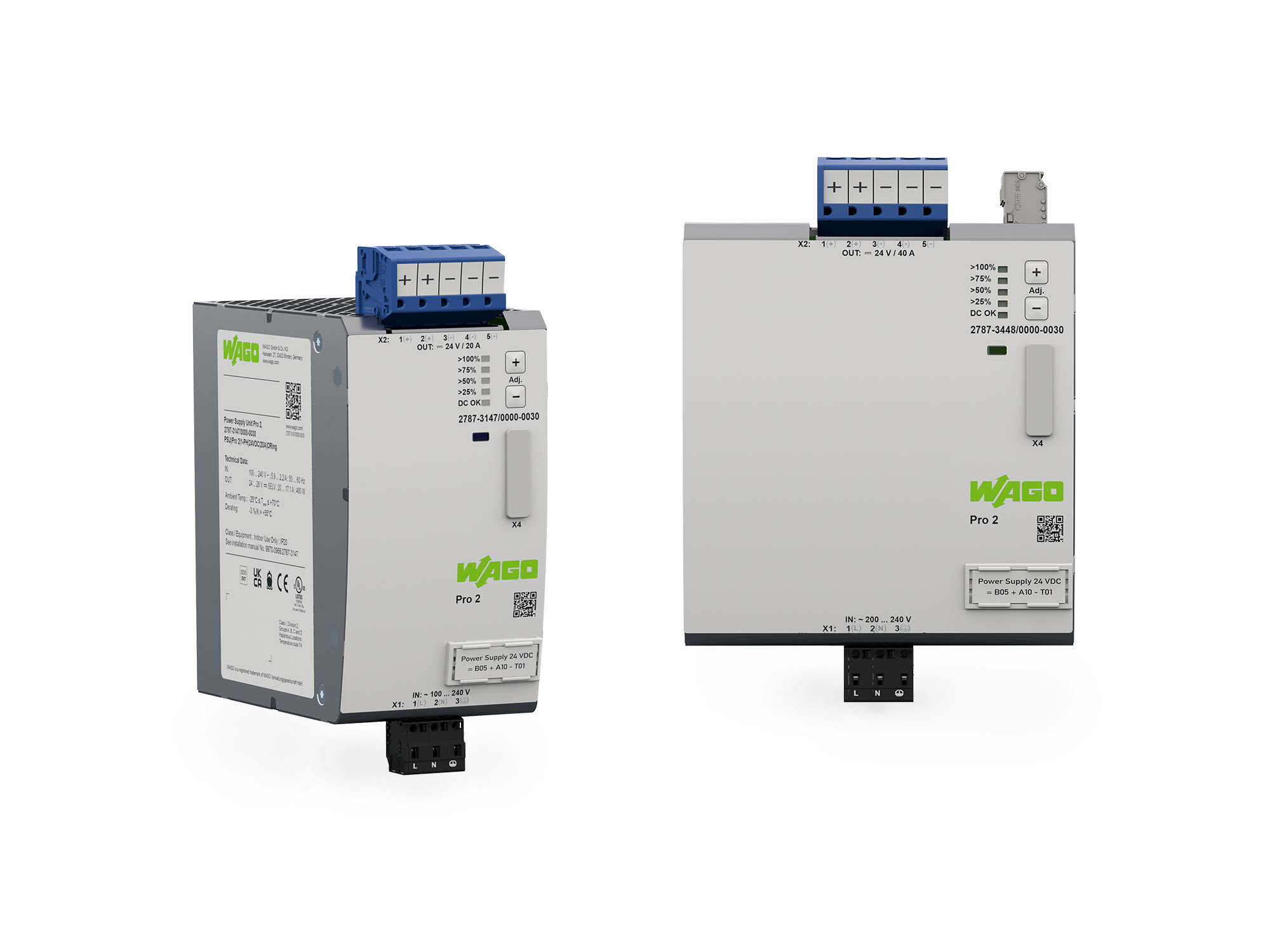

Pro 2 EtherNet/IP with MQTT
The new Pro 2 EtherNet/IP with MQTT communication module adds a new level of monitoring as well as control of power supplies and DC subsystems.
Single-Channel Electronic Circuit Breakers (ECBs)
The extreme slim-line design (6mm) of our Electronic Circuit Breakers not only save space in your control cabinet but enable high-capacity loads greater than 50,000 microfarads to be switched on. This helps reduce false tripping due to in-rush currents.
Eco 2 Power
As an economical solution for standard applications, WAGO’s ECO 2 power supplies maximize space in your control cabinet while providing a high efficiency rating up to 90%. These power supplies have a Mean Time Between Failure (MTBF) of greater than one million hours and are approved for worldwide location use according to UL 61010.
Automation Technology
Distributed Energy Resource Controllers
Ensure a reliable power system by using WAGO’s new Distributed Energy Controller (DER). Compliant with IEEE 1547-2018 standard (clauses 5 and 10), this device effectively communicates between the energy source and grid operator with a control algorithm for voltage, frequency, and reactive power control.
IO-Link Converter 4-20ma AI
WAGO has expanded their IO-Link Converter line with a 4-20 mA analog input with a digital display. The display on the device will report the measured value that is configured with two-point scaling. The multicolored display changes based on alarm setpoints. Configuration can be set by using the buttons on the device or it can be configured using WAGO’s IO-Link Configuration Software.
CC100 with CANopen
WAGO has added an additional controller (750-9401) to their Compact Controller 100 Family. This small-scale PLC has the same I/O configuration as the 750-9301 and comes with a dual-core processor and a CANopen communication port. The processor will help increase system performance for more complex applications. The port can be used as a manager or a CAN Layer 2 device, enabling users to connect to a wide variety of CANopen-based devices.
