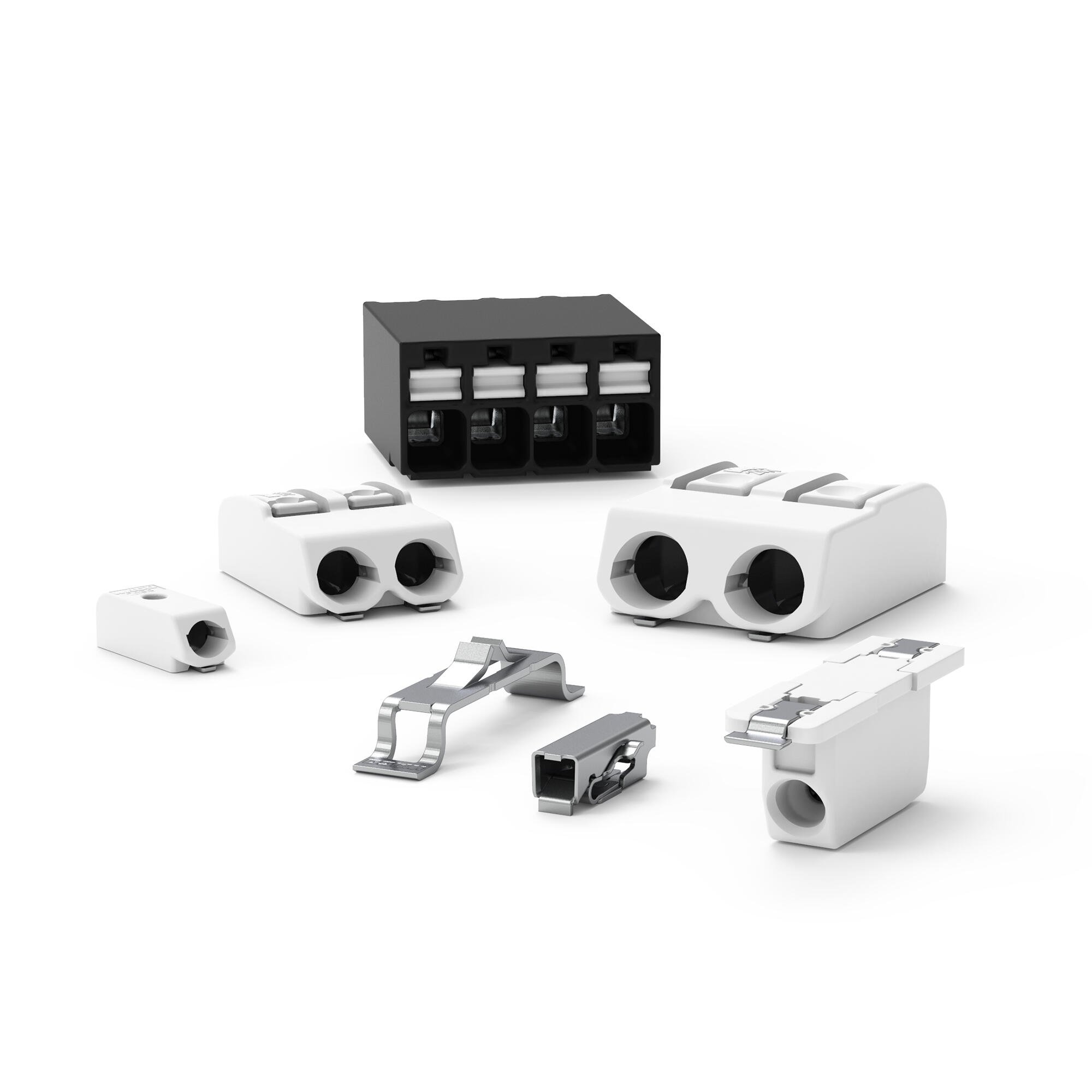

Surface Mount PCB Terminal Blocks

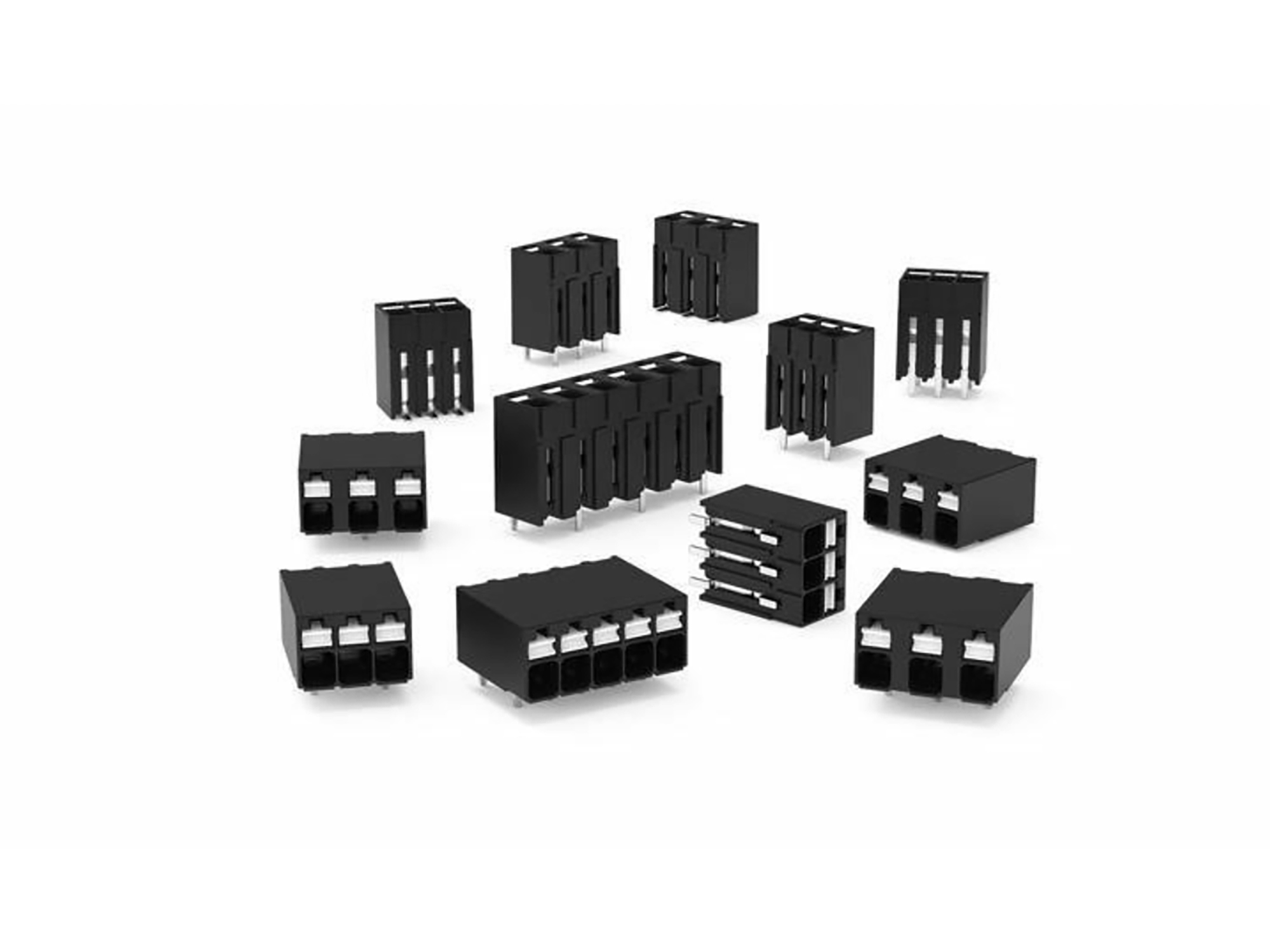

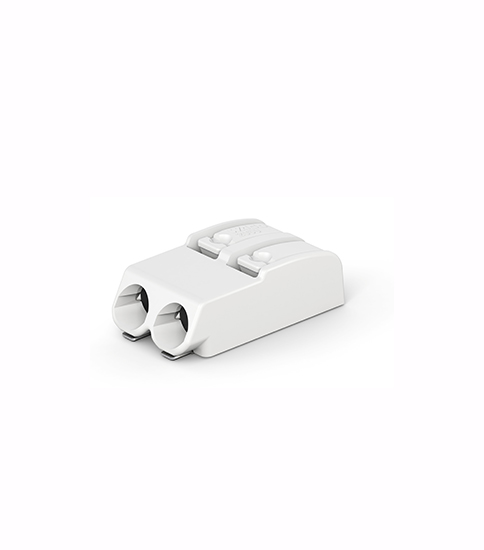

Easy handling and versatility – all in a compact size. These are the features of the 2086 Series PCB Terminal Block with Push-in CAGE CLAMP^® and a push-button.

• Ideal for compact device connection, panel feedthrough and tight spaces

• Push-in CAGE CLAMP^® allows push-in termination of solid and fine-stranded conductors with ferrules from 24 to 16 AWG

• SMD and THR variants available

• Delivery in tape-and-reel packaging for full integration into SMT soldering process

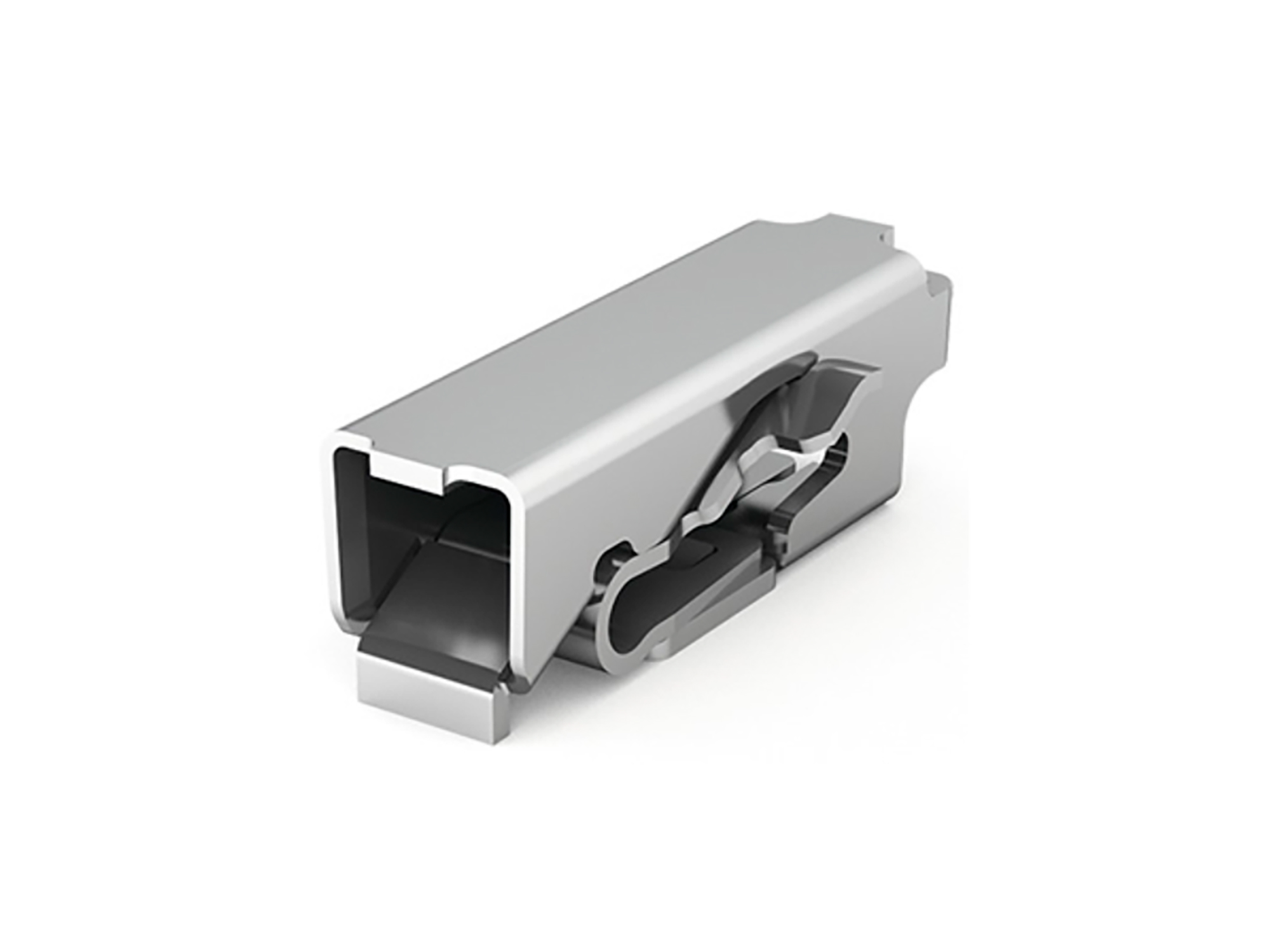

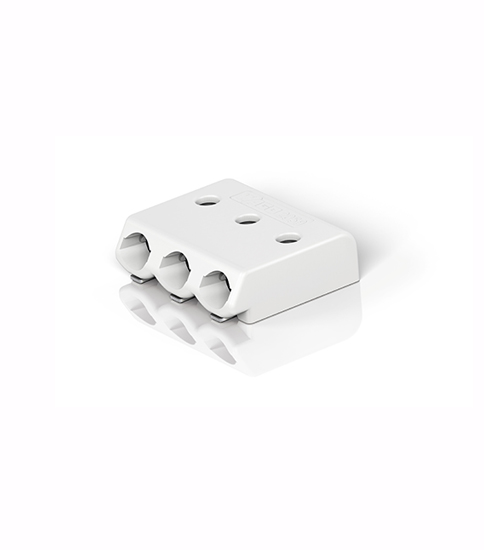

• A reliable, repeatable alternative to wire soldering in a housing-less (bare contact) design

• Easily wire with push-in termination, and remove wire with an operating tool

• Low profile: 2.7 mm height

• Conductor range: 24 – 18 AWG

• Maximum conductor size, minimum installation space

• Low profile: 2.7 mm height, 3 mm spacing

• Conductor range: 26 – 20 AWG

• Side-by-side assembly without pole loss

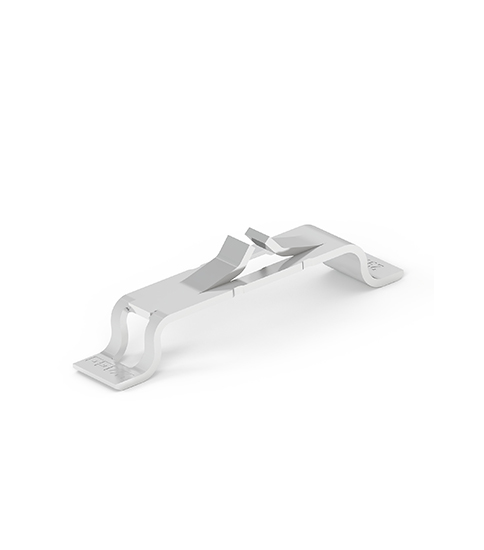

• Besides standard wiring, several PCBs or LED modules can be easily assembled into a single string using board-to-board connection links

• Low profile: 4.5 mm height, 4 mm spacing

• Conductor range: 24 – 18 AWG

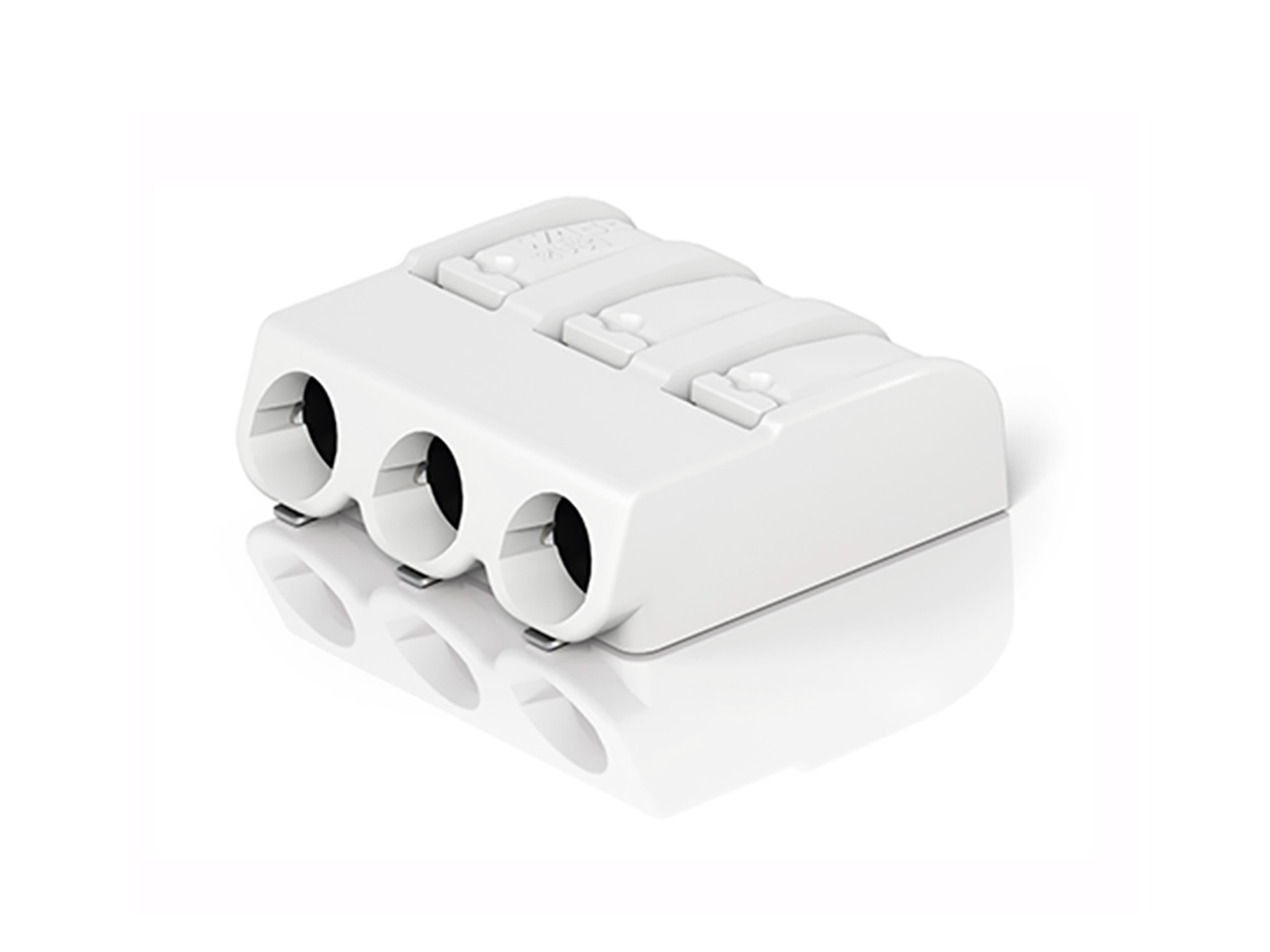

• Push-buttons simplify insertion/removal of all conductor types

• Minimize labor and materials with board-to-board connection links

• THR variant has solder pins, ideal for THR and wave soldering

• 8 mm pin spacing variant provides higher rated voltages up to 600 V (UL) and 630 V (IEC)

• Low profile: 5.6 mm height, 6 mm spacing

• Conductor range: 20 - 16 AWG

• Push-buttons simplify insertion/removal of all conductor types

• Board-to-board connection links to minimize labor and materials

• THR variant with solder pins for THR and wave soldering

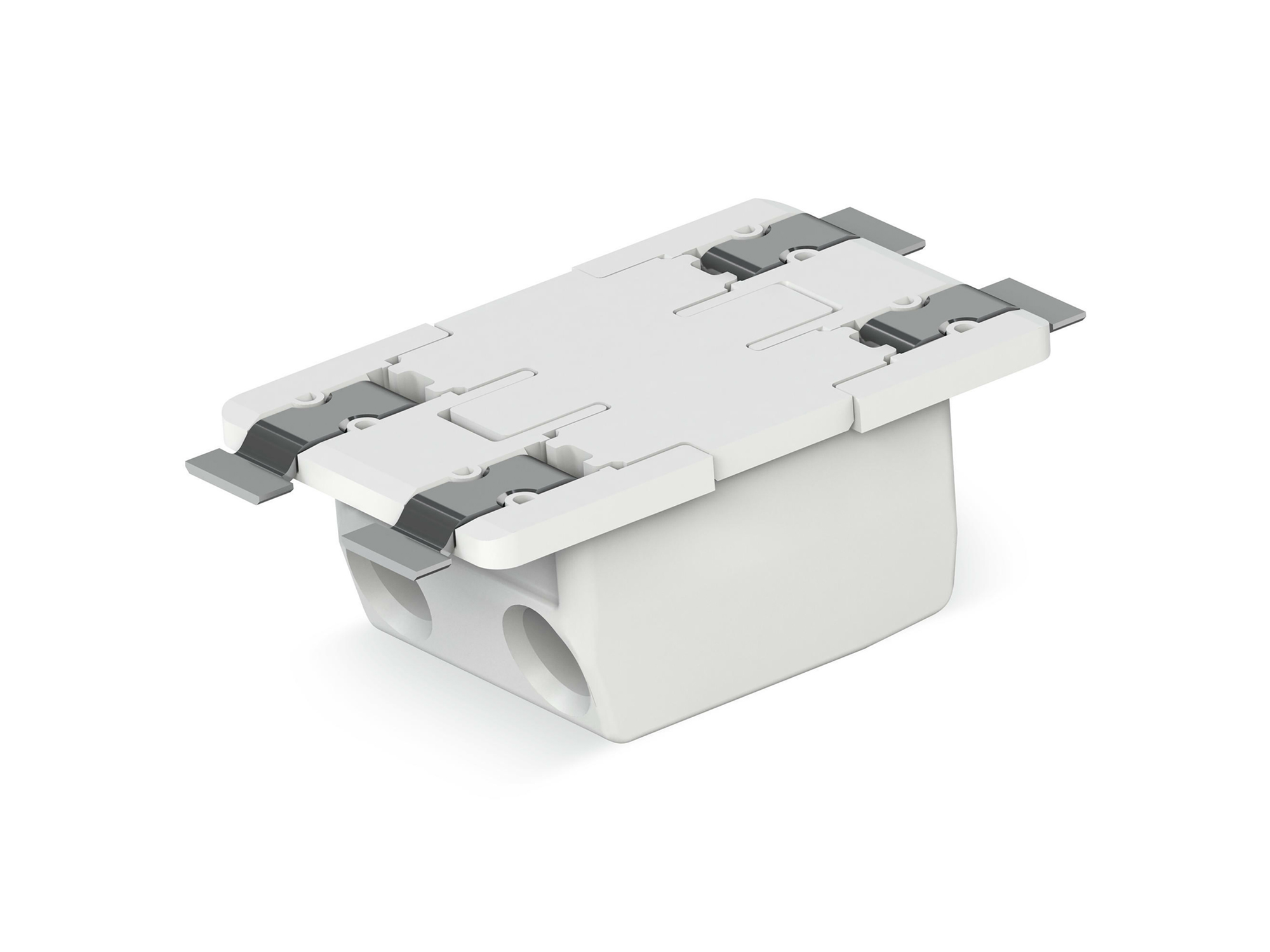

WAGO’s all-new 2070 Series SMD PCB Terminal Blocks provide back-side wiring of LED modules, minimizing on-board LED shadowing and simplifying wiring. With the new 2070 Series, WAGO introduces the new SMD PCB Terminal Blocks for solid and fine-stranded conductors ranging from 24 to 18 AWG (0.2 to 0.75 mm2). The special feature: The new terminals blocks are designed for back-side wiring of LED modules.

• For shifting wiring to the back of the LED modules

• Low profile of just 0.433 inch (1.1 mm) on top of the PCB minimizes shadowing

• Easy pick-and-place assembly and minimum shadowing thanks to optional cover

• Optional marking of the clamping point helps prevent wiring errors

• Clearance and creepage distances for use up to 500 V per EN 60598-1

• Supports both manual and automated wiring

• Wiring performed from the back of the LED module simplifies luminaire manufacturing

• Compact design provides uniform light distribution

• An economical alternative to wire soldering in any industrial electronics application

• Supports both manual and automated wiring systems
