New MCS MAXI 6 Connectors with Levers – Field Wiring in Next to No Time

The MULTI CONNECTION SYSTEM (MCS) expands: WAGO's new MCS MAXI 6 line of pluggable connectors can terminate 10 mm² (8 AWG) conductors and has integrated levers, making fast and convenient wiring possible.

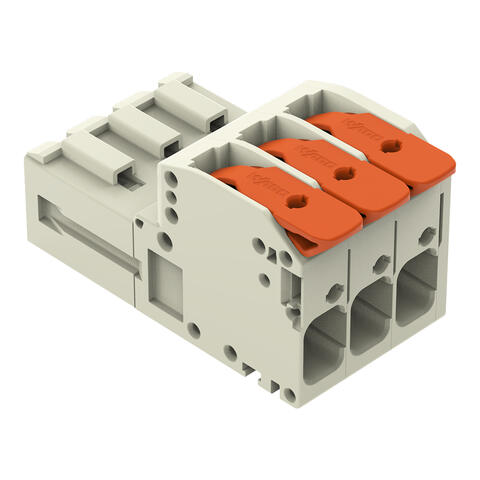

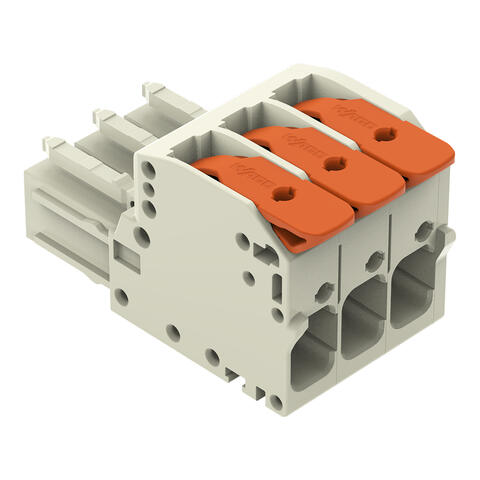

WAGO's MCS MAXI 6 Pluggable Connection System accommodates conductors ranging from 0.2mm² to 10 mm² (20–8 AWG) and are ideal for power electronic applications requiring higher currents. Two versions of the new pluggable connectors are available (wire-to-wire and wire-to-board), and each version offers variants ranging from 2 to 9 poles with 7.62 mm pin spacing. With a rated current of 41 A, the system is ideal for connecting power electronics. Thanks to Push-in CAGE CLAMP® connection technology, solid conductors and fine-stranded conductors with ferrules can be terminated by simply pushing them into the unit. The connectors are available in two models for horizontal or vertical PCB mounting, providing extremely flexible PCB connections.

The new lever-equipped MCS MAXI 6 Connectors save valuable space – beyond the standard nominal conductor size, conductors up to the next-larger cross-section (10 mm²/8 AWG) can also be connected.

At a Glance:

Easy in-hand wiring via lever actuation
Tool-free, intuitive lever operation
Product range: 0.2 … 25 mm² (24 … 4 AWG)
Push-in CAGE CLAMP® termination
100% protected against mismating
Coding and locking options available

Direct, In-Hand Wiring

To meet requirements for both clear and simple operation, WAGO equipped the MCS MAXI 6 Connectors with levers for intuitive, tool-free usage. As no tools are needed to open the clamping unit, the connector offers in-hand wiring that is quick and easy – saving a significant amount of time for in-the-field wiring.

The connectors’ on-unit levers effortlessly move into the open/closed position with an audible click, which verifies that a proper (and reliable) connection was made.

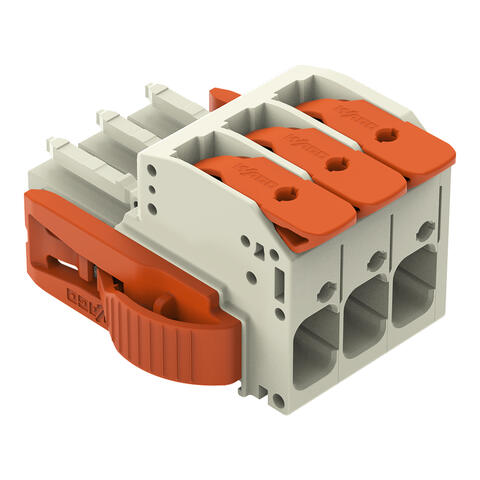

As with WAGO’s other industry-proven MCS products, the new pluggable connectors also provide 100% mismating protection, custom coding and optional locking options to ensure maximum safety for field wiring.
