Pluggable PCB Connectors

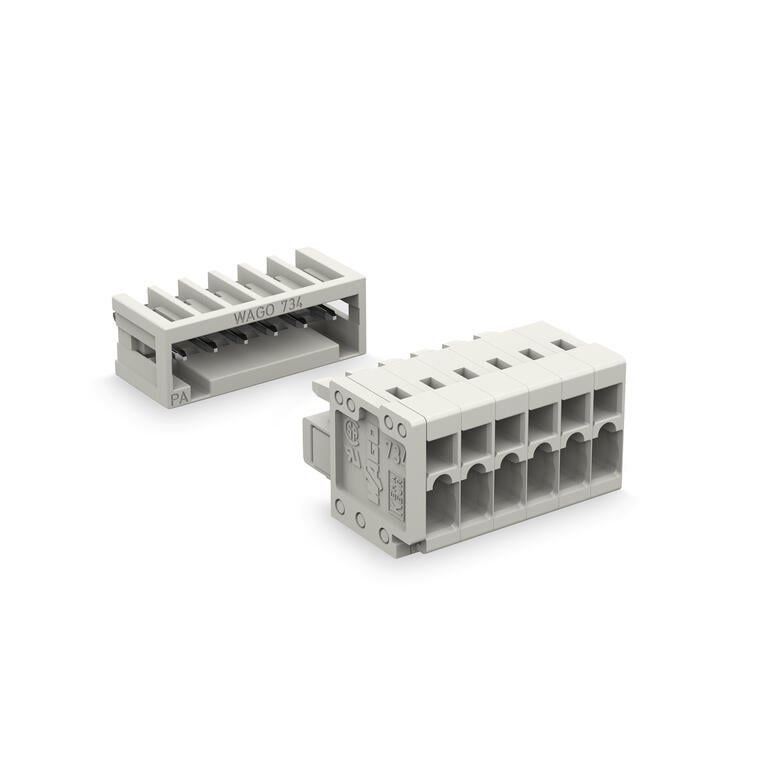

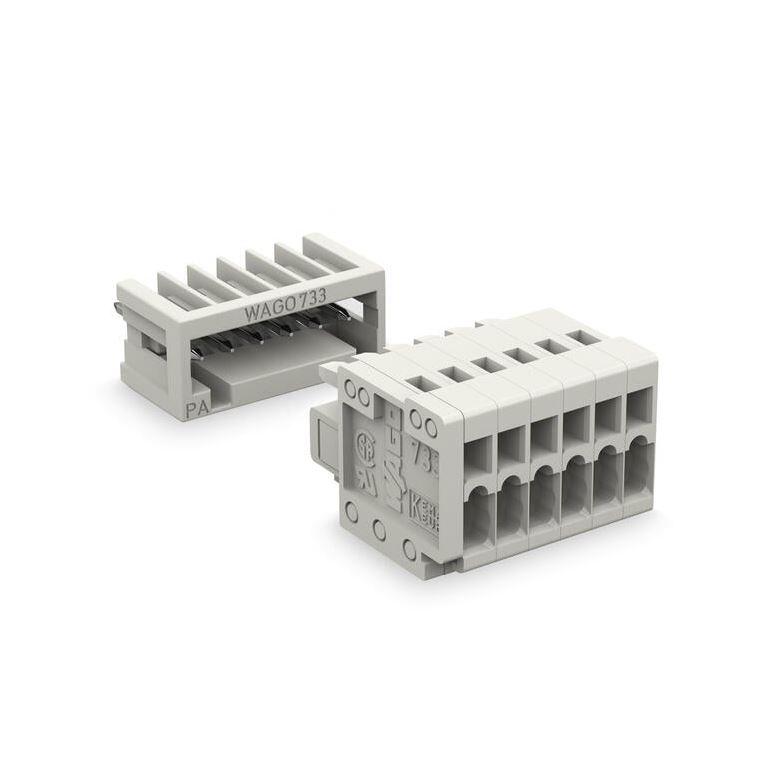

WAGO's MCS MICRO is designed for applications with limited space and accommodates conductors ranging from 28-20 AWG. The connector supports both wire-to-board and wire-to-wire connections, along with custom coding options.

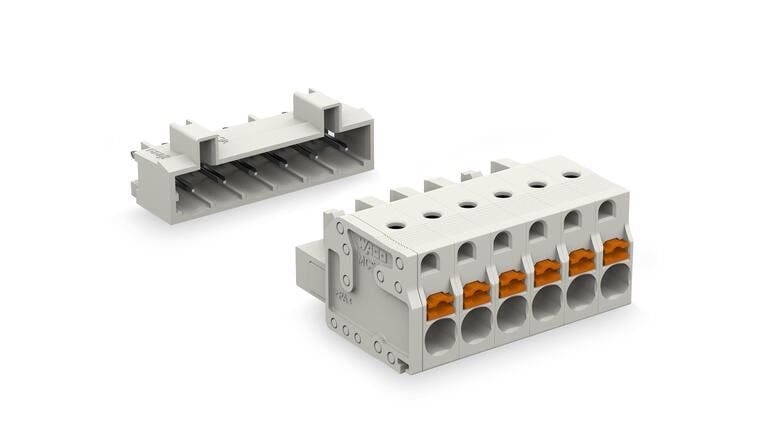

The compact MCS MINI comes with pin spacings of 3.5 and 3.81 mm, with a conductor range of 28-14 AWG. They support wire-to-board, wire-to-wire, board-to-board, and board-to-wire connections, plus custom coding options.

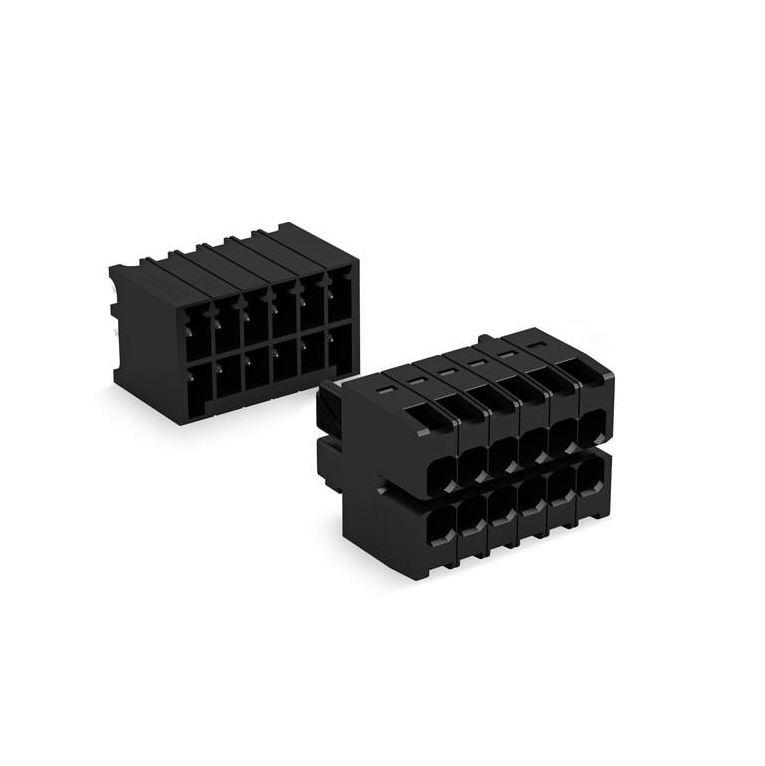

WAGO's double-row MCS MINI HD connectors are designed for high-density connections in confined spaces. This arrangement allows for wire-to-board connections, while optional locking levers prevent accidental disconnection.

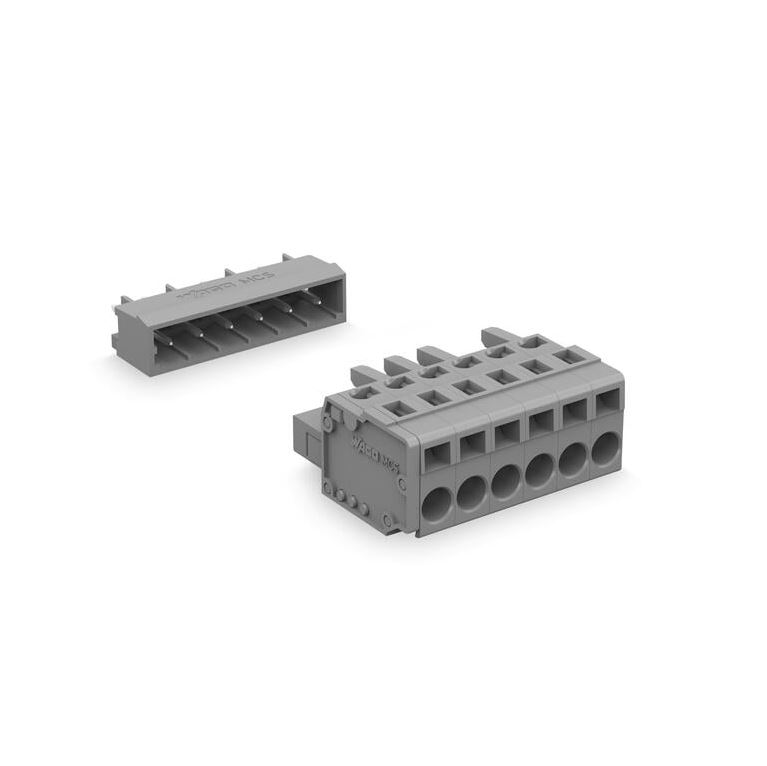

The MCS MIDI Classic connectors are built for standard device connections with pin spacings of 5, 5.08, 7.5, and 7.62 mm. They facilitate cable pre-assembly and on-unit wiring through vertical and horizontal actuation.

WAGO's MCS MIDI offers versatility, reliability, and enhanced safety with 5 and 7.5 mm pin spacing. They allow only connecting halves with the same number of poles to be combined for 100% protection against mismating.

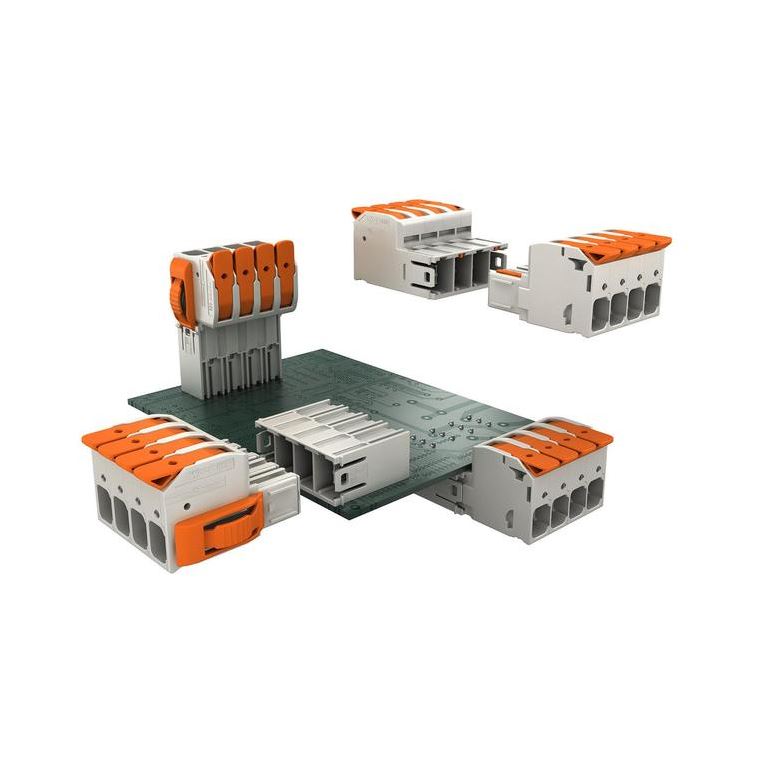

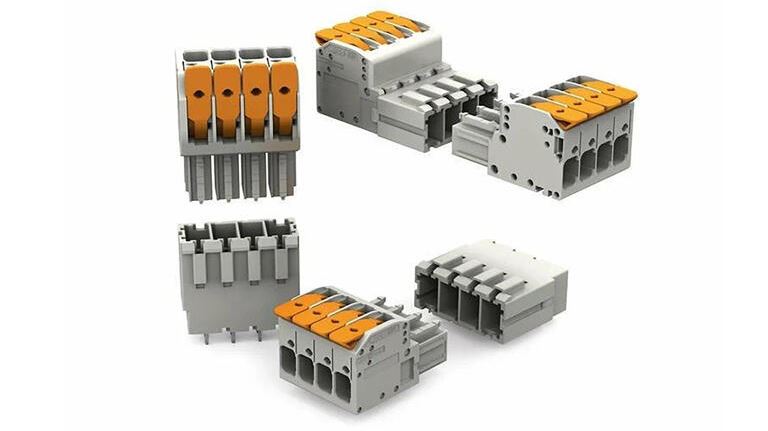

The MCS MAXI 6 connector system enhances the power electronics family with lever functionality for easy wiring. These connectors offer increased current carrying capacity, suitable for higher current requirements.
