Surface Mount PCB Terminal Blocks

Featuring a low profile of just 2.7 mm in height and 3 mm spacing, this terminal block supports conductors ranging from 26 to 20 AWG. It allows for side-by-side assembly without pole loss. In addition to standard wiring, multiple PCBs or LED modules can be effortlessly connected into a single string using board-to-board connection links.

This terminal block features a low profile of 4.5 mm in height and 4 mm spacing, accommodating conductors from 24 to 18 AWG. Push-buttons make it easy to insert and remove all types of conductors. Optimize labor and materials with board-to-board connection links. The THR variant includes solder pins, perfect for THR and wave soldering. Additionally, the 8 mm pin spacing variant supports higher rated voltages of up to 600 V (UL) and 630 V (IEC).

This terminal block boasts a low profile of 5.6 mm in height and 6 mm spacing, supporting conductors ranging from 20 to 16 AWG. Push-buttons facilitate easy insertion and removal of all conductor types. To reduce labor and materials, board-to-board connection links are available. The THR variant features solder pins, making it suitable for both THR and wave soldering processes.

A dependable and repeatable alternative to wire soldering, this housing-less (bare contact) design features easy push-in termination for quick wiring and effortless removal with an operating tool. With a low profile of just 2.7 mm in height, it accommodates conductors ranging from 24 to 18 AWG, maximizing conductor size while minimizing installation space.

Wiring from the back of the LED module simplifies luminaire manufacturing and ensures uniform light distribution. This compact design offers an economical alternative to wire soldering for industrial electronics applications. Additionally, it supports both manual and automated wiring systems.

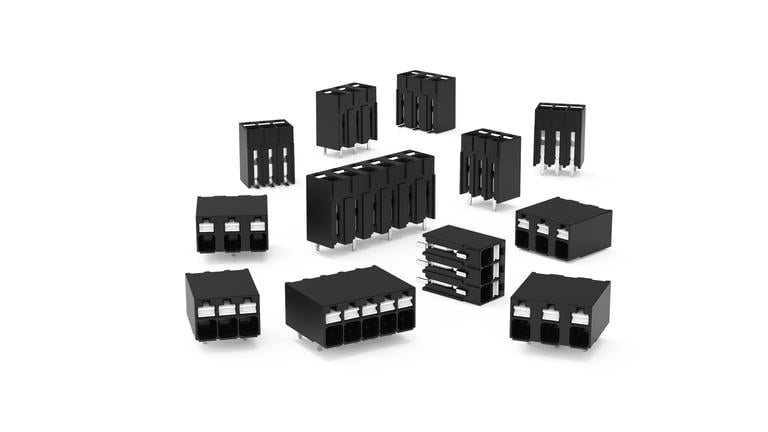

Experience easy handling and versatility in a compact design with the 2086 Series PCB Terminal Block featuring Push-in CAGE CLAMP® and a push-button. Perfect for connecting devices in tight spaces, including panel feedthrough applications, this terminal block supports push-in termination for solid and fine-stranded conductors with ferrules ranging from 24 to 16 AWG. Both SMD and THR variants are available, delivered in tape-and-reel packaging to seamlessly integrate into the SMT soldering process.
