COMPACT Power

The DIN-rail mounting and variable installation of WAGO’s compact supplies provide space and flexibility in control cabinets. They come with wide input and output voltage ranges for domestic and international use.

Overview

Product Overview

Your Benefits:

Wide input voltage range for use internationally: 85 ... 264 VAC
Ideal for industrial and building applications, as well as home appliances per EN 60335-1
Mounting on DIN-rail and flexible installation via screw-mount clips (optional) – perfect for every application
Triple the savings thanks to low purchase costs, easy installation and maintenance-free operation
Front-panel adjustable output voltage via tool

Space and time saving

Compact, space-saving design – ideal for installation in distribution and meter boards
Time-saving pre-wiring via picoMAX® Connectors equipped with Push-in CAGE CLAMP®

Compact and High-Performance

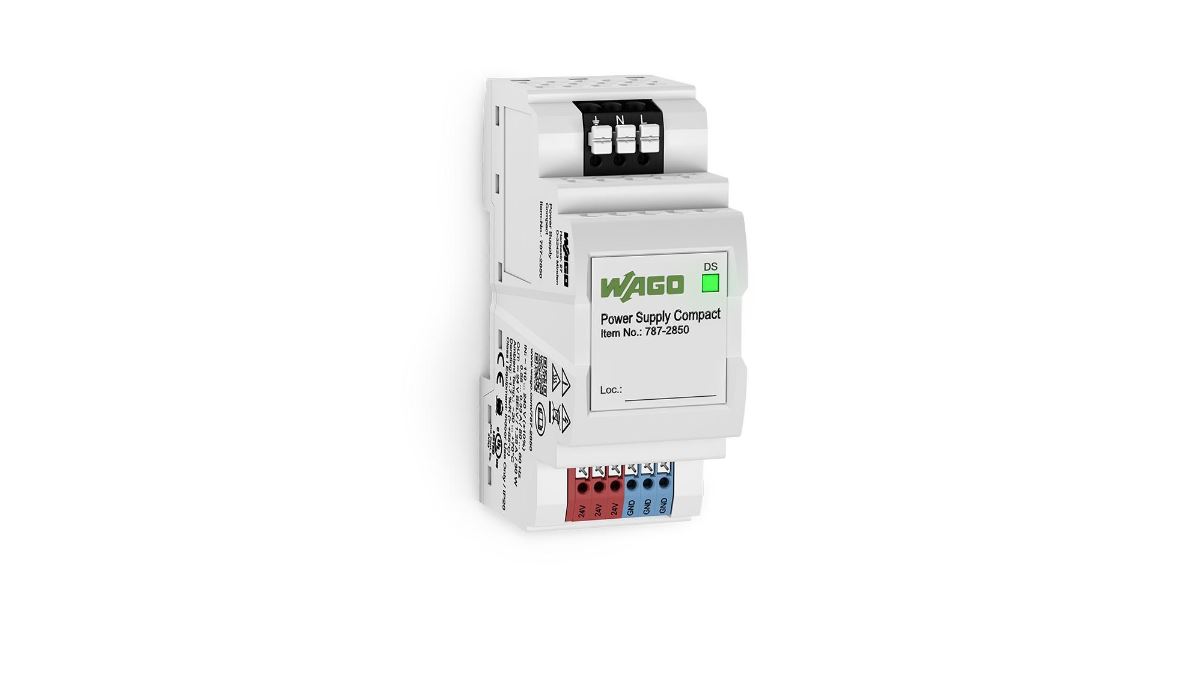

Packing 30 W of performance, WAGO's Compact Power Supply (787-2850) in a DIN-rail-mount enclosure offers a lot of power in a scant 35.5 mm (1.398"). Thanks to the slim design, it saves around 33% more space in the control cabinet and distribution board than standard power supplies.

View product

Housing Designs

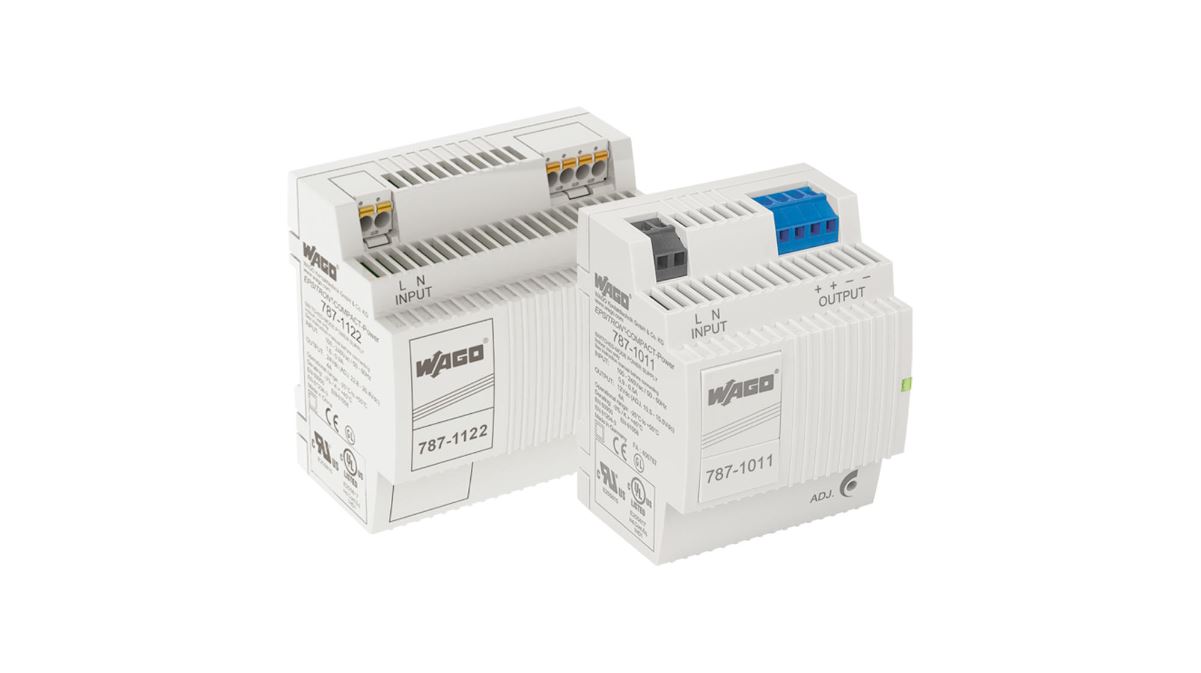

787-10xx / 787-11xx

Housing design per EN 43880, suitable for installation in small distribution boards
Triple the savings thanks to low acquisition costs, easy installation and maintenance-free operation
Vibration-proof, fast and maintenance-free CAGE CLAMP® connections

View 787-10xx Series

View 787-11xx Series

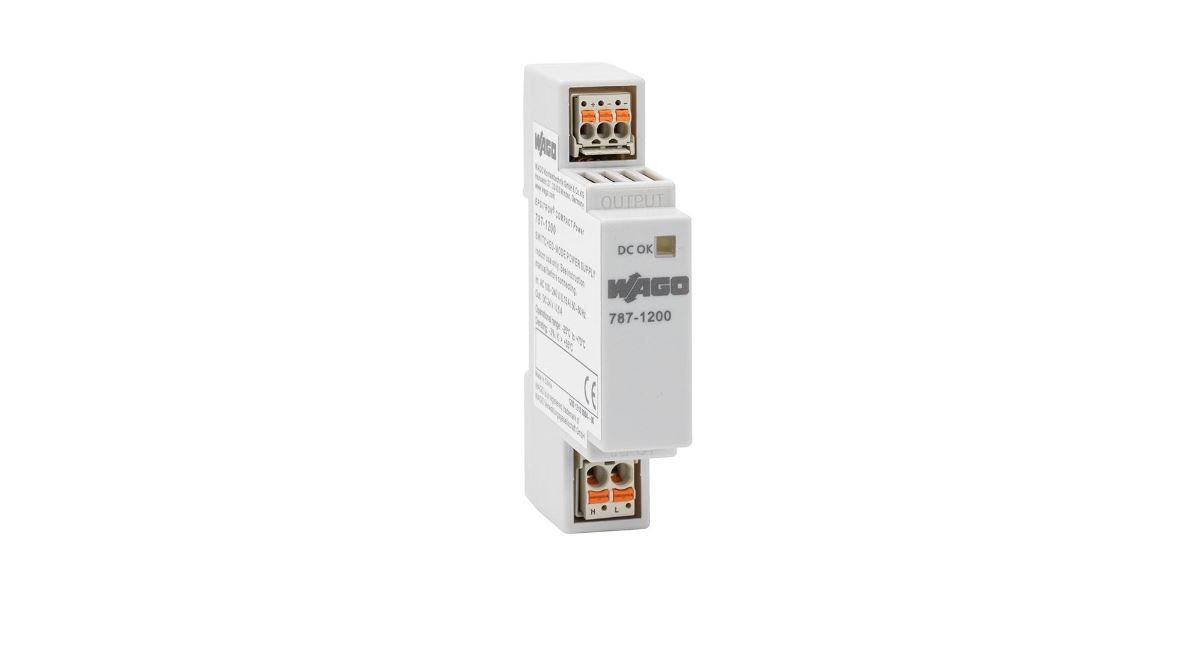

787-12xx

A wide range of options for DIN rail and screw mounting
Ideal for household and commercial appliances that comply with EN 60335 (e.g., heat pumps, combined heat and power plants, as well as vending and gaming machines)
Reliable installation via picoMAX® Connectors with push-in conneciton technology

View 787-12xx Series

WAGO Compact Power Supply – Technical Data
