New Products

WAGO's MULTI CONNECTION SYSTEM for pluggable PCB connections has expanded. Discover the new 1-conductor male header with levers (5 mm pin spacing) and the 1-conductor female connector with levers (7.5 mm pin spacing).

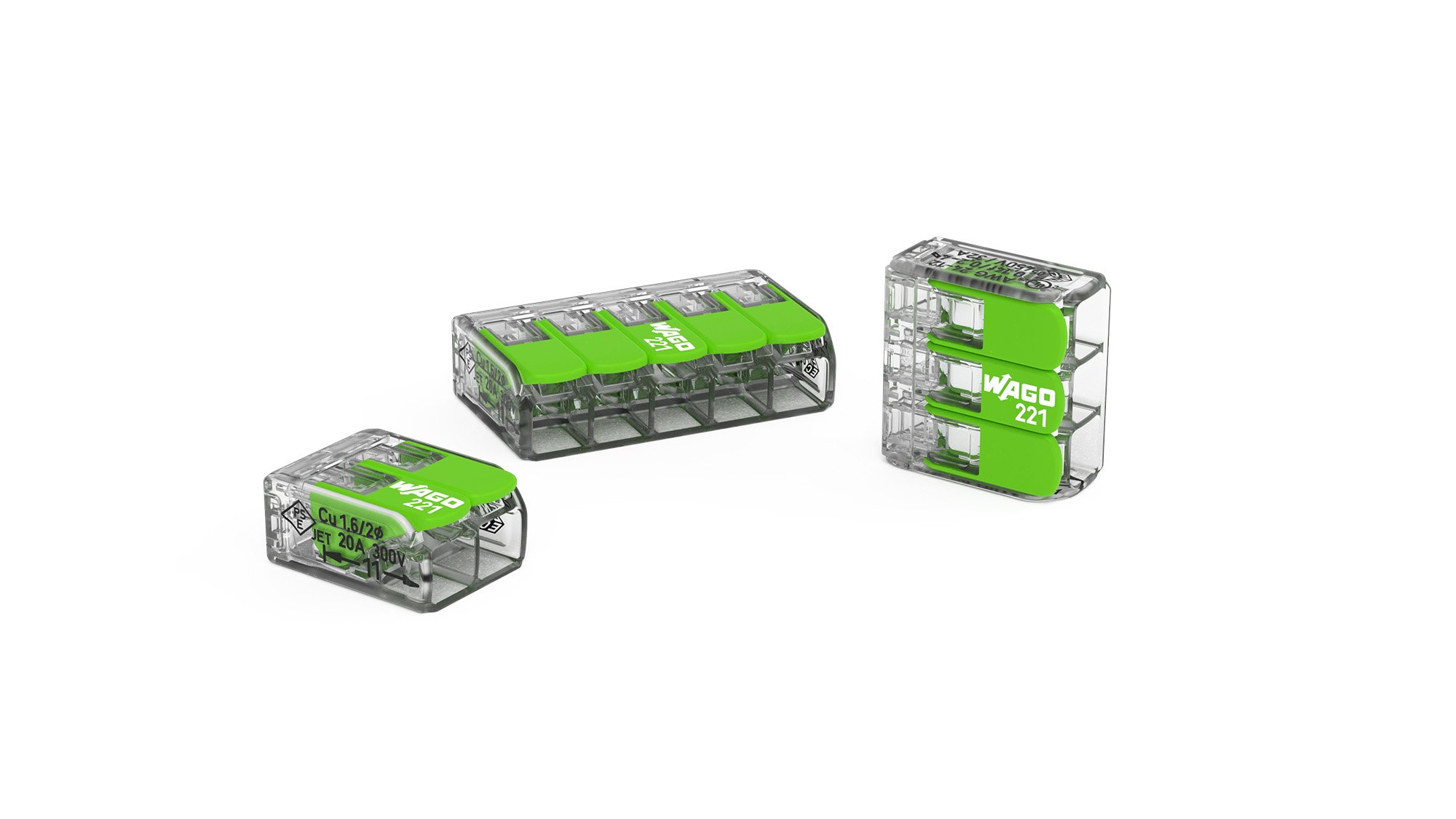

Simpler, faster, safer: These are the familiar features of the 221 Series Splicing Connector. We've rethought that product and developed a variant of bio-circular and recycled plastics. This keeps existing resources in circulation and is a first step on the path to more sustainable products.

Advantages:

• Plastics made in part from post-consumer recycled material (e.g., recycled PET bottles) and bio-based industrial and household waste (bio-circular)

• Reduced consumption of fossil resources

• Same quality and certifications as the familiar 221 Series Splicing Connector

Repair broken cables or extend lines easily? The 2773 Series PUSH WIRE® Inline Splicing Connector helps you achieve this. It can connect conductors from 0.75 to 4 mm² in very tight spaces – no tools necessary. Simply strip the conductor and push it into the unit without tools – the clamping point is quickly and securely connected.

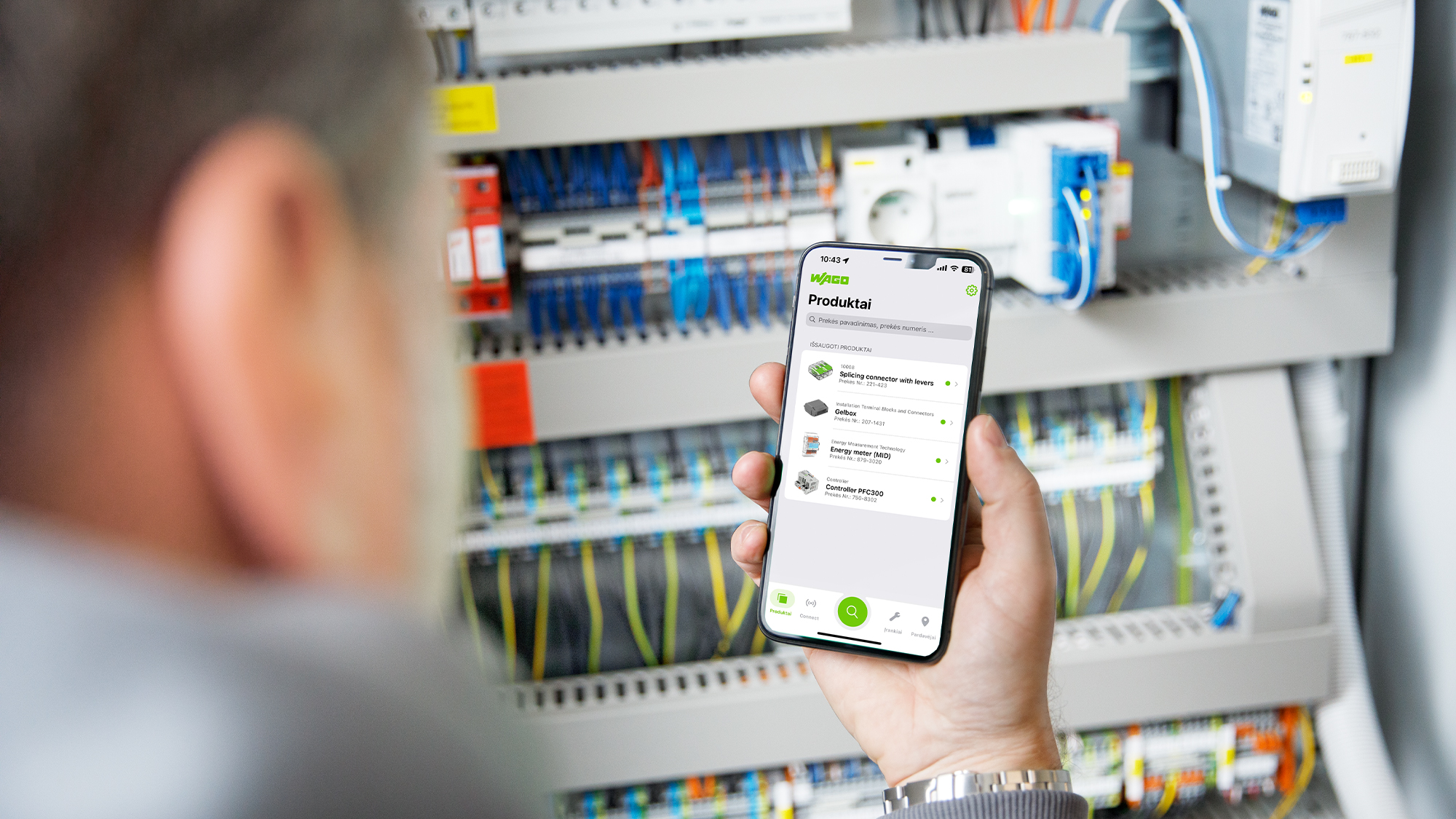

The Everyday Digital Helper for Electrical Professionals.

Helps you to:

• find the correct items for your project

• closest distributors according to your current location

• approvals etc.

• Download for free!


Tailored but cost-effective – this is the core attribute of the WAGO Application Load Management software solution. It allows intelligent, sustainable EV charging with continuous power adjustment and utilization of all available capacity. It also boasts maximum scalability and compatibility with standard wallboxes and charging stations from many manufacturers.

WAGO is expanding its modular building automation system, consisting of engineering software, application solutions and automation hardware, to include a full-scale management and control unit and integrating it into the new WAGO Building Ecosystem. Above all, building operators benefit from the new building management, energy management and environmental reporting functions.

The 2606 and 2616 Series PCB Terminal Blocks now offer a 30° conductor connection option, in addition to the existing 0° and 90° orientations. These terminal blocks maintain the same technical characteristics as their 0° and 90° counterparts and share an identical footprint, allowing for flexible interchangeability in PCB designs. They are ideal for applications such as wallboxes and photovoltaic systems.

• Screwdriver with VDE certification: tested up to 1000 V per IEC 60900

• With practical slip protection

• Rubberized two-component handle for safe, ergonomic handling

The VDE screwdrivers are available in the following variants:

• Slotted

• Cross-slot (PH and PZ)

• Torx^®

• Combination slotted and cross-slot (PH and PZ)

WAGO’s 756 Series M8 and M12 pluggable connectors are available in a variety of pre-assembled cable lengths ranging from 0.3 to 20 meters. With them, a suitable pluggable connector is available for sensor/actuator wiring for every I/O system.

A compact double-deck male header is available for the MCS MINI Connector with levers.

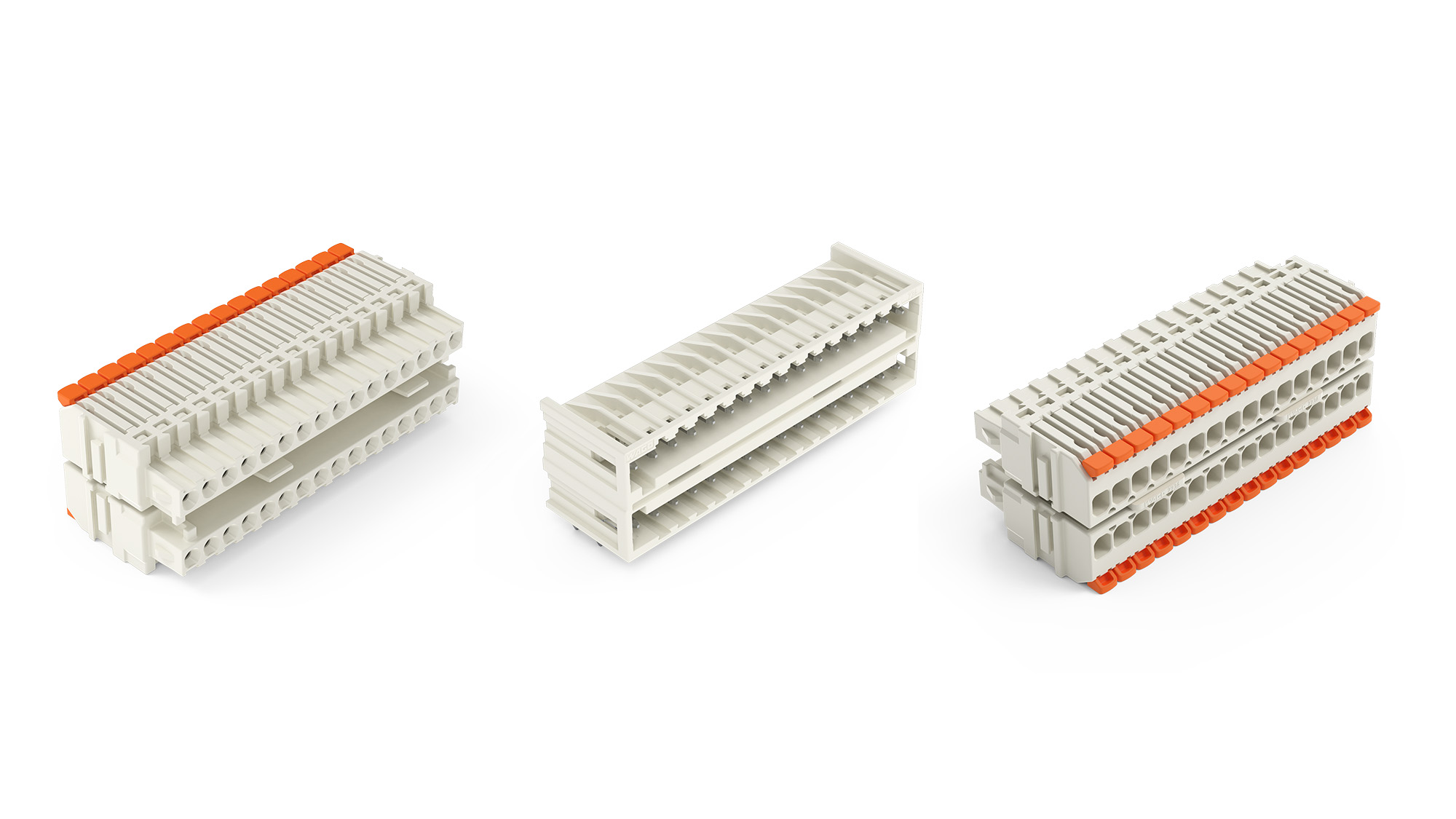

The new version of a 32-pole double-deck male header for the MCS MINI with levers allows I/O signals to be integrated into device fronts in a compact design.

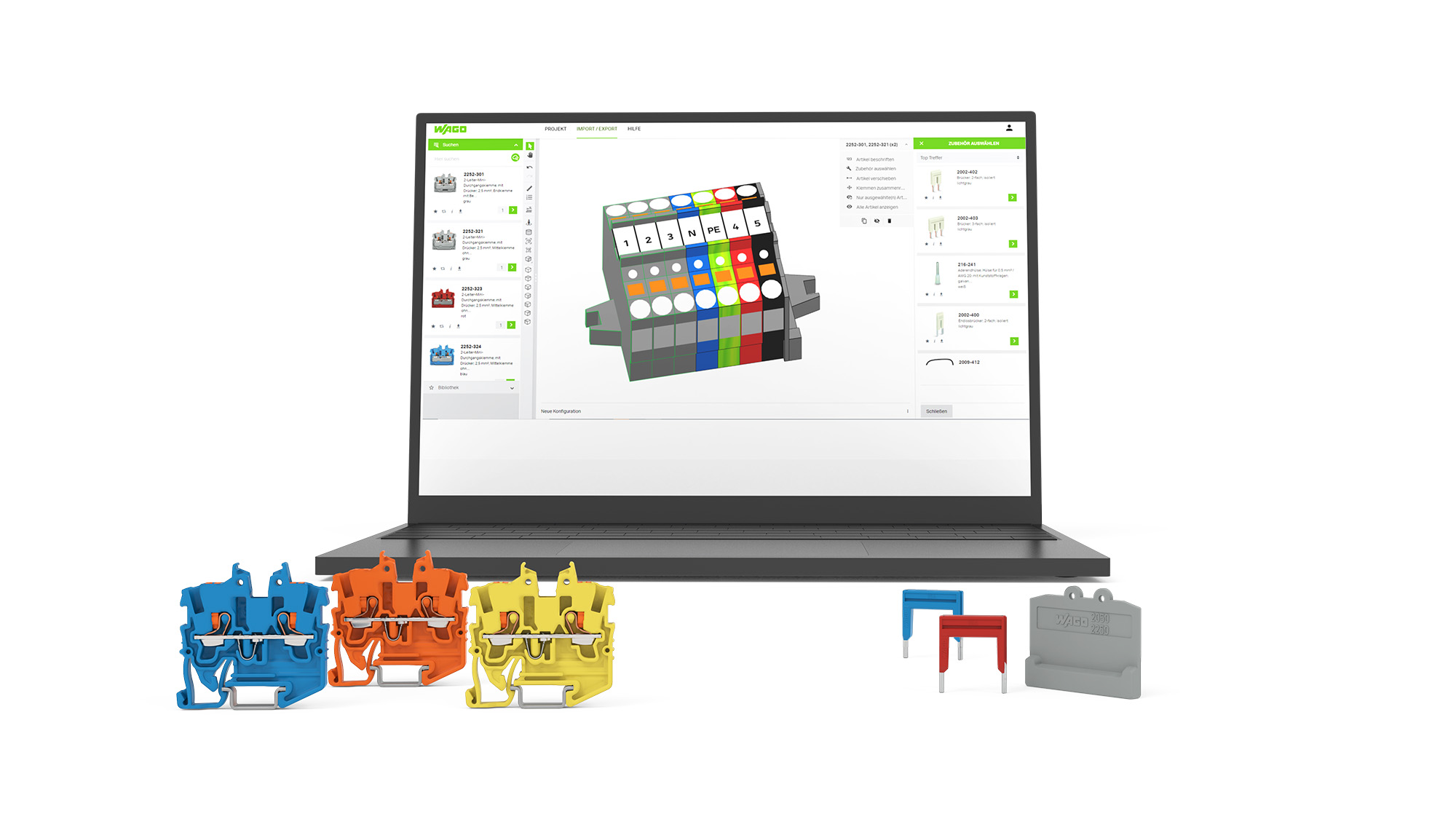

The WAGO Smart Designer configurator has released new features to improve usability and increase process efficiency. These improvements include introducing color selection, expanding price calculation for WAGO’s miniature rail-mount terminal blocks, shifting selection of accessories to the sidebar and adding new functions for project management.

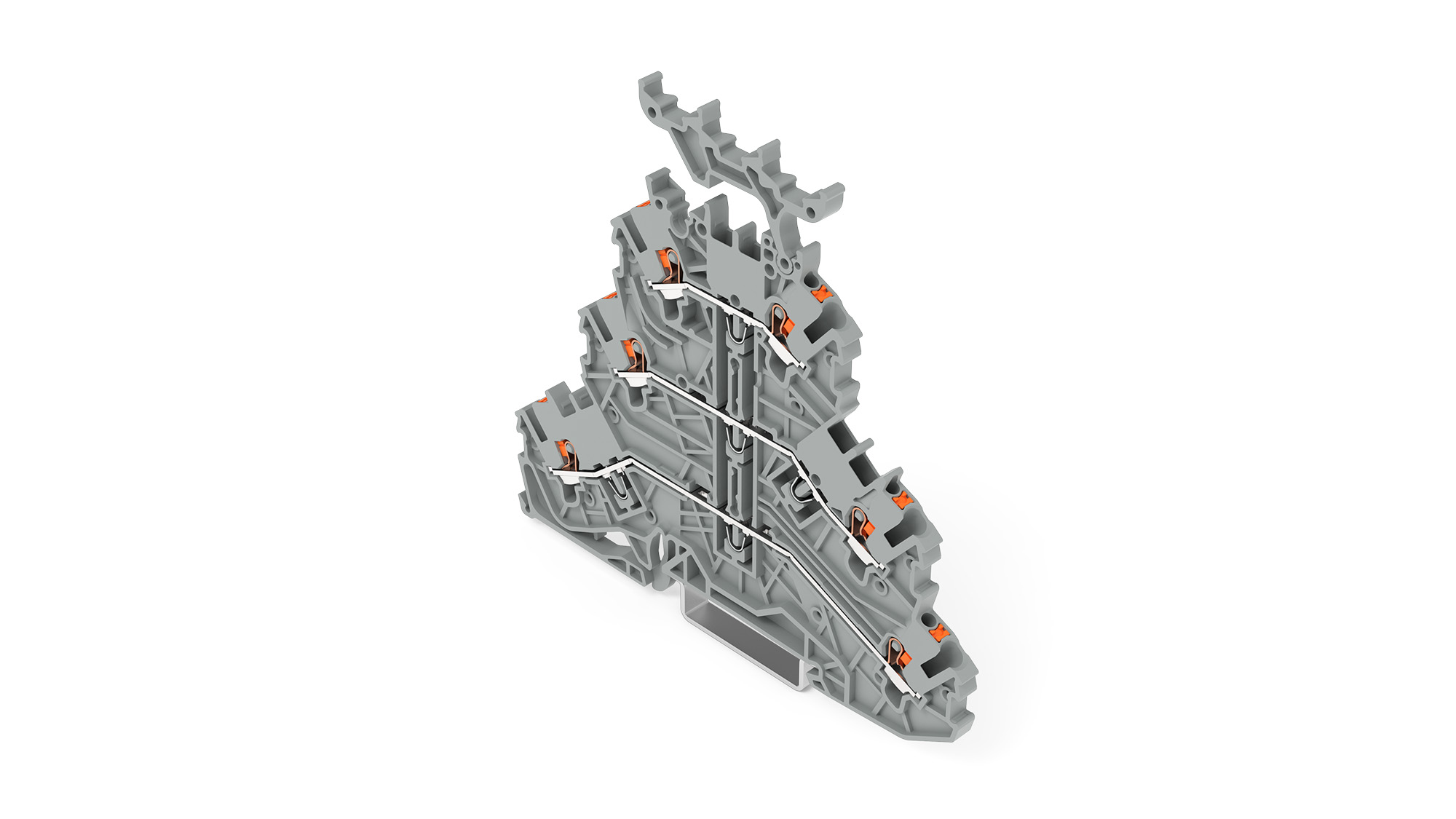

The new triple-deck terminal blocks complete the range of WAGO TOPJOB^® S rail-mount terminal blocks with push-buttons, adding smaller options with nominal cross-sections from 1 mm² to max. 1.5 mm². They are available with or without push-buttons and offer a slim, compact design. Instead of horizontal construction, a vertical design is used to save space.

The WAGO Gelbox is a small, compact box filled with silicone-free gel. The Gelbox is available in nine sizes and provides IPX8 moisture protection for WAGO’s 2273 Series PUSH WIRE® Connectors for Junction Boxes, as well as WAGO’s 221 Series Splicing Connectors and Inline Splicing Connectors with levers.

The digital think tank for WAGO accessories: a collaborative platform; a community for tinkerers, professional developers and WAGO fans

The WAGO Power Supply Base with the industry-proven Push-in CAGE CLAMP® connection provides essential functionality during operation and stands out for its cost-effectiveness. The new devices offer quick, reliable and tool-free connections, along with good efficiency.

The Benefits For You:

• Compact design with durable metal housing

• Front wiring featuring push-in CAGE CLAMP® connection technology

• Wide operating temperature range from -30 °C to +70 °C

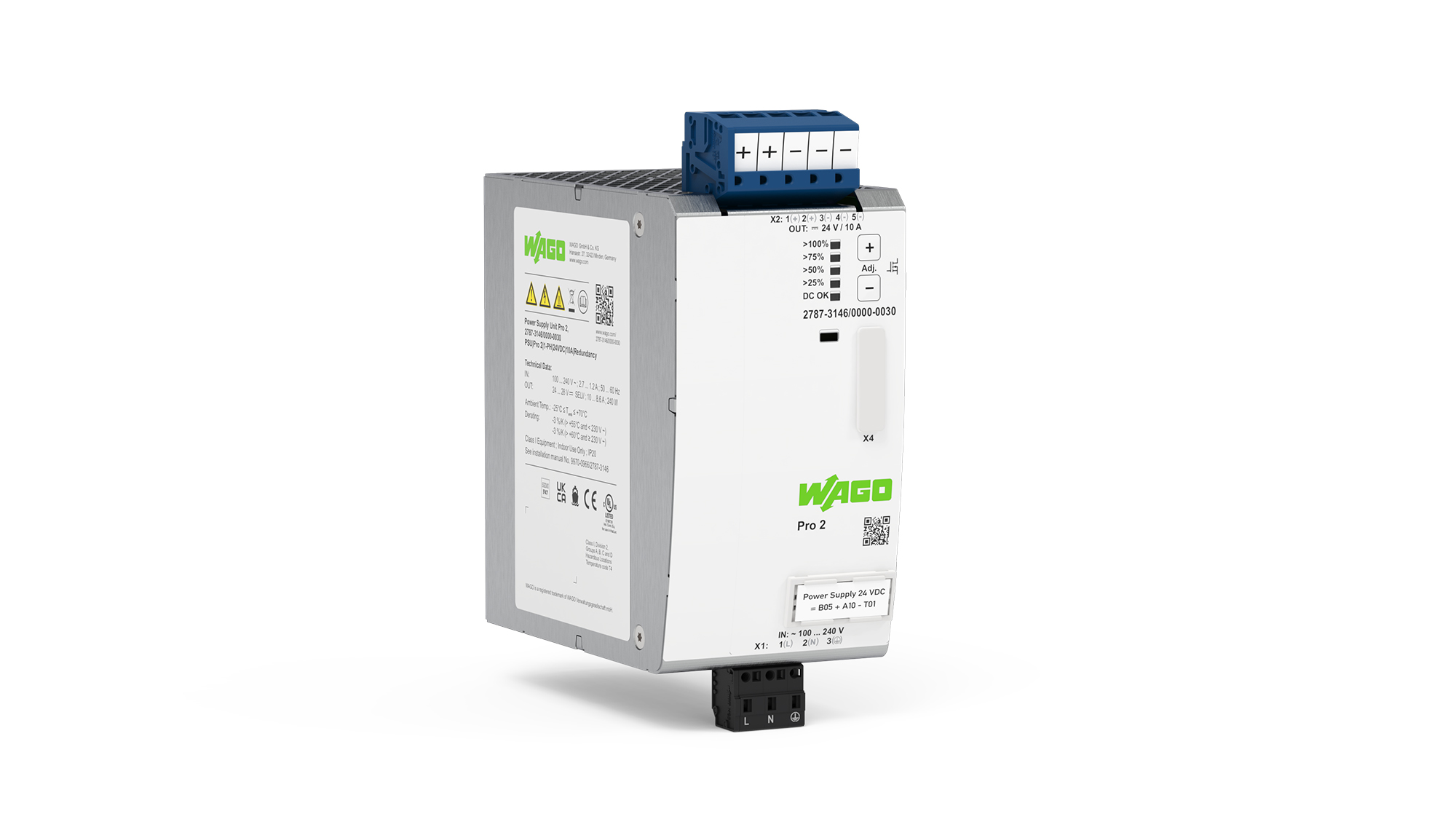

To guarantee maximum system availability, power must be available for the corresponding system parts under all circumstances. Our WAGO Pro 2 Power Supplies with integrated MOSFET functionality let you set up redundant power supply systems, which can also be monitored continuously via communication modules. Modbus TCP, Modbus RTU, IO-Link and EtherNet/IPTM are available as protocols for communication with higher-level control systems.

Our single-channel ECBs give users maximum flexibility, both in the number of required channels and in the selection of individual functional properties of the ECB.

Eight different single-channel ECBs are available for selection. The channel width of just 6 mm also minimizes the space required.

The new Modbus TCP module allows direct connection of our MID energy meters without additional wiring effort, providing the perfect extension to the standard Modbus RTU interface.

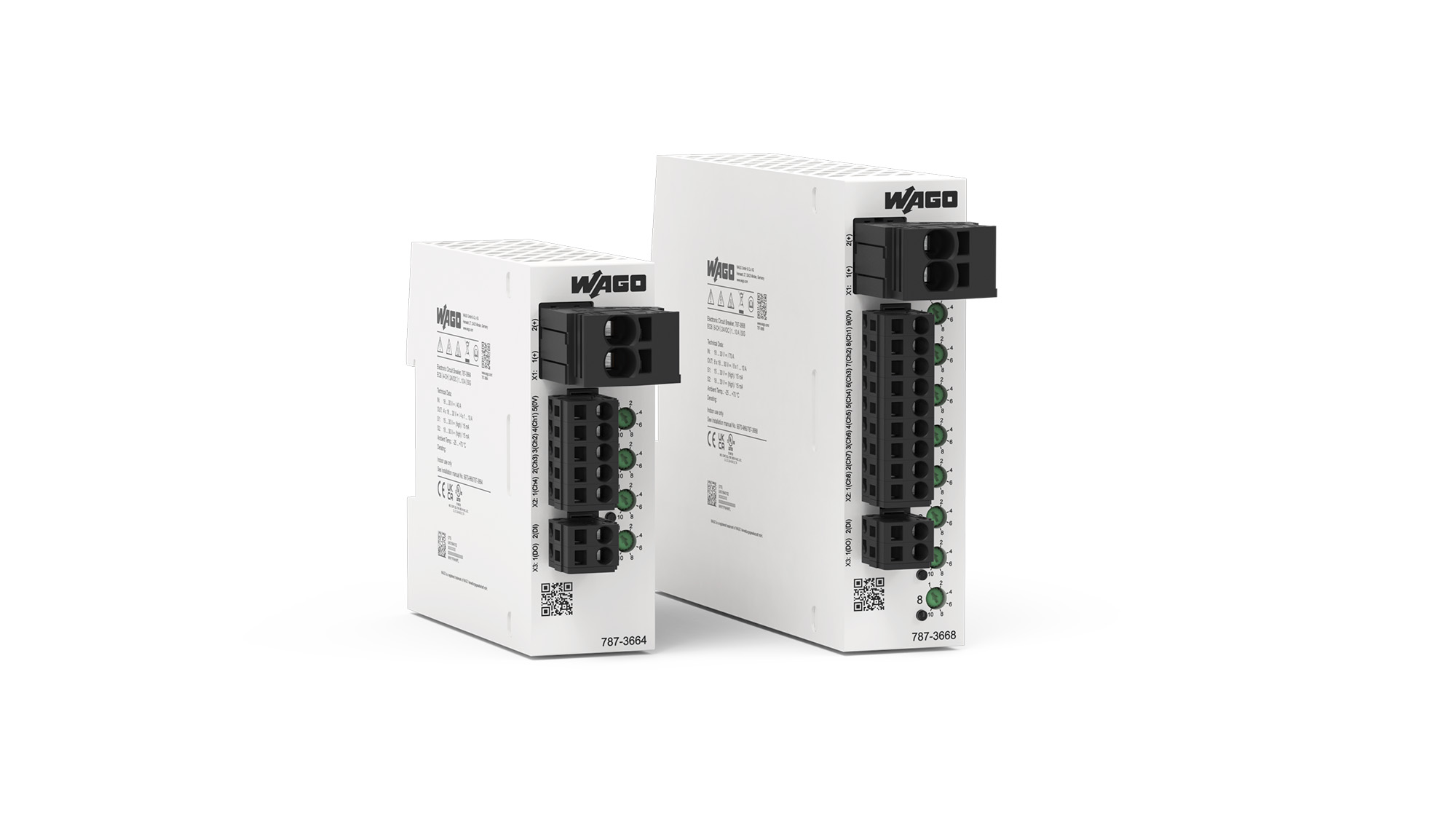

WAGO’s new ECBs for 24 VDC, with four and eight channels, are used in all industries with sensors and actuators and other electrical loads in the 24 VDC range. These include the process and manufacturing industries, automobile production and power engineering. At 32 mm wide, the compact multi-channel modules are the slimmest ECBs available on the market.

In buildings, efficient shading control on the facade is fundamental: The new WAGO Sunblind Box (8DI/DO) helps easily operate building shading and, combined with control devices such as the WAGO Compact Controller 100, enables decentralized control of curtains. As the first product of the WAGO Building Ecosystem, it can also be parameterized quickly and easily via the WAGO App.

Not only up-to-date, but also everything at a glance – with the WAGO Navigator, users can find everything important for WAGO's engineering apps in one place. Thanks to an update, the WAGO Navigator’s new appearance now features a user interface that serves as the starting point for use of all installed WAGO software programs.

The PFC300 is designed for demanding applications in machine, process and building environments. Equipped with 2 GB of RAM and a 64-bit processor, it delivers high performance and reliability for large-scale operations.

• Programmable with CODESYS (IEC 61131-1) on a Linux^® operating system

• Comprehensive security functions

• Dual-core processing

• USB-C service port

Flexibility and openness are key drivers of automation. That’s why WAGO values strong partnerships – successful development of Industry 4.0 solutions can only be achieved through collaboration.

The demands on modern automation systems are steadily increasing: More and more computing power is needed right in the field for optimal data use. WAGO offers solutions with the Edge Controller 400, which is tailored to the Linux®-based, real-time-capable ctrlX OS technology. The devices require little space, can be easily integrated into existing systems and process applications directly on the machine. Using ctrlX app technology, the Edge Controller 400 can be flexibly adapted to the specific task.

Your Benefits:

• Control and data processing in one device

• With ctrlX OS – the Linux^®-based operating system

• IoT-ready thanks to MQTT and OPC UA

• Comprehensive app selection for ctrlX

WAGO’s Basic Controller 100 makes engineering with CODESYS V3 possible. This enables 750 Series Compact Controllers, which are primarily designed for small-to-medium-sized automation applications, to work with the latest version of the IEC 61131-3 development tool.

WAGO’s TOPJOB^® S Rail-Mount Terminal Blocks have a long-standing reputation for ensuring safe,maintenance-free system operation in a wide variety of industrial applications and building installations.

With the new Eco Power Supplies (item numbers 787-2742 and 787-2744), WAGO offers a series of economical power supplies for standard 24 VDC applications for DIN-rail mounting.

Everything from a single source: In addition to the PFC100 and PFC200 IoT Controllers, WAGO is expanding its digital performance portfolio with the new WAGO Cloud.
