Data, Software Tools and Interfaces

With smartDATA, WAGO offers customers the continuous data flow, software tools and interfaces they need along their processes. These processes include electrical and mechanical planning, as well as the ordering and production of configured or individual products.

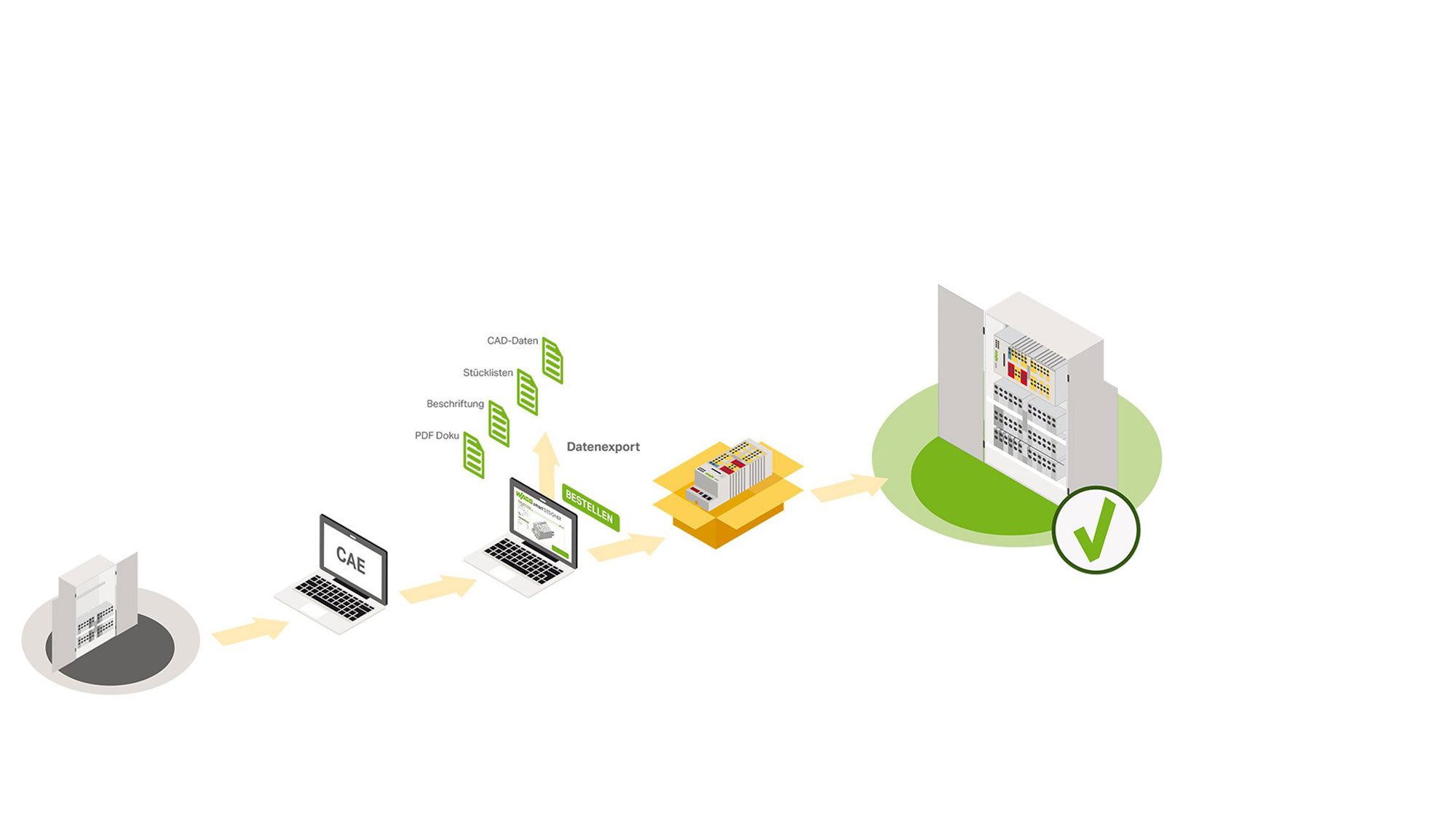

Engineering Processes

From planning to delivery, WAGO offers digital solutions to streamline your engineering processes:


1) Planning

Plan your projects via CAE software or WAGO e!COCKPIT. Your data is directly imported into the smartDESIGNER online product configurator.


2) Project Engineering

The smartDESIGNER product configurator enables true 3D configuration of WAGO’s electrical interconnect and automation components, including the TOPJOB® S Rail-Mount Terminal Blocks, WAGO-I/O-SYSTEM 750 and SPEEDWAY 767. In addition to pre-assembled products, you receive all relevant product and process data for documentation.


3) Designing

An extensive product portfolio of individual WAGO items may be downloaded at CAD product data can be transferred from here easily and quickly to customers' designs. Whether 2D or 3D data in a neutral CAD format or in the user's CAD system format, the online portal provides data that fulfills these requirements. In addition to geometry data, technical and commercial item data is also transferred to the CAD target system or to the PLM/ERP software.


4) Ordering

Benefit from ordering configured products to minimize your storage and assembly costs as compared to specifying individual components. An end-to-end process chain reduces throughput times and elevates quality standards for individual projects.


5) Item Creation

For automatic item creation, smartDESIGNER provides data to the Product Life Cycle Management System. This adds relevant information to the configured product – for example, ETIM and [email protected] classification data, as well as information on the packaging type and unit. The order is further processed by the Enterprise Resource Planning System (ERP).


6) Production and Delivery

Production at WAGO is completely software-based and transparent from start to finish for every employee who needs access to the ordering and production processes. Assembly and production of real components or component groups based on virtual templates reduce throughput times and ensure on-time delivery.
