221 Series Inline Splicing Connector with Levers

As a universal connection technology, the 221 Series Inline Splicing Connector’s compact dimensions not only improve current installations, the small footprint also allows for a wide variety of new applications, such as the inline connection of installation lines in junction boxes (e.g., for light connection in suspended ceilings).

Not life-prolonging but line-extending: The 221 Series Inline Splicing Connector connects all types of conductors from 0.2 to 4 mm² simply, quickly and safely in the inline connection direction. This makes it ideal for flying leads, for example when it comes to speaker wiring.

Whether in devices or on DIN-rails – the adapters for the 221 Series Inline Splicing Connector provide completely modular mounting. Users get the flexibility of having five fixed-position poles in one adapter – whether it’s with or without strain relief, on DIN-rails with a snap-in mounting foot, for screw mounting, adhesive mounting, tie-on mounting or suspended mounting.

Pull the lever up, insert a conductor and push the lever back down! The slim 221 Series Inline Splicing Connector is a universal tool that's ideal for lab and test setups or production test stands – and does not require the use of any tools while providing visible confirmation of conductor contact. Disconnecting conductors is just as quick and easy: raise the lever, remove the conductor, lower the lever.

Whether it's DIN-35 or DIN-15 rail – in the appropriate adapter, the 221 Series Inline Splicing Connectors can be easily snapped or screwed onto both DIN-rails, for example in junction boxes, for distribution expansion or for other standard connections and in DIN-rail mount equipment.

Reducing pull-out forces on conductors – that's what the mounting adapters for the 221 Series Inline Splicing Connector with integrated strain relief make possible. They are ready for use wherever cables need to be secured against pull-out forces and movement – whether as a preventive measure or in unexpected situations.

Pull the lever up, insert a conductor and push the lever back down – that’s all! The 221 Series Splicing Connector connects solid, stranded and fine-stranded conductors easily, quickly and safely.

Condensation, heavy precipitation, powerful water jets: When moisture meets electricity, a short circuit can happen quickly. And encapsulation has been widely used to shield electrics from moisture. But now, reliable moisture protection for splicing connectors can be achieved even faster and easier with the WAGO Gelbox. It is ready for immediate use in a wide range of low- and extra-low voltage applications.

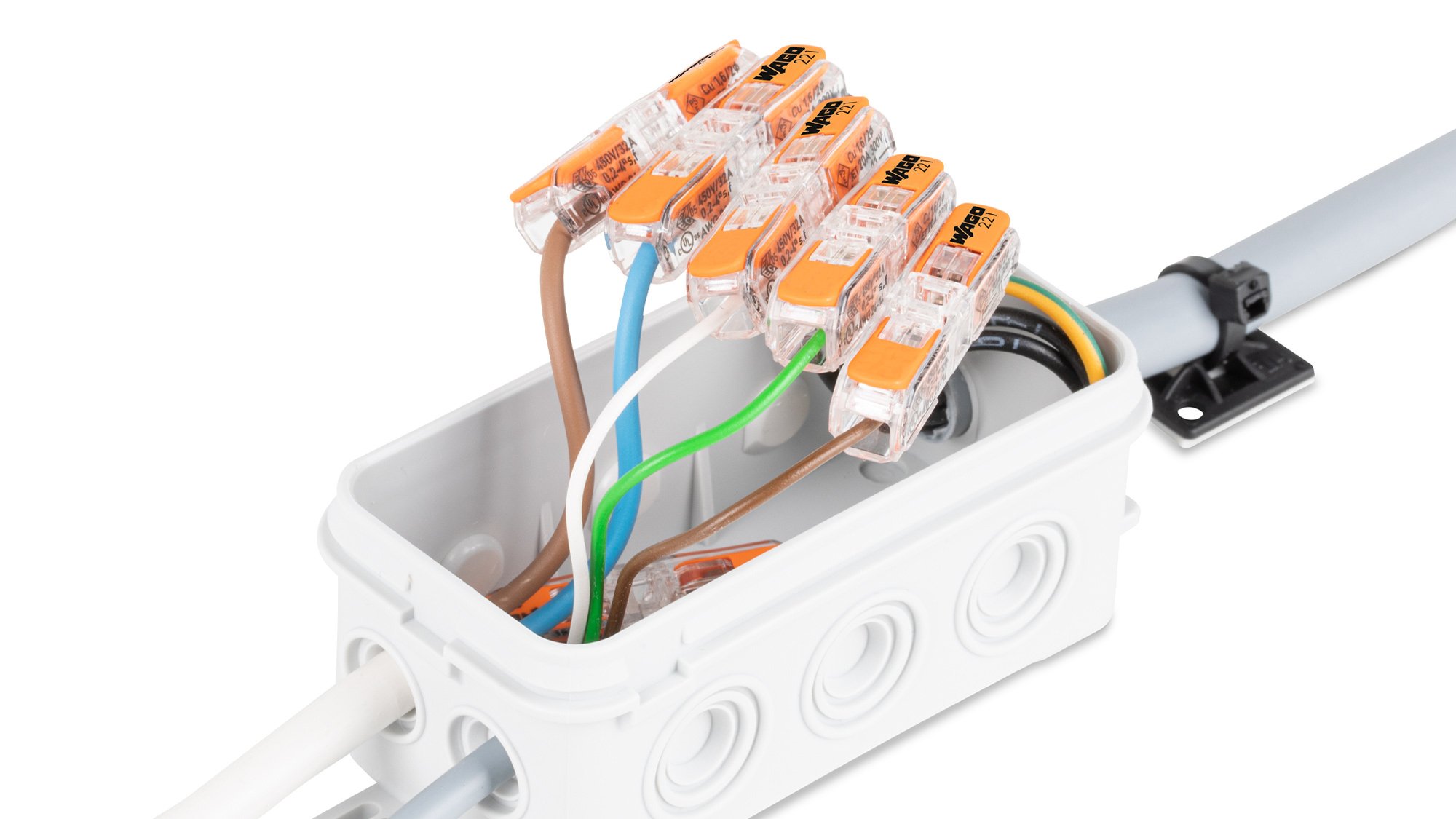

It doesn't matter if you're connecting light distribution or heating systems, things can get confusing wherever multiple cables meet. WAGO’s junction box helps you connect up to 60 conductors with WAGO’s 221 Series COMPACT Splicing Connector for all conductor types up to 4 mm² (12 AWG).
