Faster Connection: Pluggable Connectors

The WINSTA^® Pluggable Installation Connection System finds a home anywhere installation requirements repeat or are planned on a grid, e.g., installing grid lighting or flush-mount lighting. Thanks to this pre-assembled connection system, assembly times and installation errors on the construction site are both reduced.

Advantages:

• On-schedule completion within the shortest time via pre-assembled cables and pluggable connectors

• Guaranteed protection against mismating through mechanical and color coding options

• Simple troubleshooting and quick replacement of pluggable connected loads

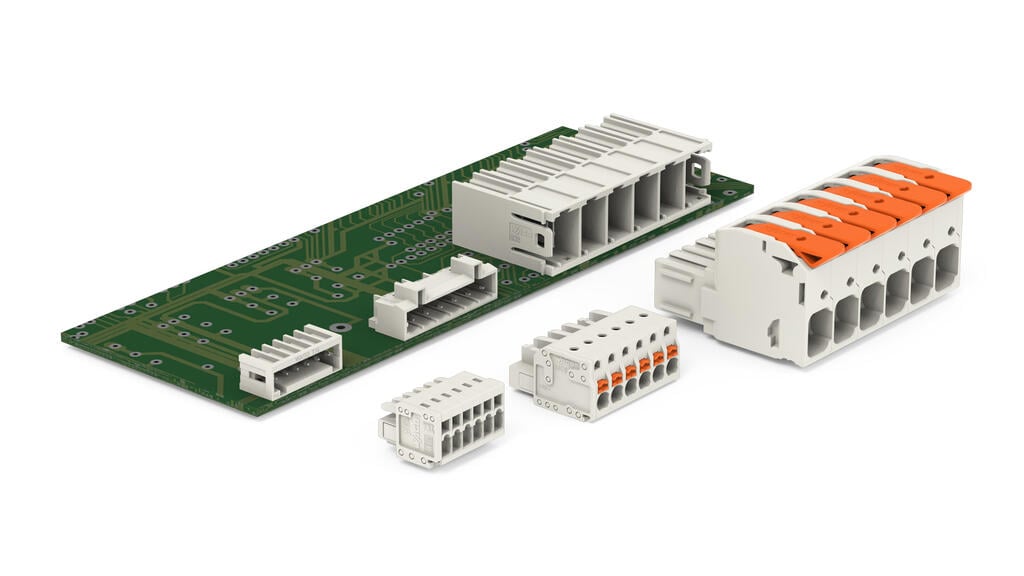

Our pluggable connectors for PCBs provide a universal pluggable connector system for your devices and meet all requirements for consistent, end-to-end system wiring for conductor cross sections from 0.08 to 10 mm² (28–8 AWG). You benefit from our diverse product lines, since you can always find the right solution for your application.

Benefits:

• A wide range of applications thanks to: Pluggable PCB connectors, panel feedthrough connectors, flying connections for different mounting types and pluggable connectors for rail-mount terminal blocks

• Push-in CAGE CLAMP^® termination of both solid conductors and fine-stranded conductors with ferrules

• Custom coding options

• Efficient test options

• With a clamping point that can be opened from two directions, the MULTI CONNECTION SYSTEM (MCS) greatly simplifies pre-assembling cables and wiring mated connectors.

WAGO’s range of connectors for lighting and electrical equipment includes pluggable connector systems with phase selection for fluorescent lighting fixtures, as well as luminaire disconnect connectors for internal wiring.

WAGO’s 267 and 277 Series Pluggable Connectors for quick-mount light band systems offer a modular platform for simple lighting solutions tailored to the specific requirements – even when the application requirements change.

Benefits:

• WAGO’s 873 Series Luminaire Disconnect Connectors are fully protected against accidental contact.

• This makes them the ideal solution for pluggable ballast connecting cable installations in the USA and Canada.

Enjoy the advantages of the X-COM^®-SYSTEM with mismating protection for your switchgear and control applications. Our innovative system consists of DIN-rail carrier terminal blocks, male headers and female connectors for different mounting types and male headers with solder pins.

Advantages:

• Time and space savings thanks to pre-assembly of pluggable cable harnesses

• Pre-assembly for quick and error-free replacement of sub-assemblies

• Coding without pole loss prevents mismating of male headers and female connectors with the same number of poles

• For your safety: Pre-wired sub-assemblies can be tested before installation

Discover all the products from the pluggable connector range.
