WAGO Configurator Smart Designer

The planning process for electrical switchgear units is becoming more digitized and automated to make the engineering process as efficient as possible. The basis for this digitalization is the switchgear unit’s digital twin. The WAGO Configurator Smart Designer supports you in designing your circuit configuration online as quickly and easily as possible to suit your needs. In particular, it offers the following functions:

  • Data interfaces to CAE tools (e.g., EPLAN, WSCAD, ZUKEN E³, Strieplan)

  • Configuration wizards

  • Data export to WAGO Marking Software Smart Script for printing the marking

  • Worker assistance view to aid assembly

  • PDF documentation for customers

  • Configuration ordering (through wholesaler or directly from WAGO)

Go to Smart Designer

Digital Engineering for Greater Efficiency

News

Enhanced User Interface

  • More intuitive and faster configuration of DIN-rails and other components (e.g., for control cabinets)

  • Improved access and organization within the Microsoft 365 environment

  • Many new features, including an extensive library of updated configuration templates for customized applications

  • Enhanced usability on tablets

Functionalities

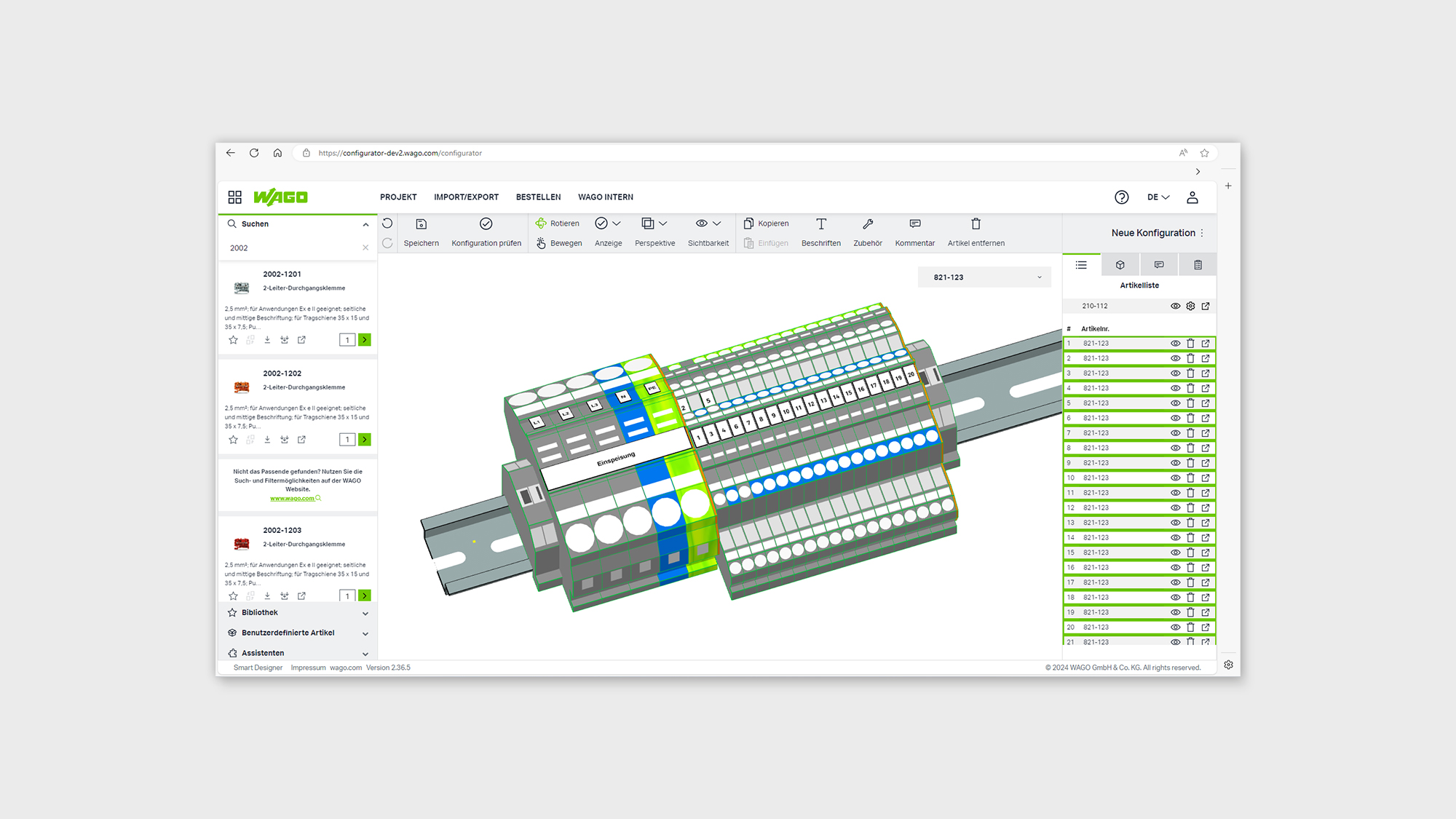

Free or Wizard-Guided Product Configuration

The WAGO Configurator Smart Designer offers various configuration options depending on what you need:

  • Import from CAE tools

  • Integrated configuration wizards

  • Project templates

  • Free configuration

Go to Smart Designer

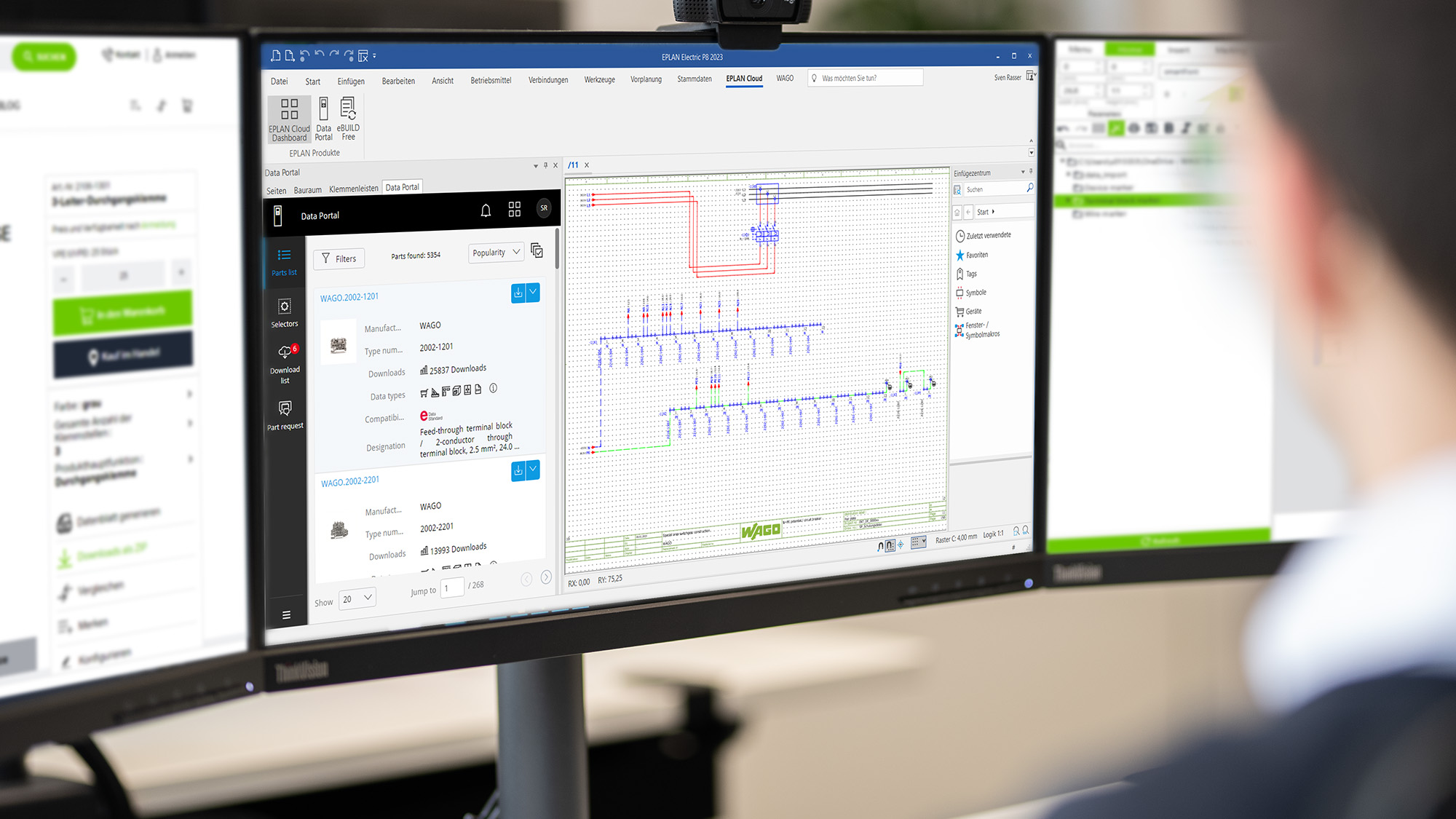

Product Configuration through CAE Imports

If you use a CAE tool in the engineering phase at the start of your circuit planning process, you can easily transfer the planning to our WAGO Configurator Smart Designer via our import interfaces. There you can continue to design the marking and accessories and transfer the results back to the CAE environment.The following CAE tools are supported:EPLANZuken E³WSCADStriePlan (version 5.0 and above)

Go to the CAE interfaces

Marking: from Configuration to Printing

Terminal block marking is an installer’s signature.

With our three-line marking strips for the TOPJOB® S portfolio, we offer terrific options for clear, structured printing on the connection poles of the terminal strips. After visual configuration in Smart Designer, the data can be exported easily to our WAGO Marking Software Smart Script and then printed on the WAGO Thermal Transfer Smart Printer – and the entire process is implemented digitally.

Go to the marking software

Complete Data Export for Further Engineering and Documentation

After configuration, your order processing is not yet complete. Therefore, we also provide all the configuration data in a complete data packet afterwards:

  • CAE, CAD

  • Product data sheets

  • Certificates

Your benefit: You can use these for your customer’s documentation, as well as for the subsequent CAD design of the complete product

How-to Videos

Configuration of PCB Connectors

  1. 00:01

    Configuration of PCB Connectors

  2. 00:02

    Configuration of Rail-Mount Terminal Block Assemblies

  3. 00:01

    Efficient Configuration of Potential Distribution Modules

  4. 00:00

    Rapid Export from EPLAN

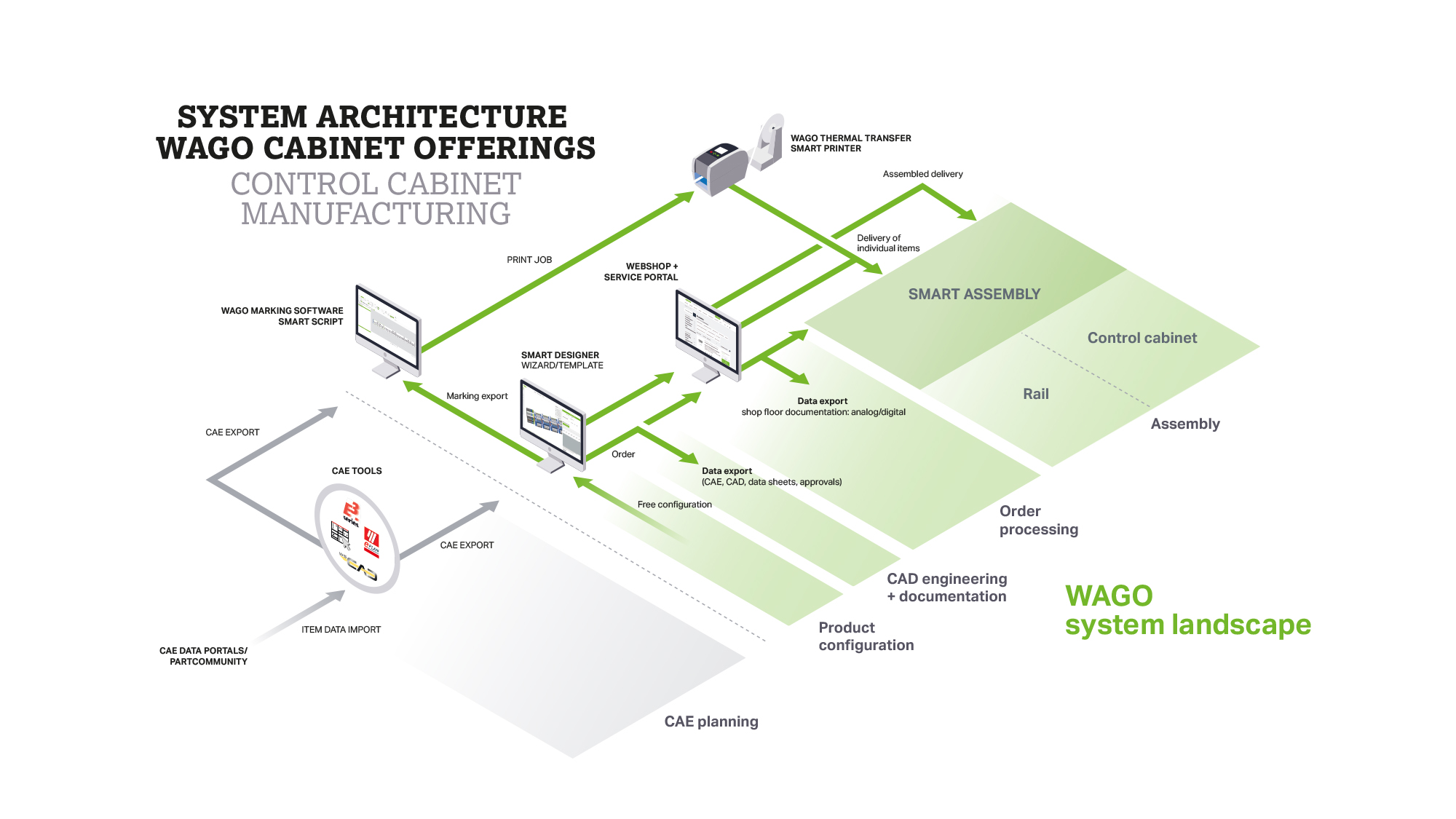

WAGO Configurator Smart Designer System Integration
