WAGO Web Panel 400

The WAGO Web Panel 400 features a high-quality design. A continuous glass front, combined with a bonded display, ensures razor-sharp visualization.

Thanks to integrated PCAP touch technology, multi-touch gestures – such as zooming – are supported. These gestures simplify navigation and operation of the visualization. This cost-effective Web panel combines excellent operability with high-performance visualization.
Key Benefits:Cost-effective with maximum performancePower supply via Power-over-Ethernet (PoE)High-quality design

Display brochure

Show product list

An Aesthetic Design Meets High Performance

Dual-core Cortex®-A53 CPU (64-bit), 1.4 GHz

64-bit quad-core processor

Display with optical bonding and PCAP touch

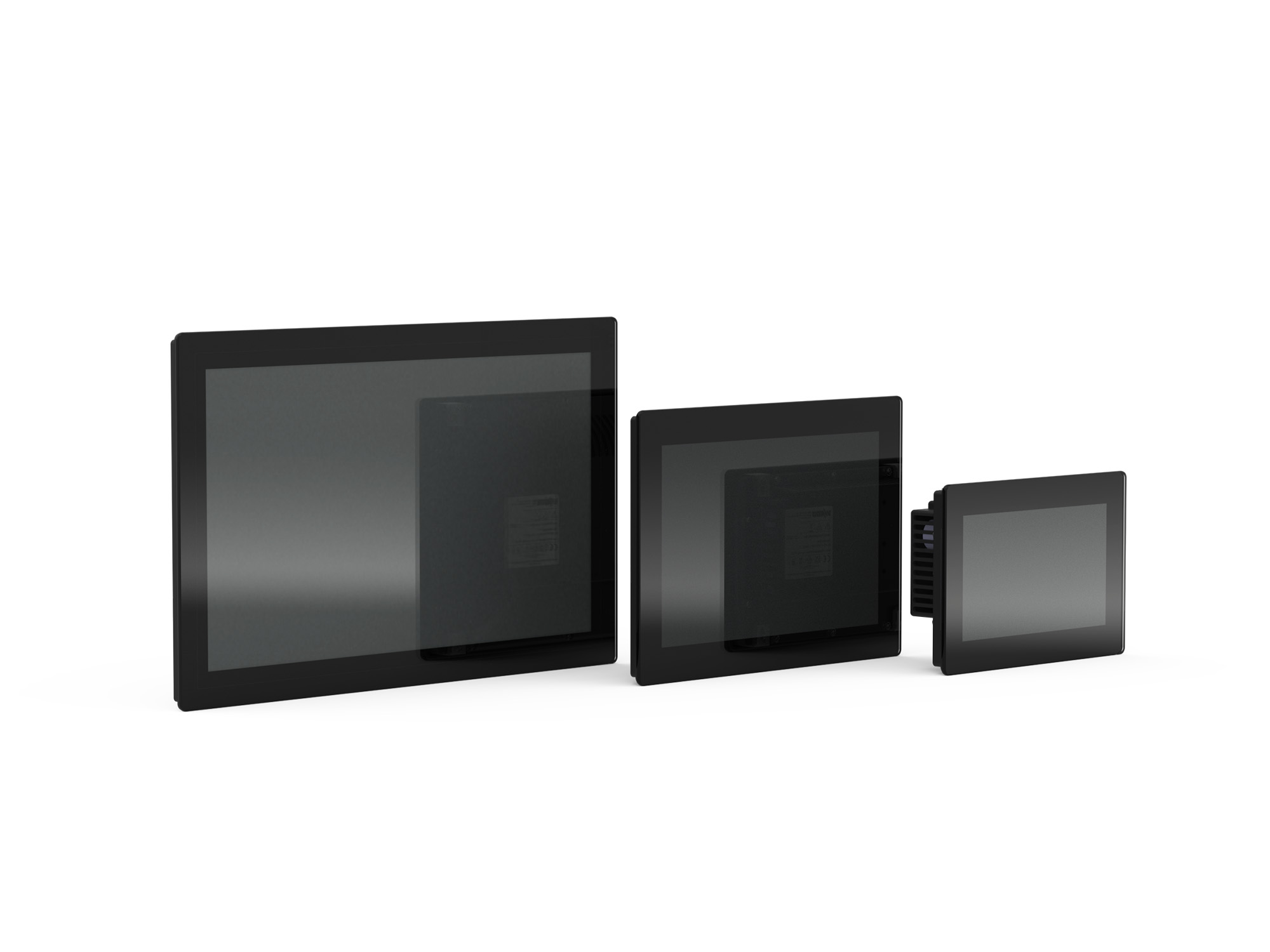

Available sizes: 7.0″, 10.1″, 15.6″

Power supply via Power-over-Ethernet (PoE) or standard 24 V power supply

Ambient temperature−25 °C to +55 °C (−13 °F to +131 °F)

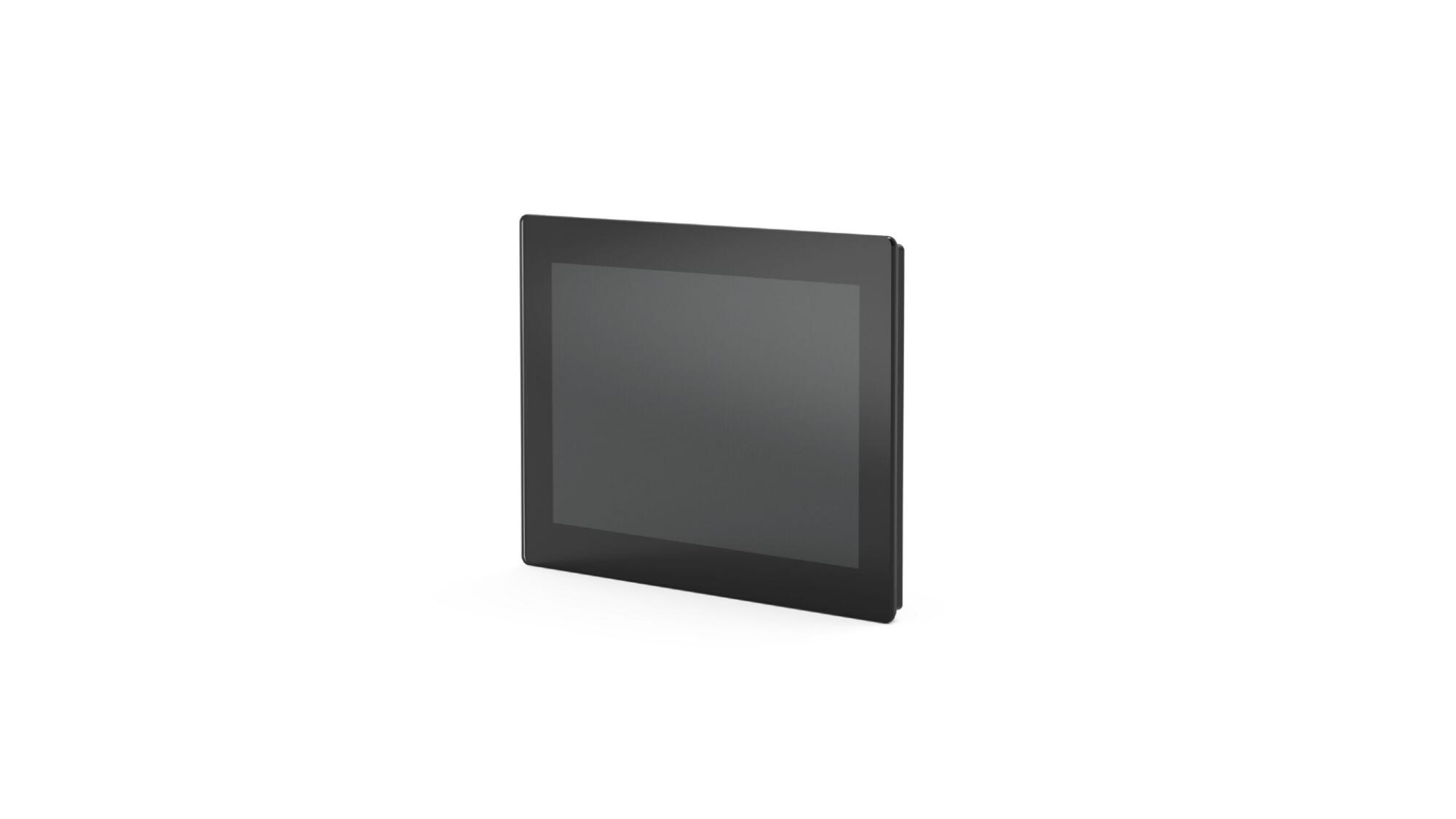

2000-MM-560413-new-website-page-WP400-front-2000x1125

Your Benefits at a Glance

High Performance

Optimized operating speed thanks to parallel design andcomputational operations enabled by the 64-bit quad-core processor.

Open and Flexible

With its open platform architecture and support for standard technologies such as HTML5, CODESYS  3.5, and Docker, the Web Panel  400 adapts flexibly to a wide variety of applications and systems – without vendor lock-in.

IoT-Ready

By using libraries, WAGO Control Panels become touch-enabled IoT devices capable of transmitting data from the field level to the cloud.

Cyber Security

Integrated SSH and SSL/TLS encryption methods are standard for establishing secure HTTPS and FTPS connections. A firewall provides additional protection against unauthorized access.

Energy Efficiency

With its efficient ARM processor architecture and optional power supply via Power-over-Ethernet (PoE), the Web Panel 400 requires minimal energy – ideal for continuous operation with low power consumption and reduced operating costs.

Quick Commissioning

With its simple configuration, browser-based visualization, and seamless integration into existing systems, the Web Panel  400 is ready for immediate use – without complex setup or special tools. Mounting is straightforward using clips, and brightness can be adjusted after installation.

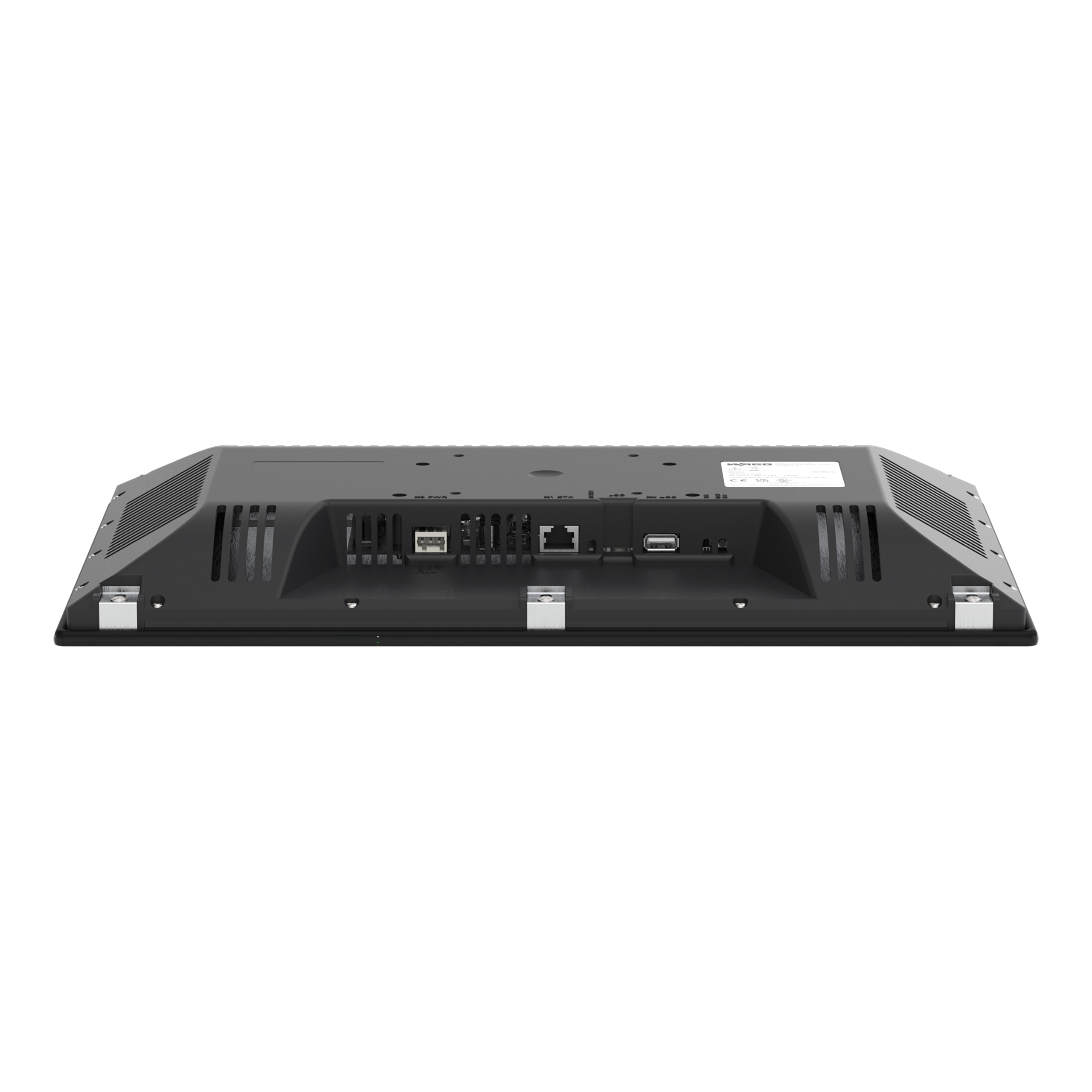

Web Panel 400 – Interfaces

Ethernet

Power Supply

microSD

USB-A

Functionality in a Wide Range of Applications

Whether Visualization, Control, or Touch – WAGO’s wide variety of touch panels offers a solution for every requirement. They serve all areas of industry, process technology, and power engineering, including railway and shipbuilding applications, as well as general control cabinet manufacturing. Discover our tailored hardware configurations for your individual needs.

Mechanical Engineering

Greater safety in handling complex automation systems thanks toa simple operating concept and practical features. Improve the operability of machines and systems with our powerful WAGO Touch Panels for demanding control and visualization tasks.

MM-31018 key visuals Industrie sectors_marine_2000x1125

Shipbuilding

Applications in shipbuilding and the onshore/offshore industry place specialdemands on product performance and availability. Our WAGO “Marine Line” Touch Panels are ideal for use at sea, thanks to special approvals.


Energy

Efficient energy management: WAGO’s touch panels allow you to monitor energy consumption, identify potential savings, and optimize usage. Find the right solution and benefit from practical features.

MM-17648_website-update_building-technology_website-area_kreissparkasse_goettingen_2000x1125

Buildings

With its touch panels, WAGO offers the ideal control unit for automation in buildings and industrial environments. In addition to excellent operability and high-performance visualization, the solution is highly cost-effective.

Surface-Mounted Variant

Flexible, cost-effective installation without modification of the building fabric

The surface-mounted variant of the WAGO Web Panel 400 Mounting Frames offers a professional installation solution for the WAGO Web Panel 400 Series wherever quick installation and maximum flexibility are required. The specially designed frames are mounted directly on the wall surface, making them particularly suitable for existing buildings, modernization projects and applications where wall cutouts need to be avoided.

The benefits for you:

Rapid wall mounting without special-purpose solutions
Economical alternative to custom enclosures
Less installation effort, lower project costs
Robust protection for the installed Web Panel
Clean, professional look
Suitable for all Web Panel 400 sizes (7″, 10″ and 15″)
Flexible solution for diverse building automation projects
Ideal for new construction, modernization and retrofit applications
Standardized solution for easy project planning and implementation

The surface-mounted variant of the WAGO Web Panel Mounting Frames offers integrators a standardized, cost-effective, future-proof mounting solution for professional HMI applications.

Flush-Mounted Variant

Integration nearly flush with the wall for demanding architectural concepts

The flush-mounted variant of the WAGO Web Panel 400 Mounting Frames was developed for applications where form matters just as much as function. They enable integration of the WAGO Web Panel 400 Series nearly flush with walls, creating a modern, professional appearance for demanding building automation projects.
