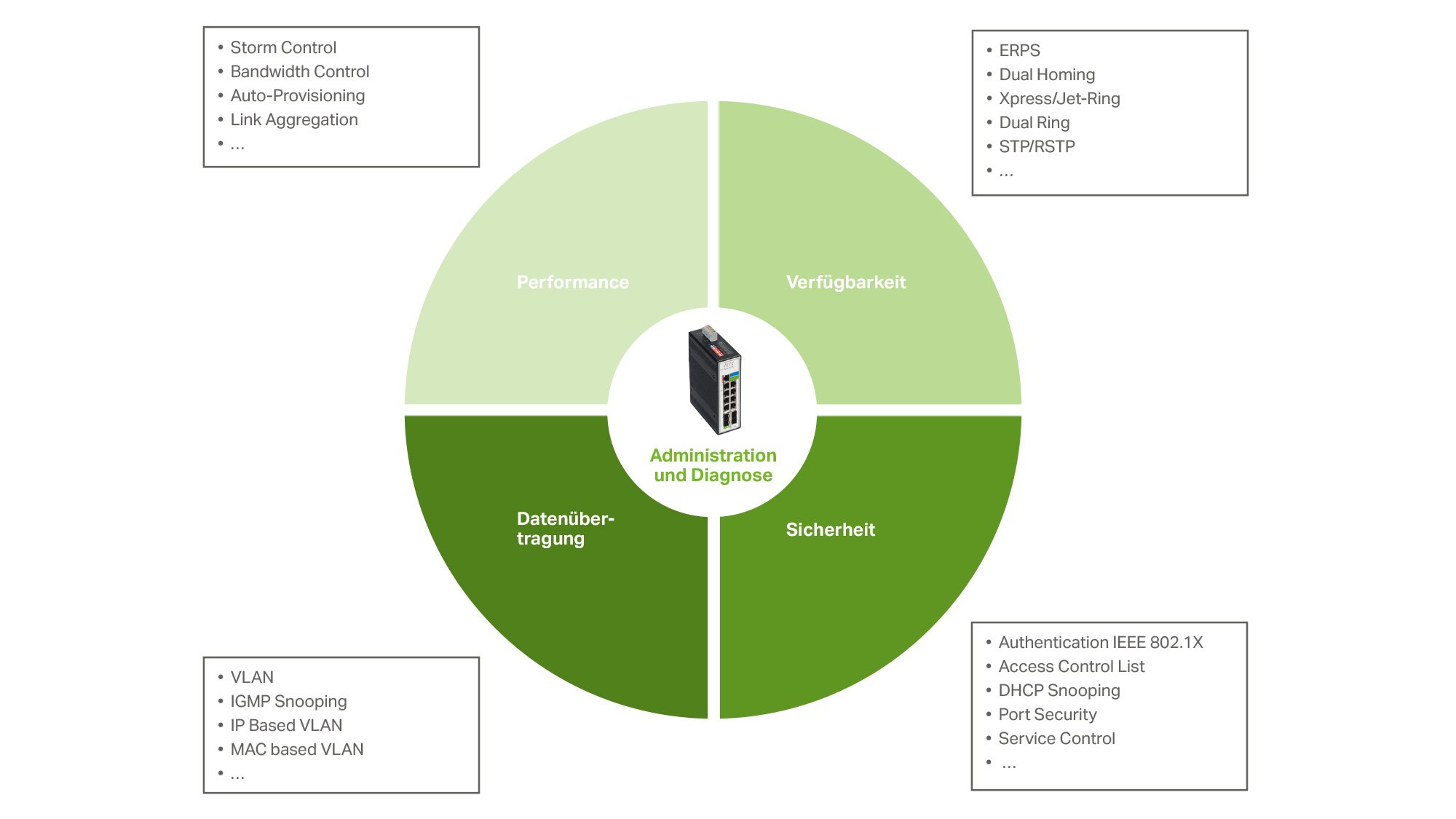

Industrial Managed Switches: Function Overview

Several Options:

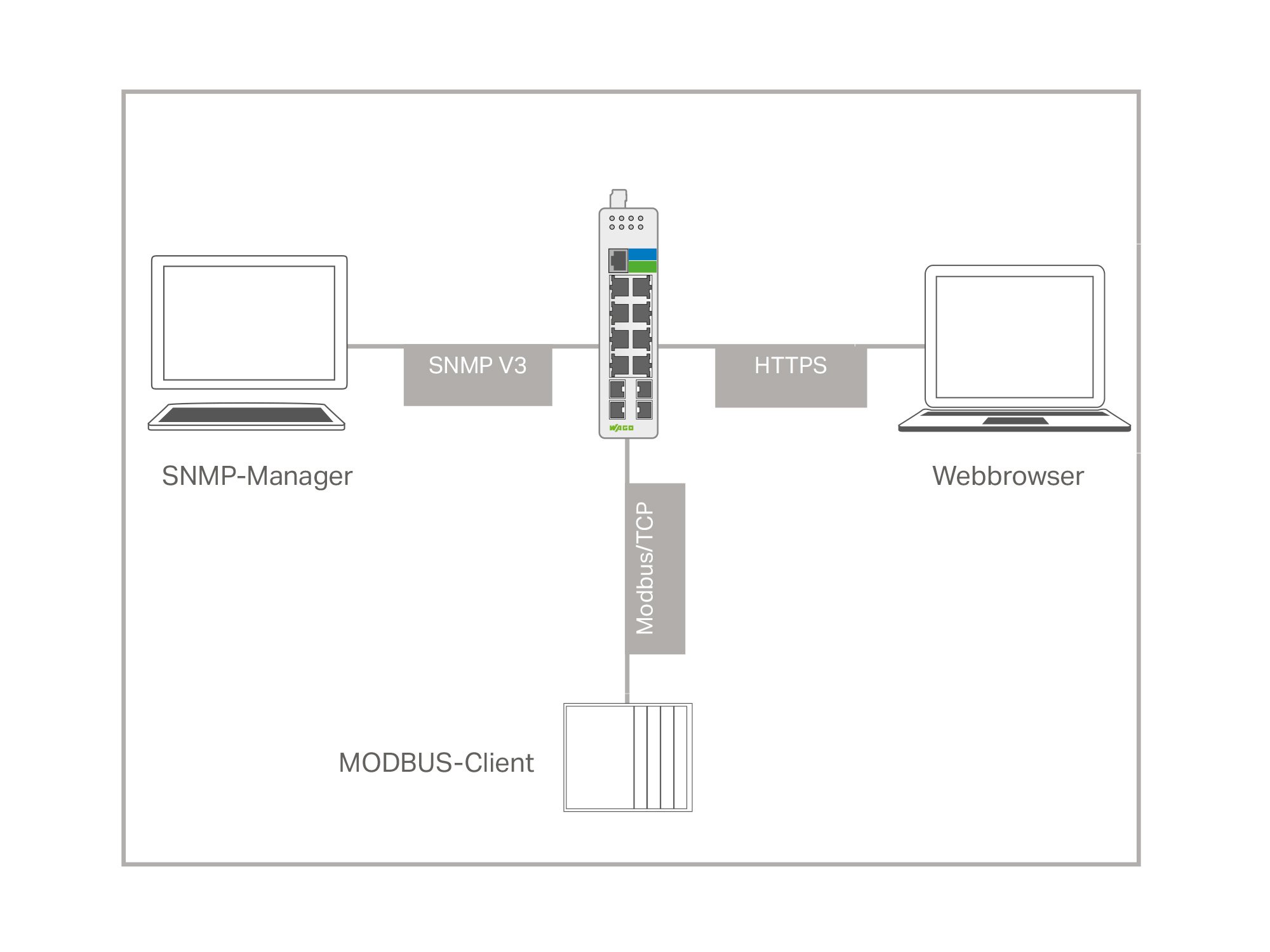

• Configuration via Web-Based Management

• Configuration via command line (SSH, Telnet, RS-232)

• Network management via SNMP v1, v2, v3

• Support of MIB standards (Management Information Base)

• Diagnostics via Modbus TCP: Numerous information available for easy diagnostics via MODBUS

• Automatically detects a connected SFP module

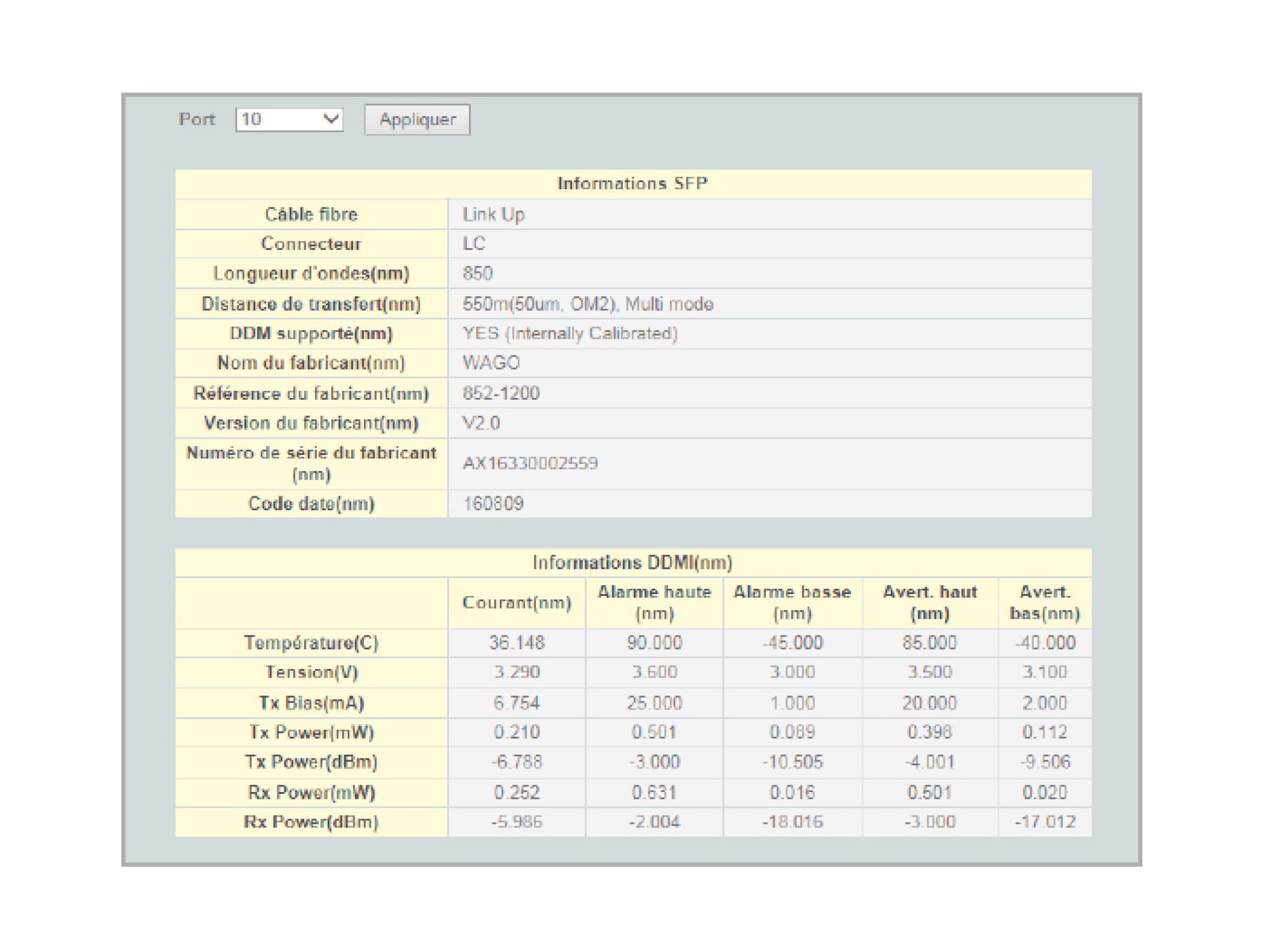

• Detailed module information

• Real-time monitoring
  - Temperature
  - Power supply
  - Transmission power
  - Reception power

Simplified Maintenance:

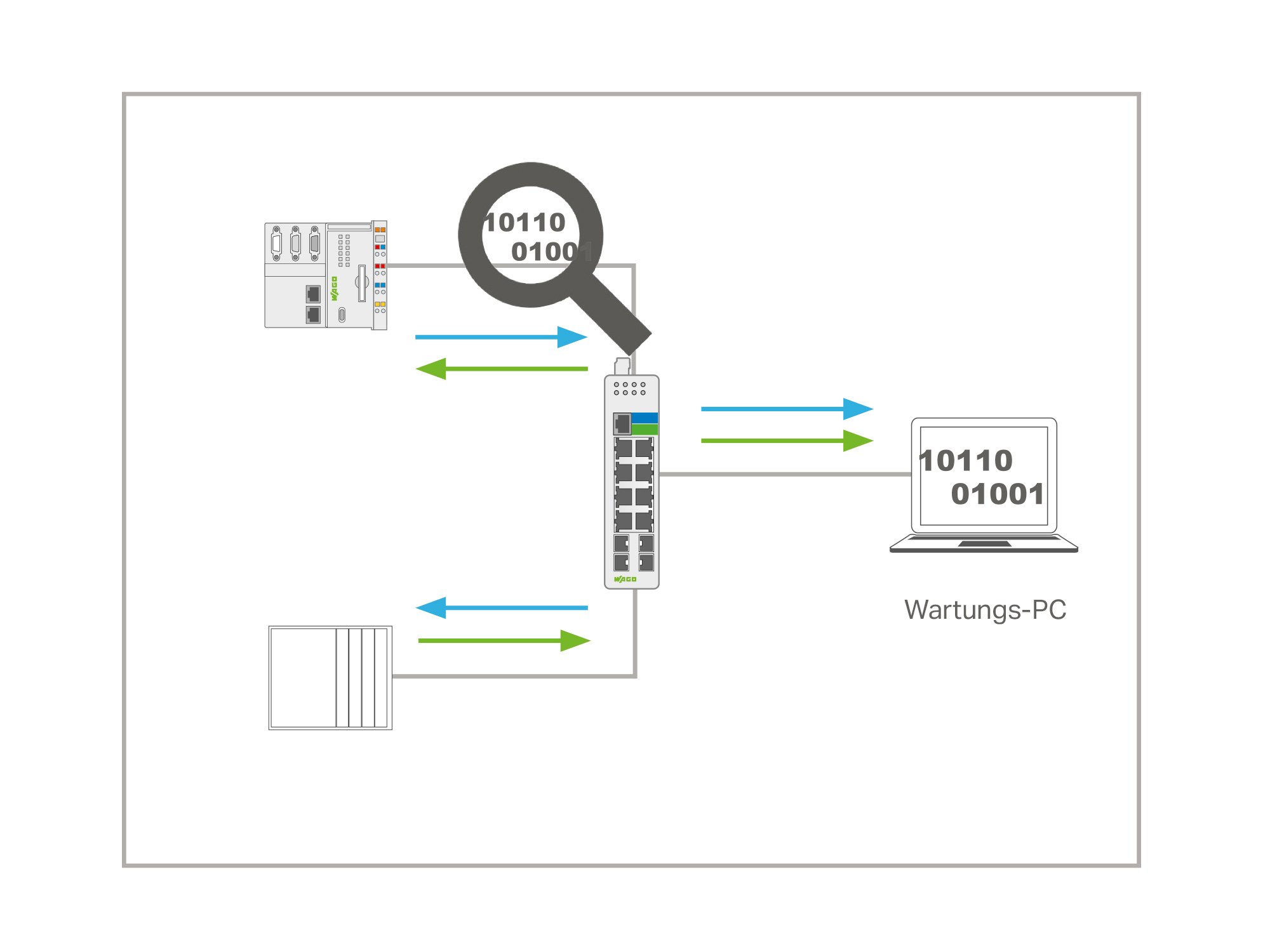

• Port mirroring: Mirroring the network traffic

• LLDP: Automatic detection of adjacent devices

• Email notifications

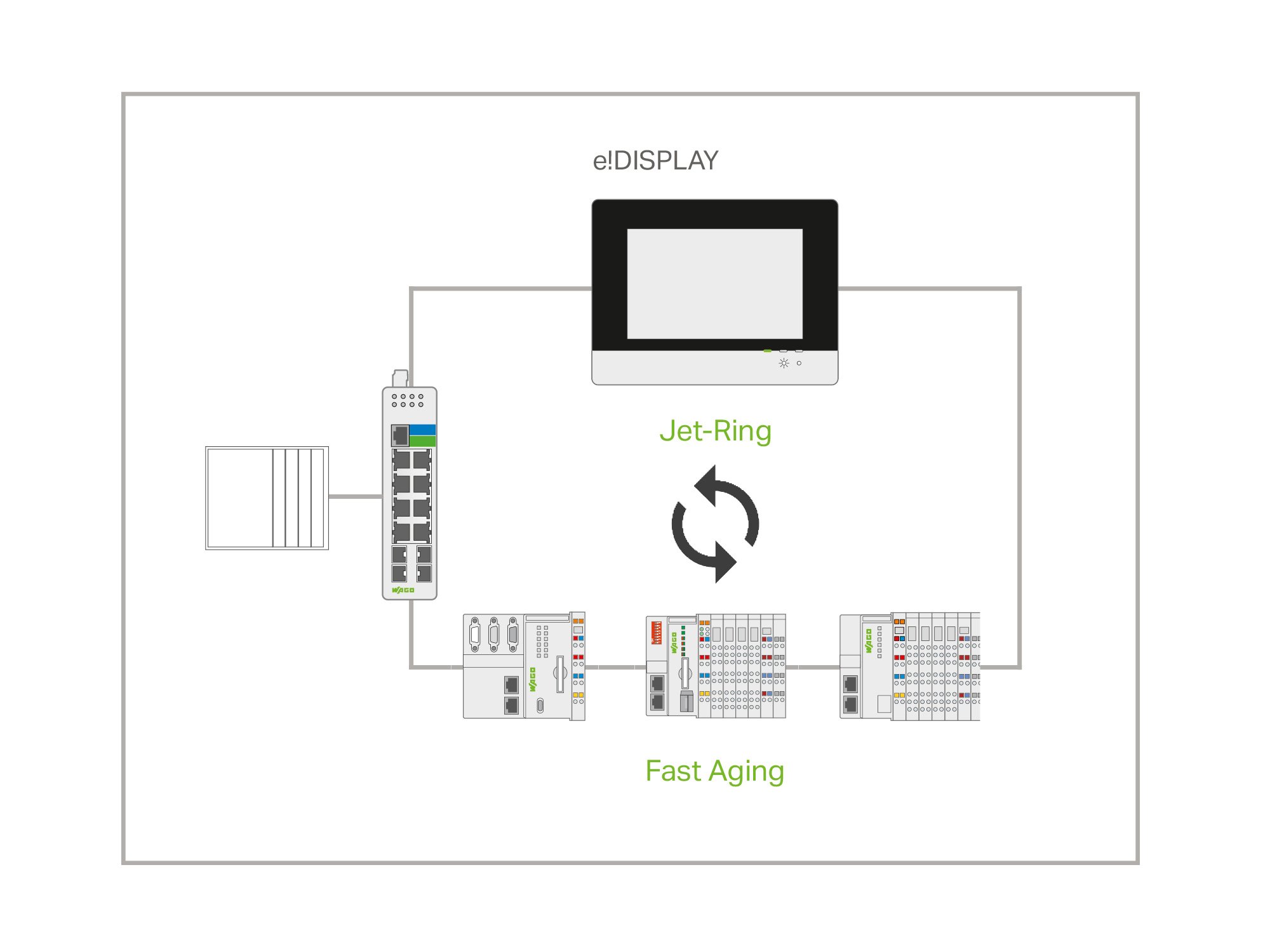

• Typical switching time < 300 ms (depends on the application)

• Extremely easy configuration

• Up to 20 participants (fast aging) in a jet ring

Xpress Ring:

• Switching time < 20 ms

• Easy configuration

• Up to 200 switches in one Xpress ring

• Two Xpress rings per switch

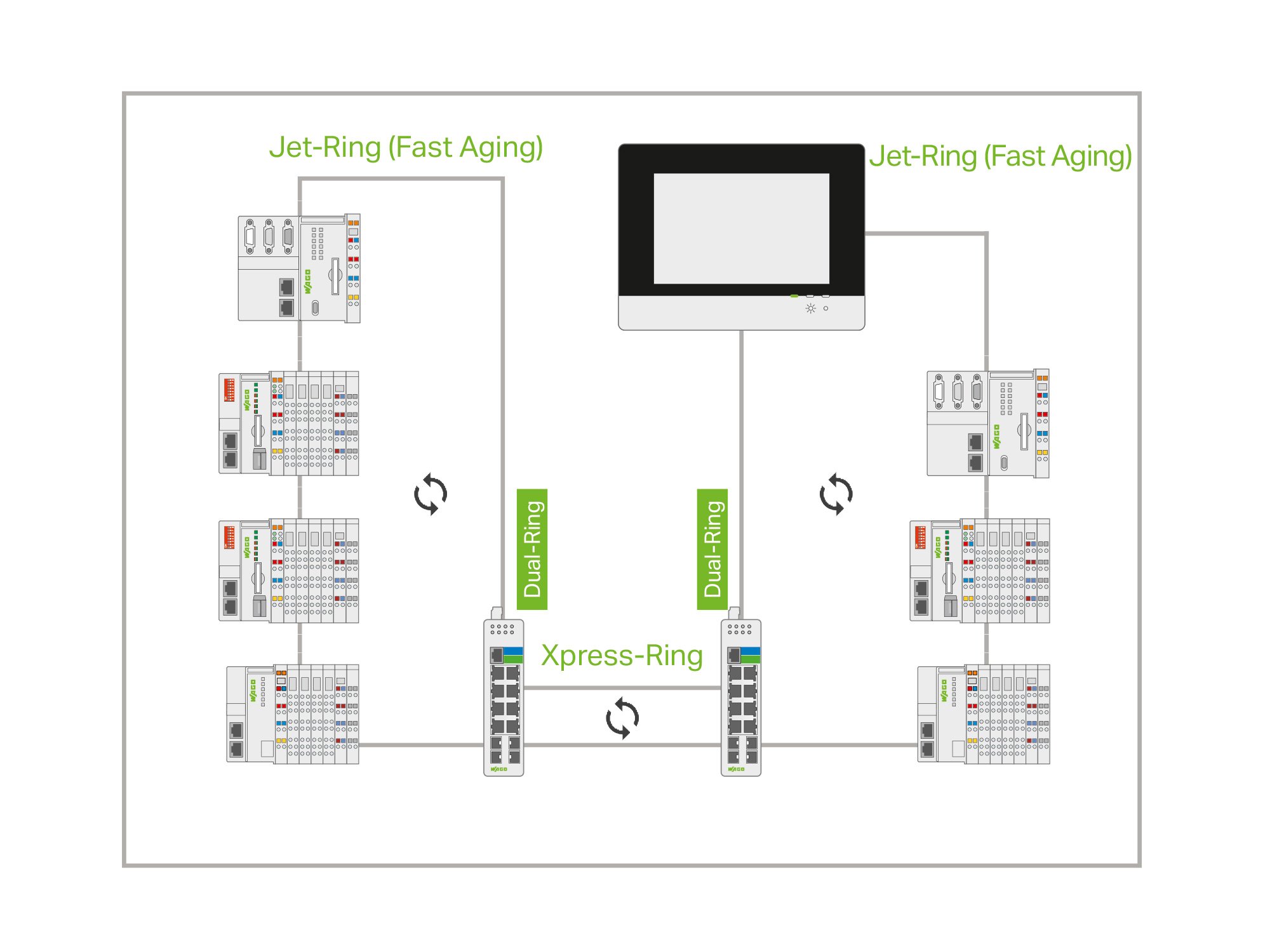

Dual Ring:

• Combination of both redundancy types

• 1 jet ring and 1 Xpress ring per switch or 2 Xpress rings per switch

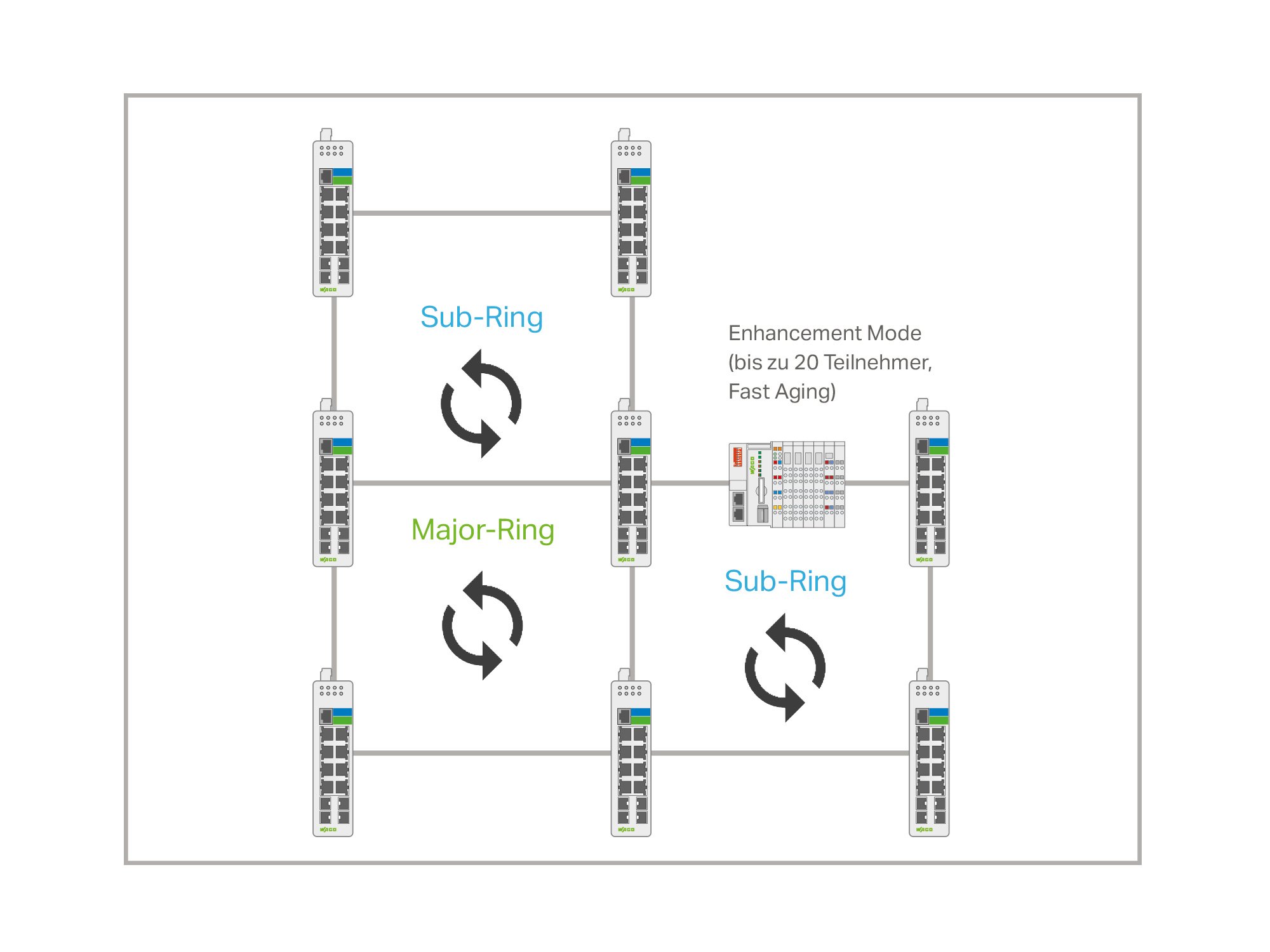

The Fast and Open Solution:

• Standardized and open technology

• Switching time < 50 ms

• Nested topologies with up to six rings per switch

• Realization of a one-fault tolerance (SPOF – Single Point of Failure)

ERPS – Enhancement Mode:

• WAGO's devices with integrated switch and fast aging configuration

• Typical switching time < 300 ms (depends on the application)

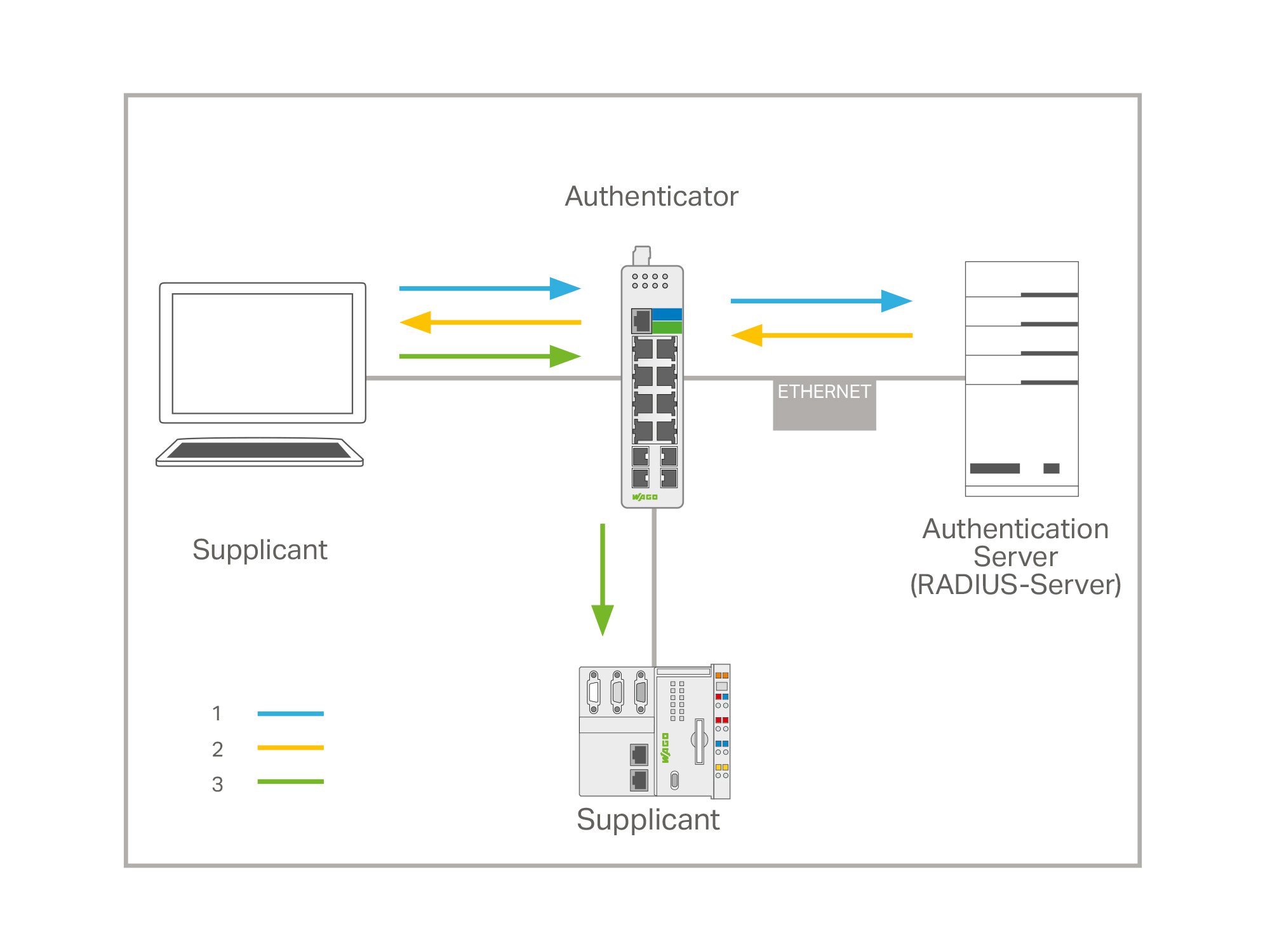

The Security Standard of IT Networks: Secure authentication and authorization in ETHERNET networks (locally on the switch or via RADIUS server).

Process:

• Authentication of a subscriber is done by the authenticator

• The authenticator checks the authentication information of the subscriber (supplicant) with an authentication server

Authorization only for the required services

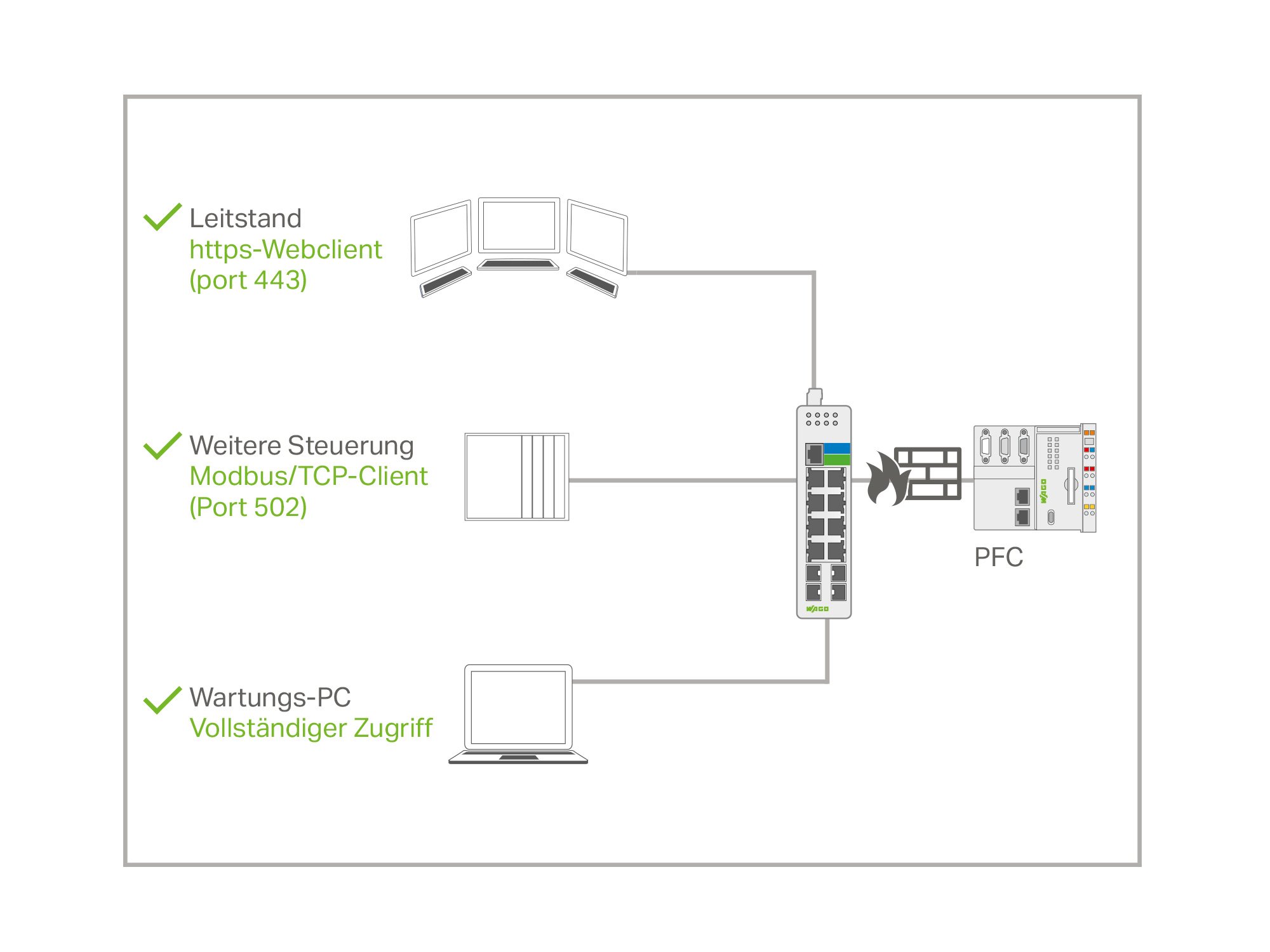

Filtering data packets due to:

• a source MAC or source IP address

• a destination MAC or destination IP address

• a range of MAC or IP addresses

• UDP/TCP source or destination ports

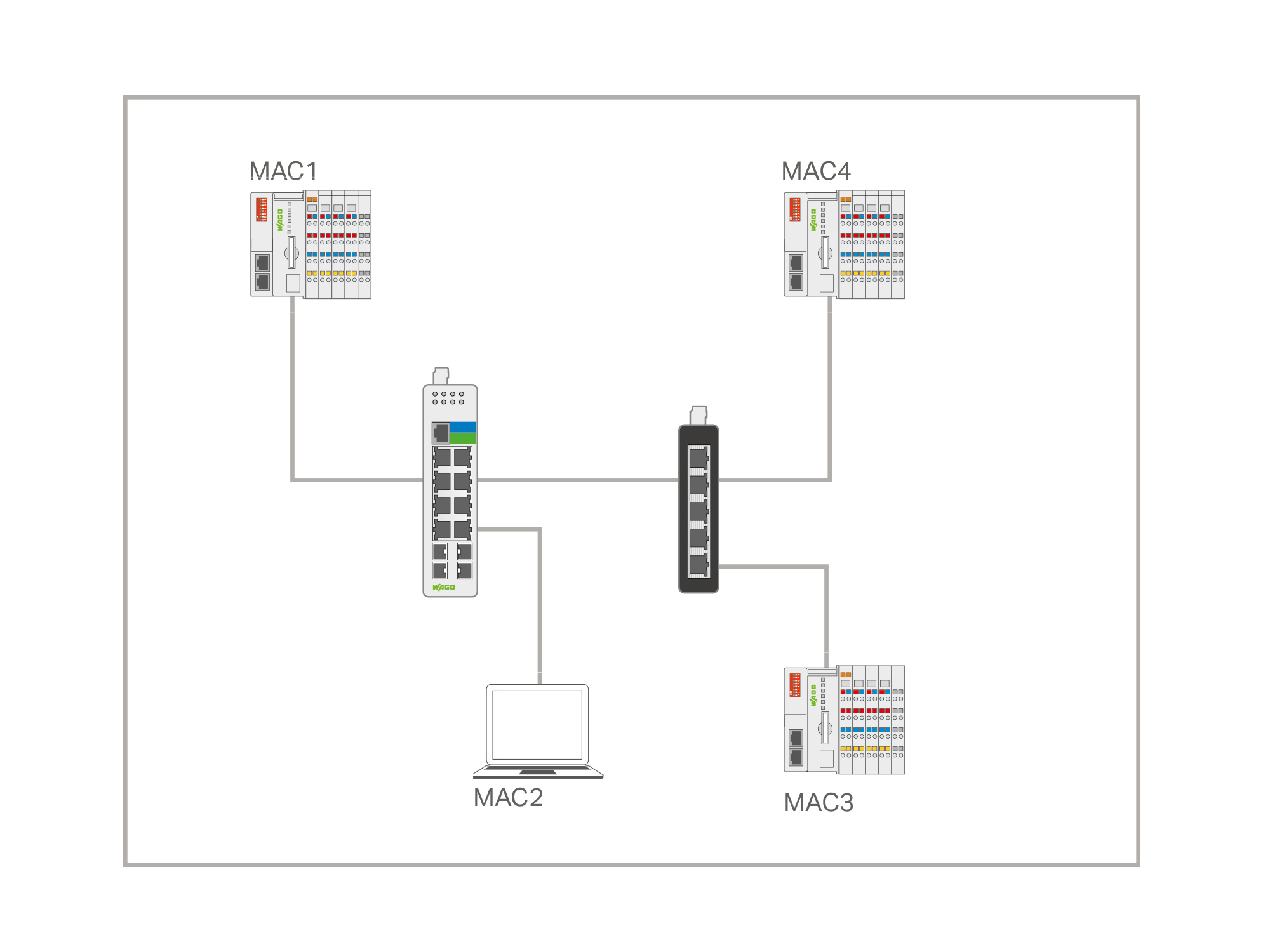

• Dynamically learns MAC addresses per port

• Limitation of MAC addresses per port

• MAC-based white/black list per port

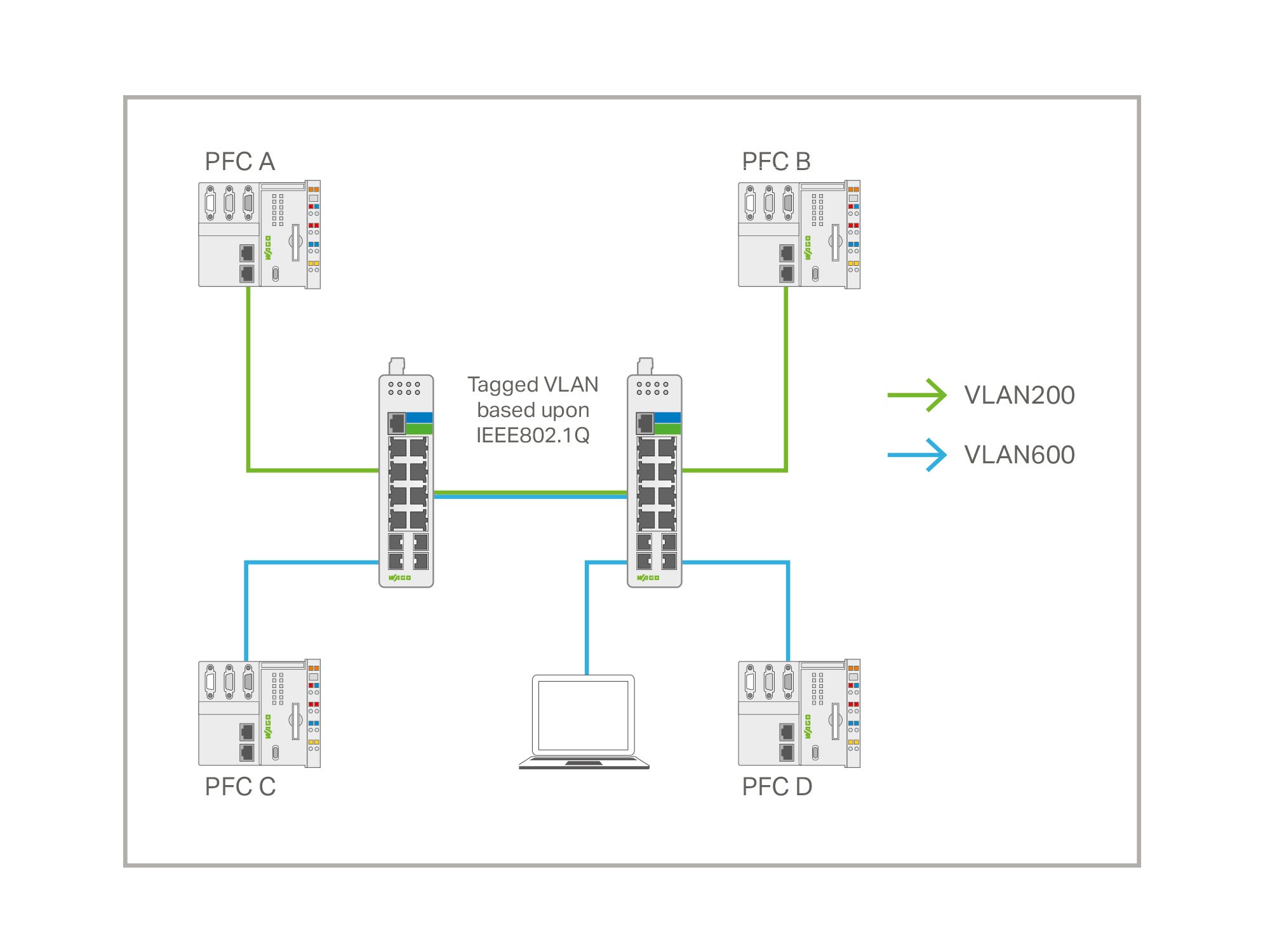

VLAN (e.g., per IEEE 802.1Q)

Segmentation in logical, virtual networks:

• Broadcast limitation

• Security improvement

• Data flow prioritization

• Subdivision of machines and office networks, for example

• Routing of data packets between VLANs via IP address

• Communication from one participant to two or more VLANs

• Economic connection of networks to higher-level routers

• Prioritization of data packets via IP address

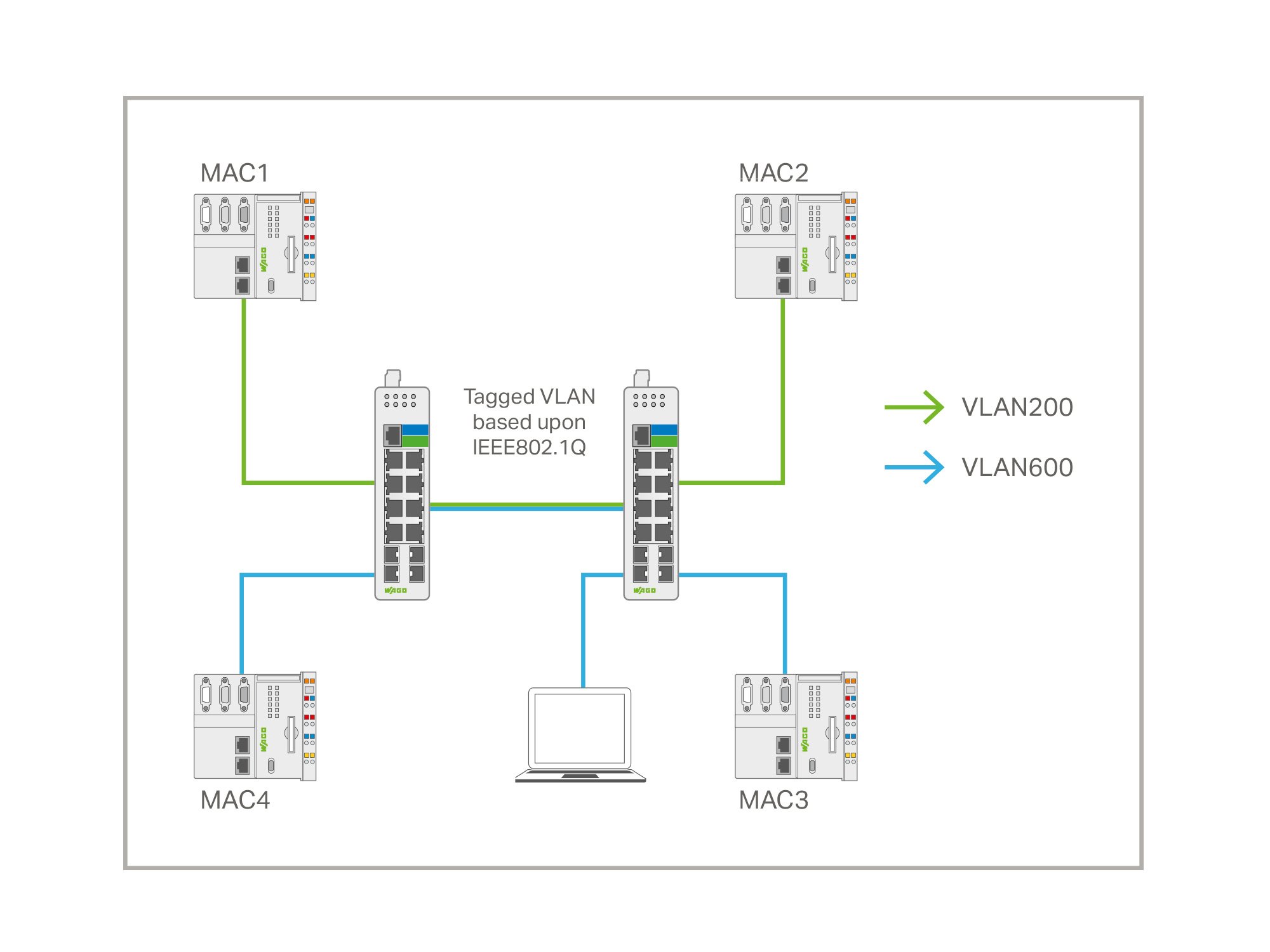

• Assignment of data packets to a VLAN via MAC address

• Prioritization of data packets via MAC address

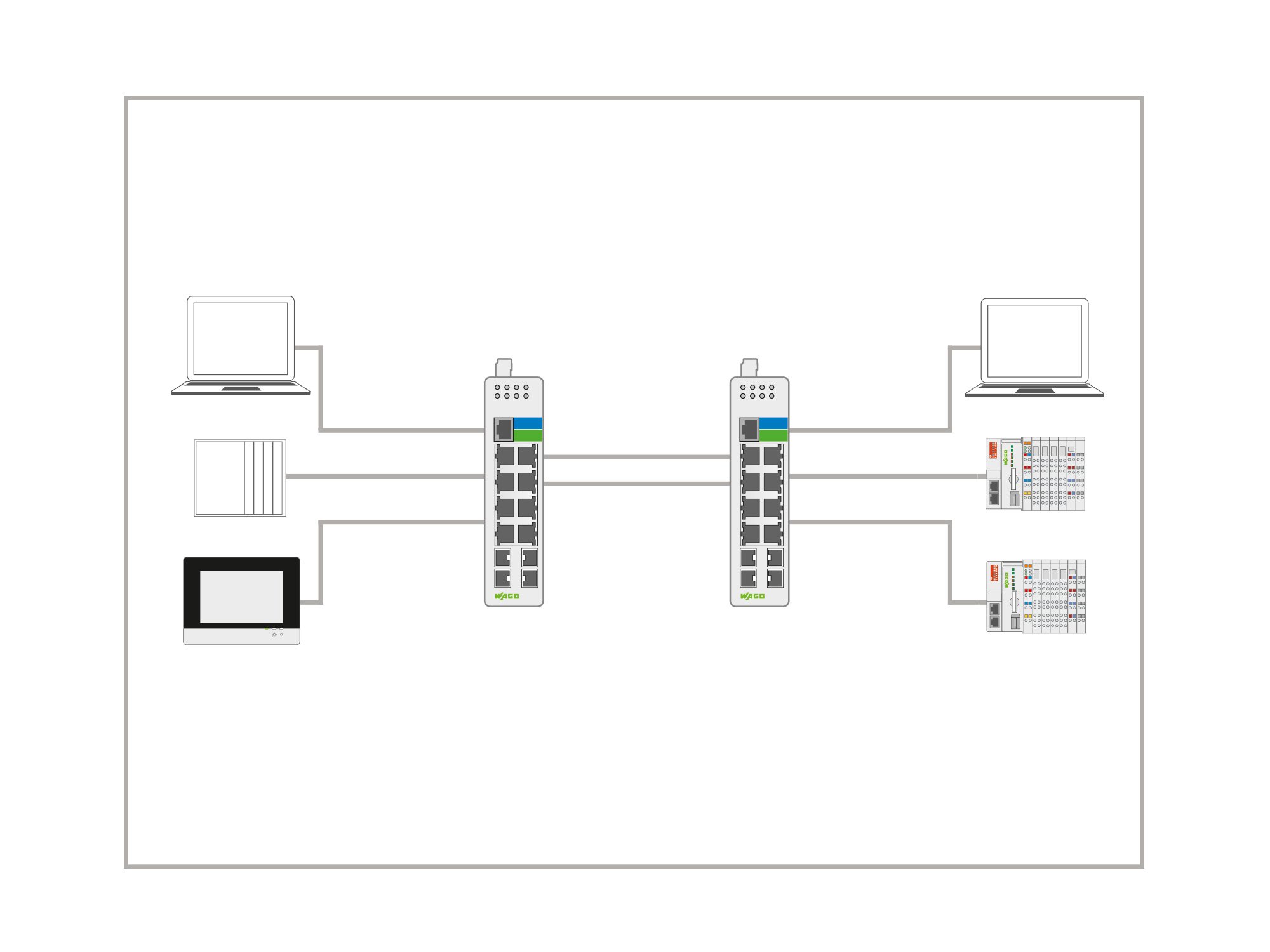

LACP link aggregation

Merge multiple data connections into a single logical link:

• Increase transmission rate

• Link redundancy

• Faster transfer of important data packets through the switch

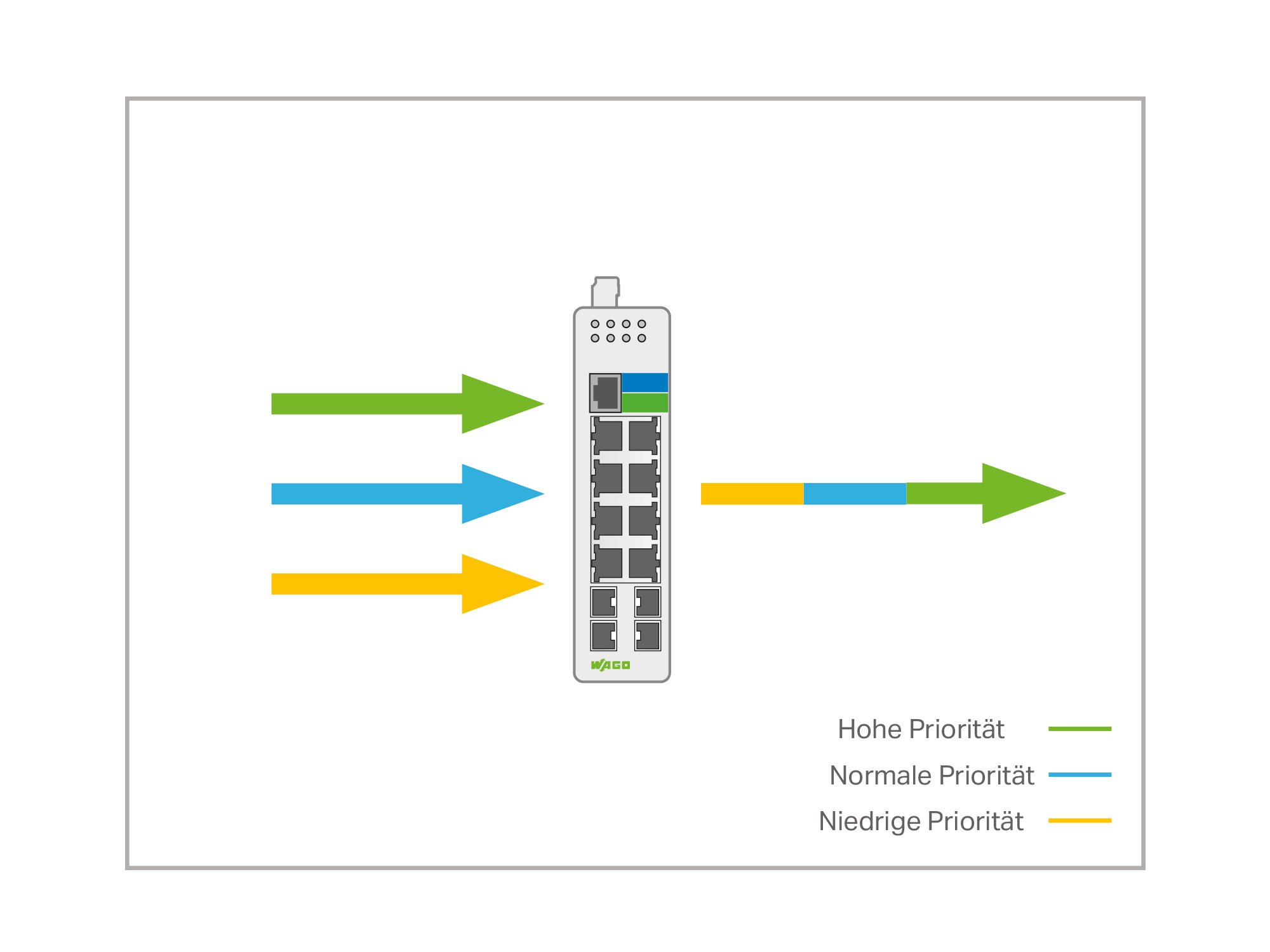

• Prioritization of data packets per IEEE 802.1 Q

• Limitation of the bandwidth or number of packets per unit of time per port

• Increase in data transmission quality

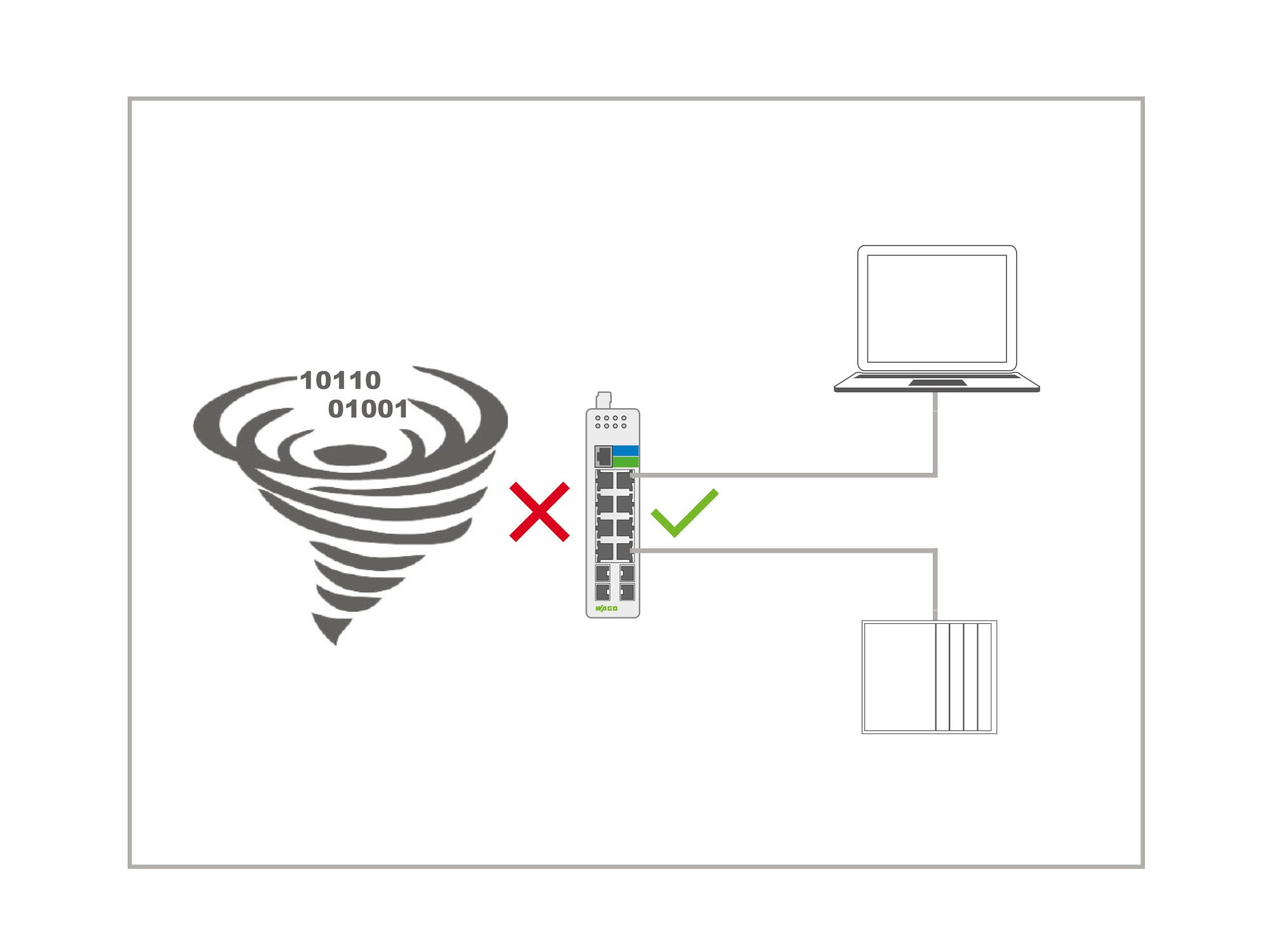

• Stopping broadcast storms

• Ensuring network availability

• Limitating broadcast and multicast data flows (packets/time)
