Pluggable Rail-Mount Terminal Blocks

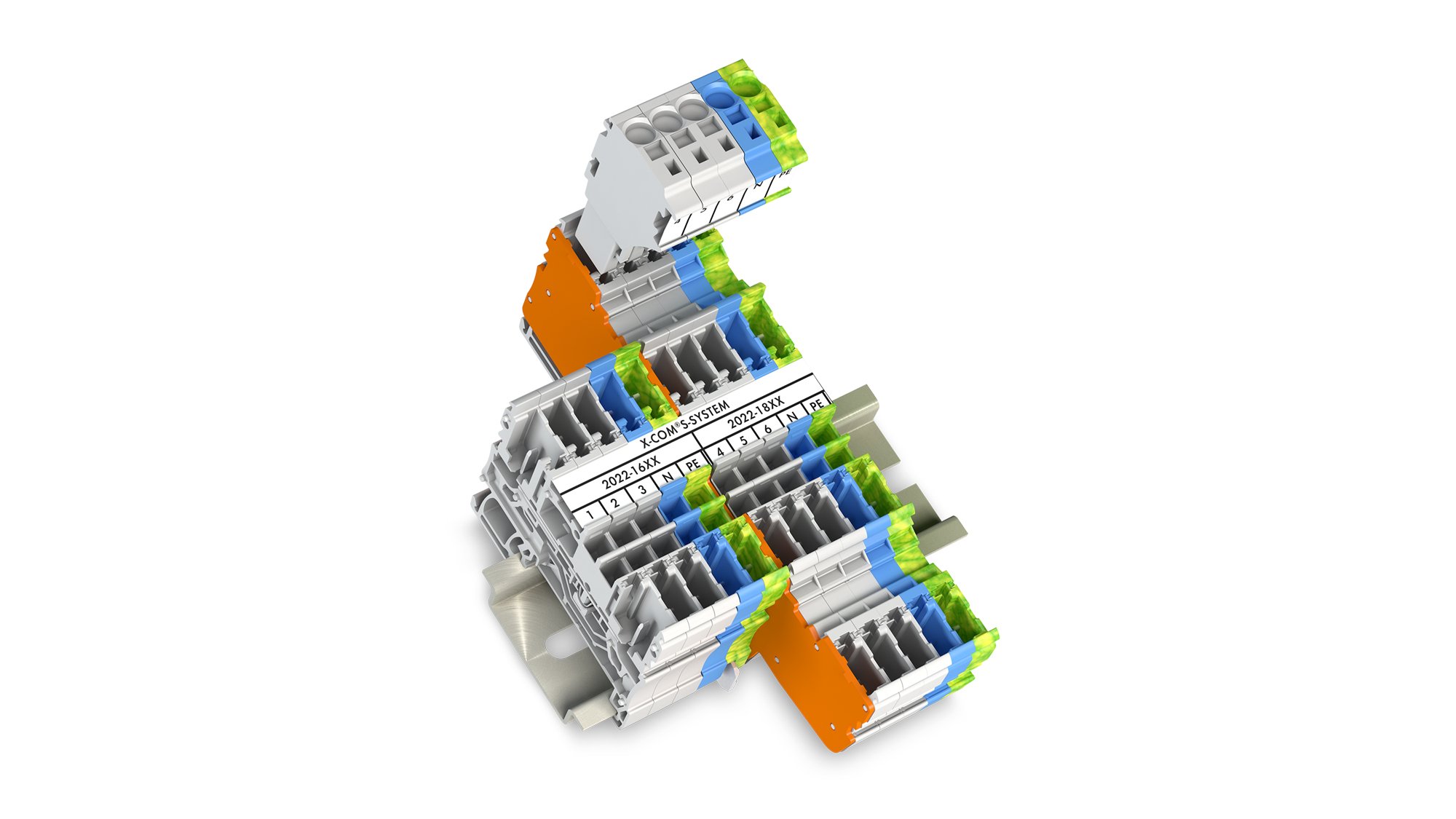

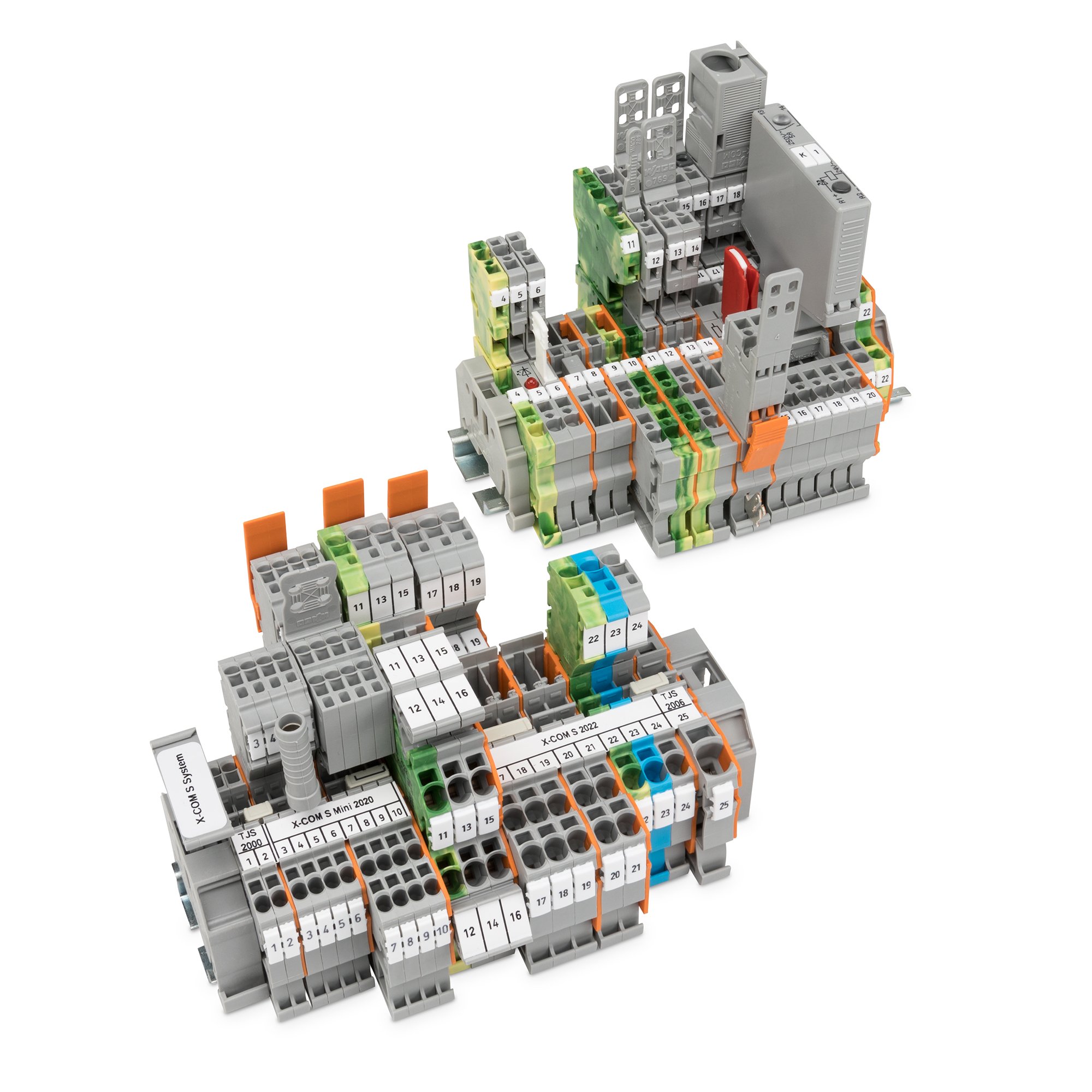

Diversity of variants characterizes the X-COM^®-SYSTEM product line. In addition to rail-mount terminal blocks, this system also includes components for PCBs, flying leads, panel mounting or through-panel applications. Tried and tested billions of times, CAGE CLAMP^® technology ensures reliable connections for all application areas.

Advantages:

• Error prevention: 100 % protection against mismating through coding groups with the same pole numbers

• Mechanically protected via locking levers, strain relief plates or housings

• Easy testing via test slots for test plugs in female connectors and carrier terminal blocks

• Use jumpers to common female plugs and carrier terminal blocks: Select pole connections remain even after the plug has been pulled out

• 500 V/32 A ratings are a cost-effective alternative to heavy-duty connectors

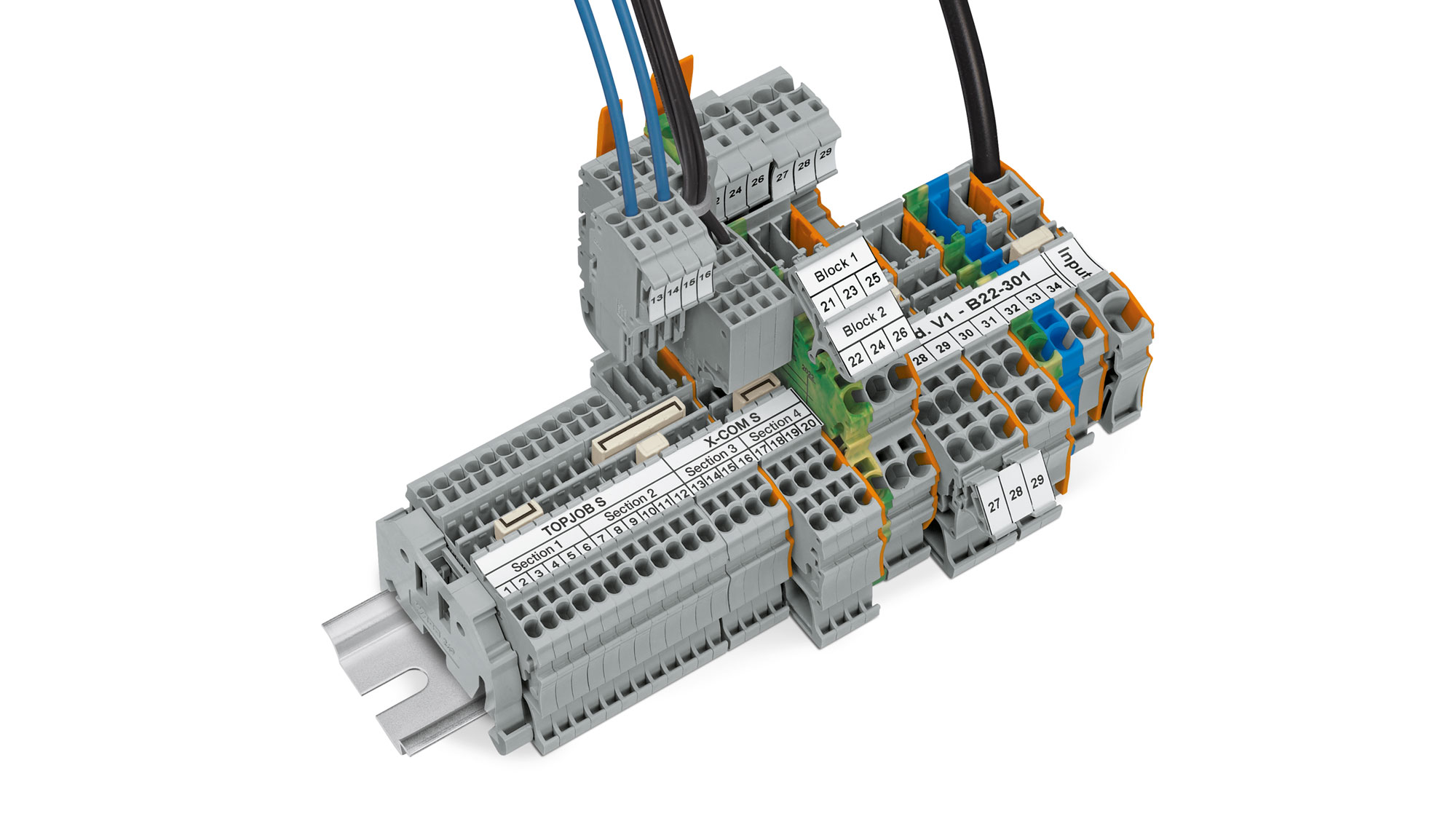

The X-COM^®S-SYSTEM is available in two different terminal block widths: 3.5 mm/0.138 inch (2020 Series) and 5.2 mm/0.205 inch (2022 Series). It is compatible with our TOPJOB^® S Rail-Mount Terminal Blocks and their wide range of accessories, e.g., for commoning and marking.

Advantages:

• Connect conductors up to 1.5 mm² (16 AWG) at a terminal block width of just 3.5 mm (0.138 inch) and up to 4 mm² (12 AWG) at a width of just 5.2 mm (0.205 inch)

• Fast wiring via Push-in CAGE CLAMP^® termination of solid, stranded and ferruled conductors

• Prevent mismating by coding groups with the same pole numbers

• Secure female connectors via locking levers and strain relief plates

• Handle any conceivable commoning task with multifunctional jumpers (e.g., adjacent jumpers for continuous commoning)

• Dual jumper slots for various commoning options

• Clear identification via multi-line marking strips and WMB markers

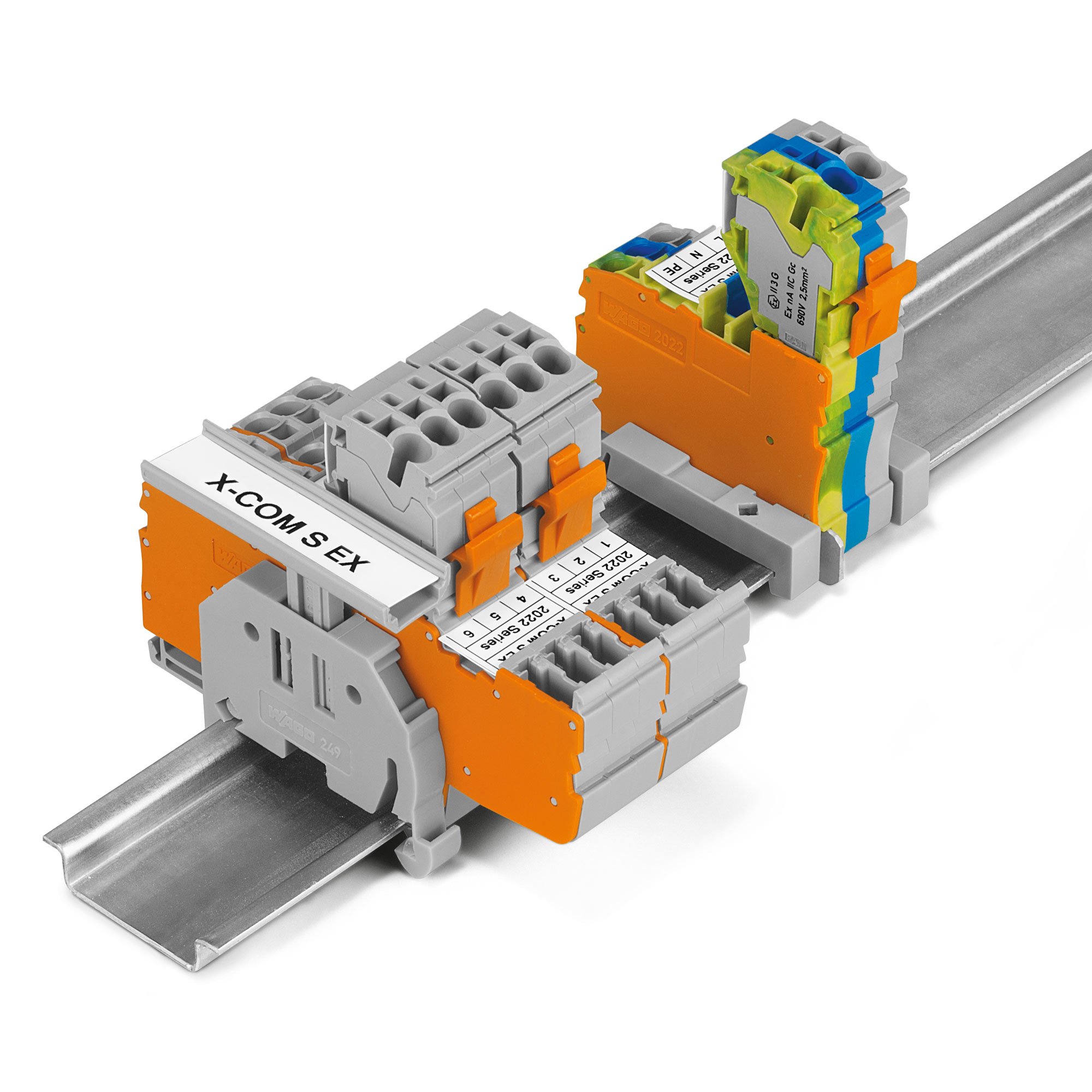

WAGO’s pluggable X-COM®^S-SYSTEM Rail-Mount Terminal Blocks are also available with Ex approval. These versions offer “nA” type of protection and are approved for use in Zone 2 hazardous areas.

Advantages:

• Quick and reliable replacement in hazardous areas (e.g., offshore platforms) – 100 % mismating and touch-proof protection

• Shorter locking levers increase safety by making accidental disconnection more difficult

• The X-COM^®S-SYSTEM for Ex applications is designed and certified for a maximum conductor size of 4 mm² (12 AWG) and a nominal current up to 20 A.

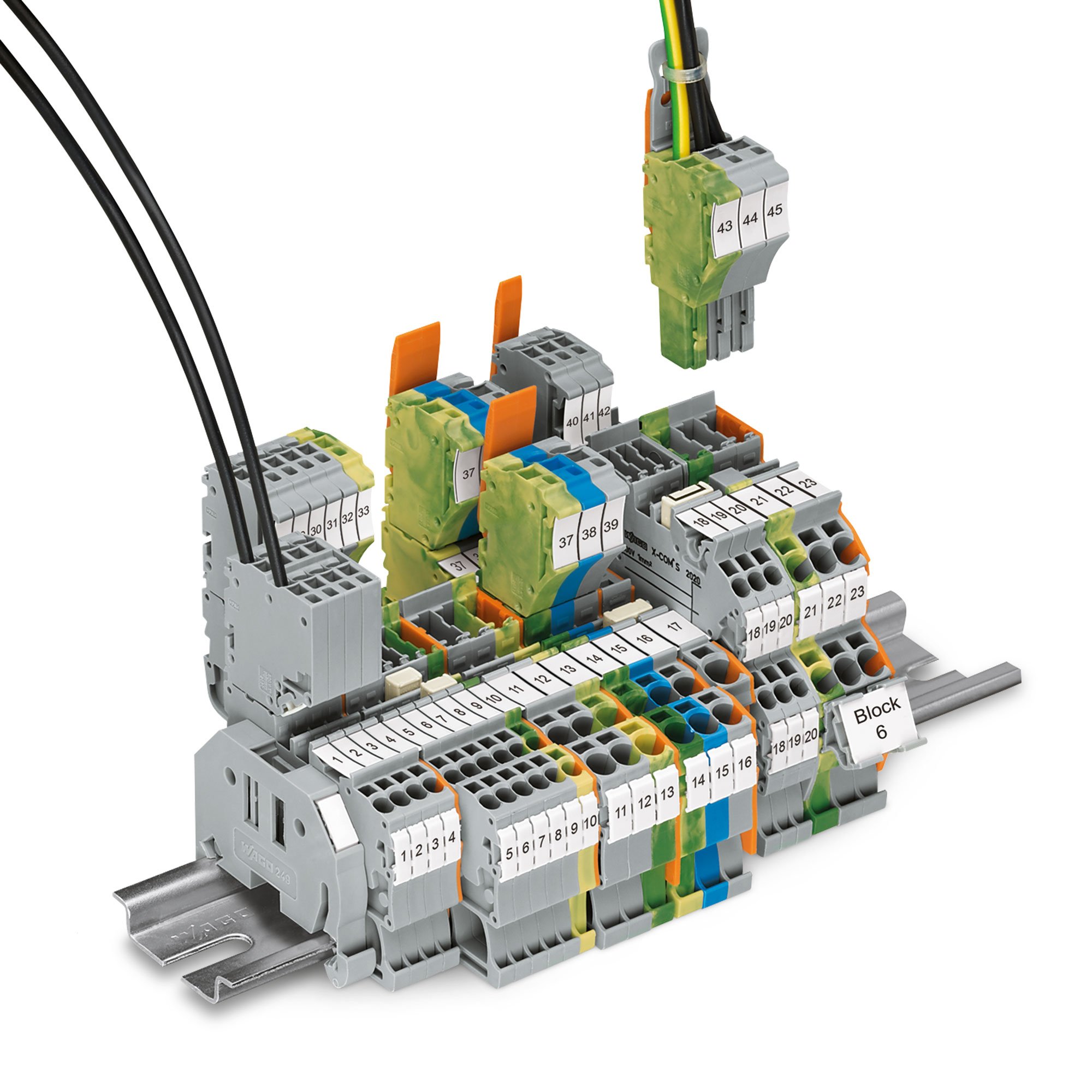

WAGO has expanded the X-COM^®S-SYSTEM Pluggable Rail-Mount Terminal Block family with a new model that allows both the input and output to be plugged in. Between the connectors, there is a terminal block with all the system benefits of the WAGO’s X-COM^®S-SYSTEM pluggable rail-mount terminal blocks. This fully pluggable modular solution saves customers significant time.

Advantages:

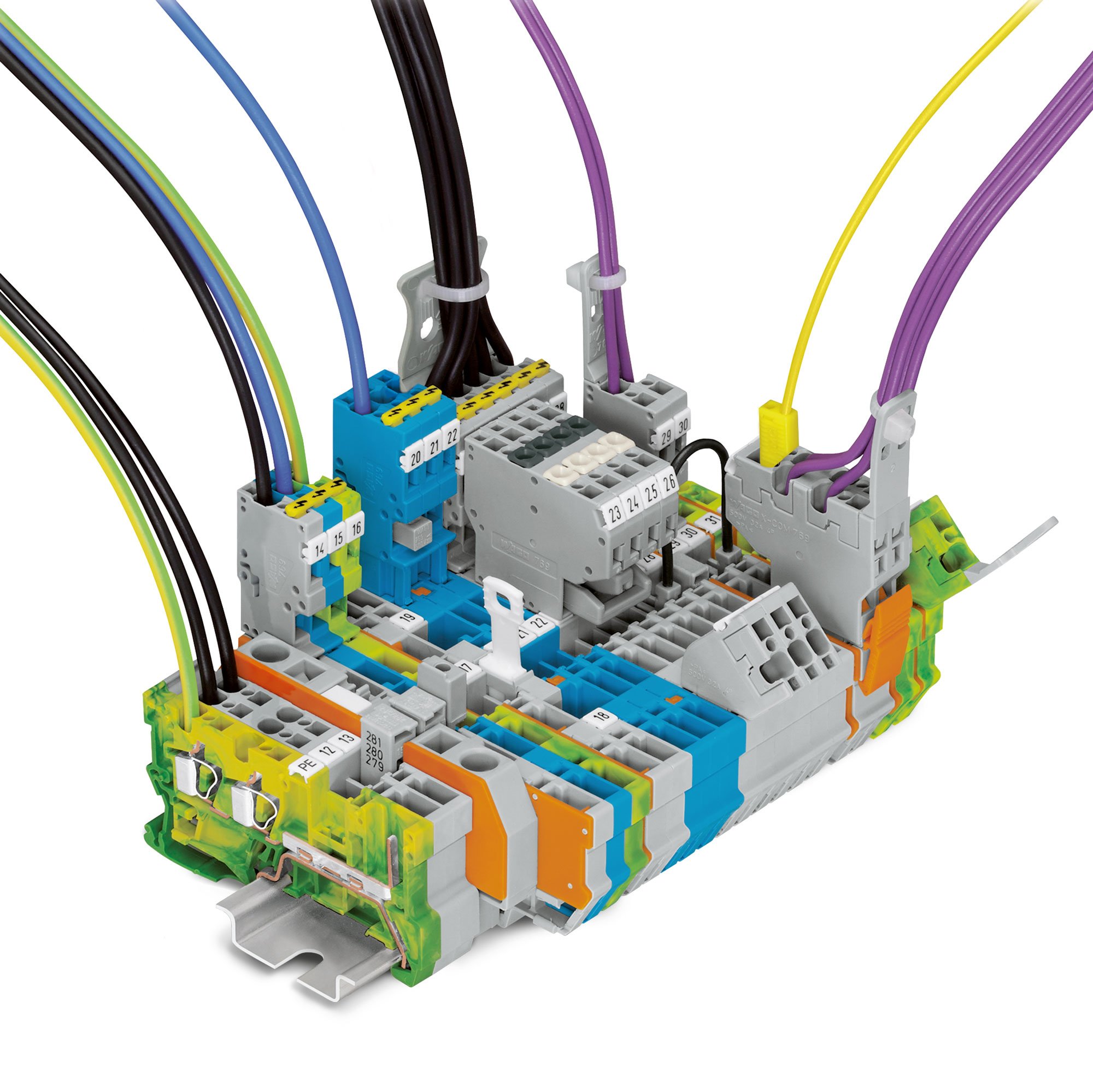

• Consistently pluggable: Pre-assembled cable harnesses save time, prevent errors and minimize costs.

• Codable: Coding prevents mismating of female connectors with the same number of poles.

• Protection against accidental contact: Even when disconnected, safe protection against live parts is guaranteed.

• Compatible accessories: Use the same accessories as with the TOPJOB® S Rail-Mount Terminal Block system.

Discover the diversity of the X-COM^® family.
