WAGO Rail-Mount Terminal Blocks with Levers, Push-Buttons or Operating Slots

WAGO's rail-mount terminal blocks are available in three actuation variants: with lever, push-button, or operating slot – all variants are also ideally suited for automated wiring.

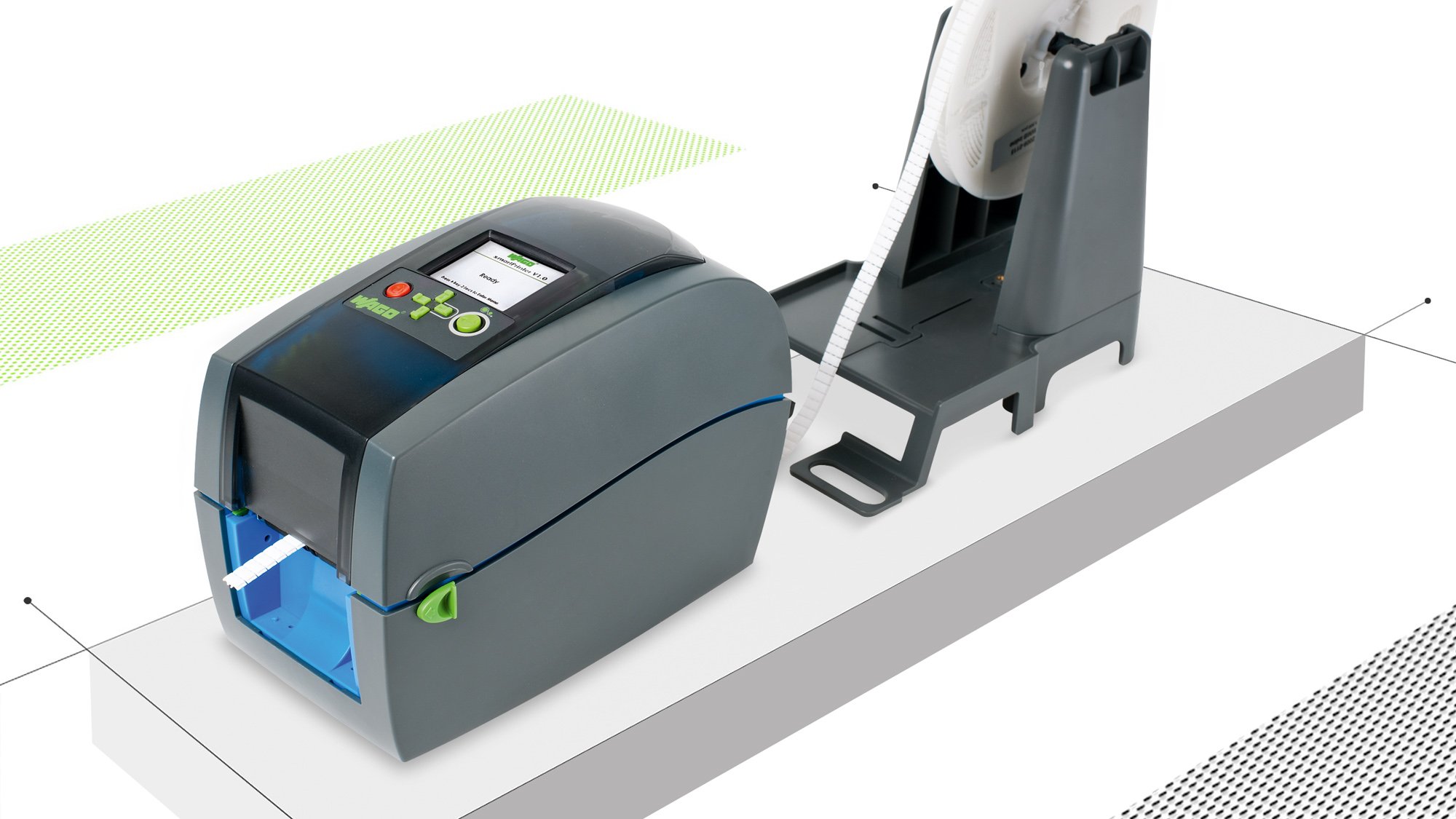

The marking and jumper program, tailored to the entire rail-mount terminal block portfolio, enables clear identification and flexible potential distribution, which significantly simplifies installation and maintenance.

Benefits:

Flexible connection options: The choice of 3 different actuation variants ensures optimal adaptation to varying requirements and guarantees convenient, tool-free operation.
Simple and fast wiring: Thanks to push-in connection technology and continuous marking options, all conductor types can be connected easily and efficiently – ideal for automated wiring processes.

Show Product List

Product Overview

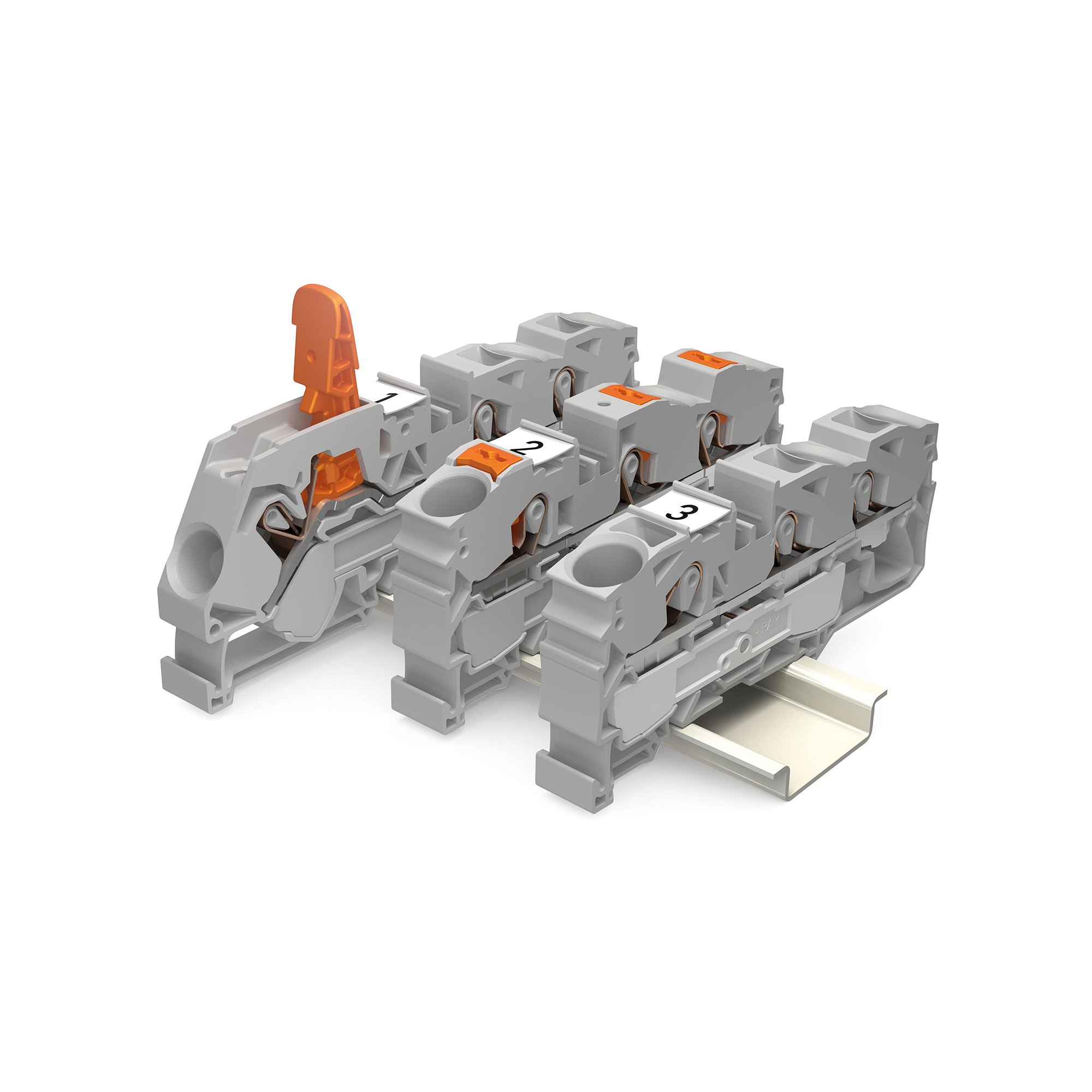

Three Actuation Variants – All with Push-In

For People and for Robots

Actuation Variants

Whether lever, push-button or operating slot – all variants rely on push-in. Suitable for manual or automated wiring.

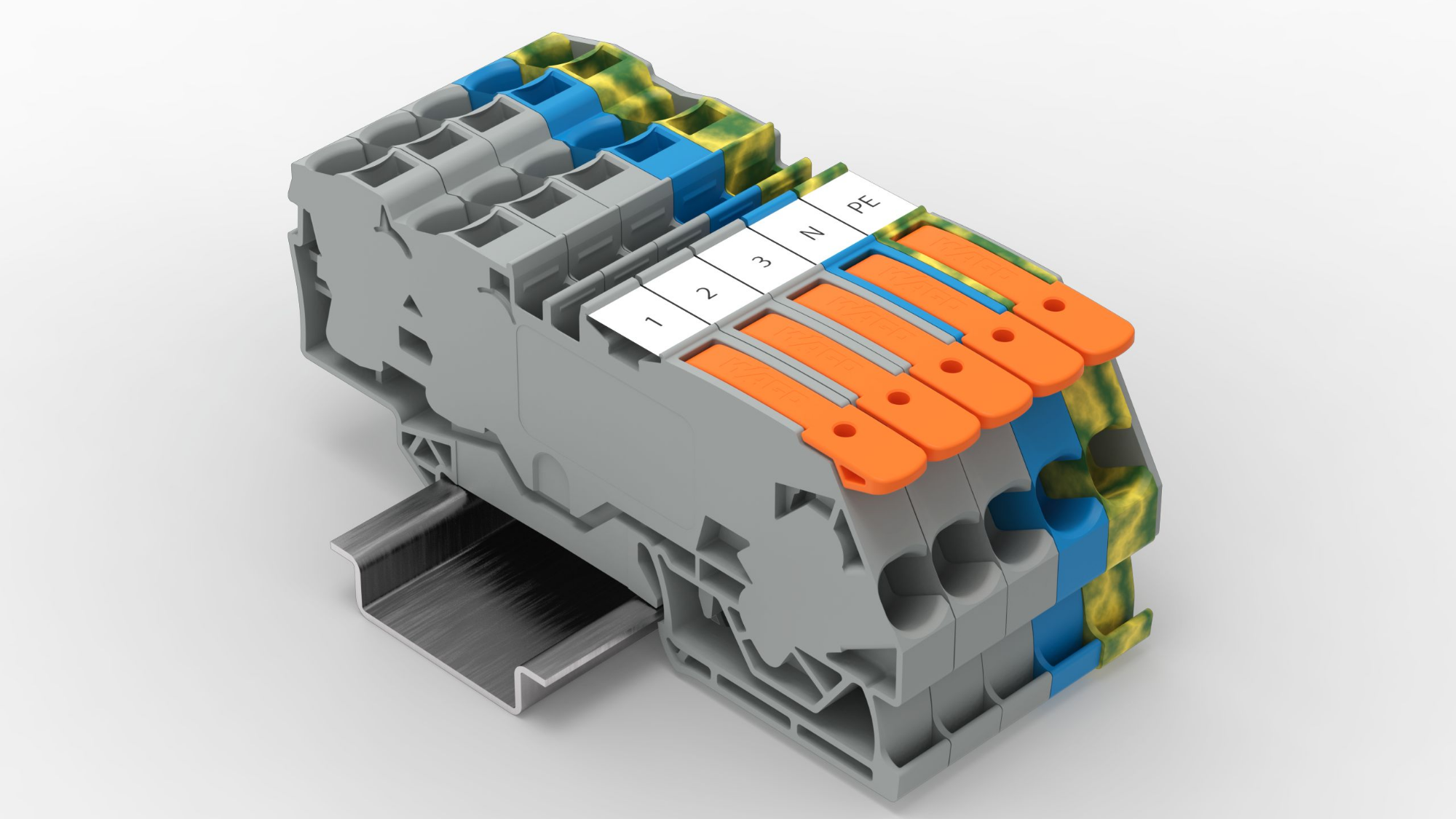

Rail-Mount Terminal Blocks with Levers

TOPJOB® S Rail-Mount Terminal Blocks with levers enable truly tool-free wiring. The clamping point can be opened and closed easily by hand, and the lever stays in its open position – making handling especially convenient with stiff or large cross-section conductors. Thanks to the Push-in CAGE CLAMP®, all conductor types, including solid, stranded and ferruled fine-stranded conductors, can be inserted directly.

Benefits:

Tool-free and fast installation thanks to intuitive lever operation
Both hands remain free for wiring
Faster, safer wiring processes

Show Product List

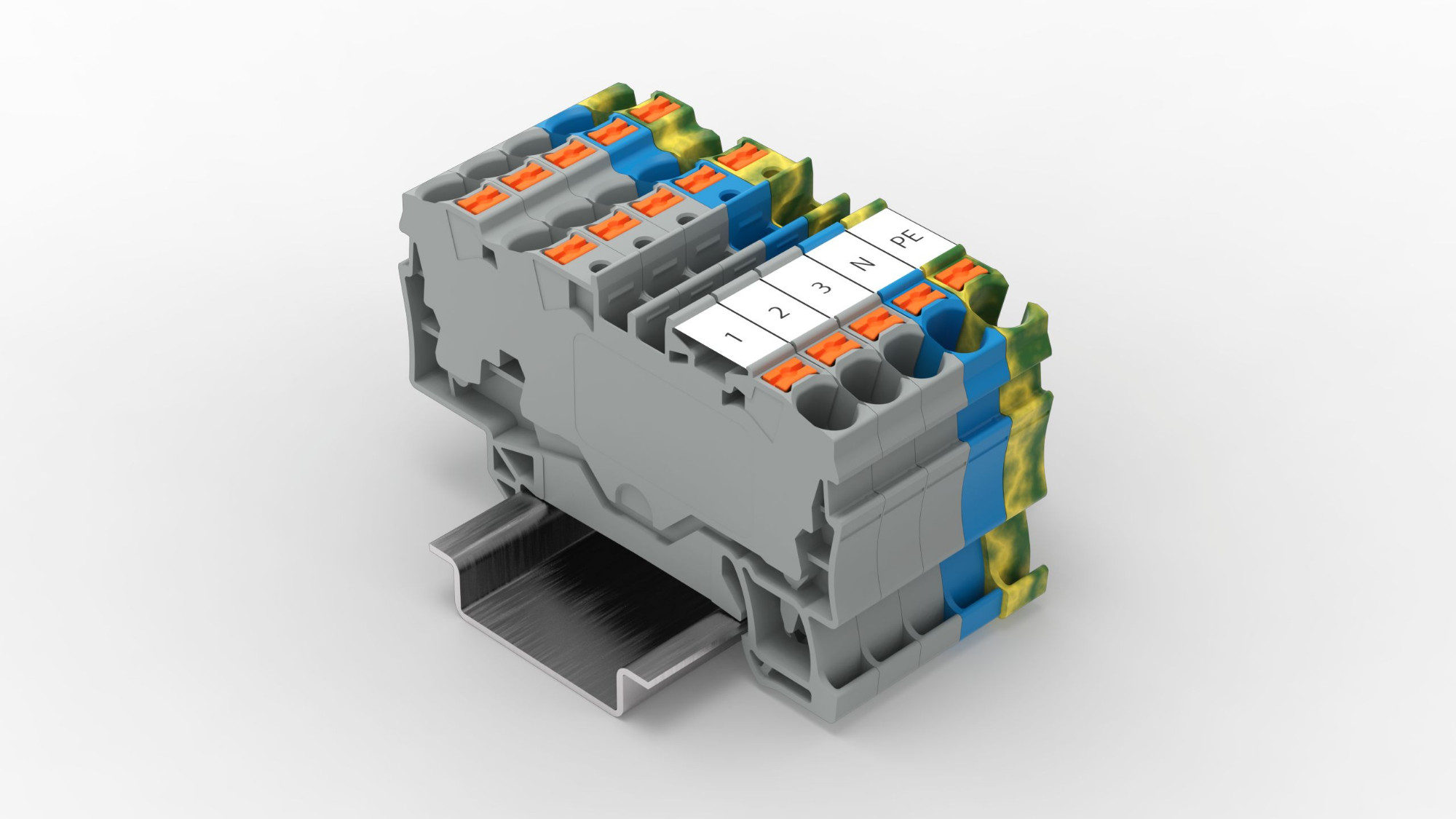

Rail-Mount Terminal Blocks with Push-Buttons

TOPJOB® S Rail-Mount Terminal Blocks are also available with push-buttons and cover nominal cross-sections from 1.0 mm² to 16 mm². Depending on the size, they come in 2-, 3-, 4‑ and even 5‑conductor variants. The clamping point opens easily by pressing the orange push-button with any tool. Thanks to the Push-in CAGE CLAMP®, all conductor types – including fine-stranded conductors with ferrules – can be inserted directly and without tools.

Benefits:

Flexible operation: Any tool can be used to open the push-button
Clear handling: The orange marking ensures easy identification and prevents confusion

Show product list

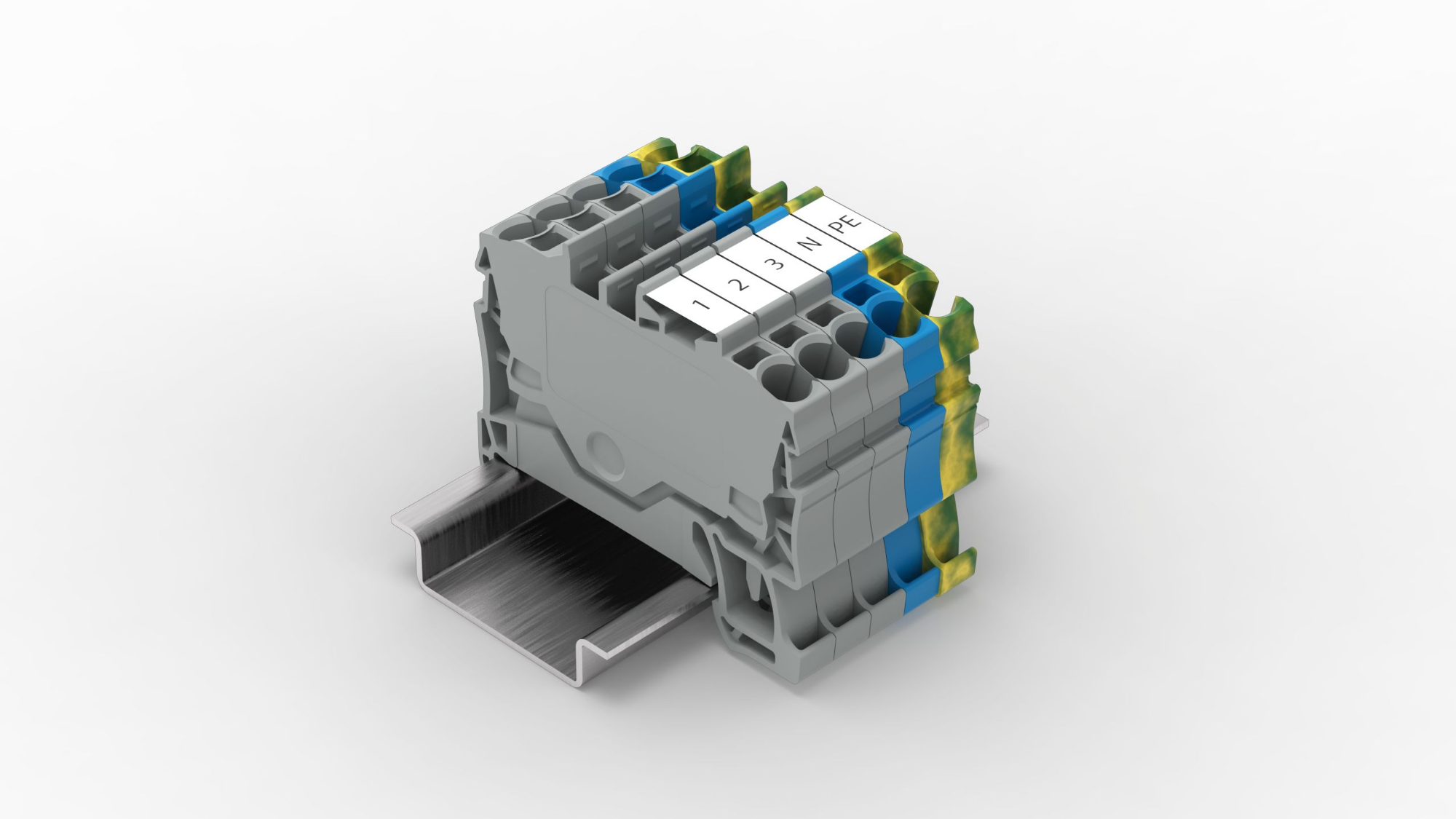

Rail-Mount Terminal Blocks with Operating Slots

TOPJOB® S Rail-Mount Terminal Blocks with operating slots offer effortless wiring: The operating tool remains in the slot until the conductor is fully terminated. This keeps the clamping point open, leaving both hands free for wiring. The extensive product range includes single-, double- and triple-deck terminal blocks, along with functional variants for diverse applications, covering cross-sections from 0.14 mm² to 25 mm².

Benefits:

Operating tool stays securely in place – focus fully on the wiring task
Open conductor entry – both hands free for safe, simplified wiring

Show product list

Videos on the Actuation Variants

Rail-Mount Terminal Blocks with Levers

All conductor types can be connected and disconnected easily and intuitively by hand.

00:00
Rail-Mount Terminal Blocks with Levers
00:00
Rail-Mount Terminal Blocks with Push-Buttons
00:00
Rail-Mount Terminal Blocks with Operating Slots

Push-In Technology

Image	Description	Image	Description
[Image]	Solid Conductors ranging from two sizes below the rated cross-section up to the rated cross-section can be simply pushed in.	[Image]	stranded Conductors ranging from two sizes below the rated cross-section up to the rated cross-section can be simply pushed in.
[Image]	Fine-stranded with ferrule (gastight crimp) Conductors ranging from two sizes below the rated cross-section up to the rated cross-section can be simply pushed in.	[Image]	Fine-stranded, tip-bonded Conductors ranging from two sizes below the rated cross-section up to the rated cross-section can be simply pushed in (depending on the conductor’s stiffness and bonding length).
[Image]	Fine-stranded, with pin terminal (gastight crimp) Conductors ranging from two sizes below the rated cross-section up to the rated cross-section can be simply pushed in (depending on pin diameter).	[Image]	Fine-stranded, also with tinned single strands Entire wire gauge range can be terminated by using the operating tool to open the clamping unit, inserting the conductor and then removing the operating tool.

For All Conductor Types

Experience the advantages of TOPJOB^® S: universal compatibility with all conductor types and high safety reserves, even under demanding environmental conditions.
