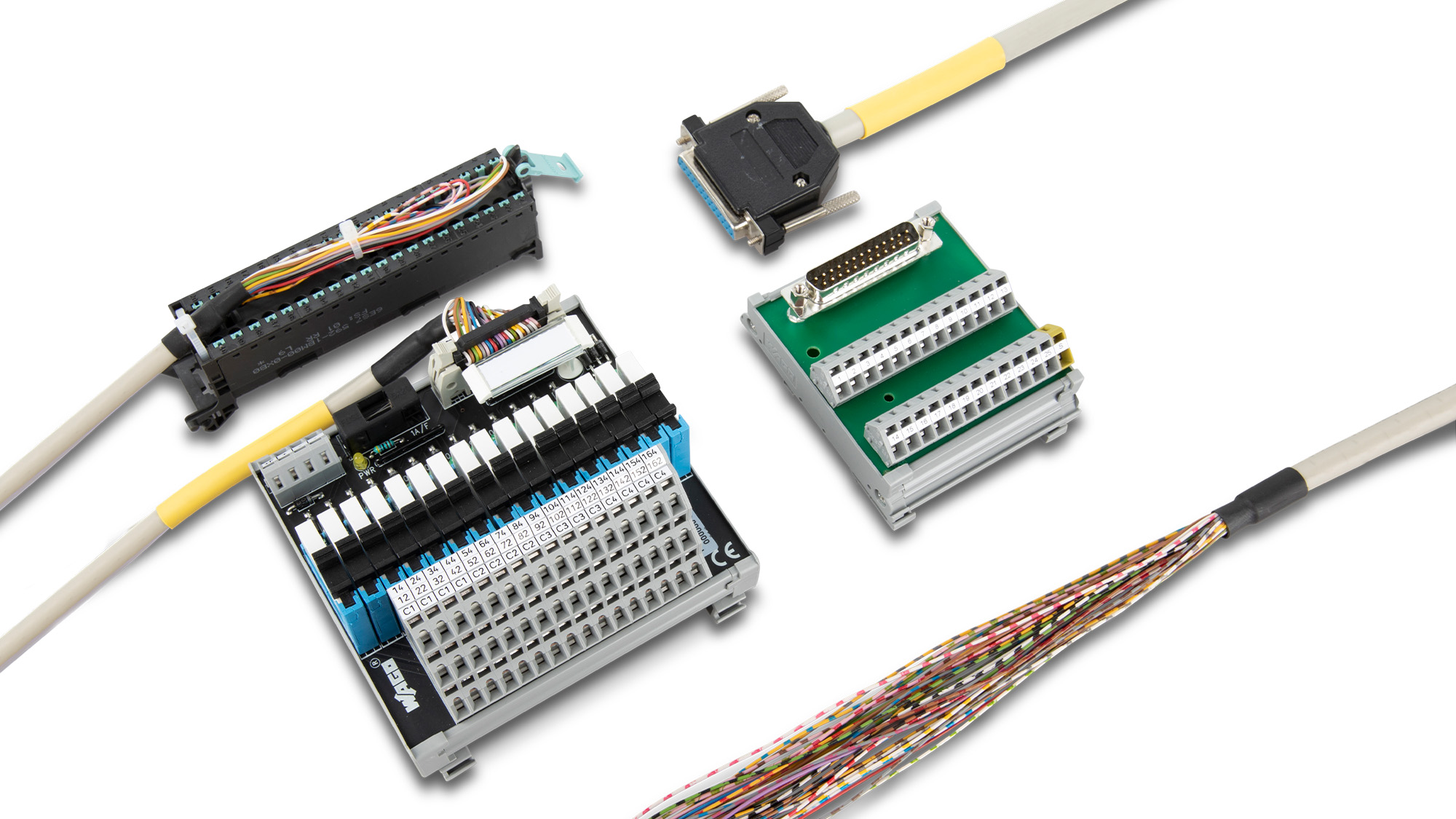

Interface Modules and System Wiring

On the next pages you will find all the information on our controller-specific interface modules and system cables. With our solutions, you can connect your preferred automation system quickly and easily. For this purpose, we offer solutions for all major manufacturers of automation systems.

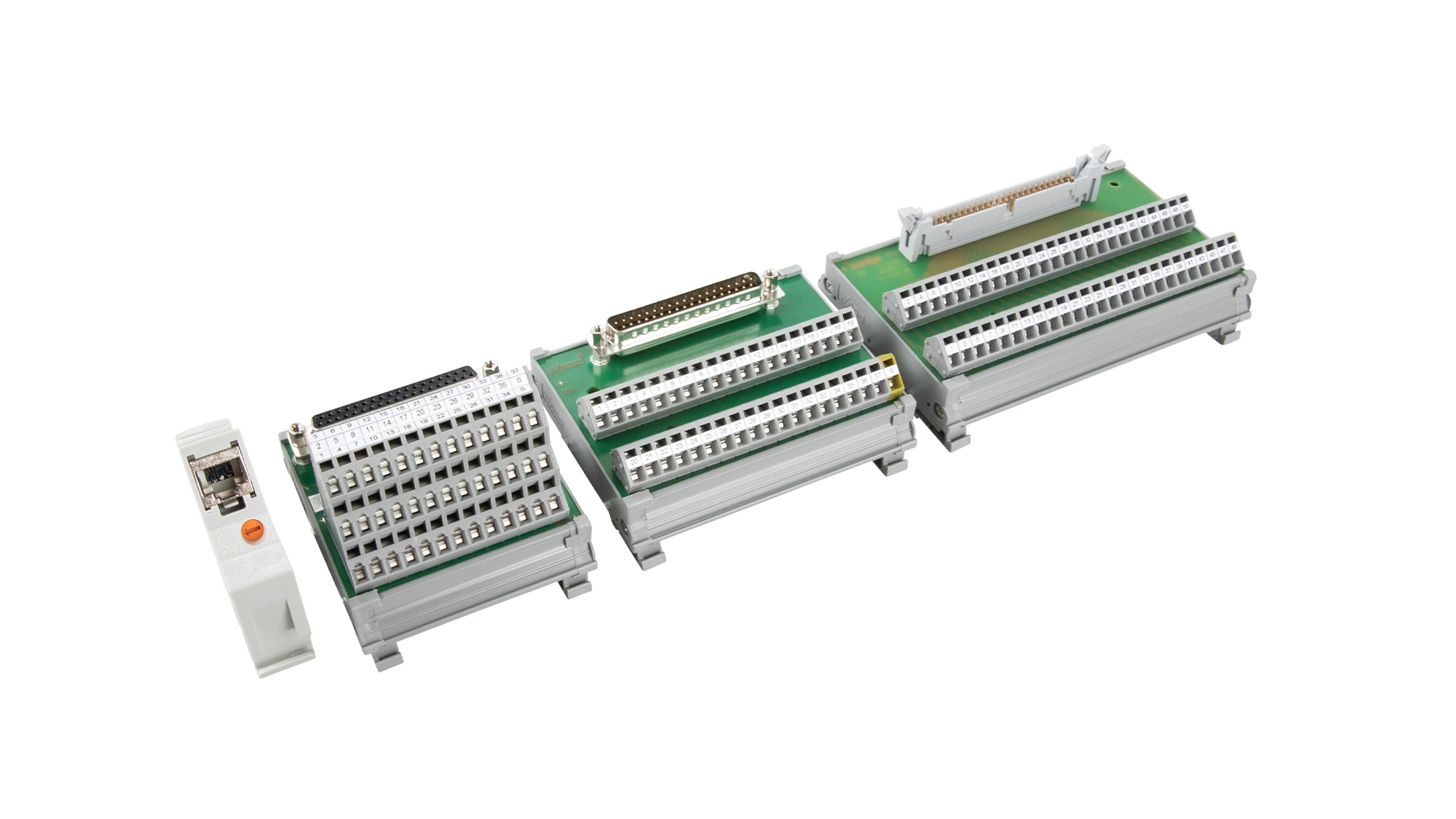

WAGO’s interface modules offer you reliable, maintenance-free connections for flexible signal wiring. They connect electronics to electrical systems on the control level and handle signal transmission and distribution on the control and field levels (system, machine). Here, the control signals from pre-assembled, plug-in connections, such as RJ-45 and RS-232, as well as common ribbon cables, are applied to terminal block connections.

Your Benefits:

• Economical, time-saving configuration and calculation thanks to a reduction in the wiring modules needed

• Fast wiring, commissioning and troubleshooting thanks to clearly organized wiring and pole marking

• Reliable, maintenance-free connection of signal lines via reliable terminal blocks equipped with CAGE CLAMP® spring pressure connection technology

• High-density wiring saves control cabinet space

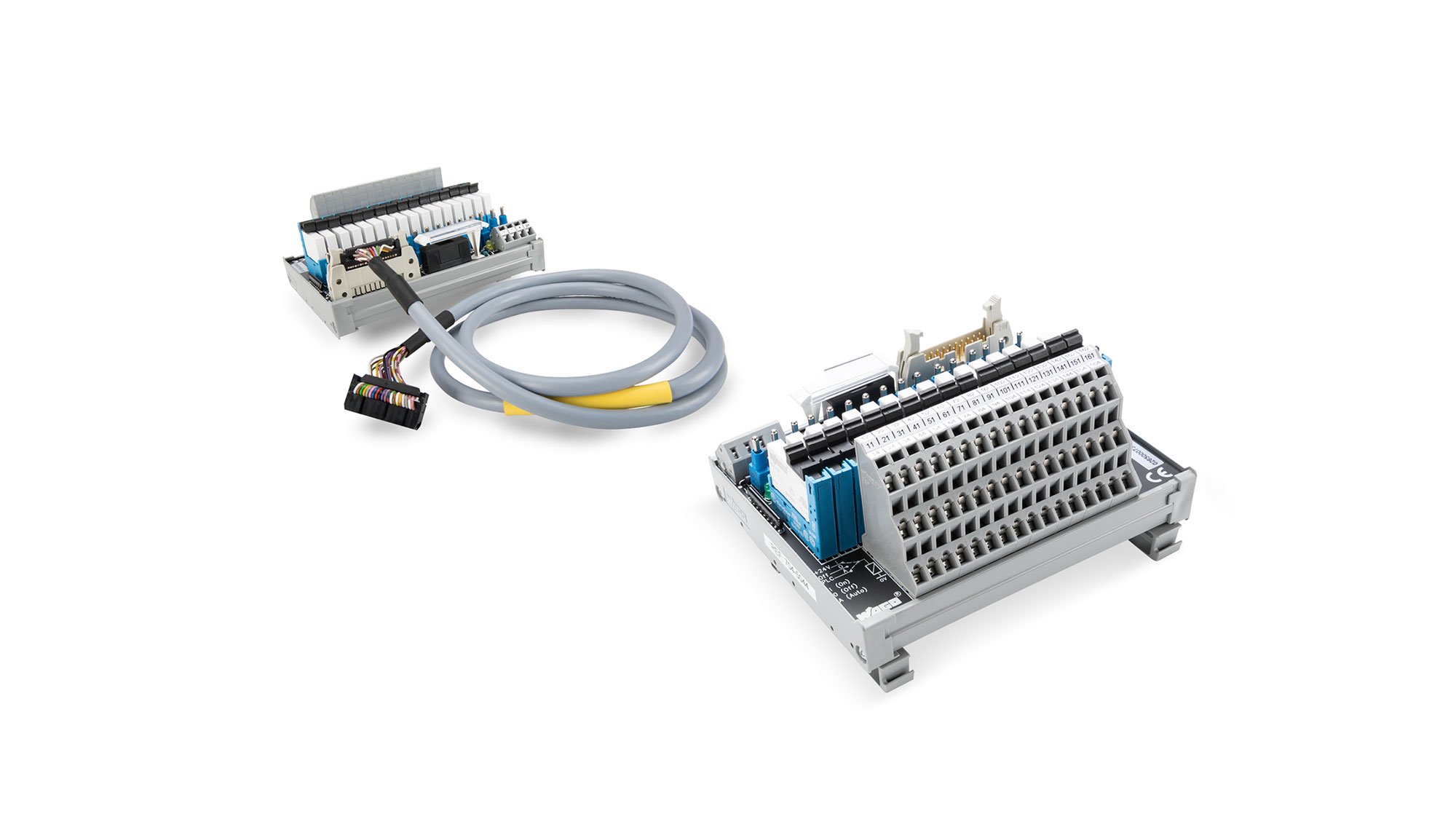

WAGO’s system wiring for universal components supports you with quick installation, assembly and maintenance. Choose the right interface from our broad selection of products – whether RJ-45, RS-232 or other universal connection components.

Your Benefits:

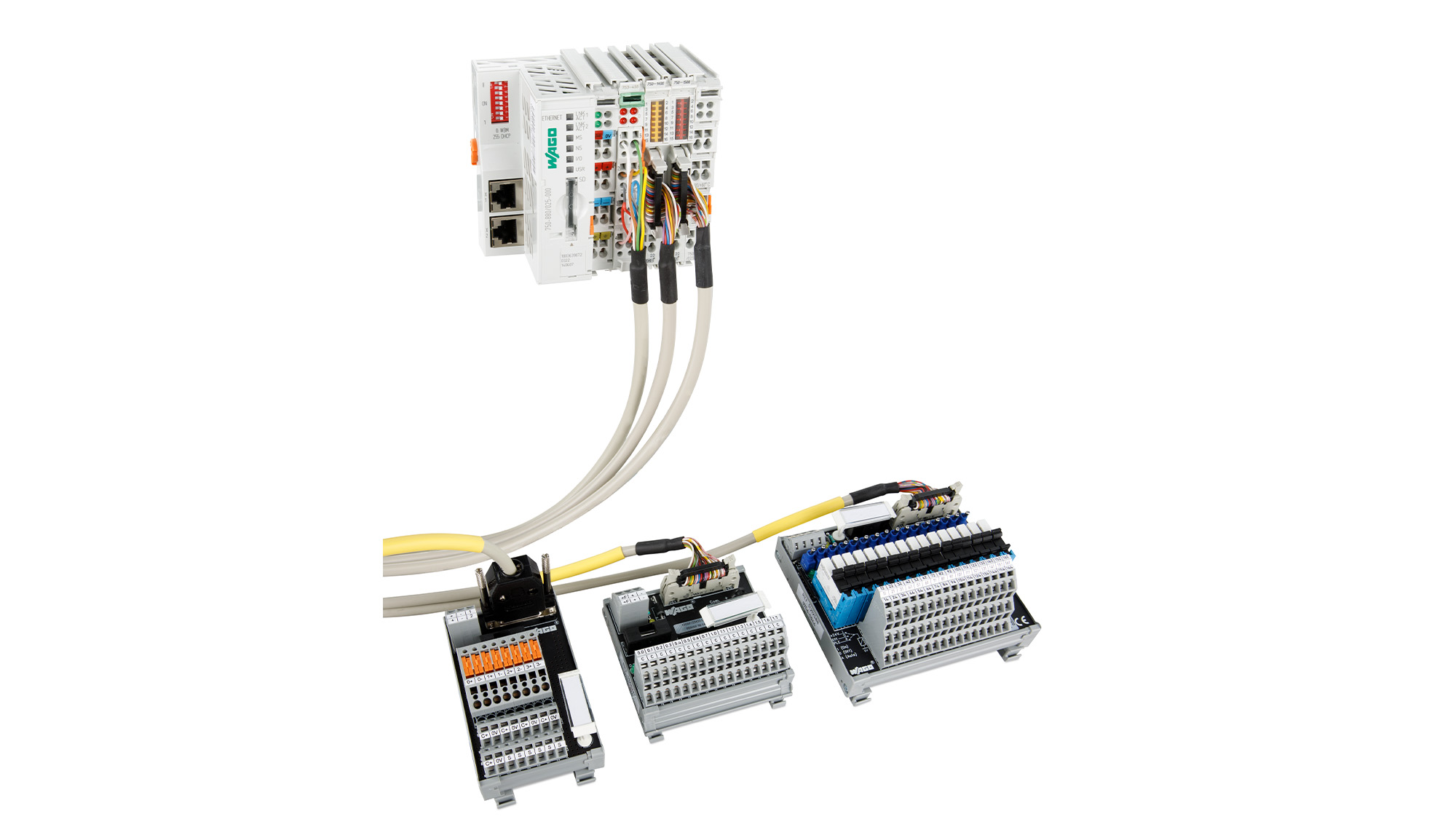

• Fast, simple connection between connection levels (sensors and actuators) and controller

• Also available with open cable ends for greater flexibility in system planning

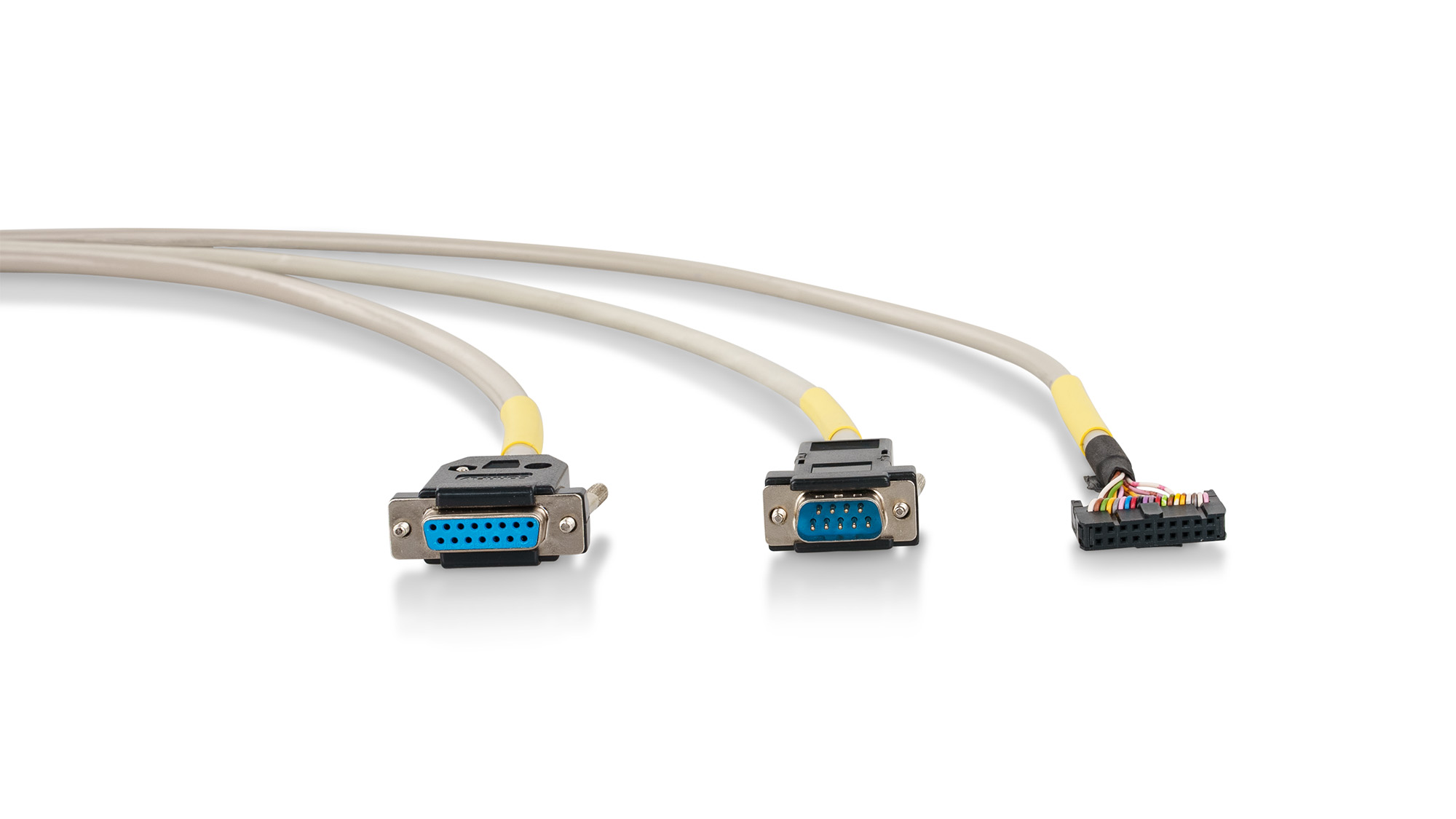

• Pre-assembled interface cables save time

Discover the diversity of WAGO’s system wiring products.
