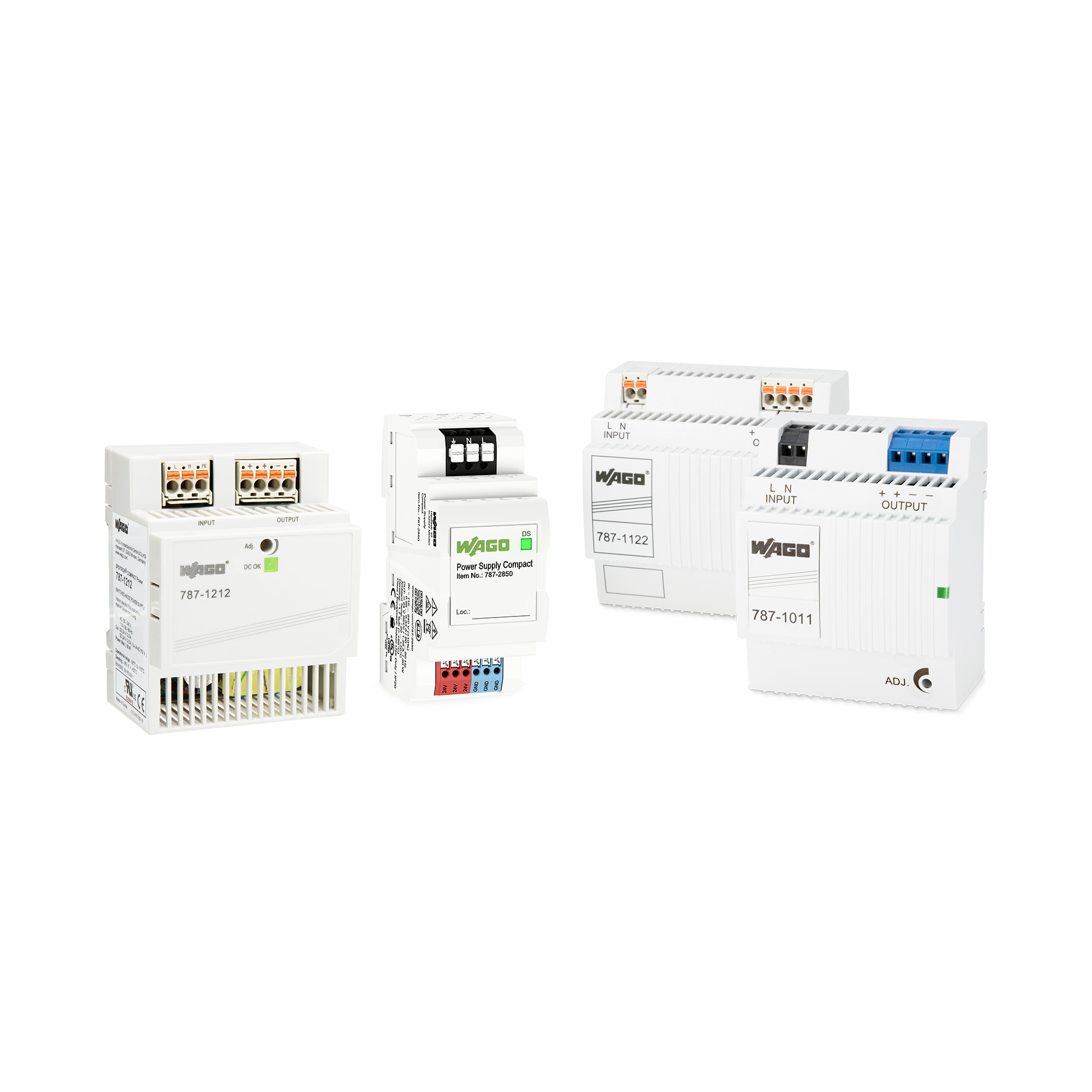

WAGO Compact Power Supplies is small with high-performance for DIN-rail-mount housings

WAGO Power Supplies Compact

The small, high-performance power supplies in DIN-rail-mount housings are available with output voltages of 5, 12, 18 and 24 VDC, as well as nominal output currents up to 8 A. The devices are highly reliable and ideal for use in both installation and system distribution boards.

Show product list

New Power Supply for WAGO DALI Multi-Master

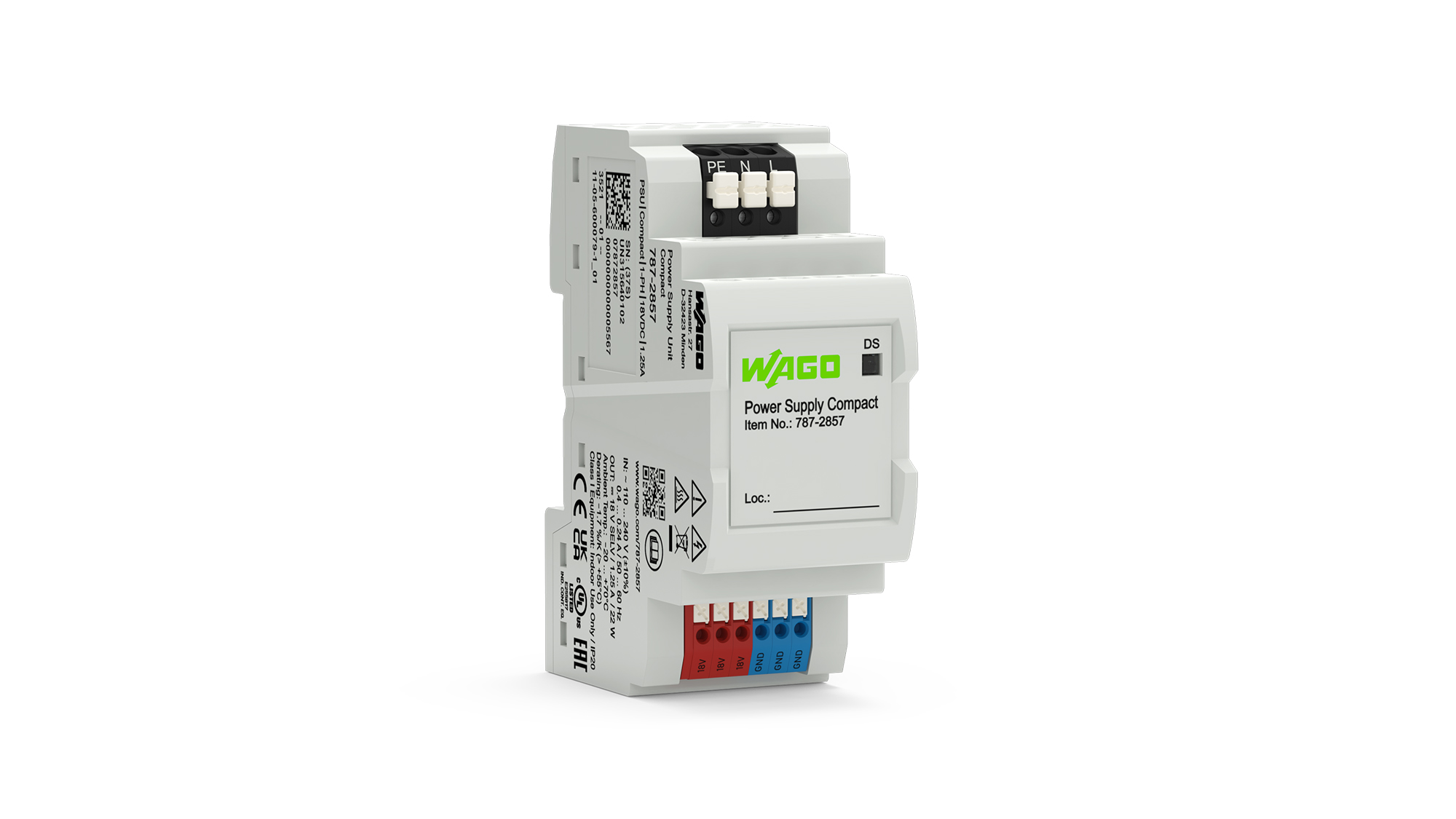

WAGO Compact Power Supply with 18 VDC Output Voltage

Building automation applications rely on DALI for lighting management, which requires a constant supply voltage of 18 VDC for the WAGO DALI Multi-Master (Item No. 753-647). To meet this requirement, WAGO is expanding its portfolio with the new WAGO Compact Power Supply (Item No. 787-2857). This unit can supply up to six WAGO DALI Multi-Masters (Item No. 753-647) with a continuous 18 V output voltage and a maximum output current of 1.25 A. The combination of a DALI Multi-Master and Compact Power Supply is DALI-2 certified. In addition to the requirements for DALI applications within the WAGO I/O System, this power supply boasts a slim design only 36 mm (2 DU*) wide that is perfect for use in installation distribution boards thanks to the rail-mount housing per EN 43880. With its high efficiency (> 88 %), the power supply is also extremely efficient and durable. It can be wired quickly and easily by directly inserting conductors using the push-in connection technology.

* DU = Division Unit(s)

Go to the product

Your Benefits:

Wide input voltage range for international use: 85 ... 264 VAC
Ideal for industrial and building applications, as well as home appliances per EN 60335-1
Mounting on DIN-rail and flexible installation via optional screw-mount clips – perfect for every application
Triple the savings thanks to low purchase costs, easy installation and maintenance-free operation
Front-panel adjustable output voltage via tool

Space and time savings

Compact, space-saving design – ideal for installation in distribution and meter boards
Time-saving pre-wiring via picoMAX^®Connectors equipped with Push-in CAGE CLAMP^®

WAGO Power Supplies Compact – Housing Designs

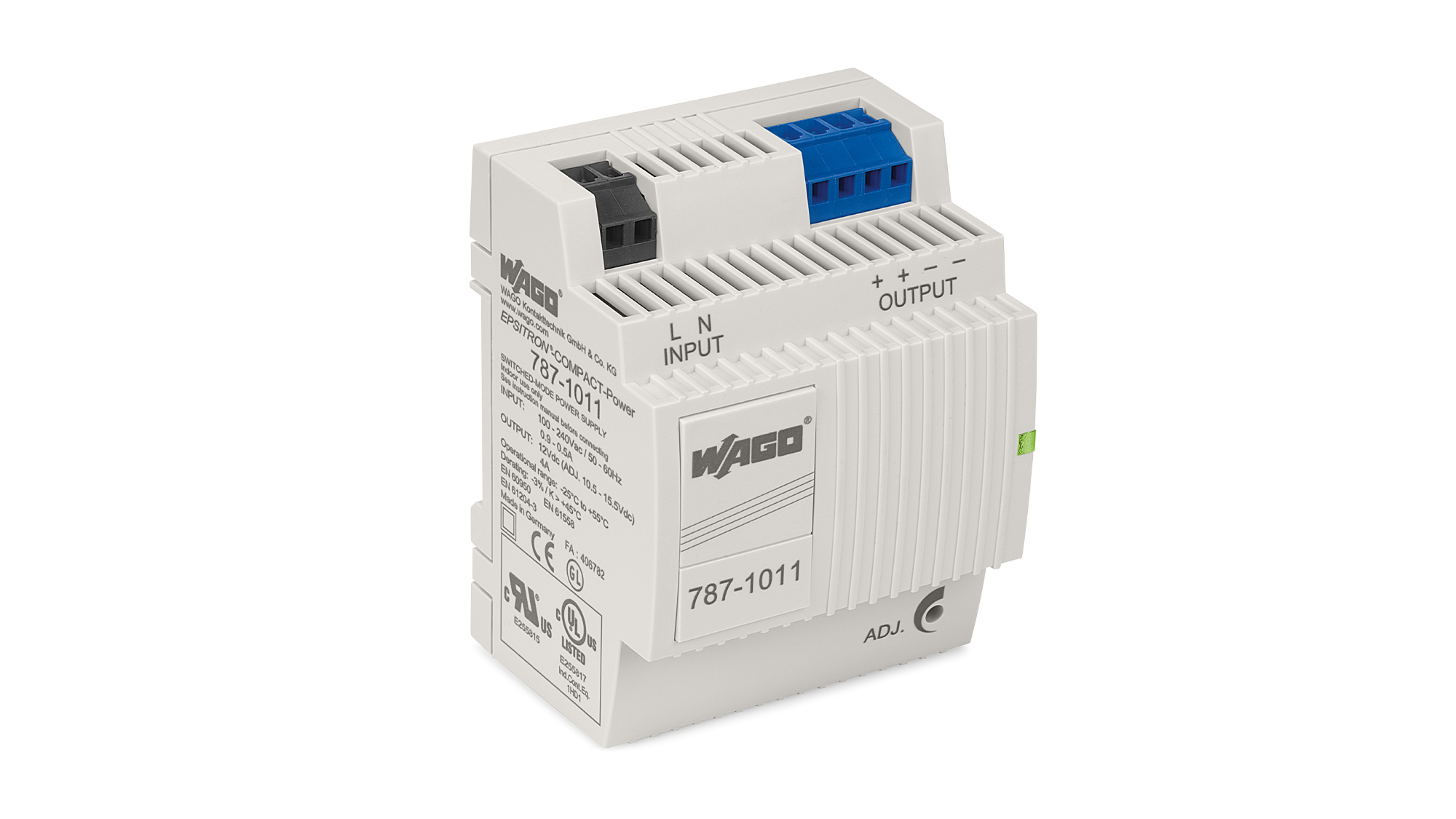

787-10xx

Housing design per EN 43880, suitable for installation in small distribution boards
Triple the savings thanks to low acquisition costs, easy installation and maintenance-free operation
Vibration-proof, fast, maintenance-free CAGE CLAMP^® connections

Go to the 787-10xx Series

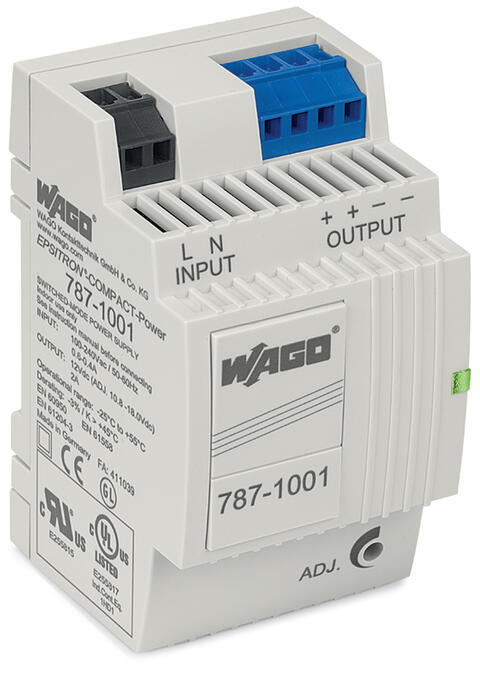

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 2 A output current

Item no. 787-1001

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 2 A output current

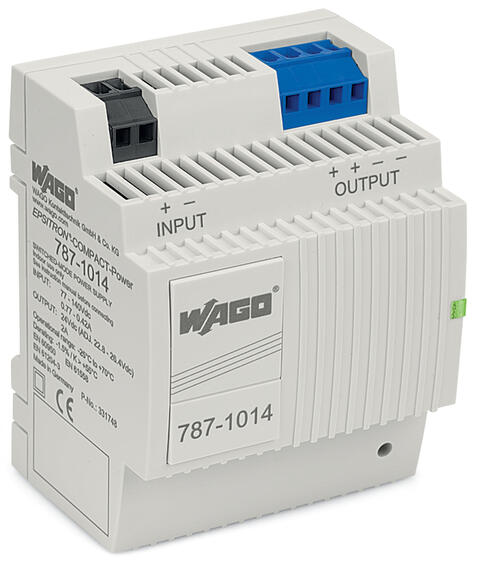

DC/DC Converter; Compact; 110 VDC input voltage; 24 VDC output voltage; 2 A output current

Item no. 787-1014

DC/DC Converter; Compact; 110 VDC input voltage; 24 VDC output voltage; 2 A output current

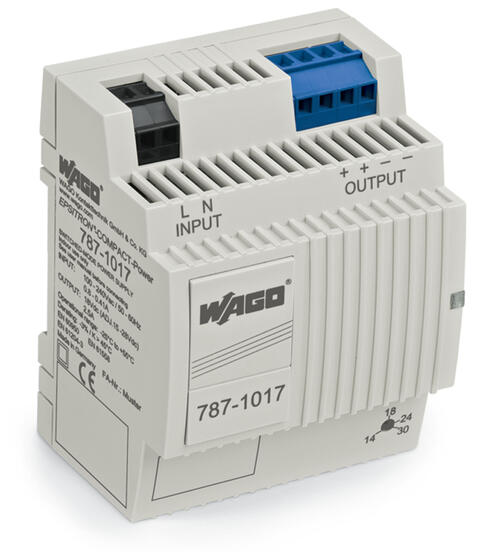

Switched-mode power supply; Compact; 1-phase; 18 VDC output voltage; 2.5 A output current

Item no. 787-1017

Switched-mode power supply; Compact; 1-phase; 18 VDC output voltage; 2.5 A output current

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 1.3 A output current

Item no. 787-1002

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 1.3 A output current

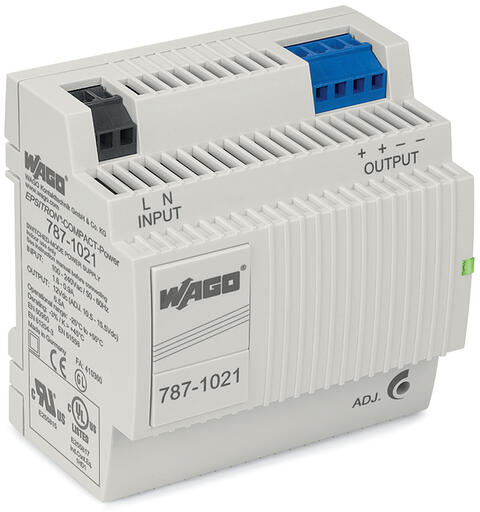

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 6.5 A output current; 2,50 mm²

Item no. 787-1021

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 6.5 A output current; 2,50 mm²

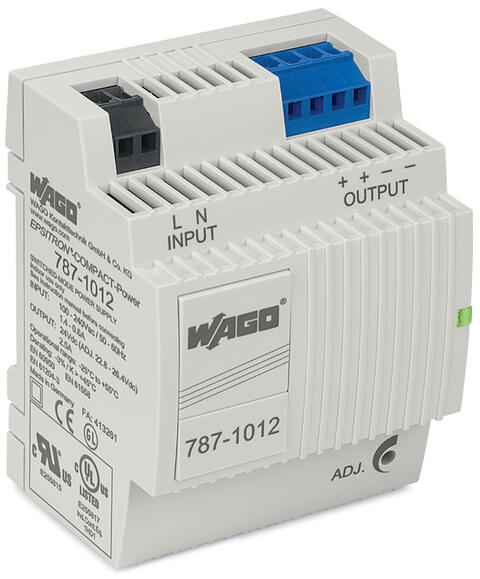

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 2.5 A output current

Item no. 787-1012

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 2.5 A output current

DC/DC Converter; Compact; 72 VDC input voltage; 24 VDC output voltage; 2 A output current

Item no. 787-1014/072-000

DC/DC Converter; Compact; 72 VDC input voltage; 24 VDC output voltage; 2 A output current

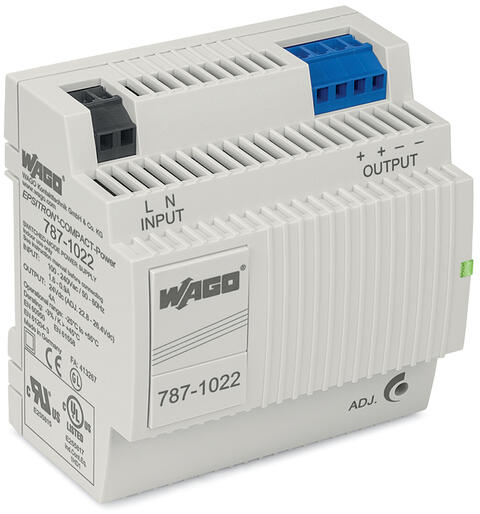

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 4 A output current

Item no. 787-1022

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 4 A output current

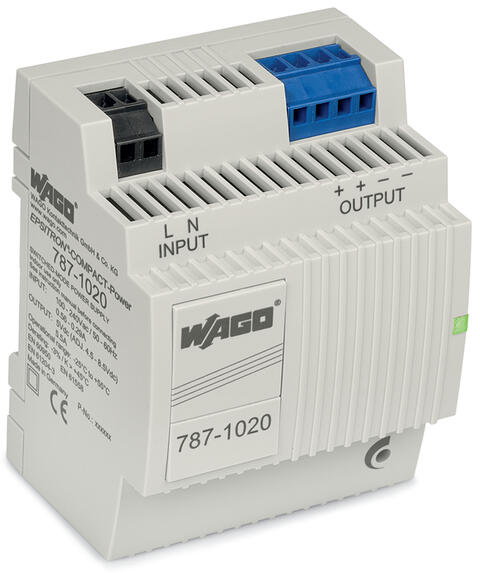

Switched-mode power supply; Compact; 1-phase; 5 VDC output voltage; 5.5 A output current; DC OK signal

Item no. 787-1020

Switched-mode power supply; Compact; 1-phase; 5 VDC output voltage; 5.5 A output current; DC OK signal

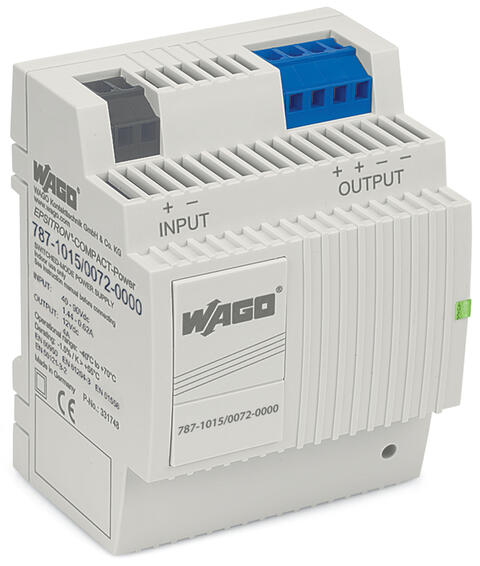

DC/DC Converter; Compact; 72 VDC input voltage; 12 VDC output voltage; 4 A output current; galvanically isolated

Item no. 787-1015/072-000

DC/DC Converter; Compact; 72 VDC input voltage; 12 VDC output voltage; 4 A output current; galvanically isolated

787-12xx

A wide range of options for DIN rail and screw mounting
Ideal for household and commercial appliances that comply with EN 60335 (e.g., heat pumps and combined heat and power plants, as well as vending and gaming machines)
Reliable installation via picoMAX^® Connectors with push-in connection technology

Go to the 787-12xx Series

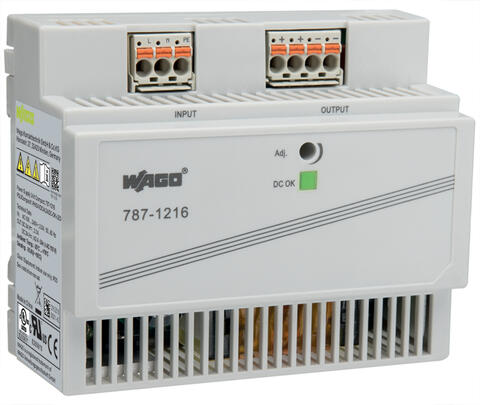

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 4.2 A output current; DC-OK LED

Item no. 787-1216

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 4.2 A output current; DC-OK LED

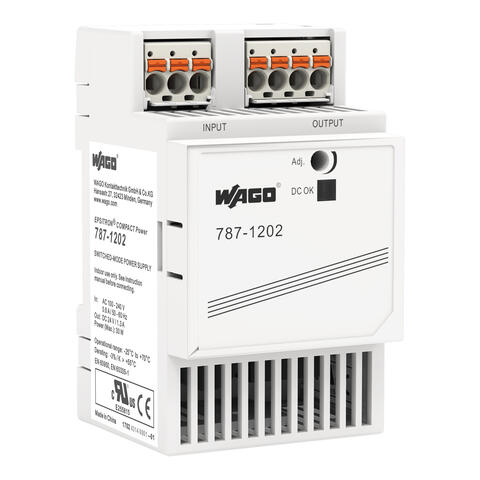

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 1.3 A output current; DC-OK LED

Item no. 787-1202

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 1.3 A output current; DC-OK LED

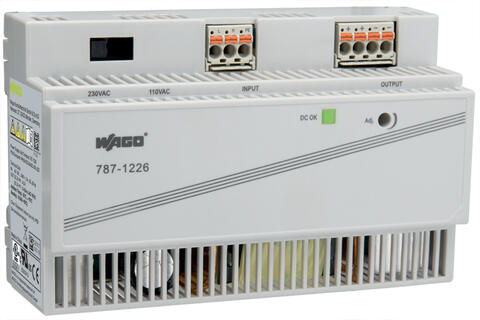

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 6 A output current; DC-OK LED

Item no. 787-1226

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 6 A output current; DC-OK LED

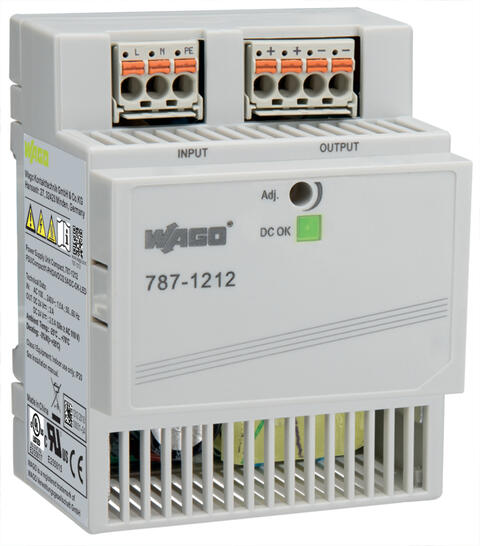

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 2.5 A output current; DC-OK LED

Item no. 787-1212

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 2.5 A output current; DC-OK LED

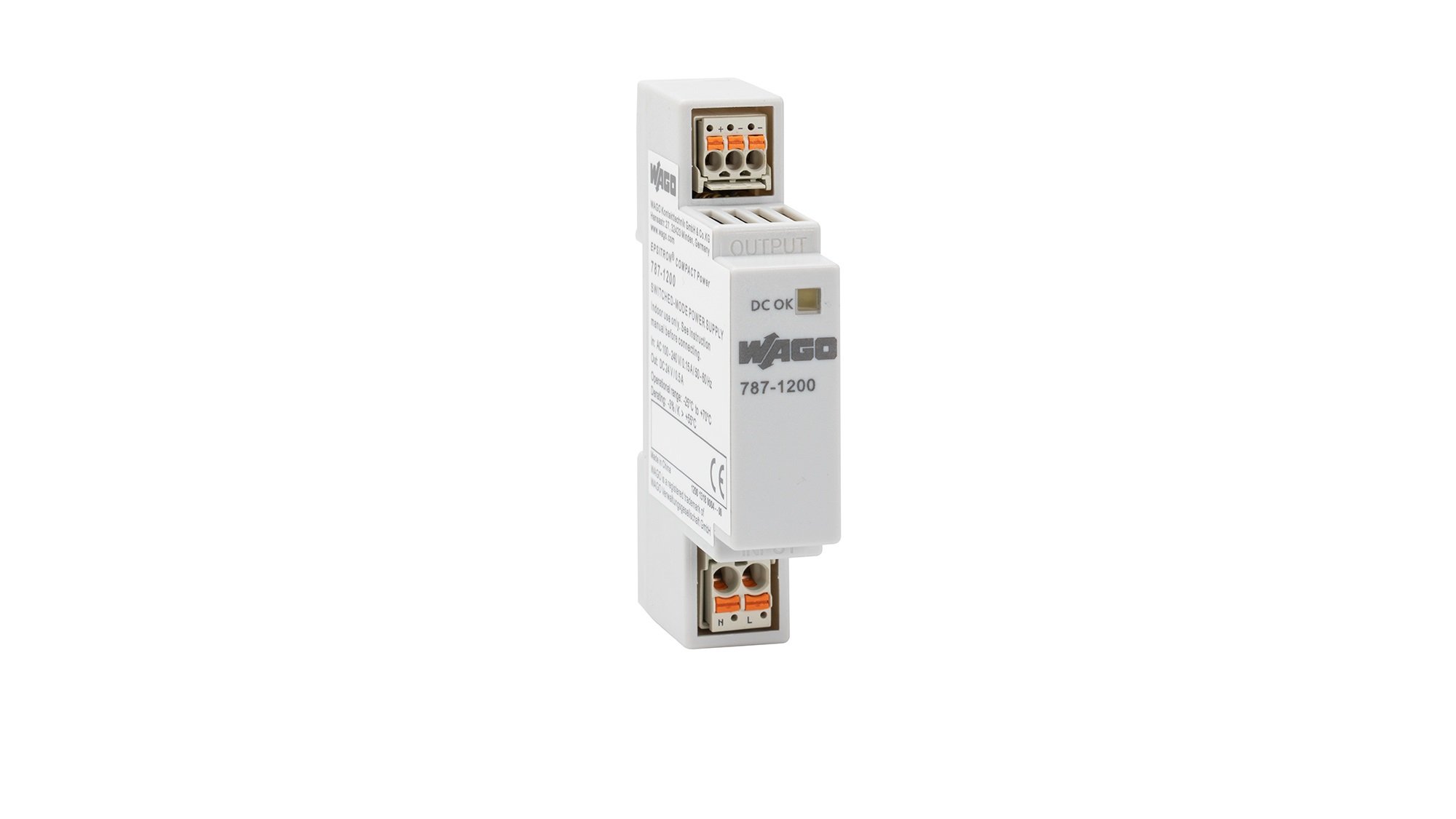

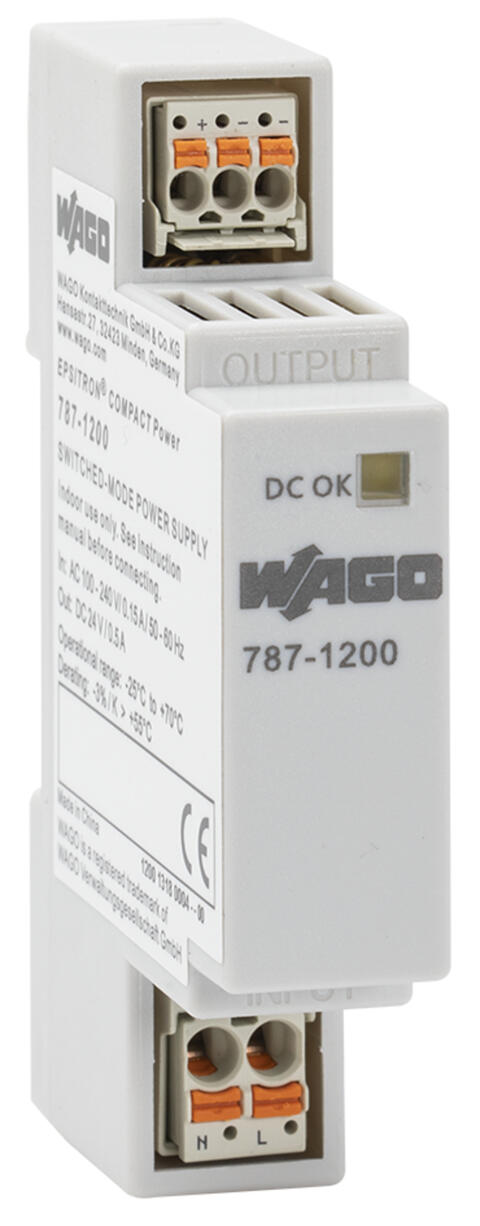

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 0.5 A output current; DC-OK LED

Item no. 787-1200

Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 0.5 A output current; DC-OK LED

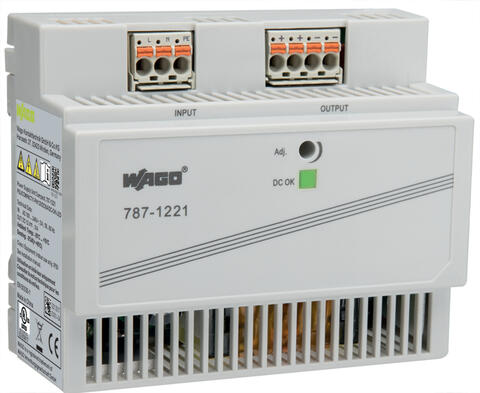

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 8 A output current; DC-OK LED

Item no. 787-1221

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 8 A output current; DC-OK LED

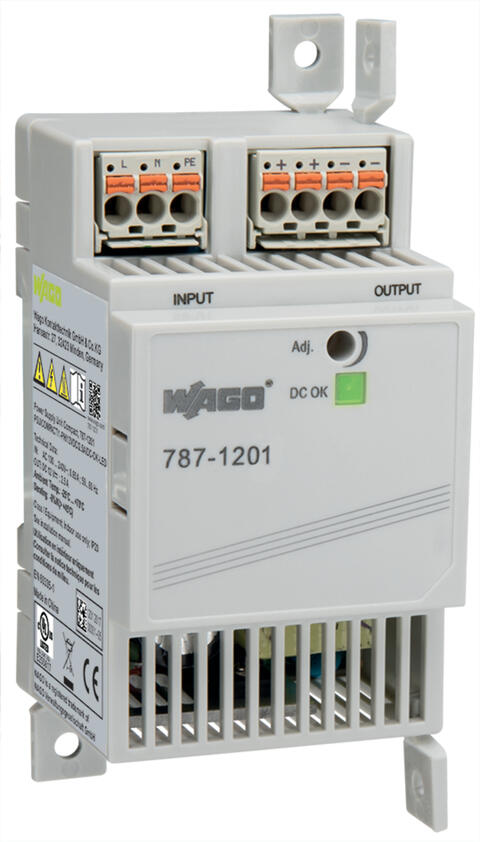

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 2.5 A output current; DC-OK LED

Item no. 787-1201

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 2.5 A output current; DC-OK LED

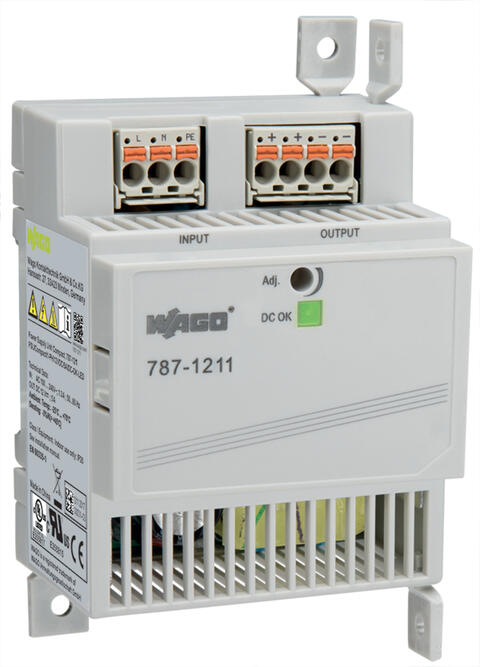

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 5 A output current; DC-OK LED

Item no. 787-1211

Switched-mode power supply; Compact; 1-phase; 12 VDC output voltage; 5 A output current; DC-OK LED

More Power Supplies

Efficient Power Supplies

A consistent supply voltage anytime and anywhere, in a huge range of applications – that’s what makes WAGO’s power supplies so successful!

Learn more
