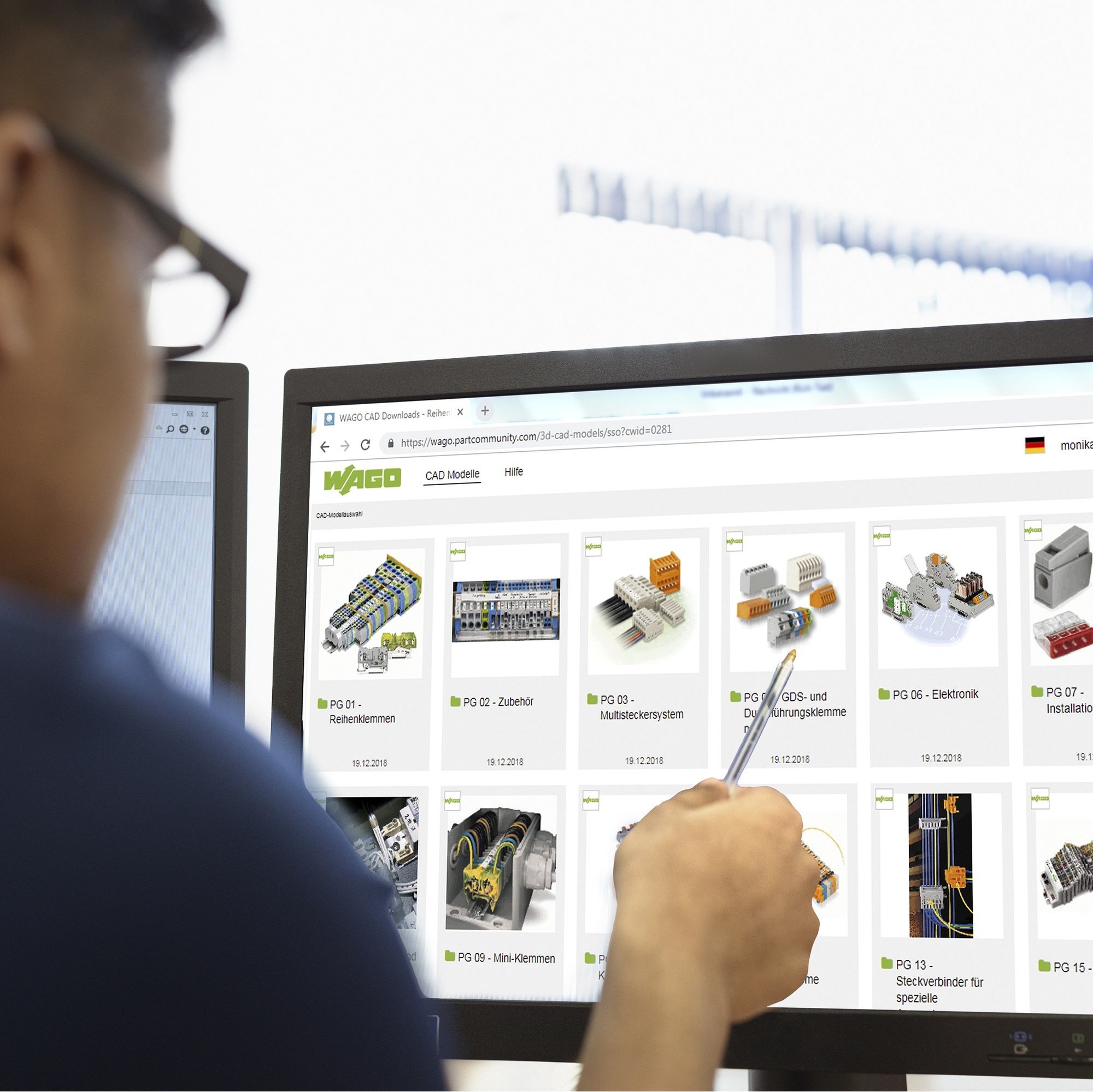

An extensive product portfolio of individual WAGO items is available for download. CAD product data can be transferred from here quickly and easily to customers’ designs. Whether 2D or 3D data in a neutral CAD format or in the user’s CAD system format, the online portal provides data that fulfills these requirements. In addition to geometry data, technical and commercial item data is also transferred to the CAD target system, or to the PLM/ERP software used in addition.
Your Benefits with WAGO CAD Modeling
CAD data enhanced with technical and commercial product data
Unlimited parts downloads after one-time login
Transfer of real sub-assemblies from WAGO Configurator Smart Designer to 3D design
Availability of all neutral and native 2D/3D CAD formats
High data quality
Accessible worldwide 24/7
Both technical and commercial information on weight, material, end of life, classifications and more are transferred to the CAD product model.
