WINSTA® Building Applications: Perfectly Plugged Applications

2/22/2019

Every family within the WAGO WINSTA^® Pluggable Connection System features an extremely broad product portfolio to meet the power supply and signal transmission requirements of modern buildings. Individual components including plugs, sockets, distribution connectors, cable assemblies and boxes with pluggable outputs provide everything for fast and easy electrical installations. Additionally, the WINSTA^® MINI special and MIDI special families offer various mechanical and visual coding options for clearly identifying different circuits, while allowing bus signals to be distributed via pluggable connections.

Item no. 771-8965/107-101

pre-assembled connecting cable; Eca; Distribution connector with phase selection/open-ended; 5-pole; Cod. A; H05VV-F 5G 2.5 mm²; 1 m; 2,50 mm²; black

Show product

Item no. 771-9993/006-101

pre-assembled interconnecting cable; Eca; Socket/plug; 3-pole; Cod. A; H05VV-F 3G 1.5 mm²; 1 m; 1,50 mm²; black

Show product

Item no. 770-611

Three-phase to single-phase distribution connector; with phase selection; 5-pole/3-pole; Cod. A; 1 input; 2 outputs; with cable connection on the input side; black

Show product

Item no. 770-625

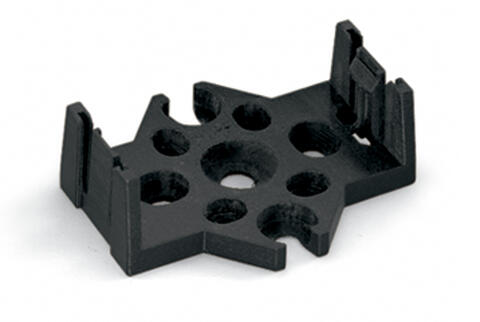

Mounting plate; 5-pole; for distribution connectors; Plastic; black

Show product

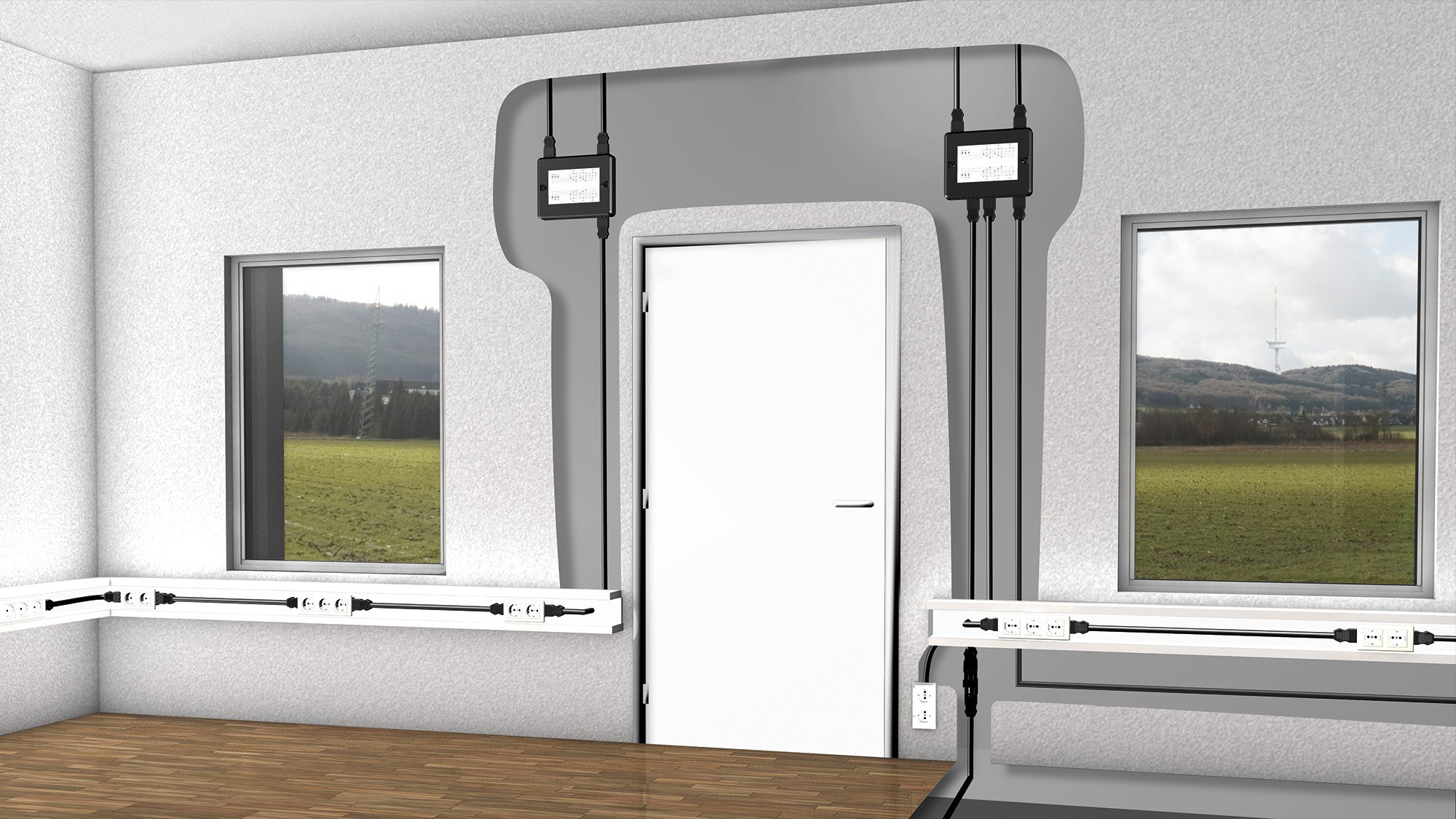

Application in Cable Ducts

Power supply distribution to a 230 V mains is performed using a pre-assembled WINSTA^® Distribution Box.
Power outputs are plugged into trunking outlets via pre-assembled interconnecting cables with integrated WINSTA^® Plugs and Sockets.
