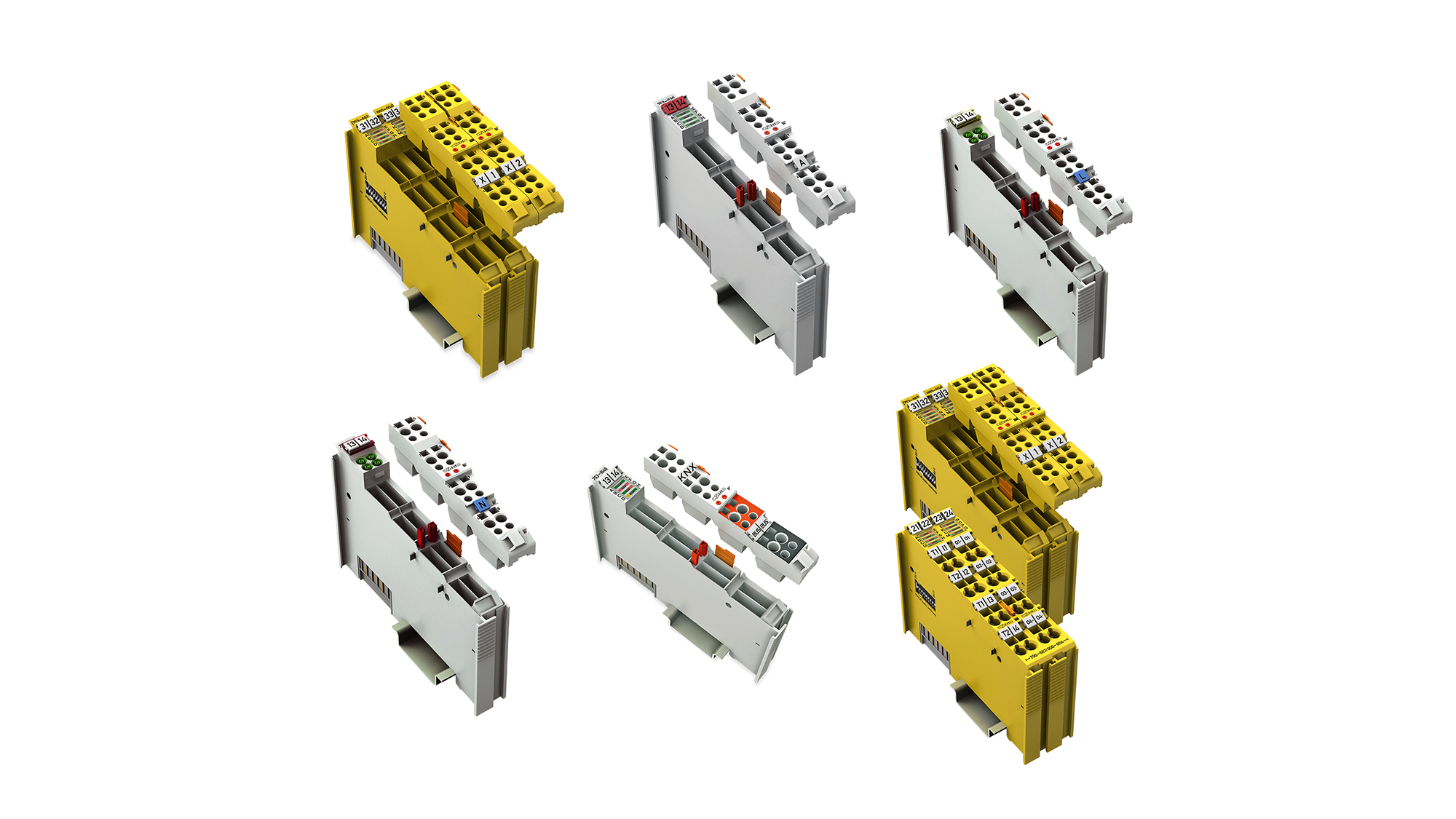

Safety Logic Modules
WAGO’s 750 Series Safety Logic Modules come with 4 safe inputs along with 2 or 4 safe outputs to be used with a select number of our PFCs. Implementing these modules eliminates the need for a dedicated safety PLC.
IP20 I/O Modules
WAGO’s flexible IP20 remote I/O systems provide optimum performance and availability. With their ultra-high performance, low power consumption, and numerous interfaces, WAGO’s PLCs are a cost-effective automation solution.

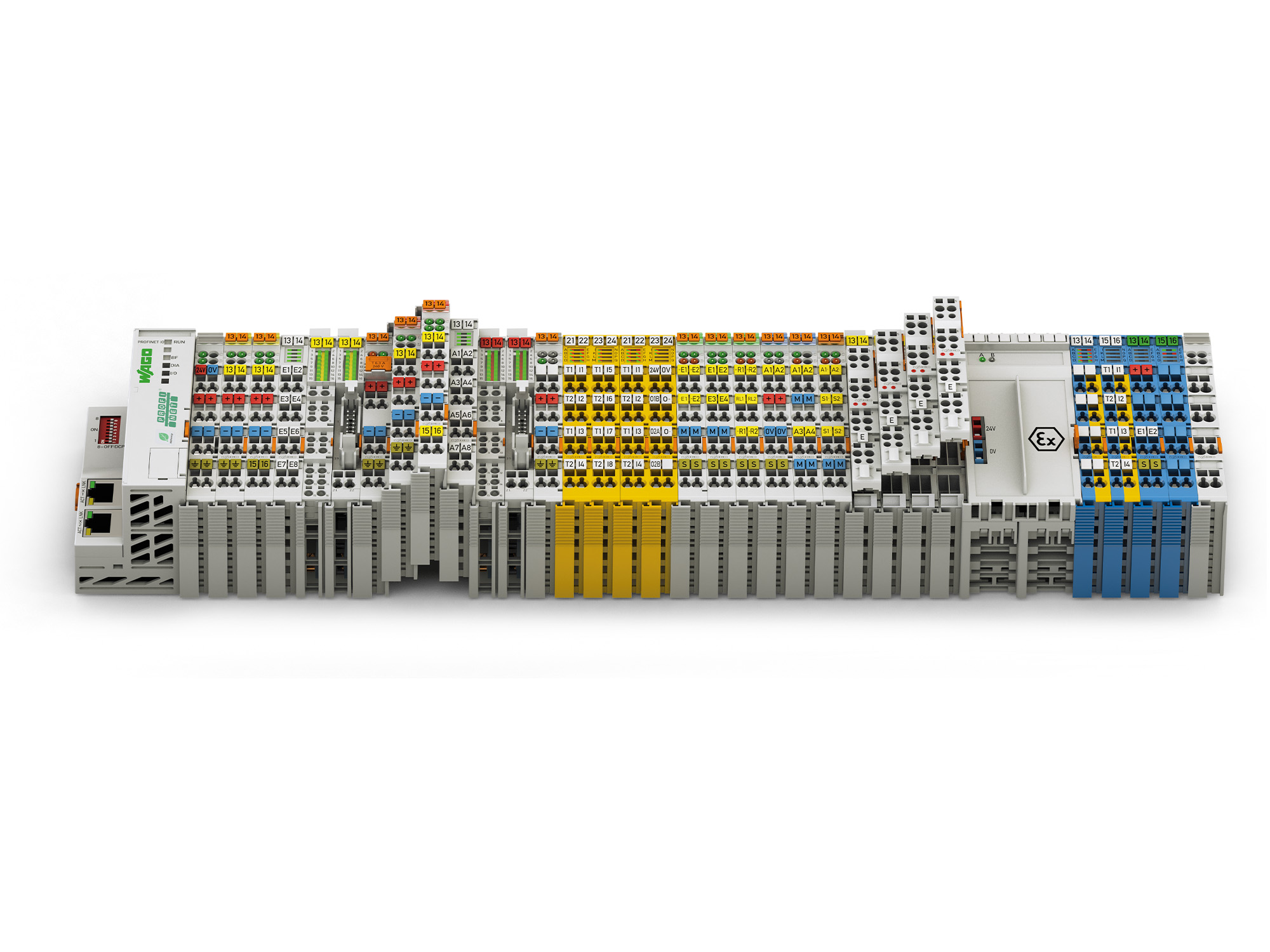

The System for Every Application
Boasting more than 500 I/O modules, programmable controllers and fieldbus couplers, WAGO’s I/O System offers all the functions required for your automation needs – and every fieldbus. The remote I/O System is the decentralized peripheral for automation technology. The tool-free wiring is intuitive for worldwide use, and the lever ensures that the contact point is always securely closed. The optional pluggable connection for the 753 Series minimizes both hardware and system expenses.
Each node in the WAGO I/O System can be configured to meet every channel’s requirements; additionally, various potentials and signal types are available (granularity of 1–16 channels). Digital and analog I/O modules, as well as specialty modules, can be freely mixed. Supply modules permit different voltages within the same node.
Configure your WAGO I/O System 750 node right here:
The system's modularity is also reflected in its support of numerous fieldbus systems:
A modular, DIN-rail-mount design permits easy installation, expansion and modification of the I/O node without tools. Changes and additions are straightforward. Additionally, proven CAGE CLAMP® technology makes all field connections quick, vibration-proof and maintenance-free. Depending on the I/O module’s granularity, field peripherals can be directly wired using 1-, 2-, 3- or 4-wire technology.
The WAGO I/O System is engineered and tested for use in the most demanding environments (e.g., temperature cycling, shock/vibration loading and ESD). Spring pressure connection technology guarantees continuous operation.

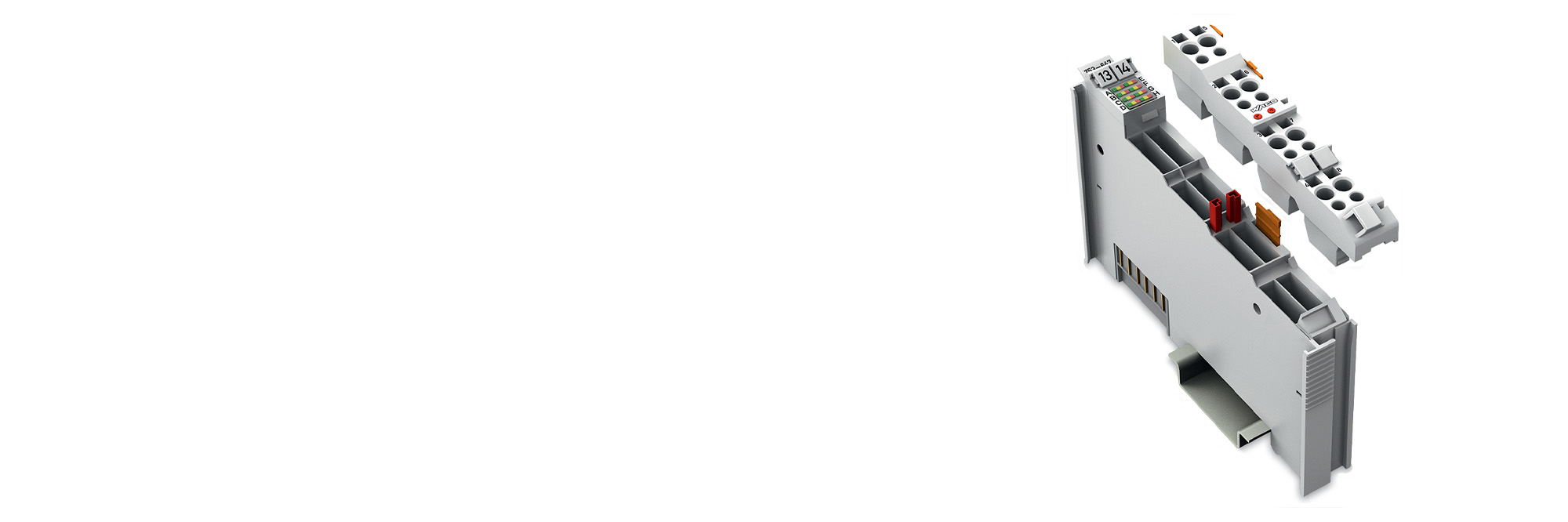

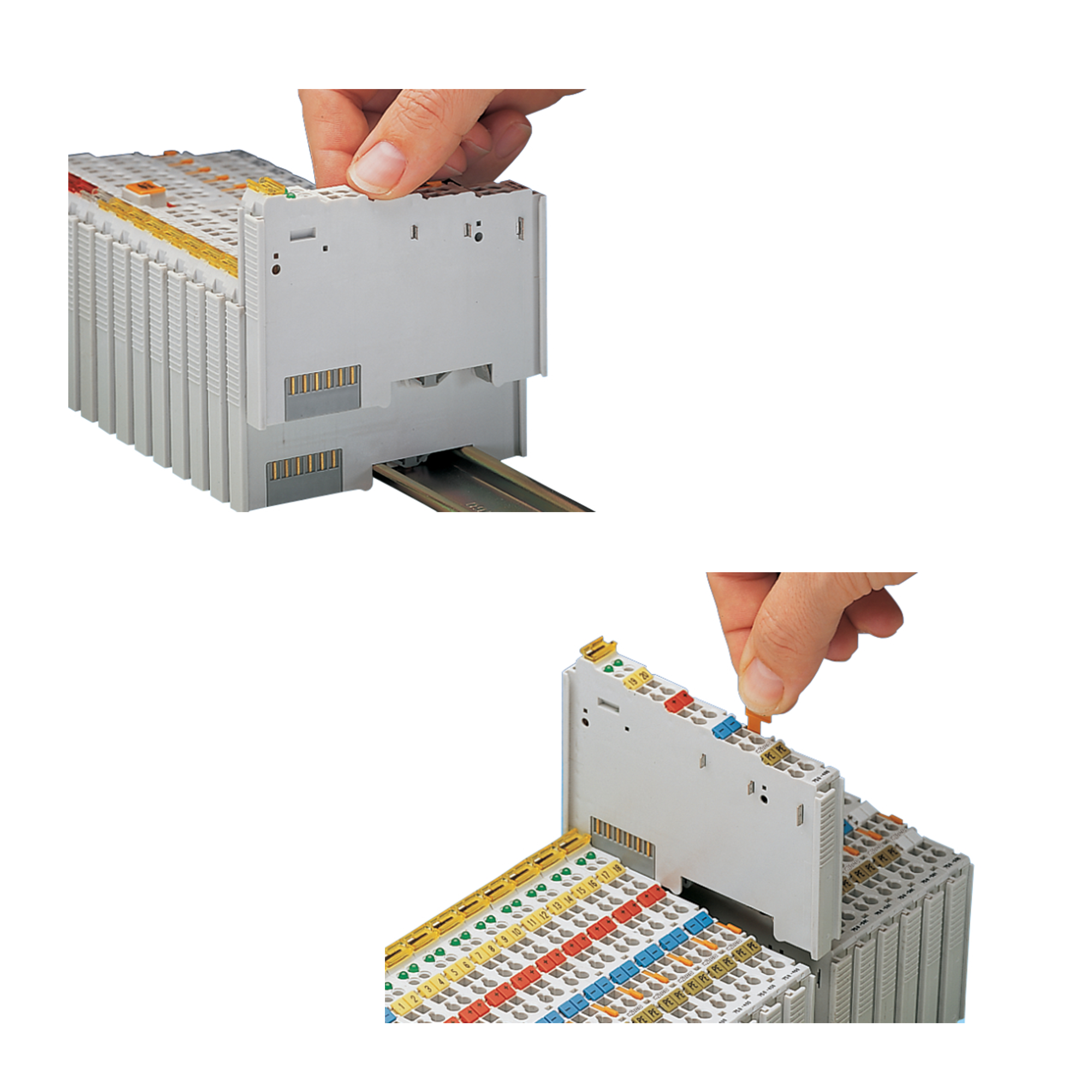

For ultimate convenience, 753 Series Modules are 100% compatible with the 750 Series and feature pluggable connectors. Thanks to the detachable wiring interface, it is easy to replace a module without removing and redoing all the existing wiring. This design virtually eliminates installation errors, enabling flexible assembly via pre-wired connectors and saving time.
Module functionality is identified via integrated and pluggable marker carriers. Terminal assignment information and technical data are printed on the site of the modules. WAGO's WSB Marking System also allows for module - and channel-specific labeling.
Power jumper contacts automatically provides both internal data transmission and power for the electronics, as well as potential distribution.
WAGO’s patented mechanical design makes extremely compact I/O nodes possible. It can accommodate up to 16 channels in a module width of 12 mm (1/2″).
Interfaces are available for any size and type of automation task – from distributed I/O nodes or stand-alone control to global networks.
You can find more information here:
Print Material
Here you will find our print material with comprehensive information about our IP20 product portfolio.
