Visual Panel 200

The world of industrial visualization is rapidly evolving and improving, with the Visual Panel 200 HMI driving this evolution and shaping the future. These Visual Panel 200 HMIs optimize human interaction and enhance automation system’s efficiency.

Visual Panel 200

Visual Panel 200

The Future of the HMI. As the demand for more efficient, user-friendly, and adaptable systems continues to grow, we can expect HMI technology to play an increasingly important role in shaping the future of commercial and industrial automation. By providing a user-friendly interface for human-machine interaction, these Visual Panel 200 HMIs bridge the gap between complex machinery and the people who operate them, ultimately optimizing human interaction along with production processes and enhancing overall efficiency in automation systems.

Benefits with WAGO Visual Panel 200 HMIs:

  • High-performance i.MX8MPlus Quad (i.MX6 Solo) processor for the most demanding applications

  • Multiple drivers help avoid vendor lock-in

    • Easily connect to a multitude of control devices (including Rockwell Automation, Siemens, Schneider and more)

  • Visualizations programming using the multidimensional Visual Designer Engineering tool

    • No cost visualization engineering tool

  • Five (5) sizes - 4", 7", 10", 12" & 15" to meet your different operating requirements

    • Daylight readable in 7", 10", & 15"

    • Class 1 Division 2 (C1D2) certification available in 10" and 15"

  • Standard connection to WAGO's controllers using CODESYS, OPC UA and/or Modbus

    • Protocol gateway and other communication options include serial, fieldbus and Ethernet control protocols - MQTT (SparkPlug, EtherNet/IP, and others

  • IP68 (front), IP20 (rear); NEMA 4x, 12 protection Class

  • Backlight life greater than 50,000 hours (more than 5.5 years of continuous use)



Download Brochure

VisualPanel204

Visual Panel 200 - 4"

  • 4.3" (10.9 cm) full color, wide angle viewing

  • 600 cd/m2 brightness

  • Backlight life greater than 50,000 hours

  • 800 x 480 WVGA resolution

  • Operating temperature 32°F…149°F (0°C…65°C)

  • 10/100/1000 Ethernet port

  • Serial RS-422-485 & RS-232C communication ports



VisualPanel207

Visual Panel 200 - 7"

  • 7“ (17.8 cm) full color, wide angle viewing

  • 1000 cd/m2 brightness for daylight readability

  • Backlight life greater than 50,000 hours

  • 1024 x 600 WSVGA resolution (128:75 ratio)

  • Operating temperature -4°F…158°F (-20°C…70°C)

  • Two (2) 10/100/1000 Ethernet ports

  • Serial RS-422/485 & RS-232C communication ports



VisualPanel210

Visual Panel 200 - 10"

  • 10.1“ (25.7 cm) full color, wide angle viewing

  • 500 cd/m2 brightness

  • Backlight life greater than 50,000 hours

  • 1280 x 800 WXGA resolution (16:10 ratio)

  • Operating Temperature -4°F…158°F (-20°C…70°C)

  • Two (2) 10/100/1000 Ethernet ports

  • Serial RS-422/485 & RS-232C communication ports

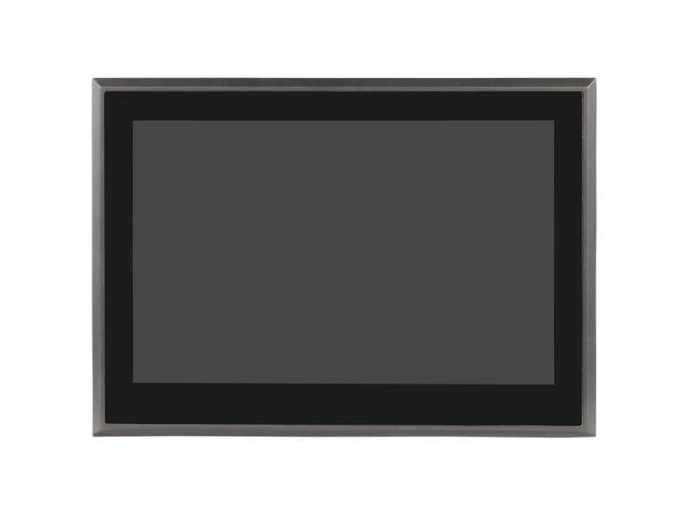

VisualPanel210WT

Visual Panel 200 - 10" WT

  • 10.1“ (25.7 cm) full color, wide angle viewing

  • Class 1 Division 2 (C1D2) certified

  • 1200 cd/m2 brightness for daylight readability

  • Backlight Life greater than 50,000 hours

  • 1280 x 800 WXGA Resolution (16:10 ratio)

  • Wide Operating Temperature -22°F…158°F (-30°C…70°C)

  • Two (2) 10/100/1000 Ethernet ports

  • Serial RS-422/485 & RS-232C communication ports



VisualPanel210WT

Visual Panel 200 - 12"

  • 12.1" (30.7 cm) full color, wide angle viewing

  • 600 cd/m2 brightness

  • Backlight life greater than 50,000 hours

  • 1280 x 800 WXGA resolution (16:10 ratio)

  • Operating temperature -4°F…158°F (-20°C…70°C)

  • Two (2) 10/100/1000 Ethernet ports

  • Serial RS-422/485 & RS-232C communication ports



VisualPanel210WT

Visual Panel 200 - 15"

  • 15.6" (39.6 cm) full color, wide angle viewing

  • 450 cd/m2 brightness

  • Backlight life greater than 50,000 hours

  • 1920 x 1080 WXGA resolution (16:9 ratio)

  • Operating temperature -4°F…158°F (-20°C…70°C)

  • Two (2) 10/100/1000 Ethernet ports

  • Serial RS-422/485 & RS-232C communication ports



VisualPanel210WT

Visual Panel 200 - 15" WT

  • 15.6" (39.6 cm) full color, wide angle viewing

  • Class 1 Division 2 (C1D2) certified

  • 1200 cd/m2 brightness for daylight readability

  • Backlight life greater than 50,000 hours

  • 1920 x 1080 WXGA resolution (16:9 ratio)

  • Operating temperature -22°F…158°F (-30°C…70°C)

  • Two (2) 10/100/1000 Ethernet ports

  • Serial RS-422/485 & RS-232C communication ports



The Perfect Entry Point - The WAGO OEM Starter Kit

Get started with WAGO's visualization and control technology easily and affordably: The OEM Starter Kit for the WAGO Visual Panel 200 & Compact Controller 100 allows you to get acquainted with our automation technology.

Visual Designer

The WAGO Visual Designer software, an intuitive user-friendly visualization package, is used to design the screens for the Visual Panel 200 series HMIs. With a selection of the most common communication drivers, you can easily use Visual Designer when integrating WAGO hardware into your existing operations. Take control of your systems with effortless HMI programming and superior visual monitoring. Most third-party industrial automation PLC controllers are supported, with Modbus client and server options to make it possible to connect to virtually any device, allowing you to turn the Visual Panel 200 into an inter-protocol gateway. These HMIs feature Ethernet ports as well as serial connections. This powerful and versatile engineering platform is the perfect solution for industrial automation applications.

Your benefits with WAGO Visual Designer:

  • This engineering tool is available at no cost

  • Intuitive visualization interface and navigation

  • Data Tools including
    o Alarms
    o Trending
    o Data Logging
    o Recipe Management

  • A multitude of PLC drivers including a majority of the most popular Industrial Automation controllers Including a majority of the most popular Industrial Automation controllers

  • Available VNC Server and Viewer

  • Web Server

  • Project Simulator and online Simulator

Installation Guide

A Fast and Easy Entry Point into the World of WAGO Automation

The WAGO OEM Starter Kit makes it easy to get familiar with our automation technology.

This starter kit offers a fast, easy, and cost-effective way to enter the world of WAGO automation - specifically, to gain hands-on experience with the Visual Panel 200, Compact Controller 100, CODESYS, and IIoT (open automation).

Key Benefits:

  • A quick and easy way to begin using WAGO automation

  • Ready to work: just connect and get started

  • Free software and technical support



Go to the product
