Touch Panel 600

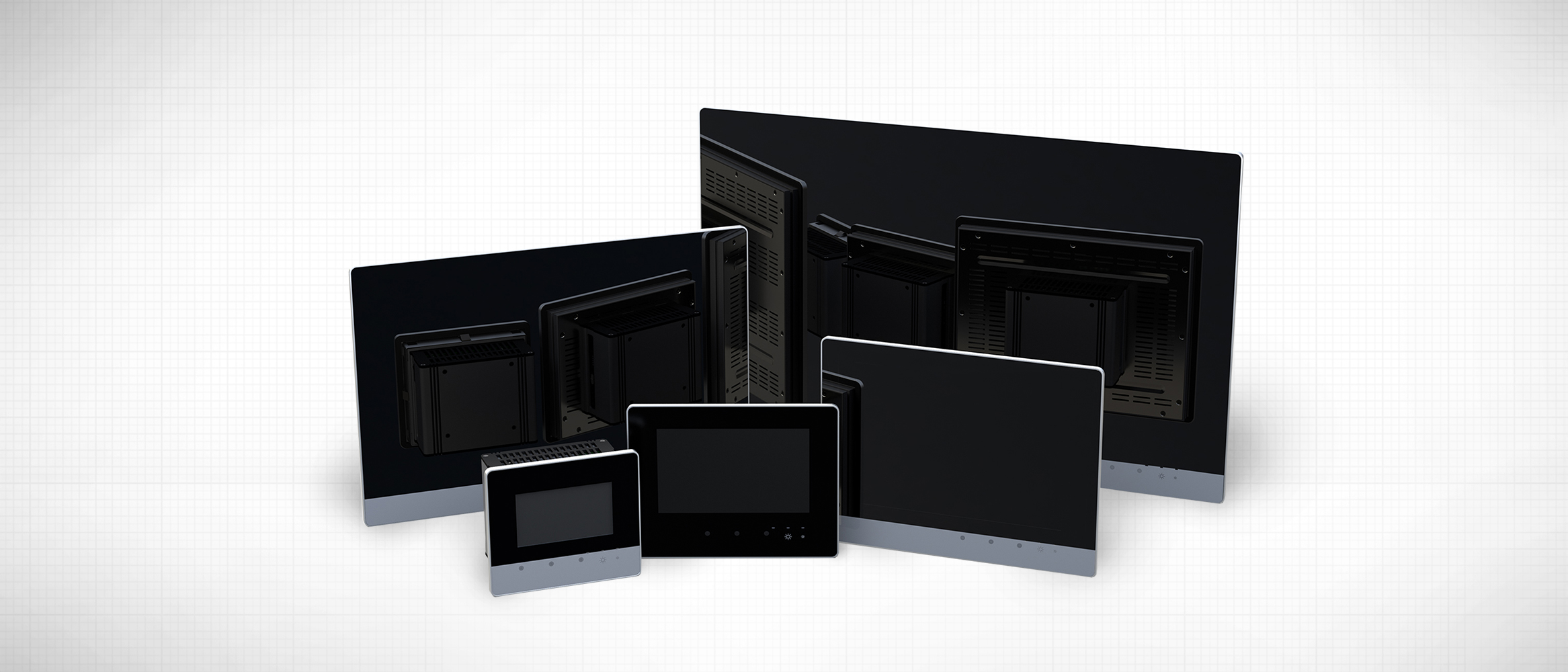

Devices with resistive touchscreens for standard control cabinet applications.

Available as:

• Web Panels in the sizes 4.3“, 5.7“, 7.0“ and 10.1“

• Visu Panels in the sizes 4.3“, 5.7“, 7.0“, 10.1“, 15" and 21"

• Control Panels in the sizes 4.3“, 5.7“, 7.0“, 10.1“, 15" and 21"

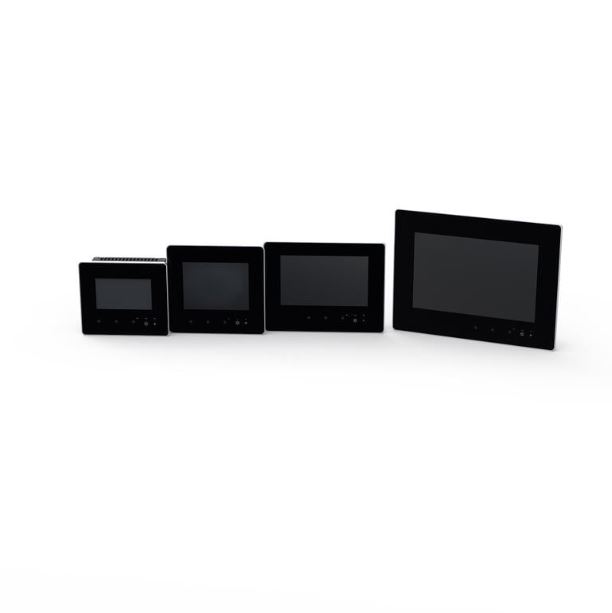

Devices with black matte anti-reflection surfaces and special marine approvals for use in ship board automation.

Available as:

• Visu Panels in the sizes 4.3“, 5.7“, 7.0“ and 10.1“

• Control Panels in the sizes 4.3“, 5.7“, 7.0“ and 10.1“

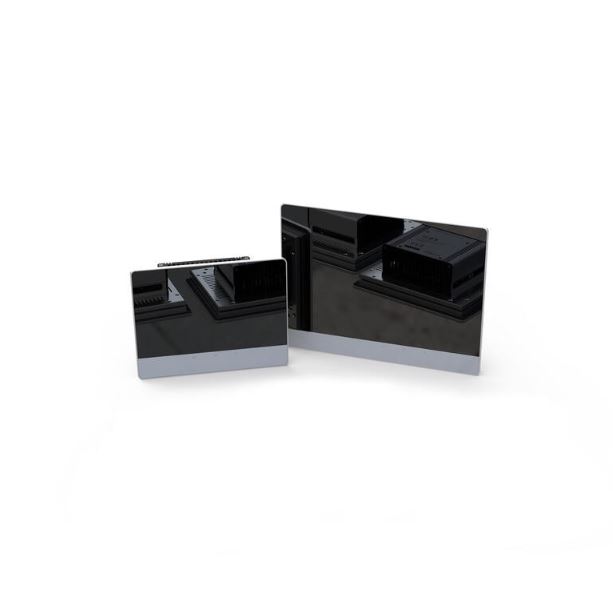

Capacitive multi-touch devices with a glass surface, along with greater mechanical and chemical resistance for more extensive requirements.

Available as:

• Visu Panels in the sizes 7.0“, 10.1“, 15" and 21"

• Control Panels in the sizes 7.0“, 10.1“, 15" and 21"

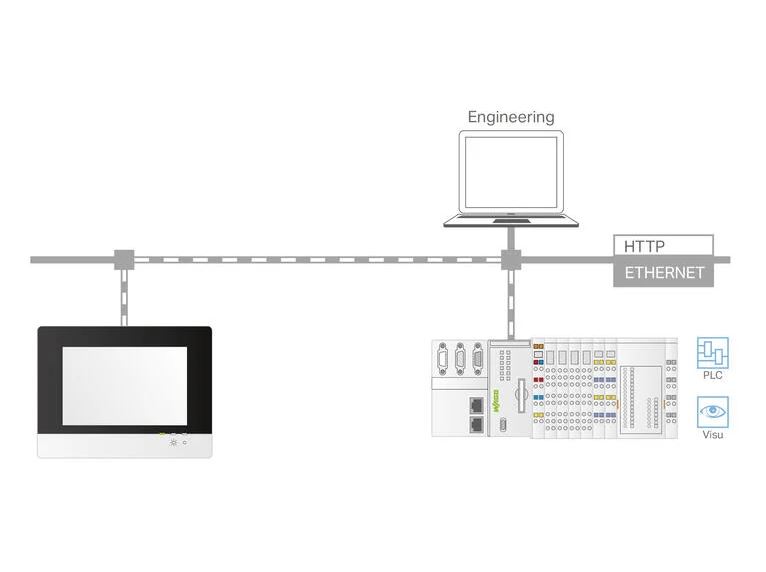

Our industrial web browser features high-resolution graphics and a touch screen, optimized for WAGO PLC web pages. It supports CODESYS 3.5-based visualizations using HTML5, allowing seamless monitoring and control via touch interface or on mobile devices.

Visu Panels enhance control strategies by displaying dynamic CODESYS 3.5 visualizations stored in device memory. Real-time data via Modbus® TCP offloads PLC tasks, optimizing operations. The integrated web server enables access to graphics on mobile devices, tablets, and TVs.

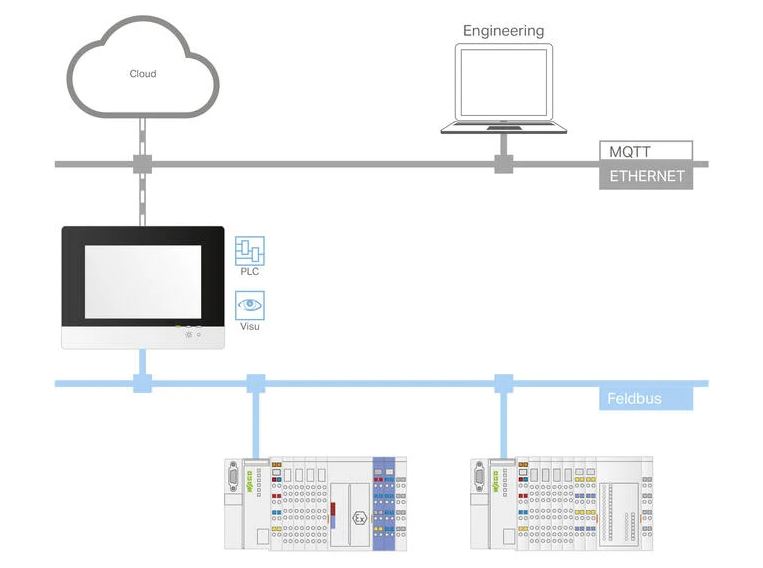

The Control Panel integrates PLC and HMI functions in one compact device, using CODESYS 3.5 for control logic and visualizations. With a quad-core processor, high-performance graphics, MQTT/OPC-UA support, and robust security, it’s perfect for IIoT and automation systems.
