Web Panel 400

The WAGO Web Panel 400 combines high performance with a modern design, featuring a seamless glass front with a bonded display. With Power-over-Ethernet (PoE) for flexible power supply and PCAP touch technology for intuitive operation, it delivers both efficiency and user-friendliness.

Web Panel 400

Enhance your WAGO ecosystem with these cost-effective Web Panels, designed to streamline industrial visualization. Powered by a high-performance 64-bit Cortex-A53 quad-core processor for fluid graphics, these panels handle demanding designs with ease. Deployment is simplified through a Plug-and-Play configuration-only setup—no complex programming is required to connect to your WAGO controllers. To further optimize installation, the optional Power over Ethernet (PoE) support reduces cabling, while flexible flush-mount or VESA-mount options ensure they fit any environment.

Key Benefits with WAGO Web Panel 400:

  • Exceptional Value: High performance meets cost-effectiveness.

  • Simplified Wiring: Power over Ethernet (PoE) support reduces cabling needs.

  • Sleek Aesthetics: Premium design featuring a seamless glass front and bonded display.

  • Intuitive Control: Effortless operation via responsive PCAP multi-touch technology.

  • Versatile Sizing: Available in 7”, 10”, and 15” to fit various operational requirements.

  • Superior Visibility: Daylight-readable screens with high brightness (>700 cd/m²).

Download Brochure

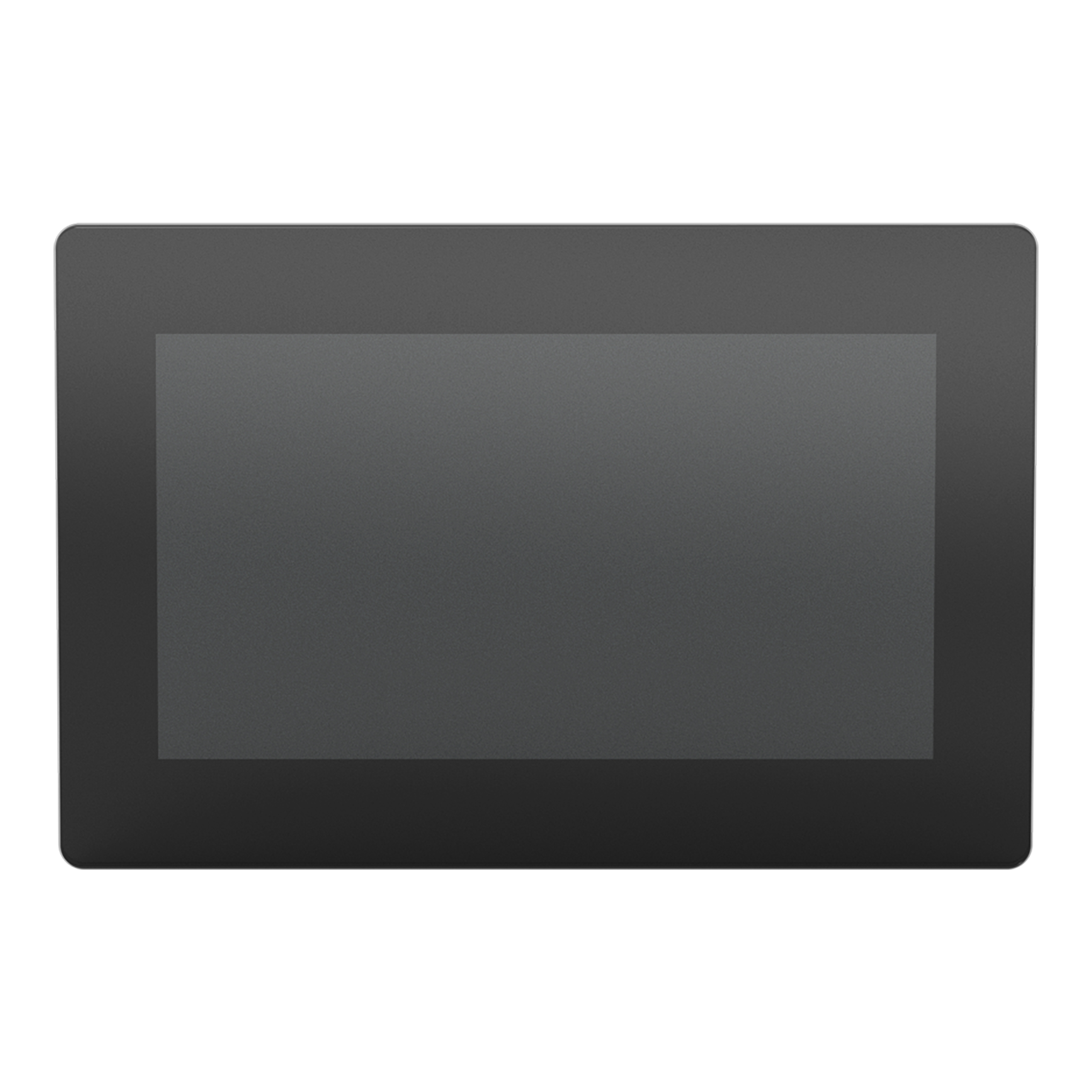

p_0762-3403_000_f1_xx

Web Panel 400 - 7"

  • 7" (17.8 cm) full color, wide angle viewing

  • 720 cd/m2 brightness for daylight readability

  • Capacitive touchscreen

  • Backlight life greater than 50,000 hours

  • 1024 x 600 resolution (800:1 ratio)

  • Operating temperature -4°F…131°F (-20°C…55°C)

  • Power over Ethernet (PoE, Class 3) via RJ-45 connection

  • USB 2.0 host (type A) port

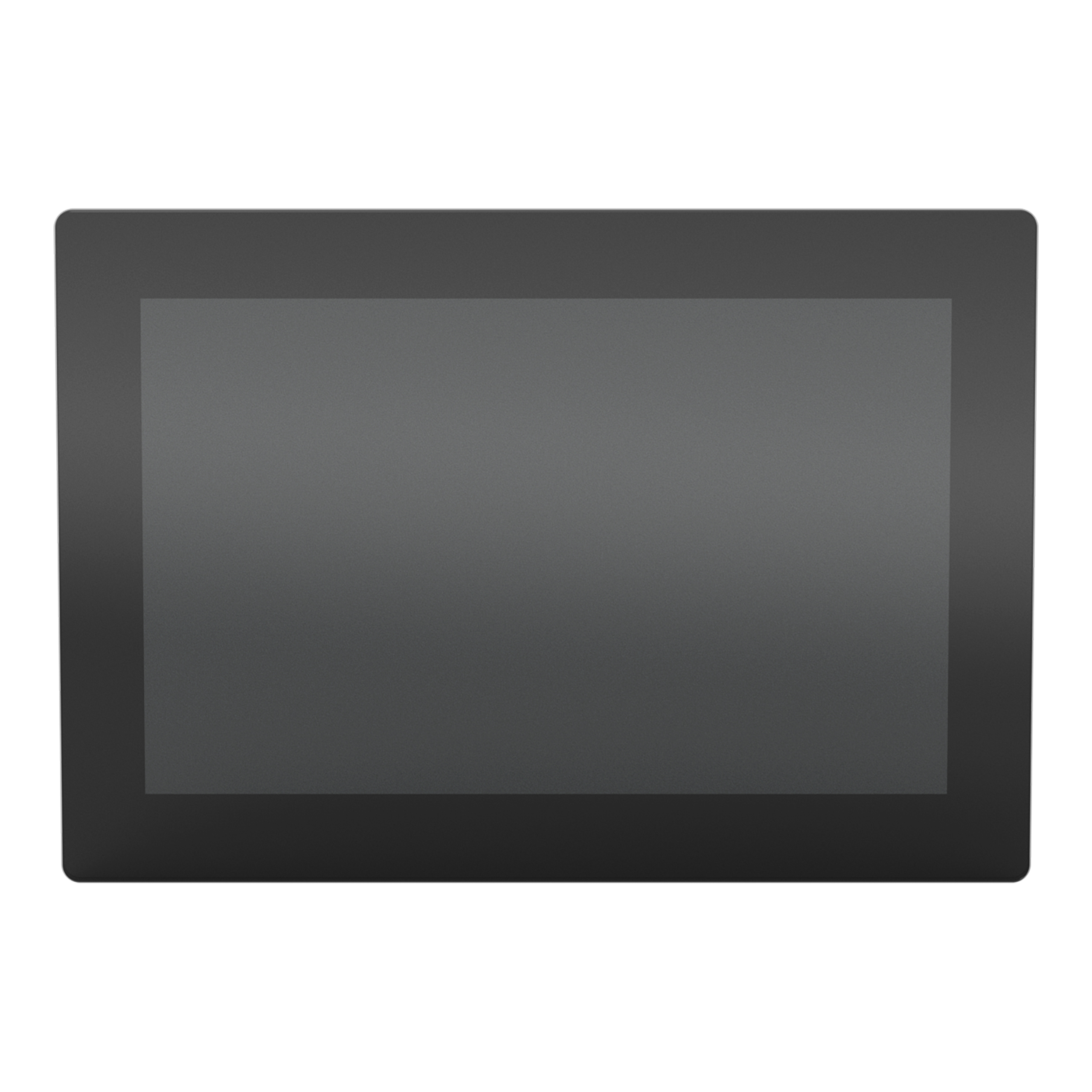

p_0762-3404_000_f1_xx

Web Panel 400 - 10"

  • 10.1" (25.7 cm) full color, wide angle viewing

  • 1000 cd/m2brightness for daylight readability

  • Capacitive touchscreen

  • Backlight life greater than 50,000 hours

  • 1280 x 800 resolution (800:1 ratio)

  • Operating temperature -4°F…131°F (-20°C…55°C)

  • Power over Ethernet (PoE, Class 3) via RJ-45 connection

  • USB 2.0 host (type A) port

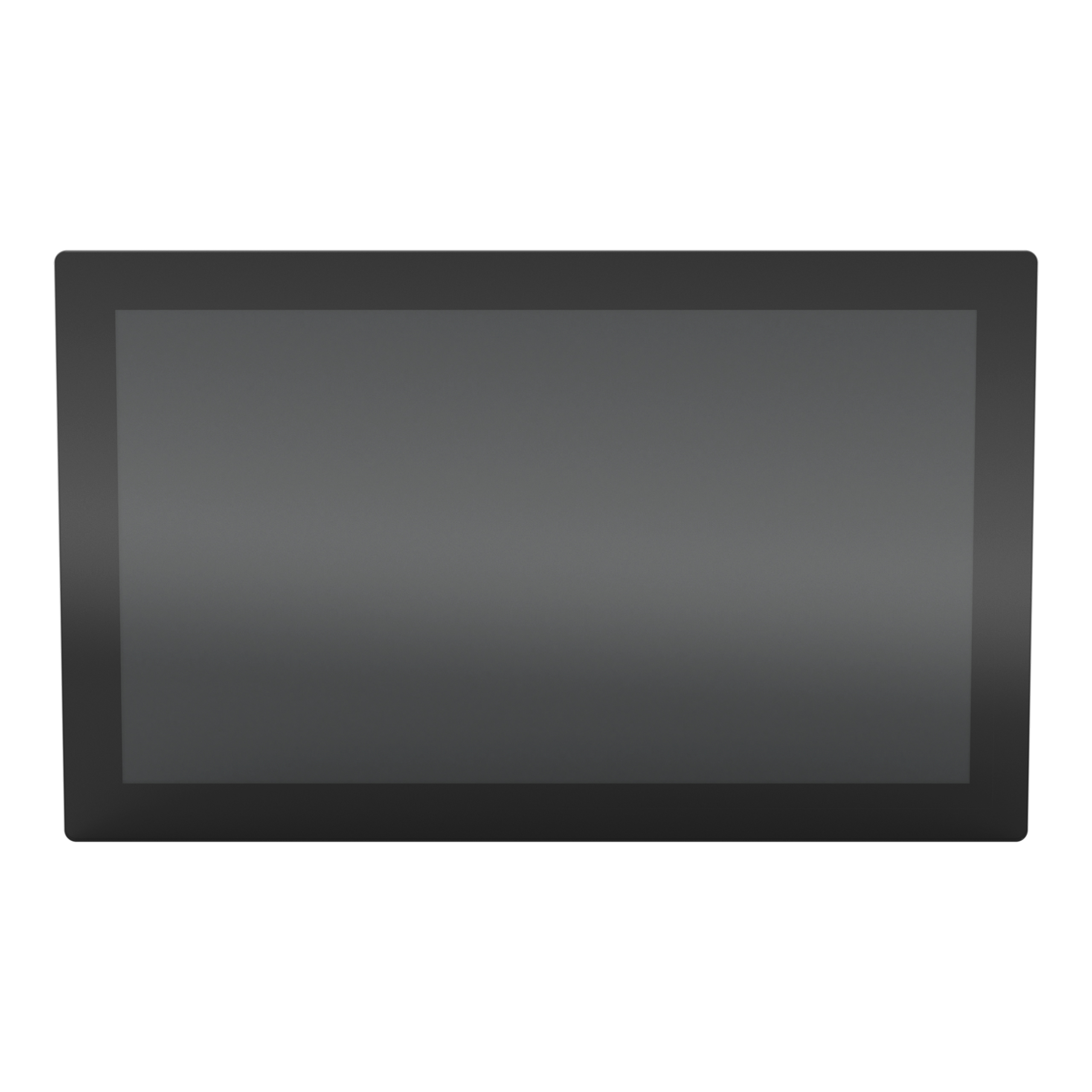

p_0762-3405_000_f1_xx

Web Panel 400 - 15"

  • 15.6" (39.6 cm) full color, wide angle viewing

  • 1000 cd/m2 brightness for daylight readability

  • Capacitive touchscreen

  • Backlight life greater than 50,000 hours

  • 1280 x 800 resolution (1200:1 ratio)

  • Operating temperature -4°F…131°F (-20°C…55°C)

  • Power over Ethernet (PoE, Class 4) via RJ-45 connection

  • USB 2.0 host (type A) port
