TOPJOB® S Mini Rail-Mount Terminal Blocks

Experience every advantage of our original TOPJOB® S line with a smaller footprint. Featuring various mounting and actuation options for maximum flexibility, along with spring pressure connection technology for reliable, vibration-proof connection, they are ideal for use in every application.

Overview

Explore the Versatility of Our Mini Terminal Blocks

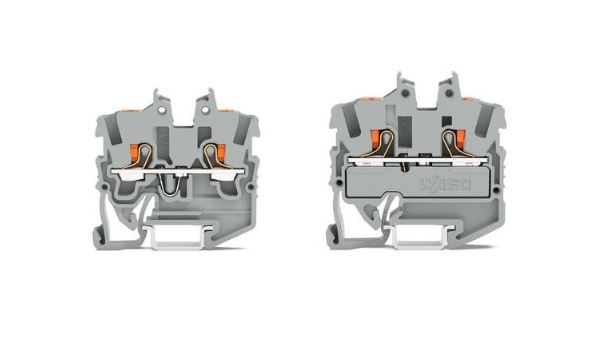

Two Sizes for All Conductor Types

Smaller Version - 2050 & 2250 Series
Solid or fine-stranded - 24-16 AWG
Fine-stranded with ferrule - 24-18 AWG

Larger Version - 2052 & 2252 Series
Solid or fine-stranded - 22-12 AWG
Fine-stranded with ferrule - 22-14 AWG
Push-in CAGE CLAMP® on all versions if solid or fine-stranded with ferrule

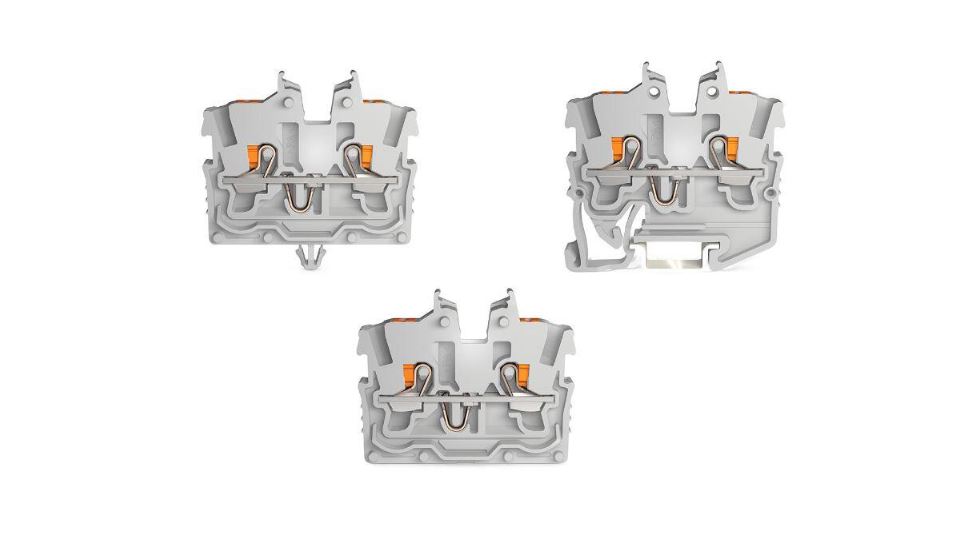

Mounting Options

WAGO's Mini Terminal Blocks offer several mounting options for exceptional flexibility. They can be mounted directly on a 15 x 5.5 mm DIN-rail or on a mounting plate with a flange or snap-in mounting foot.

Select your mounting option:
DIN-15 Rail Mounting

With an operating slot or push-button
Ground (direct) contact

Mounting Plate via Snap-In Mounting Foot

With an operating slot or push-button
Mounting plate width: 0.6 mm (min.) / 1.2 mm (max.)

Mounting Plate via Mounting Flange

With an operating slot or push-button
Mounting via M4 screw

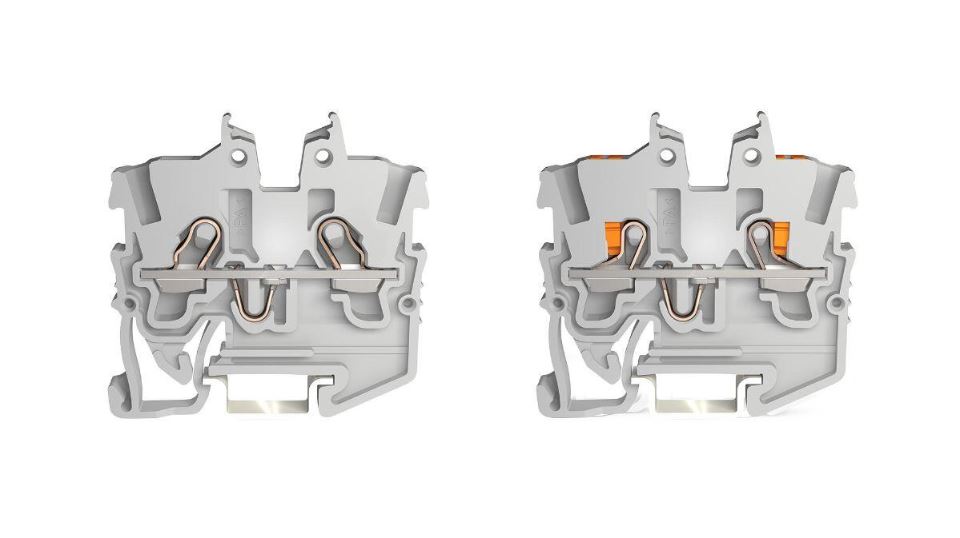

Actuation Types

WAGO's Mini Terminal Blocks are available with two actuation types: Terminal blocks with push-buttons or operating slots–either type allows direct termination via Push-in CAGE CLAMP® connections.

Advantages:
Push-Button

Use of any standard hand tool.
The orange color highlights the actuator, giving users a clear overview at a glance.
The push-button has become synonymous with convenience, making it the industry’s go-to solution for in-the-field wiring.

Operating Slot

The tool stays in the operating slot – both hands are free for wiring.
After insertion, the operating tool marks the clamping point and keeps it open.
