Perfectly Plugged Electrical Installations – with WINSTA®

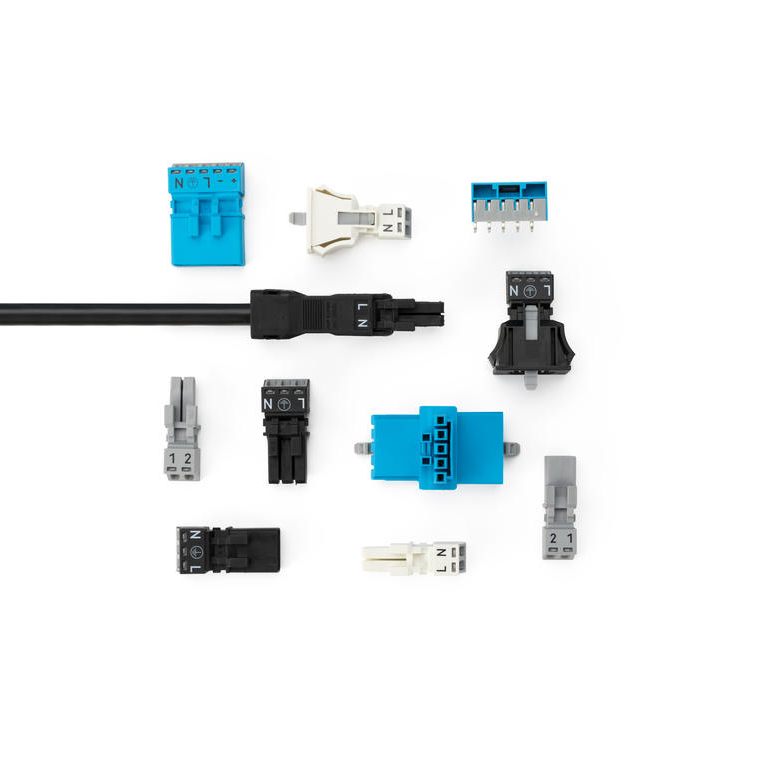

The WINSTA® MINI family is ideal for pluggable electrical installations in confined spaces. Its compact design supports the trend of downsized components, including LED lights and electronic ballasts.

Advantages:

• Conductor range: up to 1.5 mm² (16 AWG)

• Nominal current: 16 A

• WINSTA® MINI special components for specialty applications (e.g., measurement, control and regulation technology) with custom printing

• Compact pluggable PCB connectors are available with 4.4 mm (0.1732 inch) pole spacing

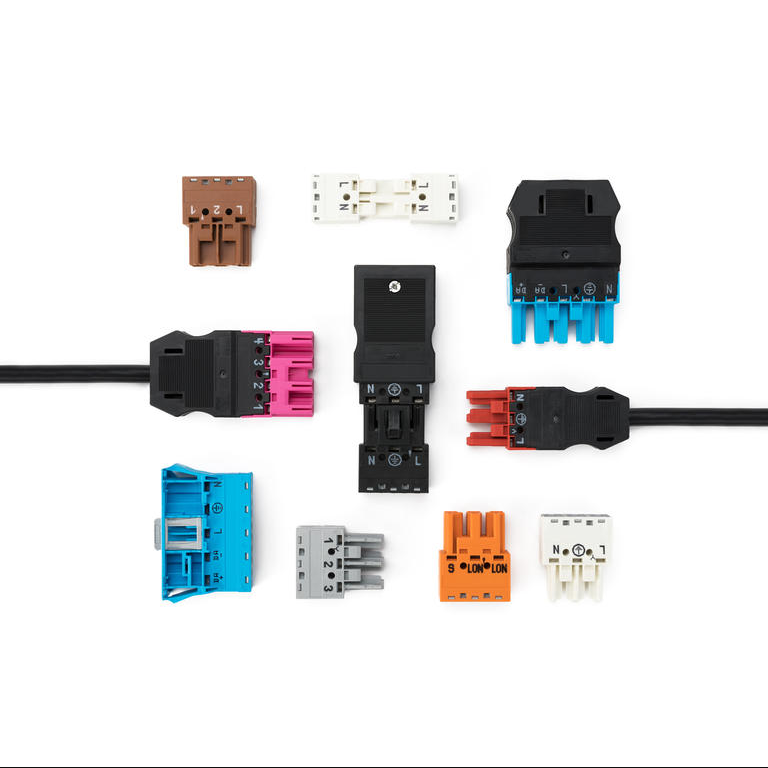

The WINSTA® MIDI family offers the greatest diversity of components for fast, reliable and error-free electrical installations. This enables you to individually and flexibly fulfill the most varying requirements. Advantages: Conductor range: up to 4 mm2 (12 AWG) Nominal current: 25 A Two-wire connection per pole for loops or bridges Easily identifiable through optional customer-specific printing as well as intelligent labeling accessories Additional variable coding is possible Available in 2- to 7-pole configurations Pluggable lighting connection with the universal Linect® Lighting Connection System and WINSTA® Linect® T-Connectors

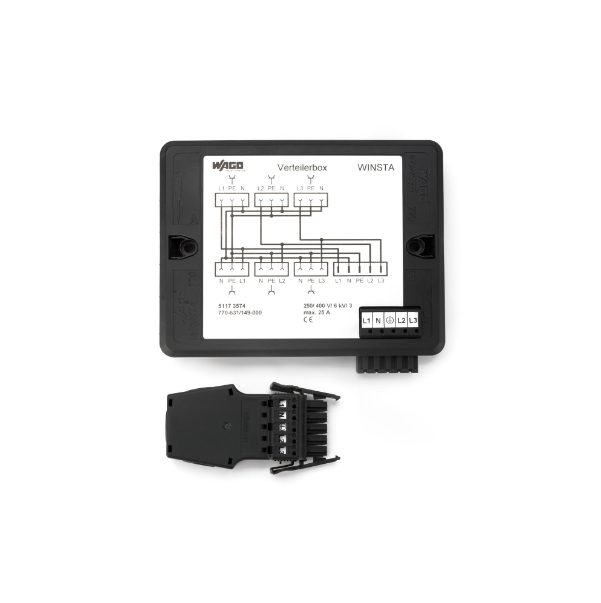

The WINSTA® MAXI family includes high-current, pluggable connectors for power supply applications.

Advantages:

• Conductor range: up to 6 mm2 (8 AWG)

• Nominal current: 35 A

• Minimize voltage drop over longer cable runs

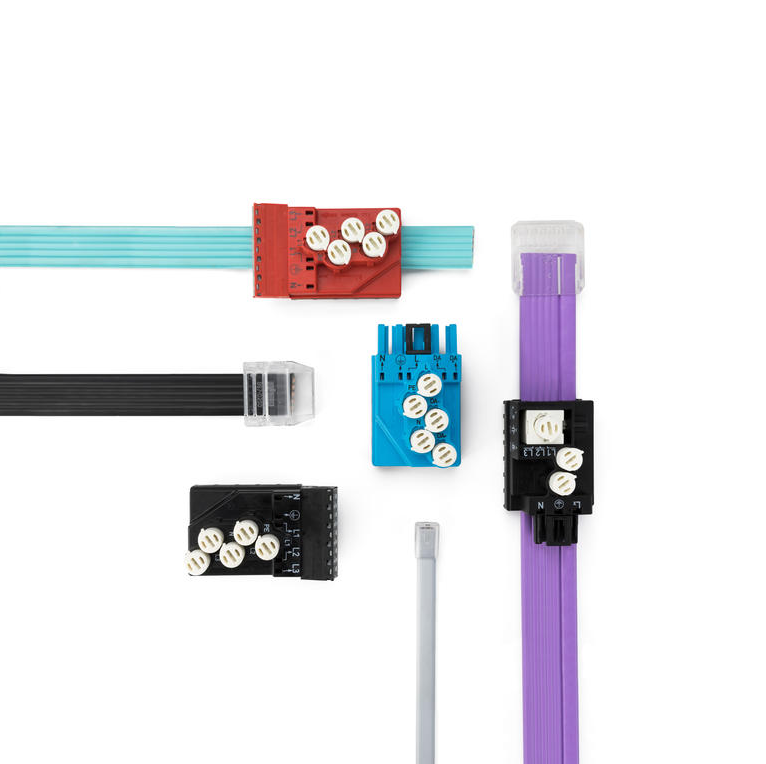

The WINSTA® IDC family consists of flat cables ranging from 1.5 mm2 to 16 mm2 (14–6 AWG) and the associated modules that are compatible with WINSTA® MIDI and WINSTA® KNX Pluggable Connectors and provides power to raised-floor boxes.

Advantages:

• WINSTA® IDC Supply and Tap-Off Modules allow connection at any location of the flat cable – one rotation per pole is all that is required.

• Suitable for bus and power lines or for bus and power combined in one cable

• Easy installation without line interruption due to convenient insulation displacement technology (IDC)
