Lighting Management

WAGO Lighting Management is the sophisticated solution for lighting control in large spaces such as production facilities and warehouses. Using a combination of predefined hardware and user-friendly software, WAGO offers a lighting management system that facilitates design and commissioning of new lighting systems while providing numerous additional advantages for their operation.

WAGO Lighting Management is the intelligent solution for lighting control in large spaces such as production facilities or warehouses.

Using a combination of predefined hardware and user-friendly, Web-based software, WAGO Lighting Management facilitates the design and commissioning of new lighting systems and also offers numerous advantages for their operation.

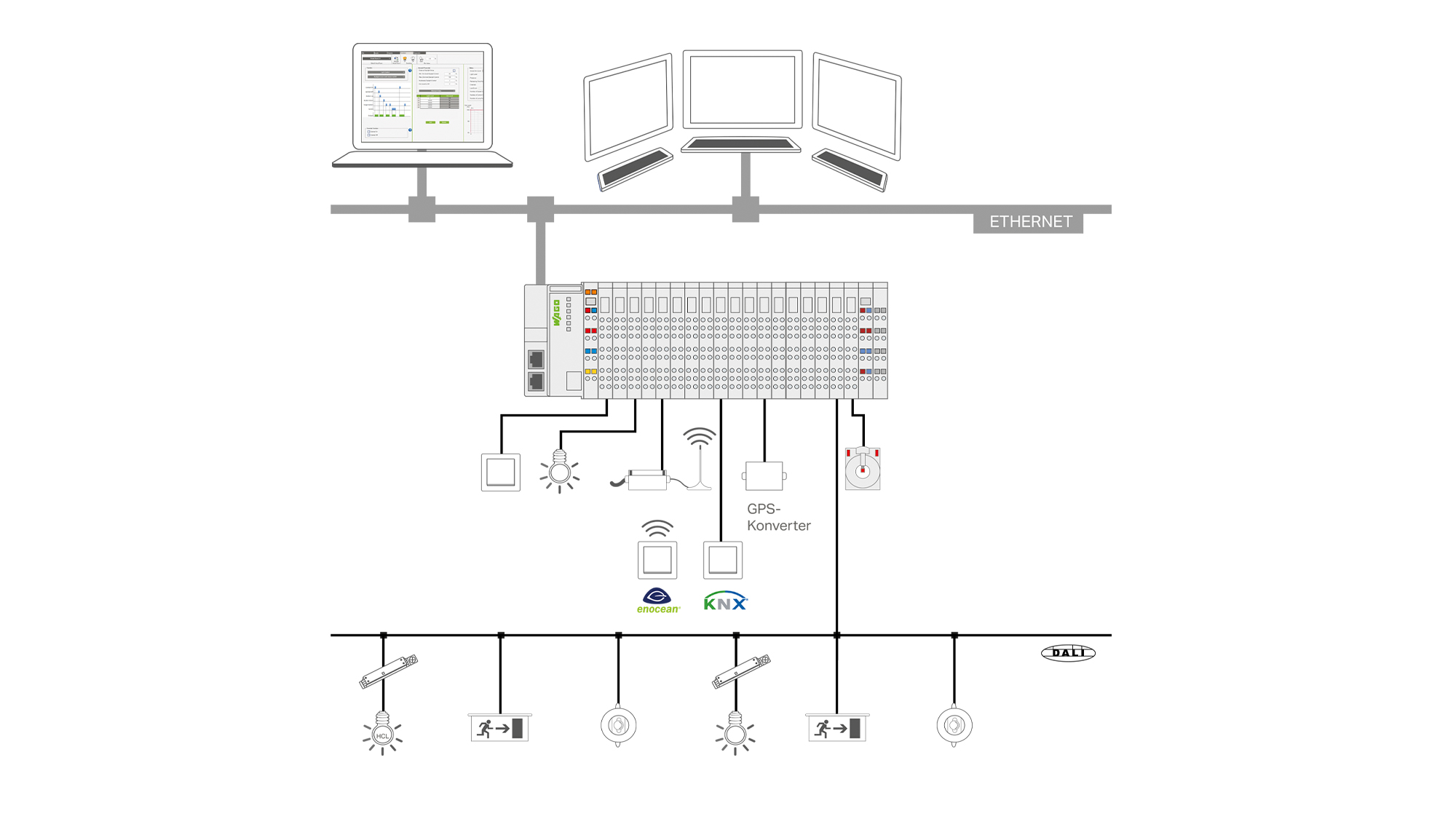

The foundation is an intelligent lighting control system, which ensures that the correct light is available in the right amount at the right time by using daylight sensors, presence sensors and sophisticated lighting scenarios.

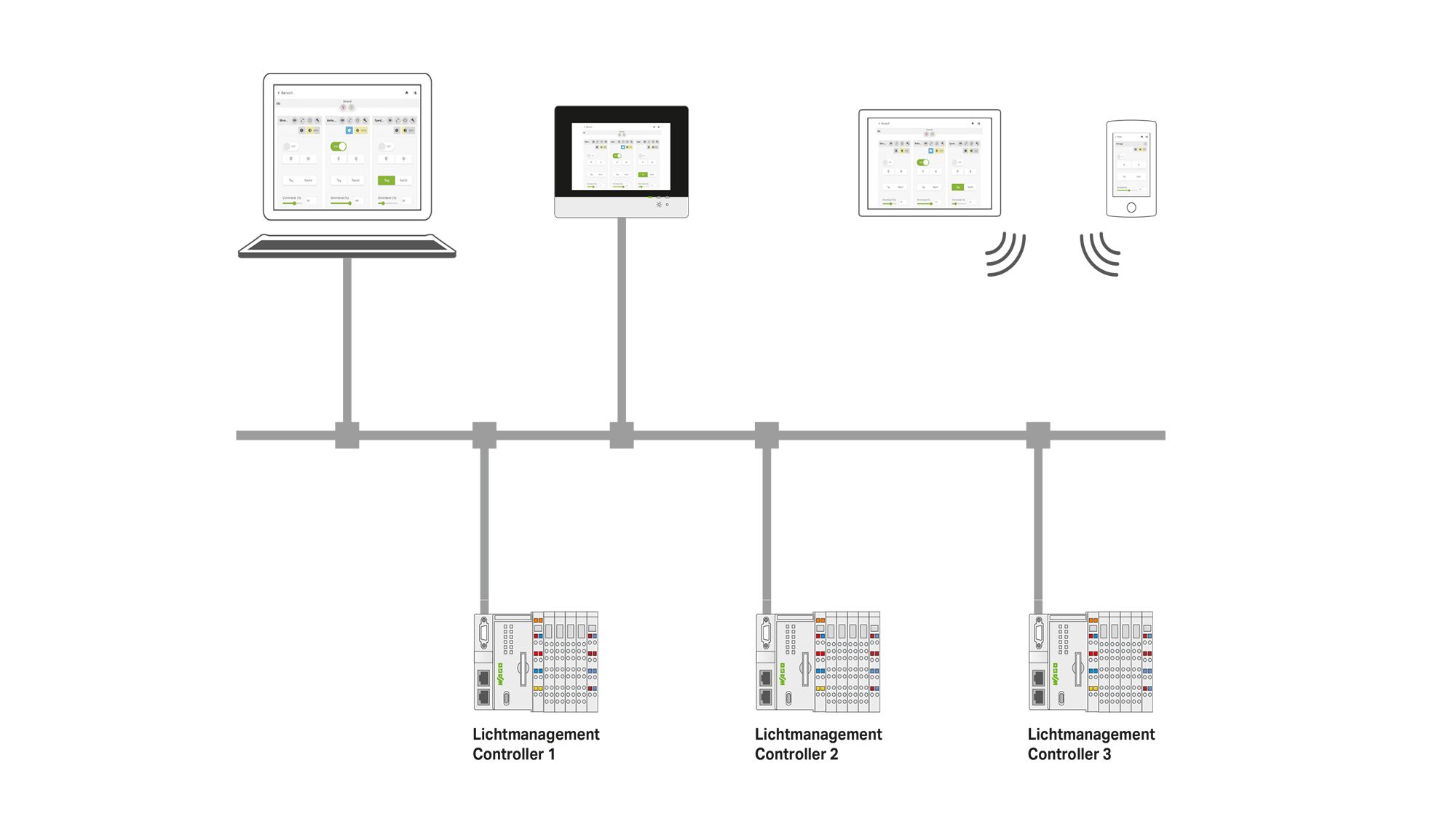

Easy configuration via a Web-based interface establishes WAGO Lighting Management as a powerful and user-friendly solution. All settings, for commissioning and during operation, can be performed with the click of a mouse button – no programming required. Because the graphical user interface can be accessed by any standard Web browser, there is no need for local software installation. The Web visualization, based on HTML5, takes all complications out of configuring the lighting system. Parameter values can be stored on an SD card or a backup server via SFTP. The values can be forwarded to a higher-level building control system or to a production control center via MODBUS TCP/IP. On the input screen, dialogs are pre-populated with default settings for basic parameters, and operating states are displayed.

The PFC200 Controllers are designed for the processing of WAGO applications. You can identify these controllers by a special version of the item number. The application can be downloaded further below on this Website.
For further information, as well as the exact association between the application and the corresponding application controller, please refer to the application documentation. The controllers can also be used with their own applications.

In order to use the full scope of WAGO’s lighting solution, you need the Lighting Management Software. The application controllers are designed for processing WAGO applications.

You can identify the possible controllers for each application solution by the different item numbers. Once you register on the WAGO Website, we’ll provide you with the latest version of the specific software by email and can help you with any questions at any time.

WAGO Lighting Management with New Functions for Even More Application Possibilities

WAGO Lighting Management, the sophisticated solution for lighting control, now offers users even more options. In the new version, a dimming value and/or setpoint curve for the brightness value (lux) can now be used in addition to the color temperature curve for color temperature control (HCL). As a result, light can adapt as more easily to external light as the day progresses.

In addition, a room function can now be selected for each schedule entry. Thus, a time-controlled change of the function is possible, such as from daytime presence-dependent lighting control to manual on and off control via push buttons at night.

New switching functions, a download page for the KNX data point list, a diagnostics report and the ability to email diagnostic reports complete the update.

WAGO Lighting Management combines predefined hardware components with a pre-programmed software application. It can scale and adapt to any requirements, and is ready to work – no extensive software experience needed.
