WAGO's 221 Now Also Connects 6 mm^⊃2; (10 AWG)

Pull the lever up, insert a conductor and push the lever back down – done. The 221 Series Splicing Connectors have always connected solid, stranded and fine-stranded conductors easily, quickly and safely. Conductor sizes 0.14 to 4.0 mm² (AWG 28–12)? No problem! But this connector is ready for more and can prove it: 221 Series now connects conductor cross sections from 0.5 to 6 mm² (20–10 AWG) for greater versatility.

Your Benefits:

Easily terminate conductors up to 6 mm² (10 AWG)
Connect solid, stranded and fine-stranded conductors
Time savings for installers and device manufacturers
Quickly install devices with higher levels of power consumption
Safely install long cable runs with larger conductor cross sections
Lift Lever, Insert Conductor, Close Lever

The Unbeatable Benefits of the 221

Conductor Range

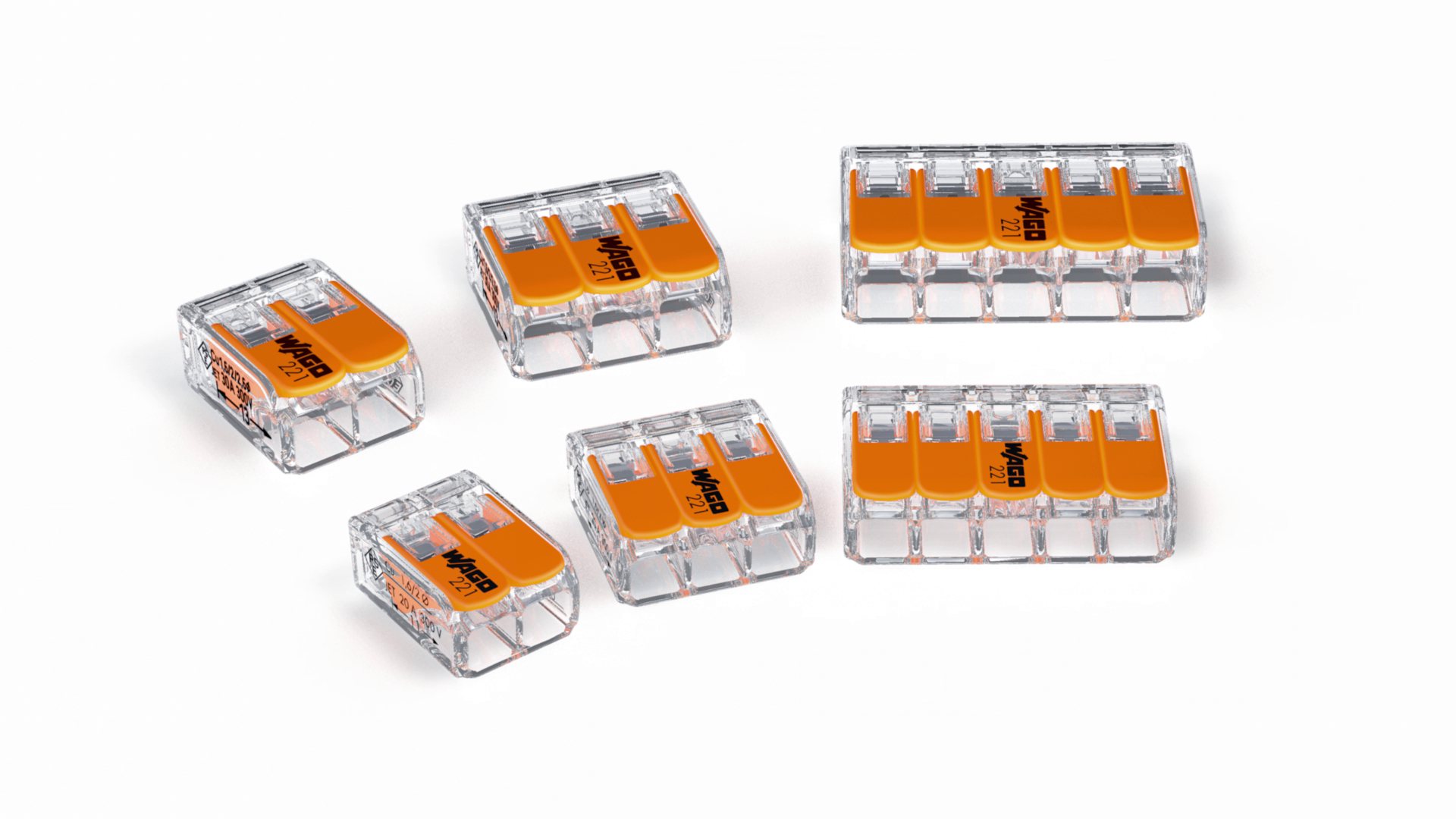

Two Sizes for All Conductor Types

Quickly and easily connect all conductor types of different cross sections using two-, three-, and five-wire connectors. The new connectors accommodate fine-stranded conductors from 0.14 to 4 mm², as well as solid and stranded conductors from 0.2 to 4 mm² (24–12 AWG). With the 6 mm² (10 AWG) variant, you can connect all conductor types – with cross sections from 0.5 to 6 mm² (2−10 AWG).


Easier Actuation

Extremely Easy to Use

You can open WAGO’s splicing connectors easily and quickly. Opening the levers on the 221 Series takes very little effort. This means you can connect conductors quickly – and without any tools! While you are connecting the conductor, recessed handles on the sides ensure an easy, secure grip on the connector.

Test Slots

Two Test Slots

With the new 221 Series Splicing Connectors, you can now test the voltage from two different sides – even when they are installed. The connectors have two test slots right where the WAGO imprint appears: one in the conductor entry direction and one on the opposite side. This accessibility provides extremely convenient testing conditions, even after installation, within a wide range of applications. All connector variants also provide a secure contact for all standard test probes.


Mounting carrier

The 221 Series Conquers the Distribution Cabinet

Mounting carriers are available for every 221 Series Splicing Connector – whether the two-, three- or five-wire model. They can be mounted vertically as well as horizontally. Secure the carrier by snapping it onto the DIN-rail, or with screws on smooth surfaces. The flexible mounting clamps simplify both connector insertion and removal. Conductors can be conveniently connected and removed before or after inserting a connector into the carrier. One test slot is always accessible, ensuring compliance with VDE standards.

New Products

WAGO’s Gelbox provides IPX8 levels of protection for splicing connectors – quickly, easily and reliably!

No chance of short circuits! When moisture threatens the terminals blocks, the WAGO Gelbox makes electrical installations watertight – quickly, easily and reliably. The WAGO Gelbox utilizes high-quality, silicone-free gel from Cellpack, making this enclosure ready to use in any branch of industry. The WAGO Gelbox is available in six sizes and is compatible with both WAGO’s 2273 Series COMPACT PUSH WIRE® Connector for Junction Boxes and its 221 Series COMPACT Splicing Connectors.

Fast application – ready for direct, on-site deployment
Unlimited shelf life
Ease of use
Exceptional versatility – made of silicone-free gel for use in all industries
Safe application: VDE test report and IPX8 certification are pending.

Anticipated availability beginning May 2020

Bringing Order to the Chaos, Even with Many Wires

Whether you are connecting a heating system or light distributions – things can get confusing wherever multiple cables meet. WAGO’s Junction Box helps you connect up to 60 conductors with WAGO’s 221 Series COMPACT Splicing Connector for all conductor types up to 4 mm² (12 AWG). It creates a large-scale, fixed position of the clamping points on one level for both flush-mounted and surface-mounted cables. A total of 12 strain relief devices allow convenient and safe cable entry and fastening. The clearly visible labeling options of each terminal point ensure that you not only have an overview, but also maintain it. Real-world examples include quickly identifying the circuit while upgrading or troubleshooting, retrofitting the installation or correcting errors. Since the junction box can be freely positioned, a host of possible applications exists in a wide variety of worksites. The tool-free and maintenance-free connection technology of the 221 Series Splicing Connector ensures fast wiring, easy rewiring and a secure connection.

The Benefits for You:

Simple, quick and safe connection of up to 60 conductors
A clear, structured arrangement that’s secured on one level
Clearly visible labeling of each individual clamping unit

Expected availability starting June 2020

One Potential, Even More Clamping Points

WAGO’s 221 Series Adjacent Jumper increases the number of clamping points on one potential.

The Benefits for You:

Create potential distributions with up to eight connection points in the DIN-rail adapter
An optional lock guards against the unintentional opening of a connection (locking function)
Four variants: with and without locking of the contact point lever, each available in blue or gray
Suitable for both sizes of the 221 Series: 4 mm² and 6 mm² (12 and 10 AWG)

Anticipated availability beginning July 2020

WAGO 221 Series Application Examples

The 221 Series at Work

Wire Distribution Boxes with the WAGO 221 Series Splicing Connector

00:34

Share this video

Share link

COPY
Wire Lighting with the WAGO 221 Series Splicing Connector

00:33

Share this video

Share link

COPY
Connect LED Spots with the WAGO 221 Series Splicing Connector

00:42

Share this video

Share link

COPY
Connect Ceiling Loudspeakers with the WAGO 221 Series Splicing Connector

Share this video

Share link

COPY
Extend Small Distribution Boxes with the WAGO 221 Series Splicing Connector

Share this video

Share link

COPY

Find out more!

Electrical Interconnection Customer Applications

Connect Bollard Lights – Fast, Easy, Effortless!

In close partnership with the interconnection specialist WAGO, the lighting manufacturer BEGA has developed a new junction box that makes connecting lights significantly faster, easier and safer.

Learn more

WAGO 221 Series Splicing Connectors Keep Things Cool Worldwide

If a small splicing connector is helping keep things cool, then the WAGO 221 must be behind it all. Their simple, ergonomic design and global approvals have convinced the American cooling technology manufacturer True Manufacturing to install them in their devices.

Learn more

221 Series Splicing Connector Products

Item no.: 221-413

COMPACT Splicing Connector; for all conductor types; max. 4 mm²; 3-conductor; ...

Item no.: 887-952

Splicing Connector Set; L-BOXX® Mini; 221 Series

Item no.: 221-613

COMPACT Splicing Connector; for all conductor types; max. 6 mm²; 3-conductor; ...

Item no.: 222-510

Angled DIN-rail adapter; in combination with mounting carrier; 221-500 or ...

Item no.: 221-500/000-006

Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting; ...

Item no.: 221-500/000-053

Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting; ...

Item no.: 221-510

Mounting carrier; 221 Series - 6 mm²; for DIN-35 rail mounting/screw mounting; ...

Item no.: 221-510/000-006

Mounting carrier; 221 Series - 6 mm²; for DIN-35 rail mounting/screw mounting; ...

Item no.: 221-510/000-053

Mounting carrier; 221 Series - 6 mm²; for DIN-35 rail mounting/screw mounting; ...
