Solutions for the Distribution Grid

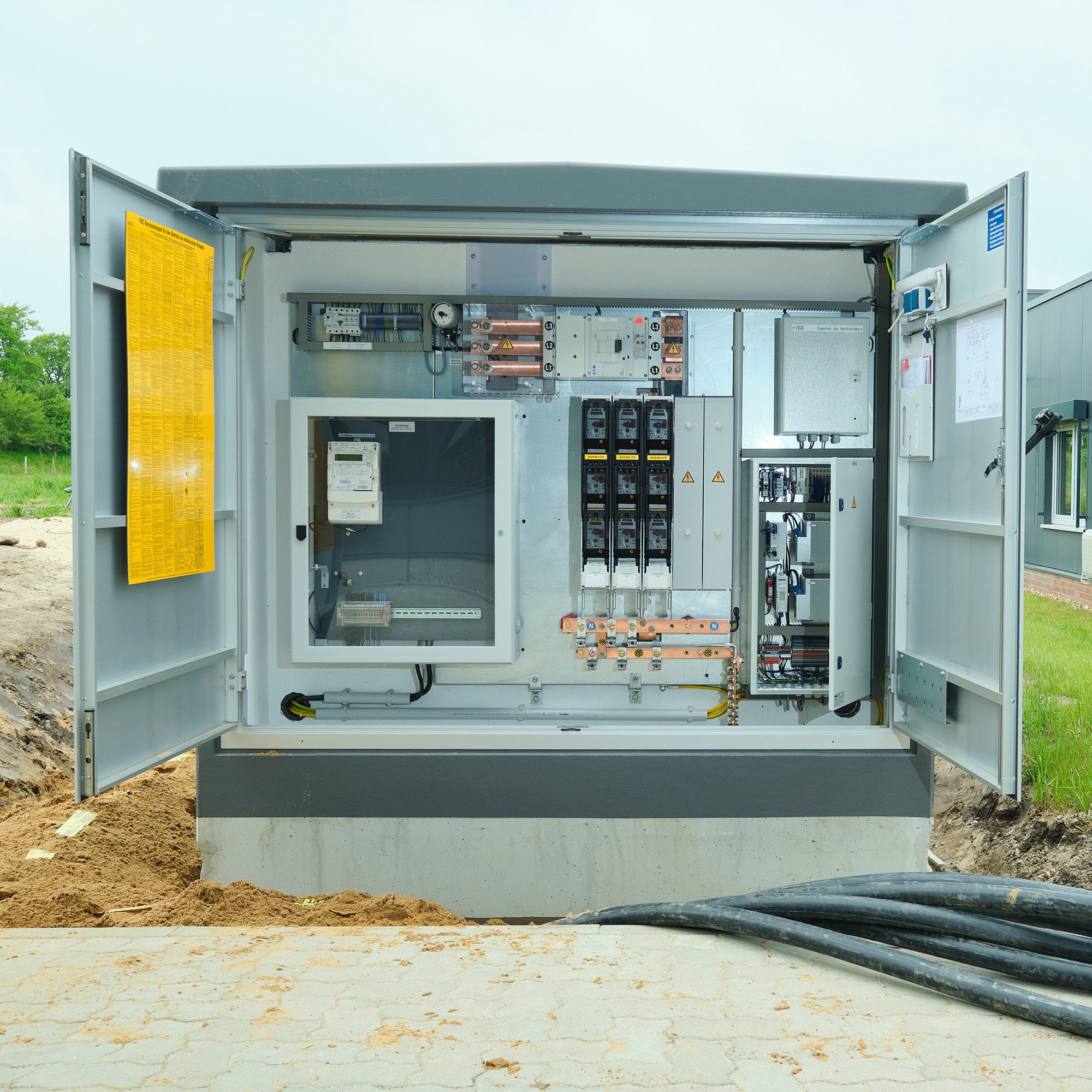

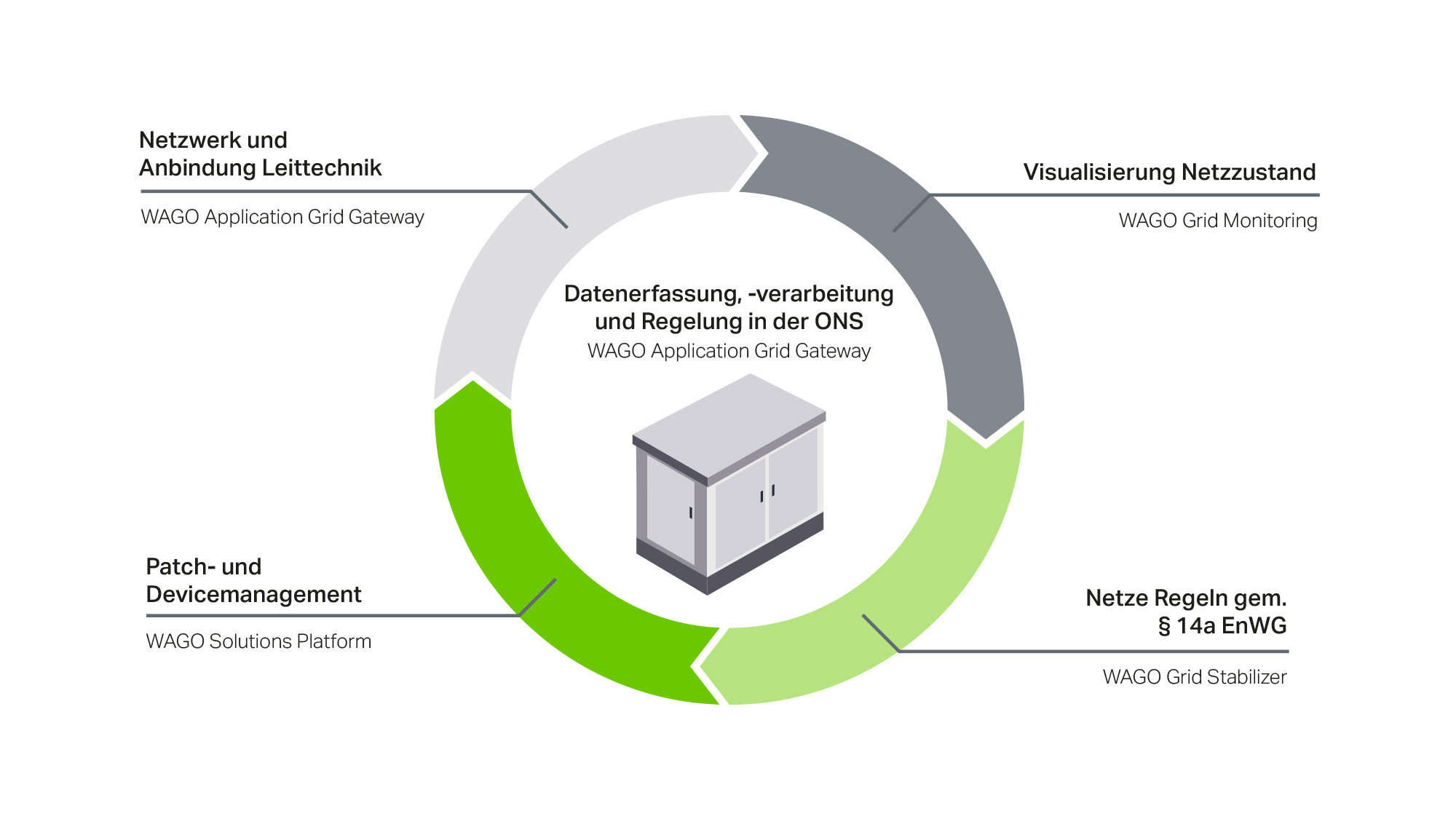

Stable, future-proof grids need transparency – right down to low voltage. Digitalized substations make this possible with the WAGO Application Grid Gateway for both new and existing substations – through simple parameterization. The software is based on a sophisticated, field-proven hardware concept and is infinitely scalable. The PLC (Programmable Logic Controller) stores and transmits measurement data to the control center every second. Through the remote control protocol IEC 60870-5-104, data from medium voltage, the transformer, low voltage feeders, status messages, and temperatures find their way to the control center – securely, in compliance with KRITIS (Critical Infrastructure), in the cloud or on-premise.

Key Benefits:

- Better assess grid performance with accurate measurements

- Improve grid management and operation

- Hardened firmware for use in KRITIS areas

Want to know how you can optimize grid management and operation with digitalized substations? We would be happy to advise you!

With the WAGO Grid Monitoring App, substations and the downstream low-voltage network can be monitored. This allows users to see relevant grid parameters at a glance to optimize expansion strategies – without additional programming efforts through simple parameterization. The WAGO Grid Monitoring App is already included in the WAGO Solutions Platform and provides accurate, detailed overviews of currents, transformer load and feeder data in real-time. Operation within a closed network is possible, ensuring highly secure usage. The visualization is intuitive. Even greater transparency is provided by the load flow analysis for calculating voltages and currents throughout the distribution network, which is available as an option.

Key Benefits:

- Intuitive visualization with live overviews of relevant grid parameters

- Commissioning via mobile app and QR code

- Operation within your own closed network possible

Learn more about WAGO Grid Monitoring, get insights into the solution and contact us!

The WAGO Solutions Platform offers users a custom patch and device management of distributed remote control devices. It allows updates, configuration changes, security patch deployment, and firmware updates – in compliance with KRITIS. Applications can be easily rolled out and managed with the WAGO Solutions Platform – from simple commissioning of controllers via QR code to intuitive use and clear project planning – and bulk handling. Additionally, custom software solutions can also be deployed through this platform – as long as they are containerized. Depending on what’s needed, the WAGO Solutions Platform can be used either in the cloud or on-premises.

Key Benefits:

- Fulfillment of the highest security requirements – even in critical infrastructure

- Automatic rollout of new firmware and applications via the platform

- User-friendly operation with intuitive software – no prior knowledge required

Get more information and insights into the WAGO Solutions Platform and request a consultation appointment!

The WAGO Grid Stabilizer is a practical solution for fulfilling the requirements of § 14a EnWG (German Energy Act). This application supports safe grid operation – even in high-load scenarios. It utilizes measurement data from the digital substation and intelligent measurement systems for grid status determination and enables real-time analysis of the utilization of all grid components. Based on this data, stabilizing control interventions can be carried out to address grid bottlenecks with controllable consumers, such as heat pumps or wall boxes. Additionally, the WAGO Grid Stabilizer offers visualization and documentation functions for analyzing grid bottlenecks. As part of the WAGO Solutions Platform, the solution can also be operated on-premises, making it adaptable to current grid requirements.

Key Benefits:

- A solution for fulfilling § 14a EnWG (German Energy Act)

- Collecting data, monitoring and controlling the low-voltage network

- Documentation of all control measures

Learn more about the easy way to manage and operate the grid reliably – and get insights into the solution.
