Field Connection with Lever, now for 2.5 mm² too

  • 3/9/2022

    • The powerful MCS MIDI allows convenient, tool-free wiring of conductors with cross-sections up to 2.5 mm².

    The MCS MIDI single-conductor female connector will soon be available with a lever for conductor cross-sections from 0.14 to 2.5 mm² (26 to 12 AWG) and 5 mm pin spacing. It boasts an ideal combination of high performance, compact design and convenient lever operation, providing the missing link in the connector family of WAGO’s MULTI CONNECTION SYSTEM (MCS).

    The Benefits for You:

    • Tool-free manual wiring thanks to lever operation

    • Push-in CAGE CLAMP® termination

    • Powerful pluggable PCB connector for up to 16 A

    • Compact design for conductor cross-sections up to 2.5 mm²



    Go to the product list

    The entire pluggable connector family of the WAGO MULTI CONNECTION SYSTEM (MCS) with lever

    Intuitive Tool-Free Operation

    Lever operation makes manual wiring easy. The lever requires no tools and allows intuitive operation. Thanks to CAGE CLAMP®, solid conductors and fine-stranded conductors with ferrules can be connected by simply pushing them into the unit. The connector has a current carrying capacity of up to 16 A and an overall height of just 11.5 mm. It can be used in drive controllers, converters and power supplies, for example.

    This pluggable PCB connector is available in two versions: MCS MIDI Classic and MCS MIDI with 100 % protection against mismating. For maximum safety for field connections, the MIDI pluggable connection systems are available with a center or side locking lever upon request. The pluggable connection system allows optional direct marking.

    Item Numbers:

    MCS MIDI Classic: 2231-11XX

    MCS MIDI: 2721-11XX

    Available: Q2/2023

    More products

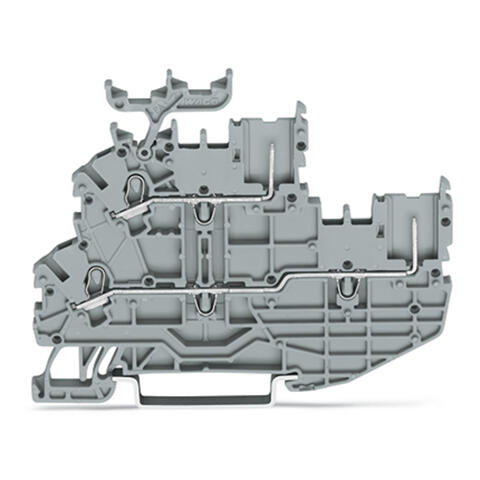

    1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray
    Item no. 2020-2231

    1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray

    Show product

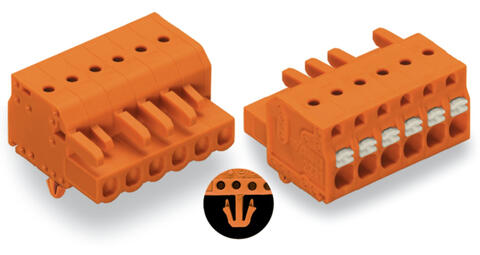

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 4-pole; Snap-in mounting feet; orange
    Item no. 2231-304/008-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 4-pole; Snap-in mounting feet; orange

    Show product

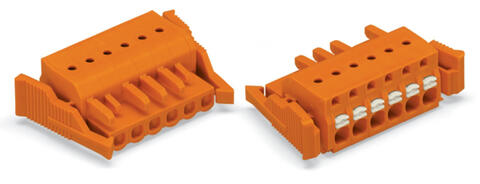

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 3-pole; Lateral locking levers; orange
    Item no. 2231-303/037-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 3-pole; Lateral locking levers; orange

    Show product

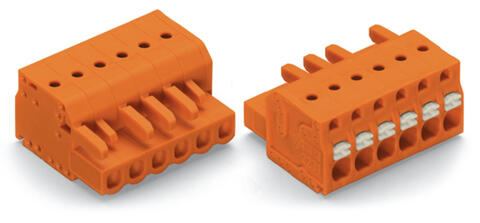

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 5-pole; 2,50 mm²; orange
    Item no. 2231-305/026-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 5-pole; 2,50 mm²; orange

    Show product

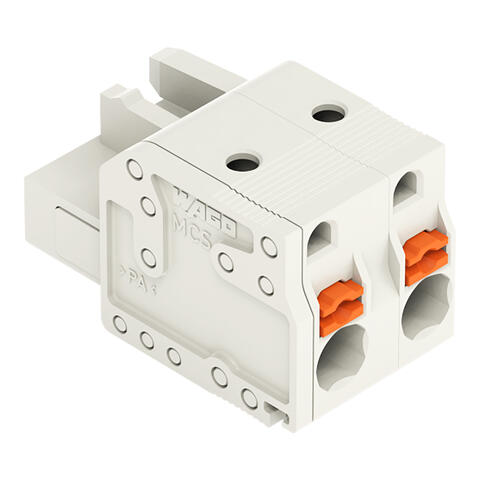

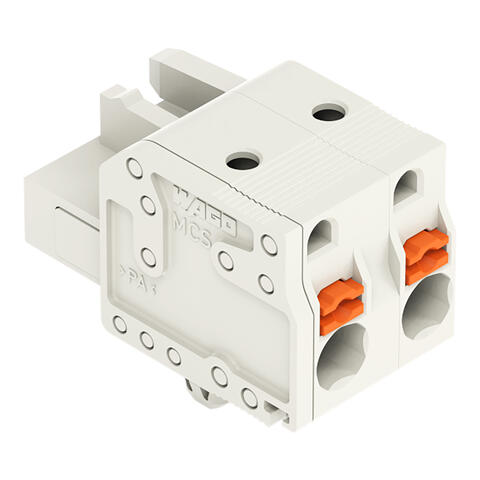

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 100% protected against mismating; 2,50 mm²; light gray
    Item no. 2721-202/026-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 100% protected against mismating; 2,50 mm²; light gray

    Show product
    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 100% protected against mismating; Lateral locking levers; 2,50 mm²; light gray
    Item no. 2721-202/037-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 100% protected against mismating; Lateral locking levers; 2,50 mm²; light gray

    Show product

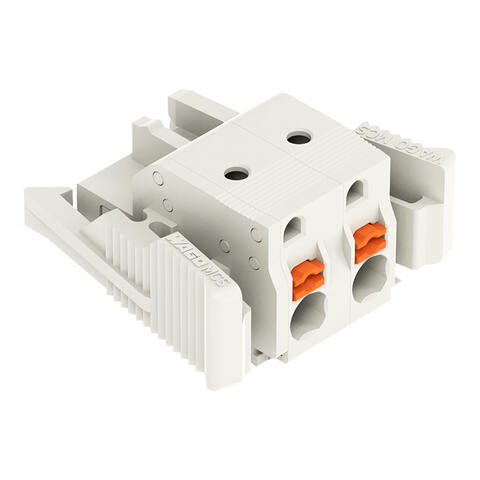

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 100% protected against mismating; Snap-in mounting feet; 2,50 mm²; light gray
    Item no. 2721-202/008-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 100% protected against mismating; Snap-in mounting feet; 2,50 mm²; light gray

    Show product
    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 4-pole; 100% protected against mismating; clamping collar; 2,50 mm²; light gray
    Item no. 2721-204/031-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 4-pole; 100% protected against mismating; clamping collar; 2,50 mm²; light gray

    Show product

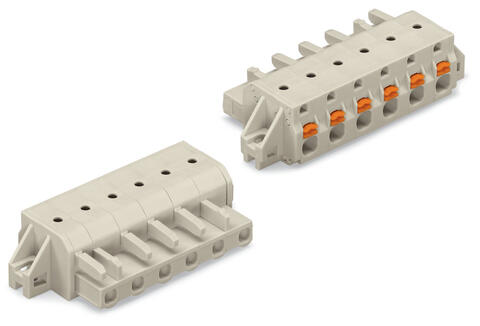

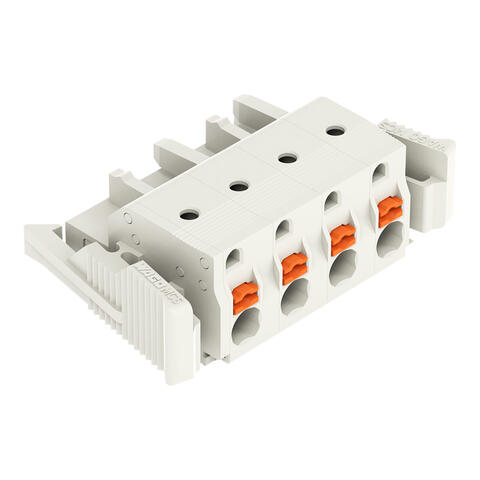

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 4-pole; 100% protected against mismating; Lateral locking levers; 2,50 mm²; light gray
    Item no. 2721-204/037-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 4-pole; 100% protected against mismating; Lateral locking levers; 2,50 mm²; light gray

    Show product

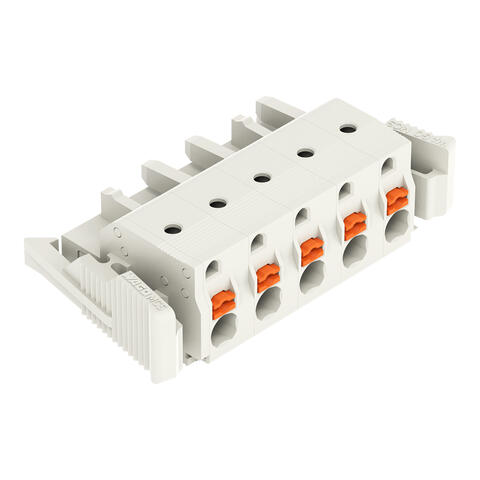

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 5-pole; 100% protected against mismating; Lateral locking levers; 2,50 mm²; light gray
    Item no. 2721-205/037-000

    1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 5-pole; 100% protected against mismating; Lateral locking levers; 2,50 mm²; light gray

    Show product
