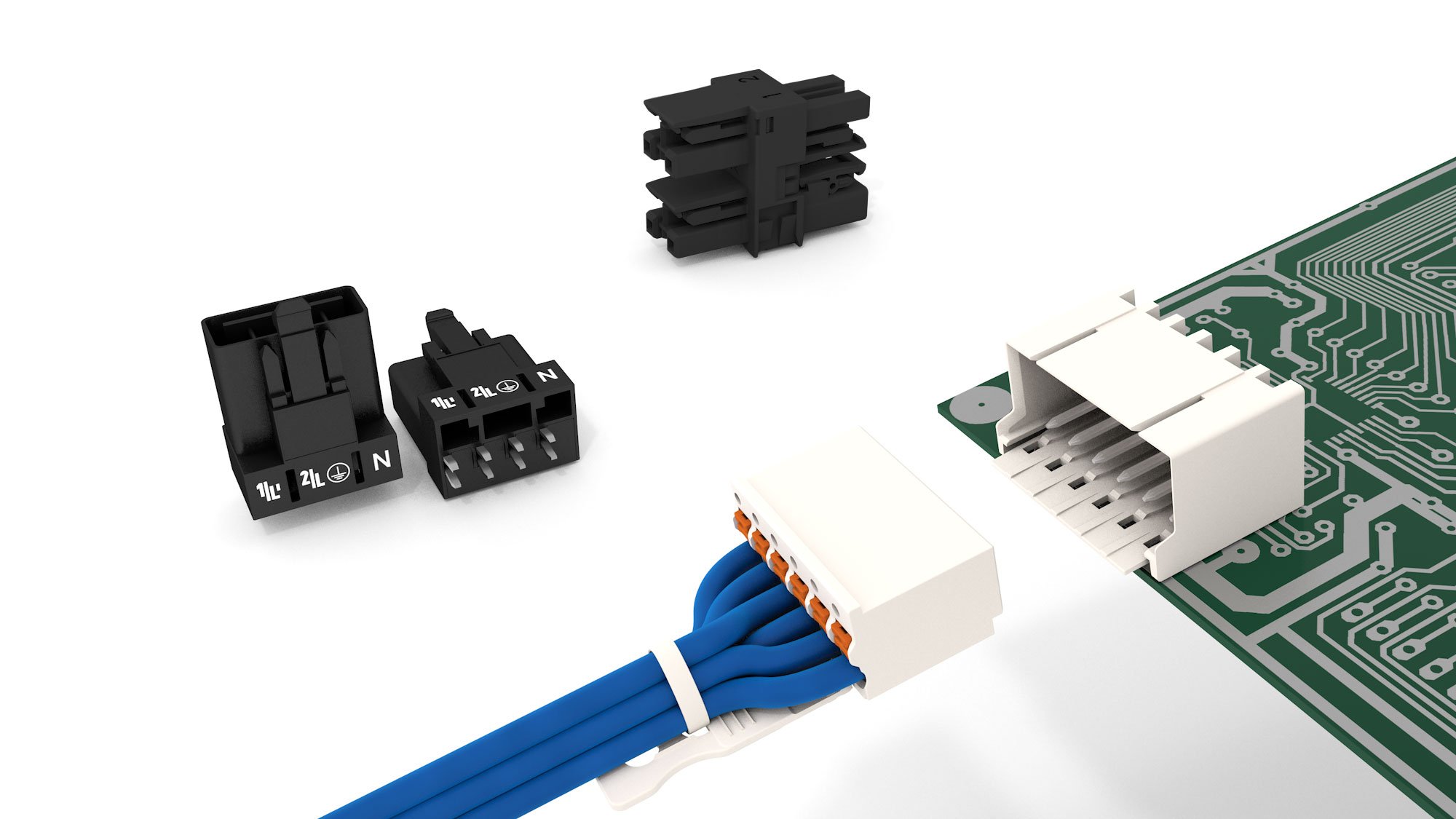

Faster Connection: Pluggable Connectors

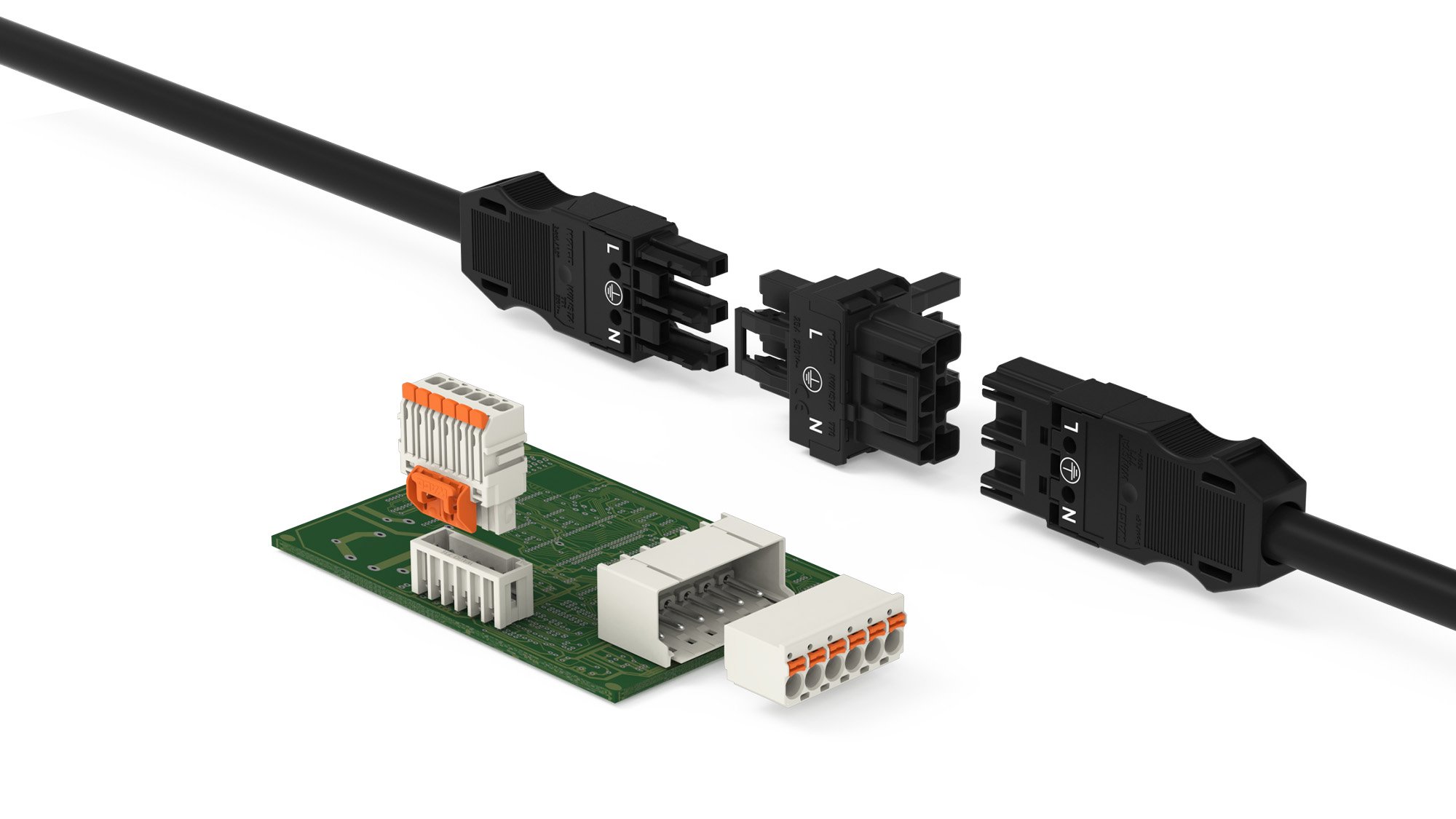

The WINSTA^® Pluggable Installation Connection System finds a home anywhere installation requirements repeat or are planned on a grid, e.g., installing grid lighting or flush-mount lighting. Thanks to this pre-assembled connection system, assembly times and installation errors on the construction site are both reduced.

Advantages:

• On-schedule completion within the shortest time via pre-assembled cables and pluggable connectors

• Guaranteed protection against mismating through mechanical and color coding options

• Simple troubleshooting and quick replacement of pluggable connected loads

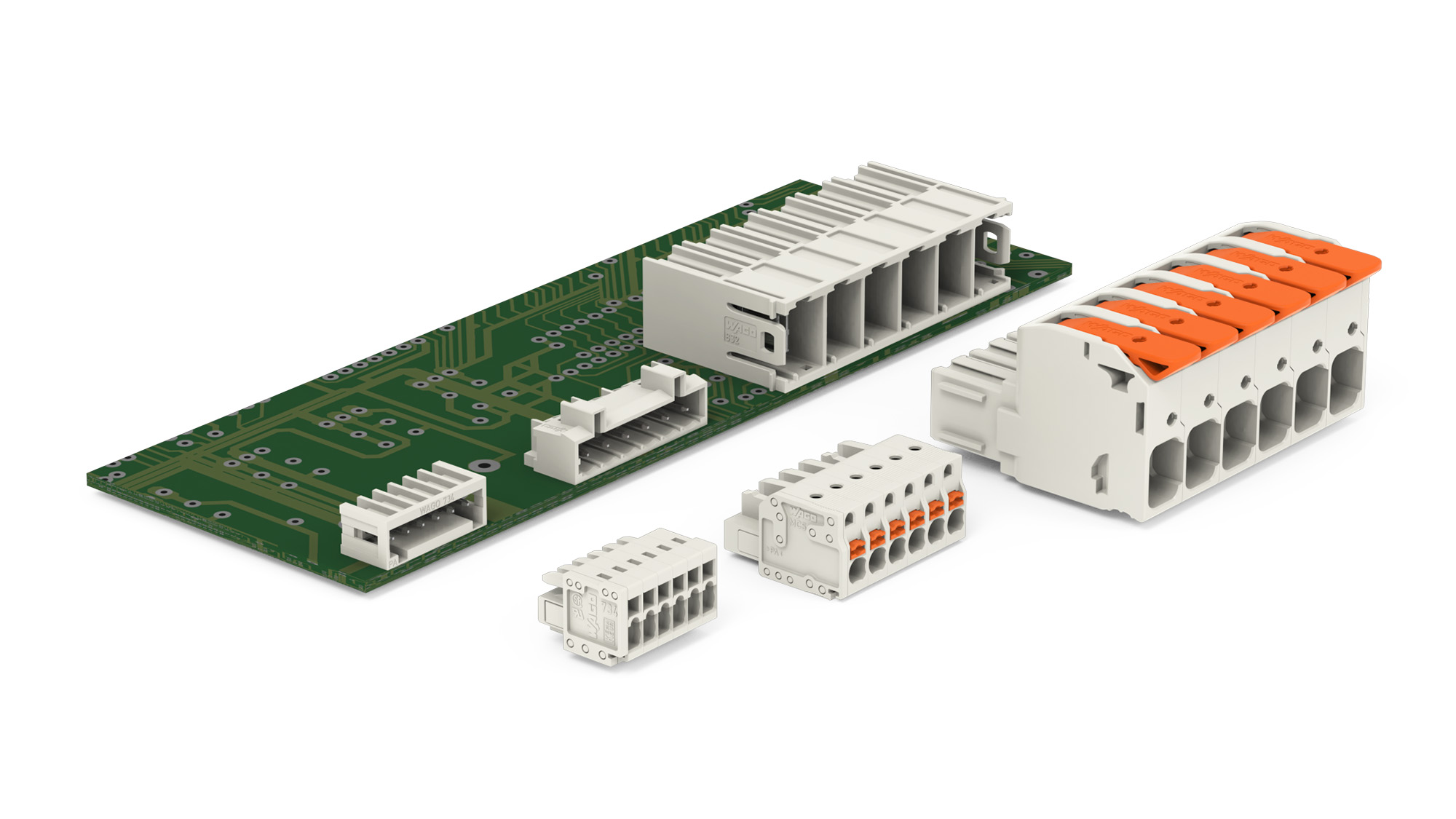

Our pluggable connectors for PCBs provide a universal pluggable connector system for your devices and meet all requirements for consistent, end-to-end system wiring for conductor cross sections from 0.08 to 10 mm² (28–8 AWG). You benefit from our diverse product lines, since you can always find the right solution for your application.

Benefits:

• A wide range of applications thanks to: Pluggable PCB connectors, panel feedthrough connectors, flying connections for different mounting types and pluggable connectors for rail-mount terminal blocks

• Push-in CAGE CLAMP^® termination of both solid conductors and fine-stranded conductors with ferrules

• Custom coding options

• Efficient test options

• With a clamping point that can be opened from two directions, the MULTI CONNECTION SYSTEM (MCS) greatly simplifies pre-assembling cables and wiring mated connectors.

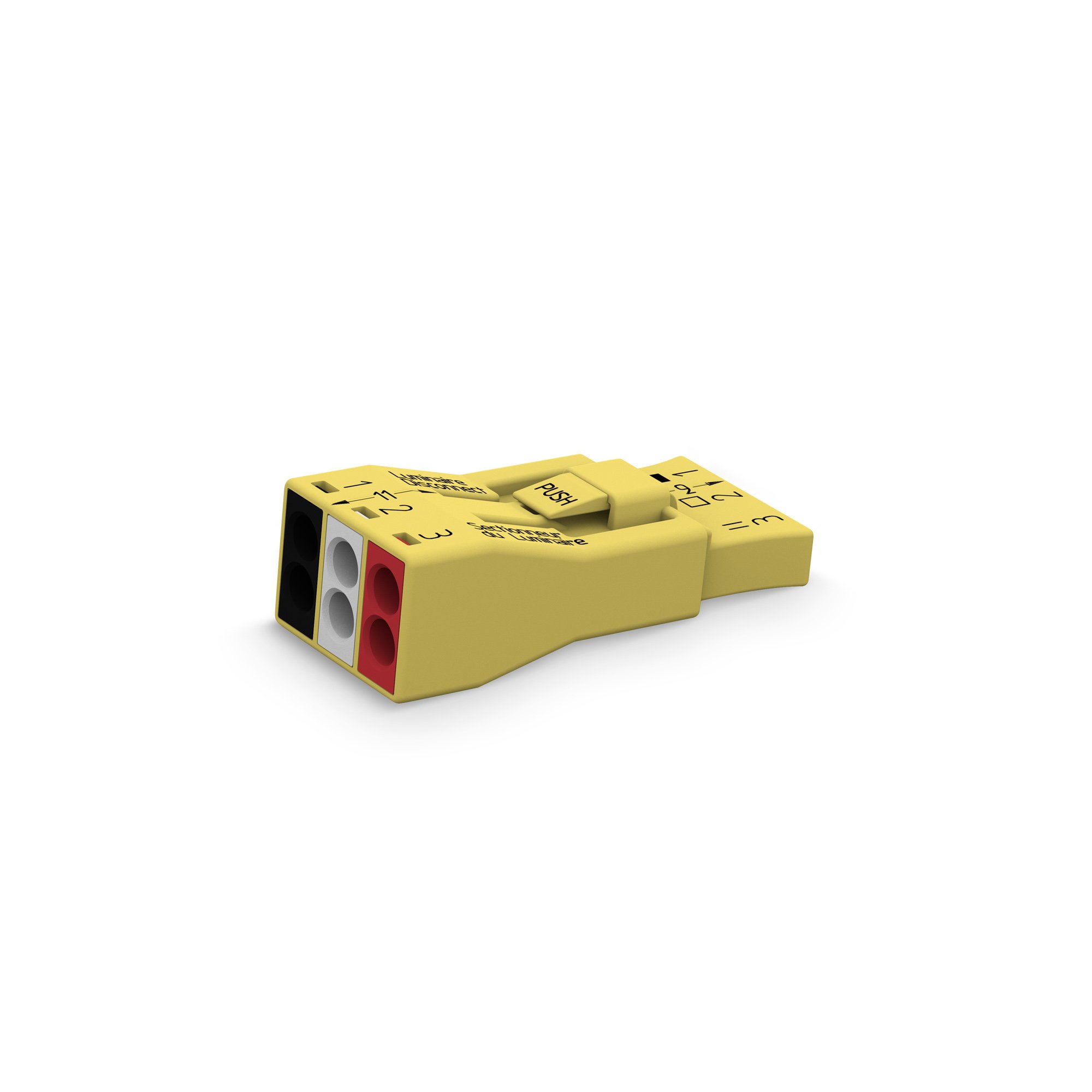

WAGO’s connector portfolio for luminaires and devices includes phase‑preselection systems for continuous‑row lighting, plus smart solutions for internal wiring.

Benefits:

• 267 Series: Modular connectors for flexible, scalable continuous‑row lighting systems

• 873 Series: Touch‑safe connectors for luminaire and device connections with PUSH WIRE® technology for solid conductors. Available in two versions – the compact version (0.34–0.75 mm²) is ideal for spotlights, street lighting, DALI, and basic sensors.

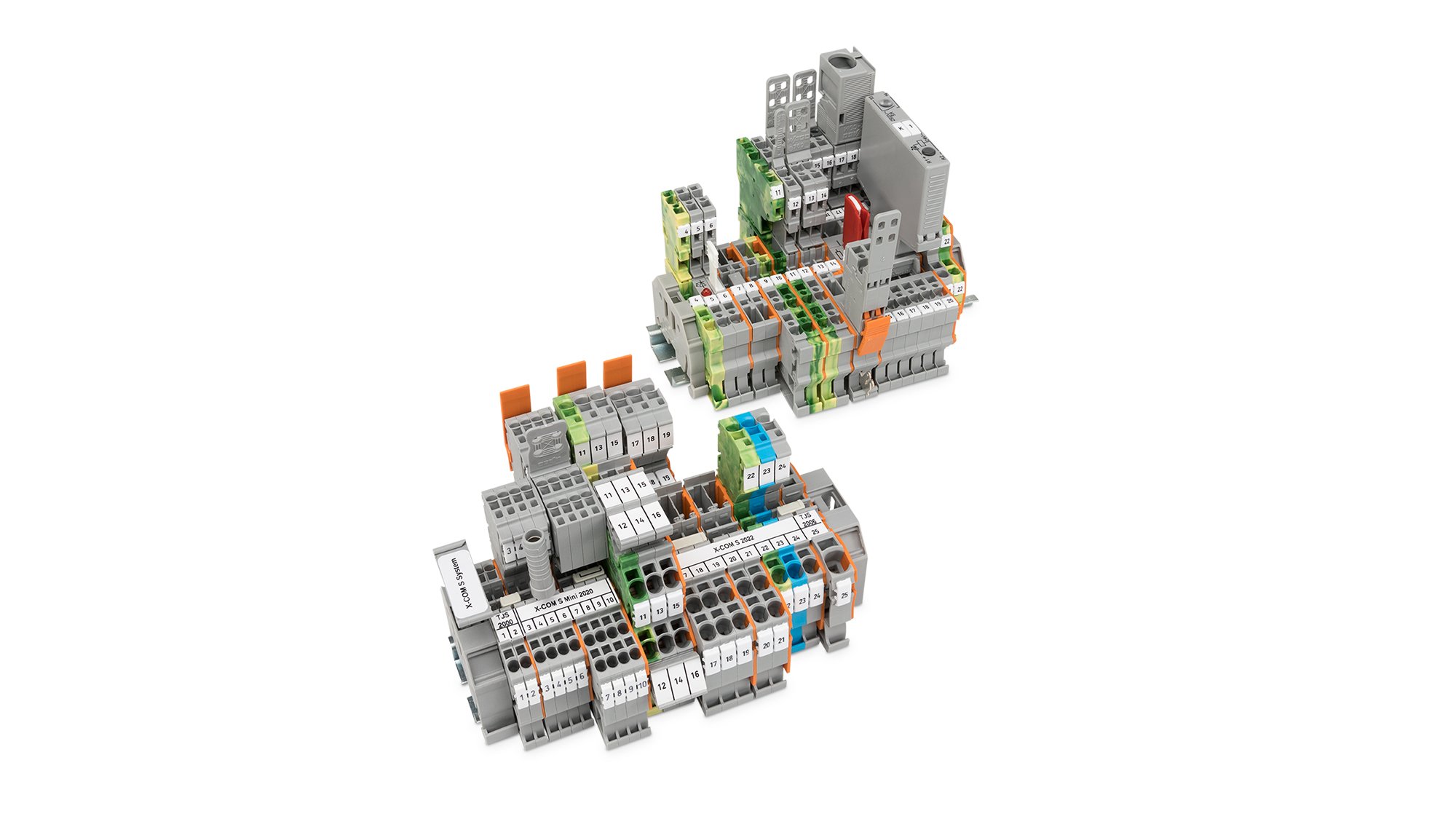

Enjoy the advantages of the X-COM^®-SYSTEM with mismating protection for your switchgear and control applications. Our innovative system consists of DIN-rail carrier terminal blocks, male headers and female connectors for different mounting types and male headers with solder pins.

Advantages:

• Time and space savings thanks to pre-assembly of pluggable cable harnesses

• Pre-assembly for quick and error-free replacement of sub-assemblies

• Coding without pole loss prevents mismating of male headers and female connectors with the same number of poles

• For your safety: Pre-wired sub-assemblies can be tested before installation

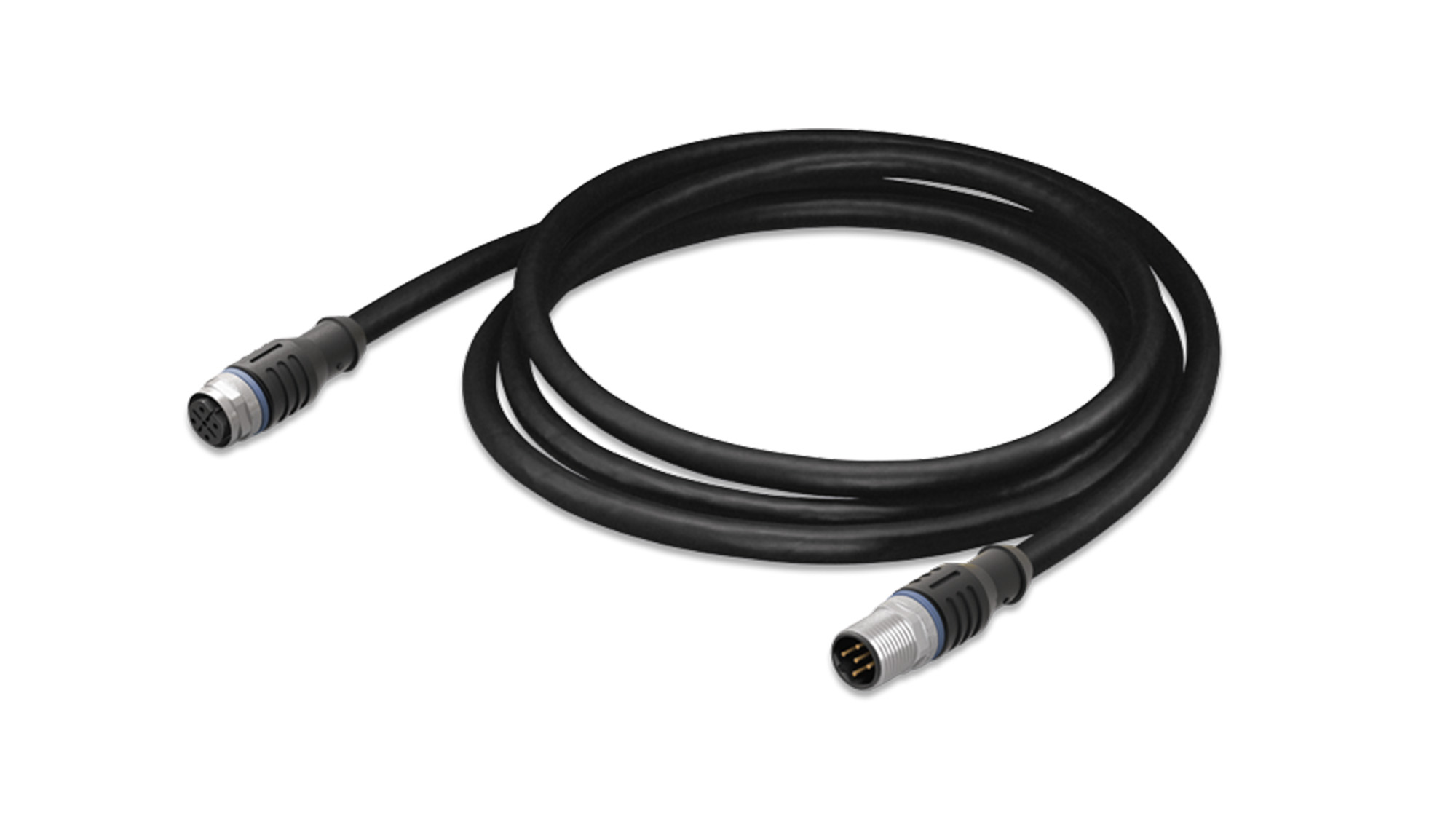

WAGO’s 756 Series M8 and M12 pluggable connectors are available in a variety of pre-assembled cable lengths ranging from 0.3 to 20 meters. With them, a suitable pluggable connector is available for sensor/actuator wiring for every I/O system.

Your Benefits:

• M8 and M12 connectors available in more than 30 lengths

• Halogen-free cable meets fire protection requirements

• Suitable for I/O systems from all manufacturers

Discover our range of connectors.
