Easy Wiring – Simple – Tool-Free – Pluggable!

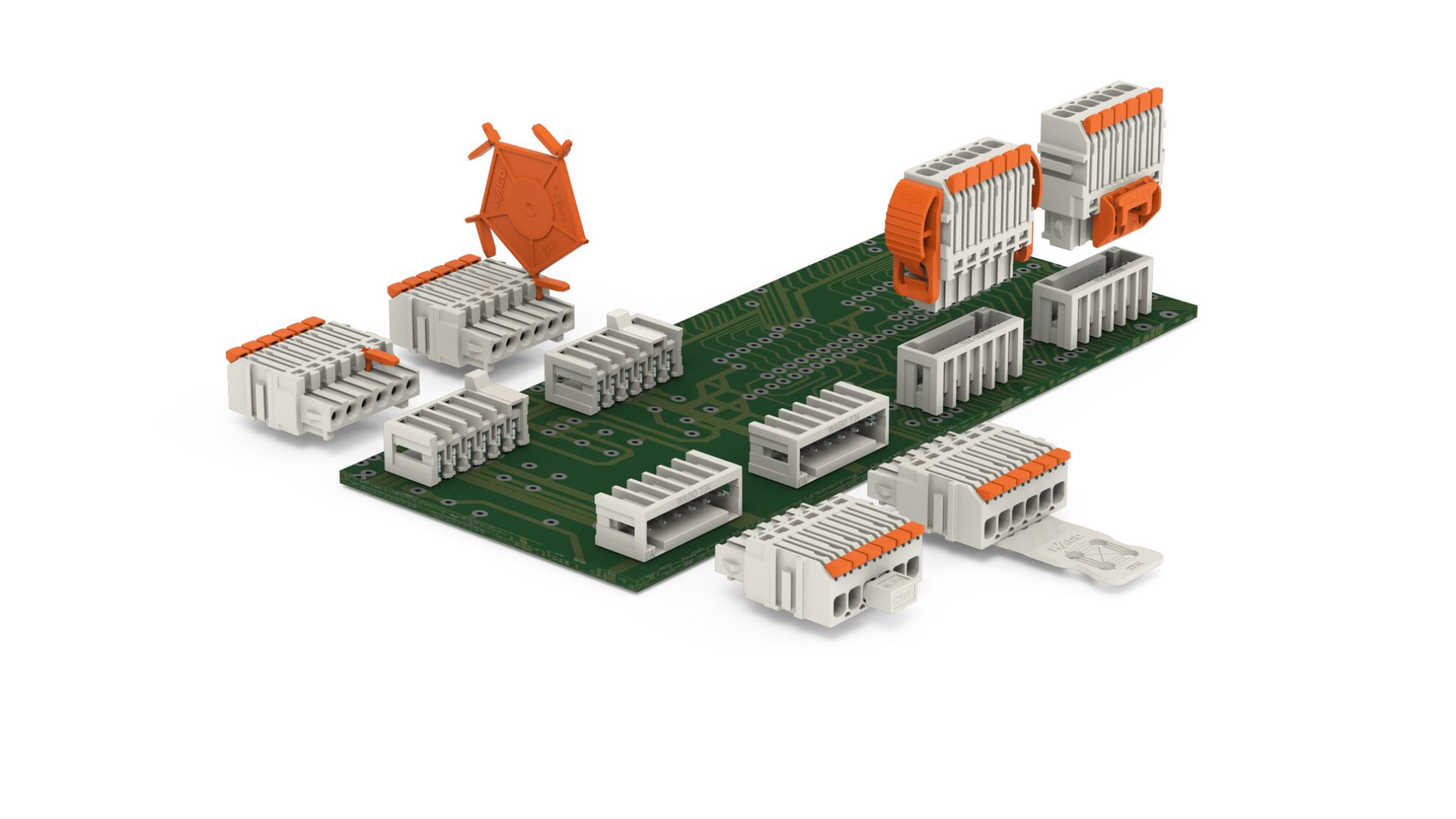

MCS MINI Pluggable PCB Connectors with levers and push-in connection offer greater wiring convenience for conductor cross-sections up to 1.5 mm².

Your Benefits:

• Connect and disconnect all conductor types manually via lever – for conductor cross-sections from 0.14 to 1.5 mm² (26 to 14 AWG).

• Thanks to Push-in CAGE CLAMP® connection technology, solid conductors and fine-stranded conductors with ferrules can be terminated by simply pushing them into the unit.

• Prevent unintentional disconnection with a versatile locking system.

• Low-profile, 10 mm design for confined installation spaces and slim devices

• Various accessories available



The lever on the WAGO MULTI CONNECTION SYSTEM MINI (MCS MINI) provides rapid in-the-field connections. The connector's design facilitates wiring subassemblies – easy-to-access and straightforward connection points make all the difference at the worksite. With the MCS MINI PCB Connector, this advantage applies to all conductor types in cross-sections from 0.14 to 1.5 mm² or 26 to 14 AWG and a pin spacing of 3.5 mm. An added benefit: Extra board space is not required, giving WAGO’s PCB connection system the edge for device connections, such as drive controls.

In addition to superior ergonomics, the easy-to-close lever always ensures that safe contact is made and maintained for additional peace of mind. Users achieve additional reliability with the versatile locking system. The lever’s intuitive operation allows connections to be made quickly and securely without tools.
