Let Power Communicate

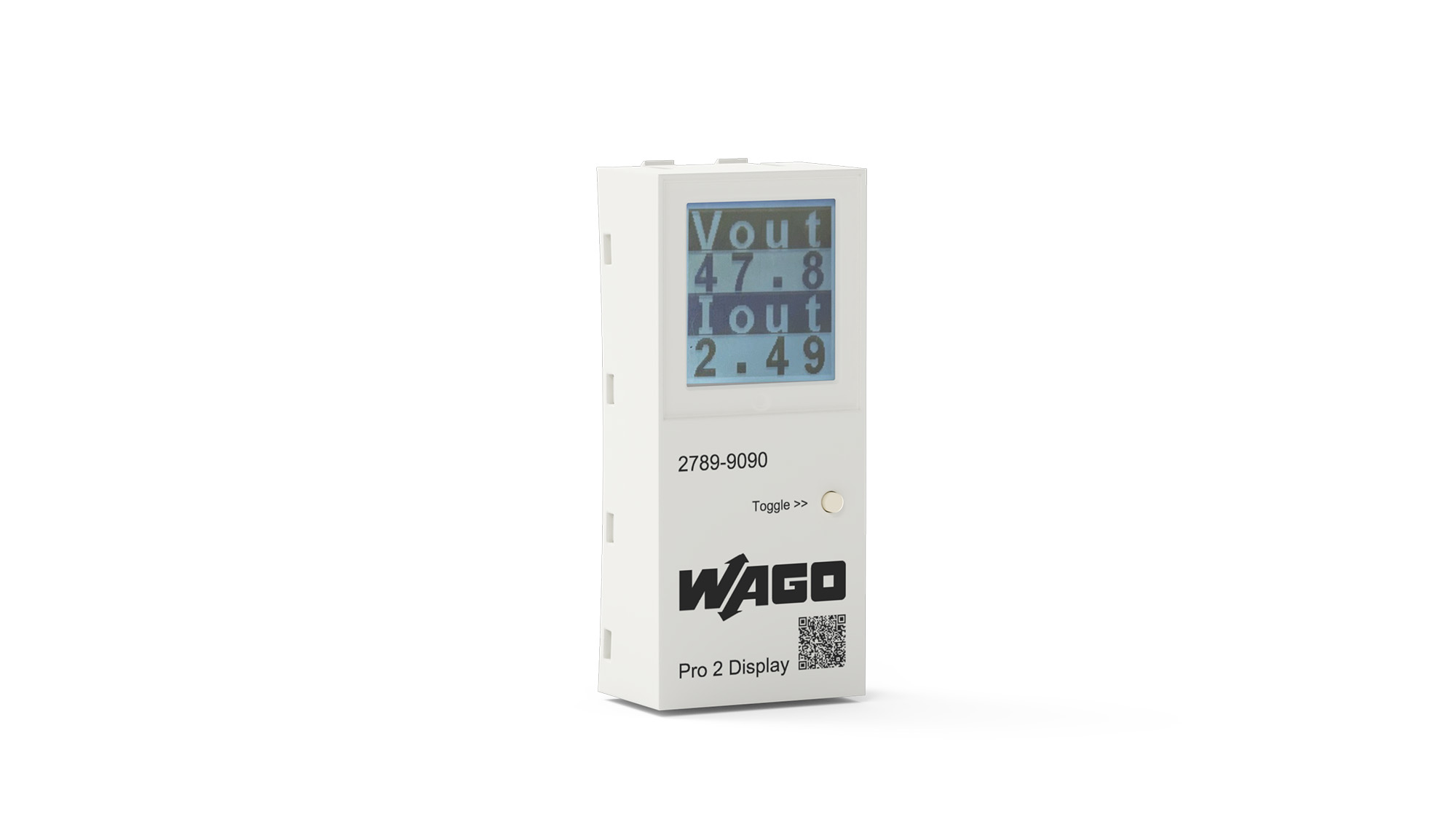

The WAGO Pro 2 Display Module offers cost-effective, real-time monitoring of the Pro 2 Power Supply. This easy-to-mount display shows essential supply parameters, including output voltage and current, total operating time, and overvoltage events. It snaps directly onto the communication interface and doesn't require any additional control cabinet space. Compatible with all Pro 2 power supplies, it supports hot swapping during operation.

• Real-time status monitoring

• No additional space required in the control cabinet

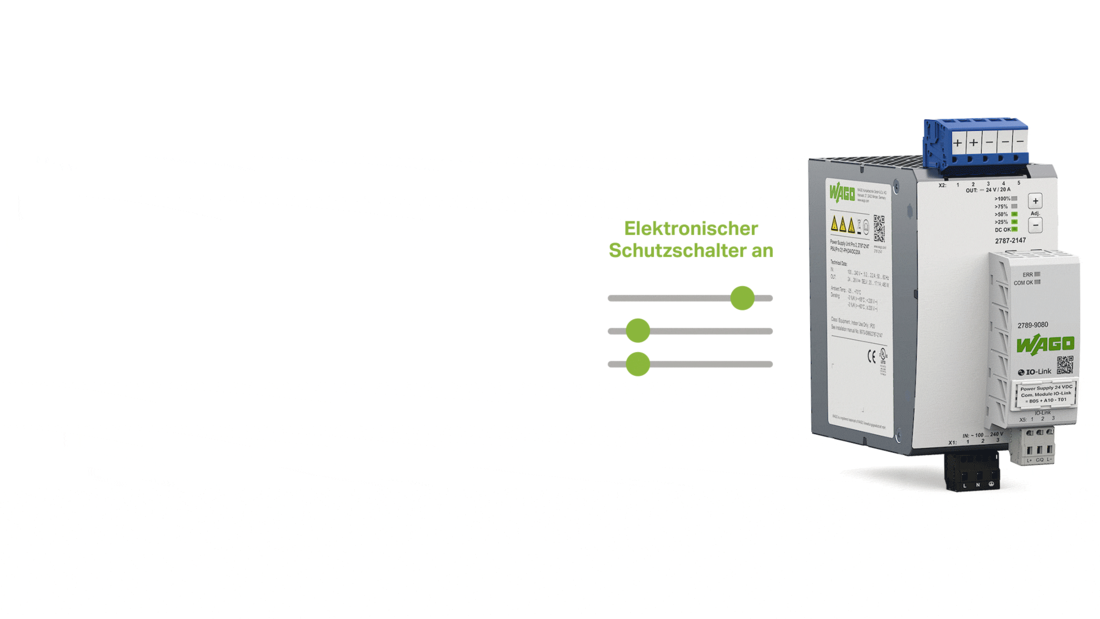

The configuration function can be used to configure the overload behavior of the power supply, for example. In addition to TopBoost and PowerBoost, the ECB functionality can also be selected in mechanical engineering applications to ensure compliance with the requirements of EN 60204.

• The power supply is highly configurable, making it easy to customize to virtually any application.

• The configurable ECB functionality trims costs and uses less space while increasing safety.

• The simulation function lets you explore all the features of the Pro 2 Power Supply without actually connecting a device.

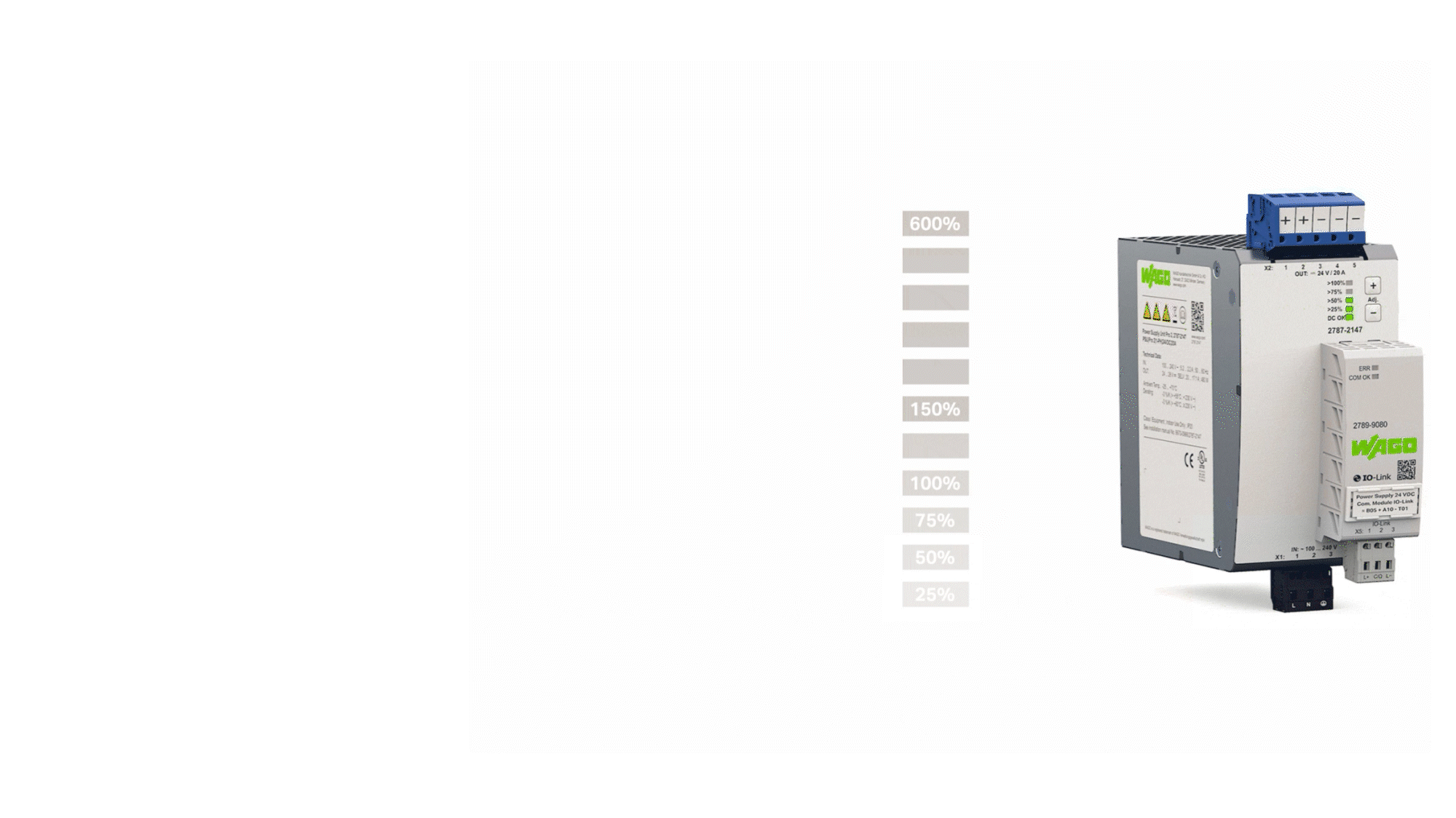

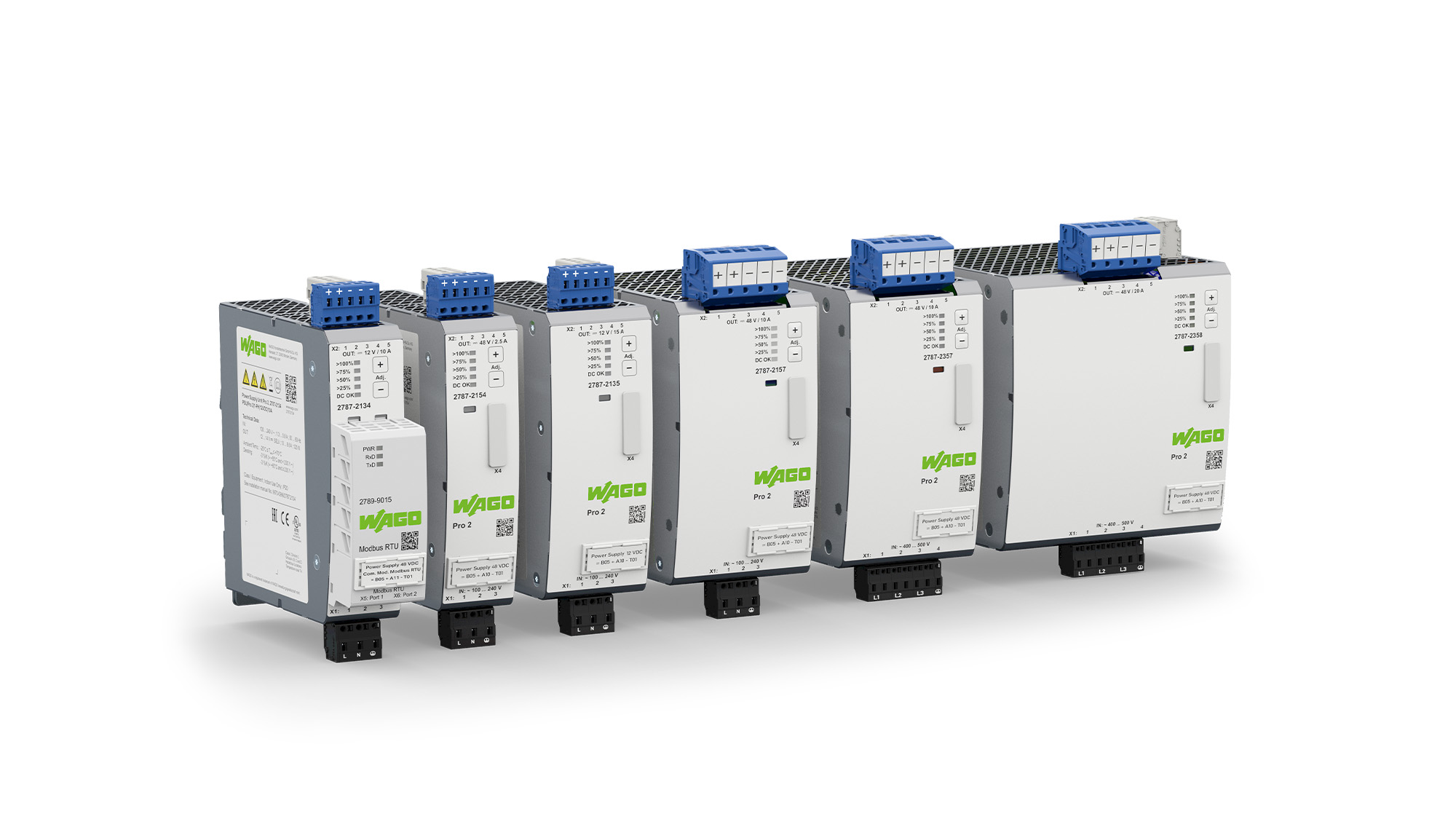

Applications with high output requirements call for professional power supplies capable of handling power peaks reliably. “The Power of the Possible” – whatever your specific requirements, the WAGO Pro 2 Power Supply makes them a possibility. With 150 % PowerBoost, 600 % TopBoost and further parameterizable overload behavior, the WAGO Power Supply Pro 2 protects and power systems with its intelligent power management. Standby mode also prevents unnecessary energy consumption during downtime.

The Benefits for You:

• TopBoost allows up to 600% output voltage for 15 milliseconds in the event of a short circuit and safely triggers thermomagnetic circuit breakers.

• PowerBoost provides 150 % of the output power for a maximum of five seconds, allowing faster capacitor charging and reliable and capacitive load switching.

• Electronic circuit breaker (ECB) included – you can also use Pro 2 as a single-channel ECB very conveniently via the software.

• Configurable signal contacts – take advantage of standby mode and warning and alarm messages via software-configurable digital inputs and outputs.

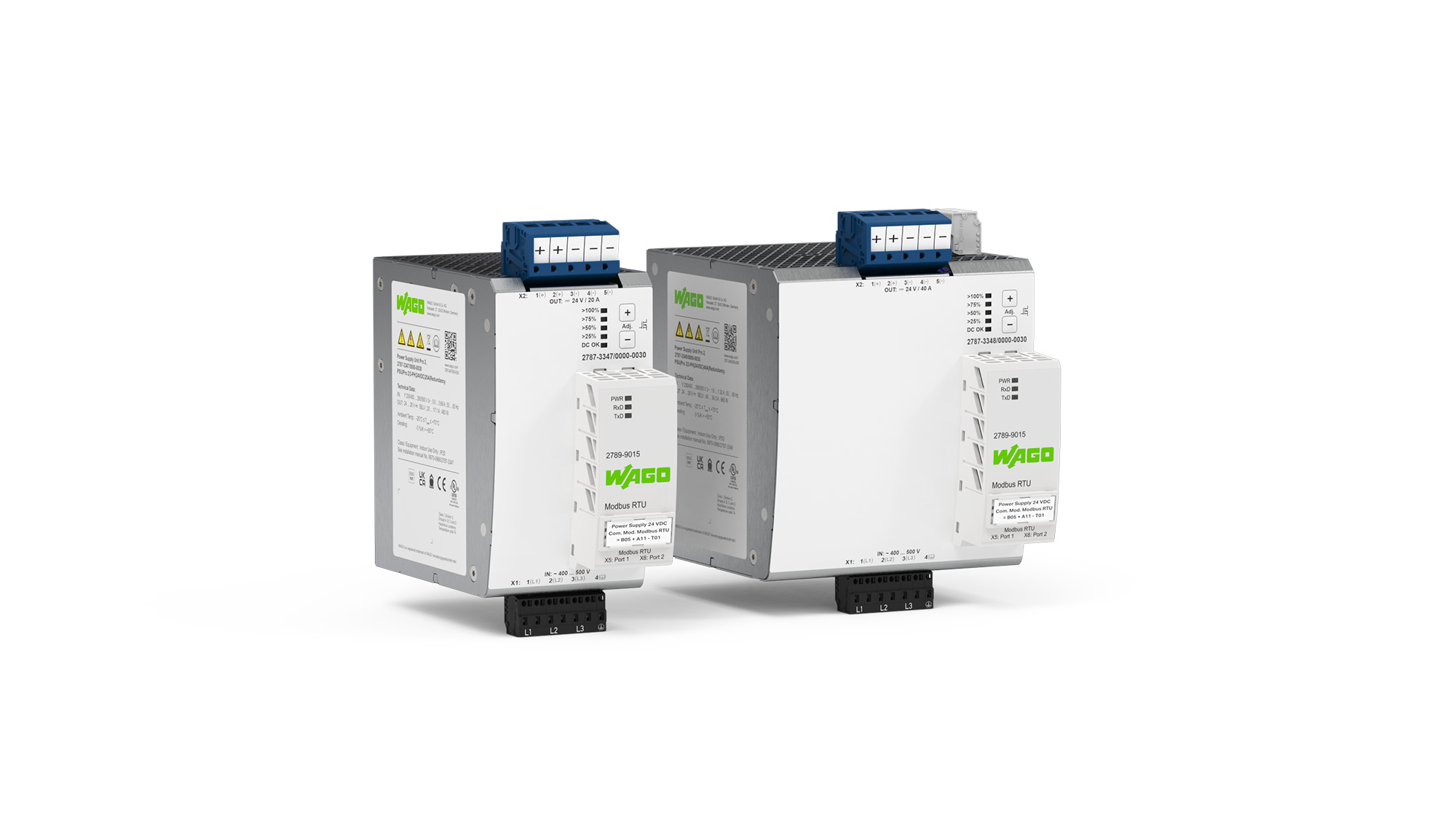

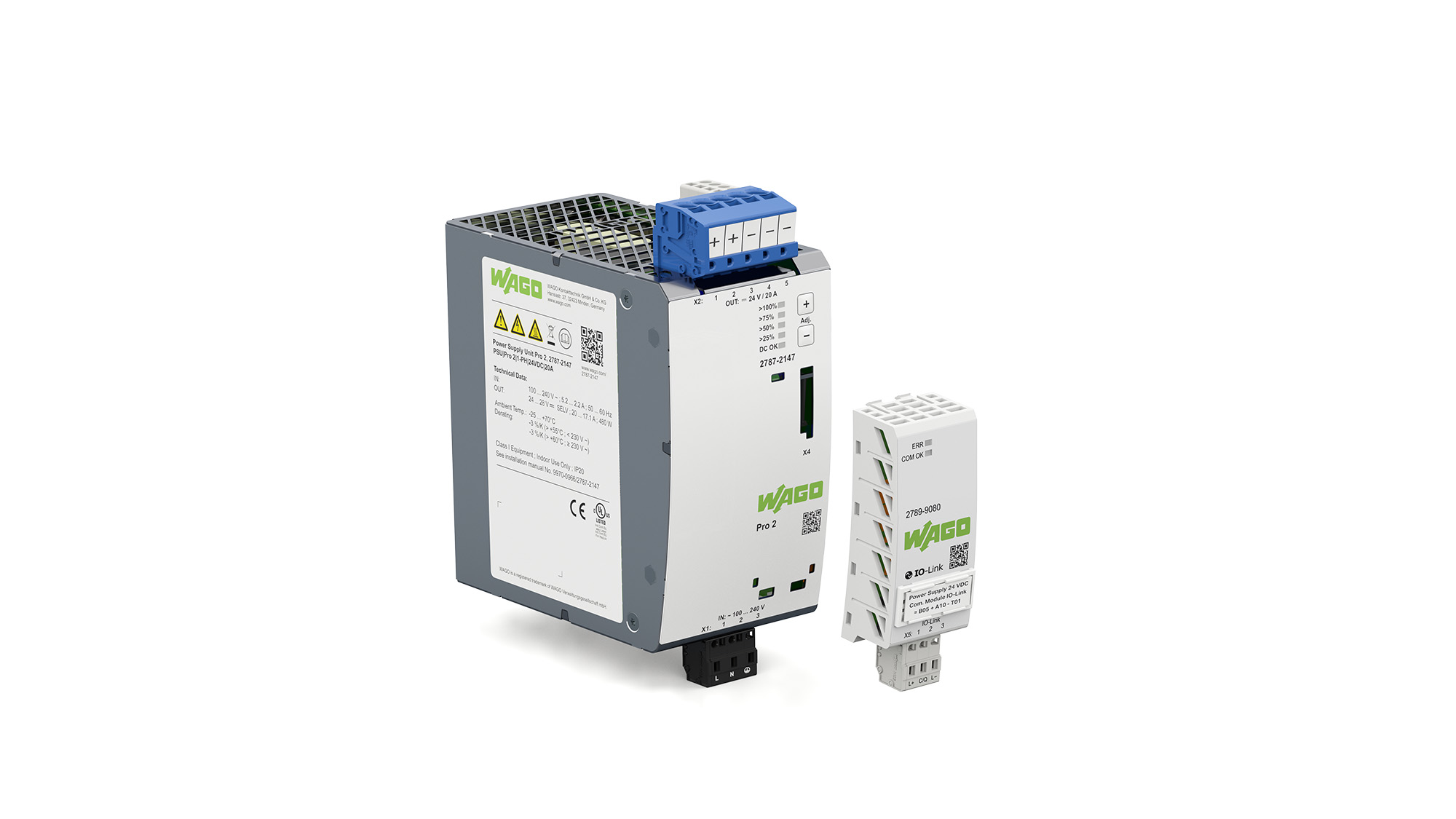

WAGO’s Pro 2 Power Supplies with integrated MOSFET functionality enable the setup of redundant power supply systems that can be continuously monitored via communication modules. Unlike conventional power supplies, no separate redundancy module is required. In a 1 + 1 redundancy configuration, a single device can carry the total load, preventing overload. In an n + 1 setup, individual device utilization increases, improving overall efficiency. If one device fails, the remaining n devices automatically take over the additional load.

• No separate redundancy module required, thanks to integrated MOSFET functionality

• N + 1 redundancy improves efficiency and reduces costs

• Communication modules enable rapid response to device failure, increasing system availability

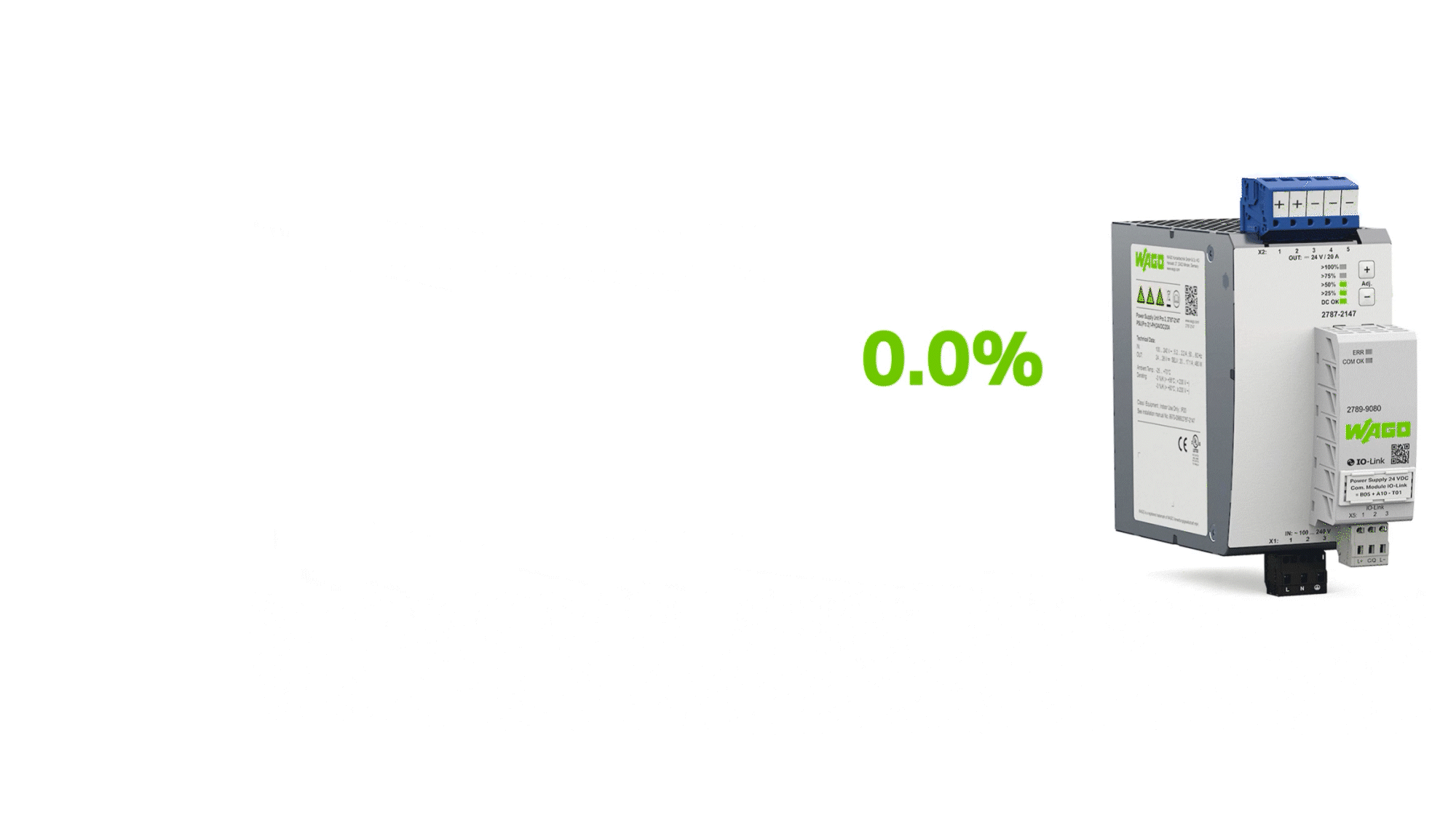

Small but powerful: Though they may seem minor, differences in the technical data can have big effects: A typical a simple power supply with nominal power of 960 W achieves 91 % efficiency. In contrast, our Pro 2 Power Supply achieves 96.3 % efficiency. At first glance, it doesn’t seem like 5.3 percent would matter much, but it actually makes all the difference: The Pro 2 Power Supplies’ higher efficiency eliminates 37 W of power loss. Calculated over a five-year operating period, this amounts to savings of about 1,500 kWh – which corresponds to the annual consumption of a two-person household.
