Digital Control Cabinet Folder — Created by CirQit, Powered by WAGO

Paperless Control Cabinet Documentation

During the planning and manufacturing of control cabinets, a wide range of technical documents is generated — essential for safe operation. Traditionally, these documents are stored in paper format, making them susceptible to loss, damage, and inconsistencies. The digital control cabinet folder offers centralized cloud storage, accessible across locations and systems. Benefit from guaranteed access for 20 years, full traceability of changes via an integrated logbook, and seamless collaboration among all stakeholders—for maximum flexibility and up-to-date documentation.

The Advantages of the Digital Control Cabinet Folder:

Upload all document types up to a total volume of 500 MB
Network all stakeholders involved in an electrical installation
Full traceability of all changes via integrated logbook
Accessible via any web browser — no app required
Access via QR code or URL using smartphone, tablet, or PC
Guaranteed access for 20 years

Challenges of Paper-Based Documentation

Reliable technical documentation is indispensable in control cabinet planning and production. However, paper-based records pose several challenges: limited availability, risk of loss or damage, outdated information, and lack of centralized version control. Additionally, storing paper documents inside control cabinets increases fire hazards.

The Solution for Efficient and Secure Documentation — the Digital Control Cabinet Folder

The digital control cabinet folder provides maximum security and flexibility. Access all documents stored centrally in the cloud from any location. The application is intuitive — use any web browser and retrieve documents via QR code or URL on your device, with guaranteed availability for 20 years.

Thanks to cross-system compatibility (e.g., EPLAN, WSCAD, Zuken) and support for various file types up to 500 MB, efficient networking of all participants is ensured. An integrated logbook enables complete traceability of all changes.

Optimized Documentation Processes — From Planning to Maintenance

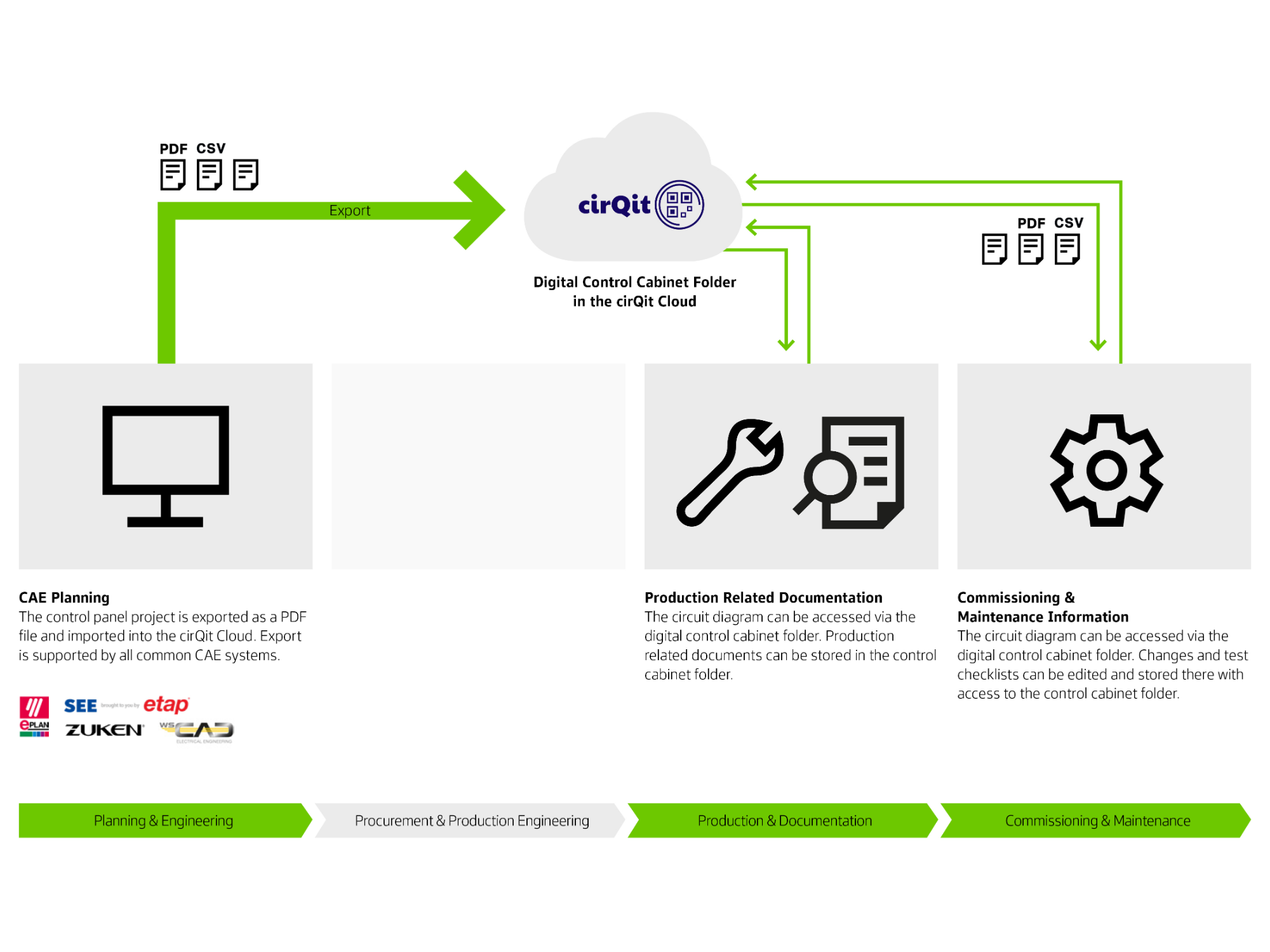

Experience seamless integration of your control cabinet planning with the digital control cabinet folder. Start by exporting your project as a PDF from any standard CAE system and then import it into the CirQit cloud via the WAGO interface. Access circuit diagrams and production-related documentation at any time, and make adjustments directly in the digital control cabinet folder. Once a correction is saved, the system automatically generates a new version of the circuit diagram in the cloud. The previous version remains available, allowing future users to easily trace changes. At the same time, the electrical planner, system builder, or the person who originally created the diagram receives a notification — enabling direct updates to the original plans. With CirQit Cloud, you maintain full control over your control cabinet documentation at every process step!

Discover now: CirQit — Control Cabinets Without Paper Plans
