Microgrid Solutions

Building data forms a critical foundation for the microgrid and can significantly enhance grid stability. Building management systems serve as the interface between the building, grid, and the energy provider. With the WAGO Building Ecosystem, users gain access to a holistic building automation system that delivers efficiency improvements, flexibility, and in-depth analytics.

The uneven feed-in of energy, combined with high-performance and volatile consumers such as eMobility, can lead to grid overloads or microgrid peak loads. WAGO Application Load Management monitors feed-in while accounting for fluctuating consumption, preventing or smoothing peak loads in advance.

The foundation of an efficient and well-connected microgrid system is the feed-in, monitoring, and control of all relevant energy data. WAGO’s Energy Data Management provides a transparent solution and an adaptable system that delivers new insights into savings potential at every stage.

Customer substations connected directly to a grid operator’s medium-voltage network must be integrated using telecontrol technology. The preconfigured WAGO Application Customer Substation software enables rapid deployment across diverse grid territories — even when technical connection rules vary from one grid operator to another.

The top priority in energy generation and distribution is a reliable and secure power supply. WAGO products deliver the highest relevant levels of safety and quality. Our solutions begin with connections to substations that comply with the Technical Connection Conditions (TAB), extend to grid-compliant feed-in management, and include certified EZA (generation plant) controller function blocks as well as implementation options for Redispatch 2.0.

Battery storage systems are a key component of microgrids. They store surplus energy from renewable sources such as wind and solar, making it available when needed. This increases supply security and supports grid stability within the microgrid. To ensure efficient and reliable integration of battery storage, intelligent control systems like the WAGO Visualization and Control Hub are essential. The Hub handles control and visualization in both 2D and 3D.

The WAGO Application Grid Gateway helps energy distribution network operators assess the performance of their grids. This application improves the utilization of existing distribution networks, helping avoid unnecessary grid expansion. The required measurement technology at local substations, including transformer and low-voltage feeder monitoring, can be easily retrofitted. To use the application beyond the 30-day trial period, a license for the respective controller is required. The license can be purchased separately under item number 2759-2015/0261-1000.

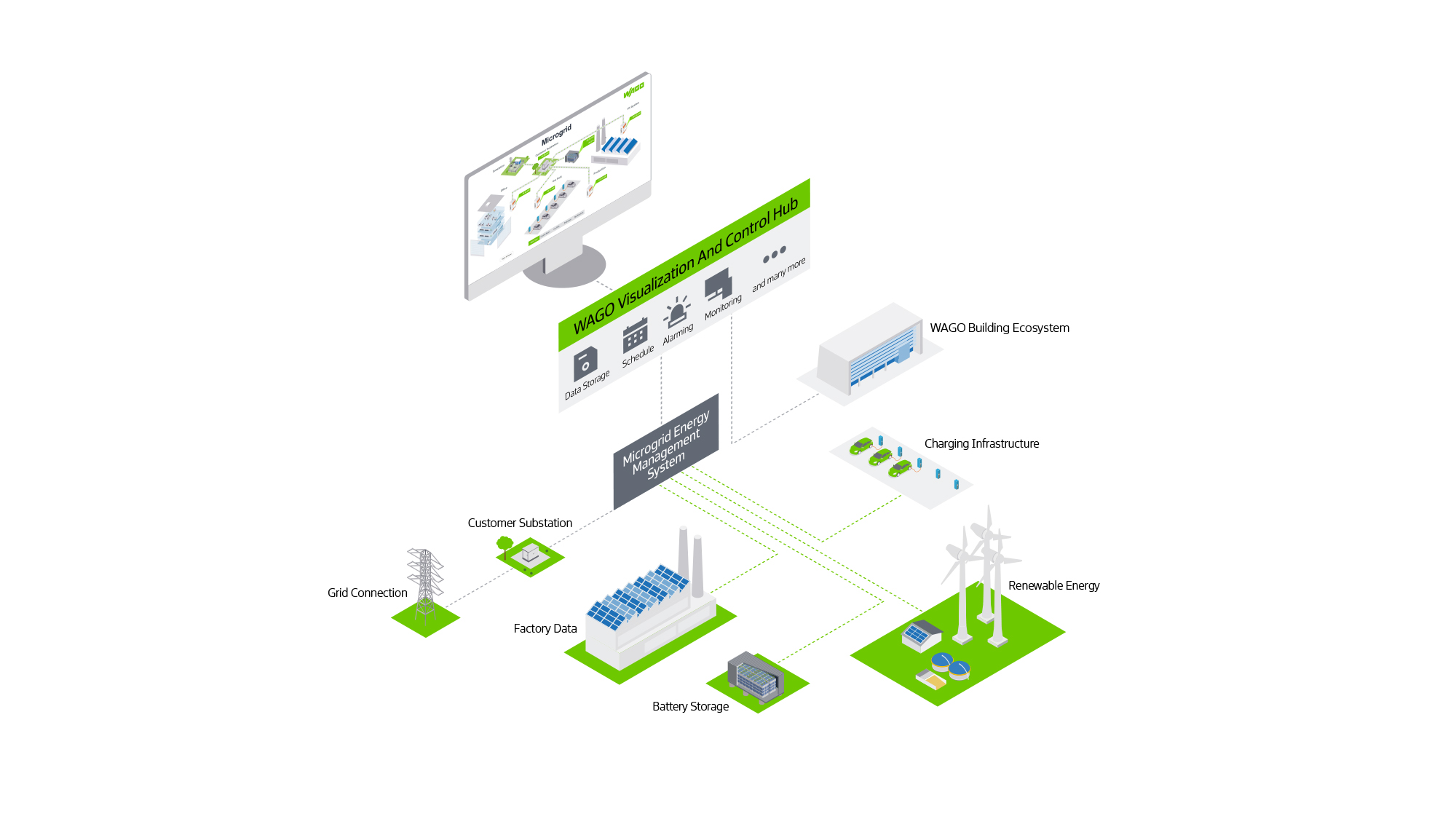

Through communication, precise real-time monitoring, and control, microgrids balance energy supply and demand efficiently. This allows optimal use of various sources and minimizes energy costs through intelligent decision-making — including peak load avoidance and planning certainty for evolving grid infrastructures. To provide a clear overview of what is happening in a microgrid at any given moment, the modular and scalable WAGO Visualization and Control Hub connects all tools to a unified visualization layer as a higher-level SCADA system. Real-time monitoring and control are possible in both 2D and 3D. It integrates enterprise systems (ERP, MES, EMS), third-party devices, and open interfaces (e.g., MQTT, OPC UA). The collection and analysis of all data meet high security standards. Intelligent alarm management with threshold alerts ensures grid safety.

WAGO Charging Park Management consolidates relevant information and the current status of one or more charging parks. The operation of all individual charging parks remains user-friendly, simple, and efficient.
