Instructions

DALI Lights with Connecting Cable

9/18/2020

Advantages:

Lighting can be controlled via DALI bus.
Time-consuming through-wiring light installation is eliminated.
Quick replacement of defective lights in the operating phase is possible.
Use of connecting cables makes the wide range of standard luminaires available for selection.

Parts list:

1. 771-9985/106-101

6. 771-9985/206-201

7. 771-9985/006-301

pre-assembled connecting cable; Eca; Socket/open-ended; 5-pole; Cod. I; H05VV-F 5G 1.5 mm²; 1 m; 1,50 mm²; blue

Item no. 771-9985/106-101

pre-assembled connecting cable; Eca; Socket/open-ended; 5-pole; Cod. I; H05VV-F 5G 1.5 mm²; 1 m; 1,50 mm²; blue

Strain relief housing; 5-pole; for 2 cables; 9.0 … 13.0 mm; 55 mm; black

Item no. 770-505

Strain relief housing; 5-pole; for 2 cables; 9.0 … 13.0 mm; 55 mm; black

Socket; 5-pole; Cod. I; 4,00 mm²; blue

Item no. 770-1105

Socket; 5-pole; Cod. I; 4,00 mm²; blue

3-way distribution connector; 5-pole; Cod. I; 1 input; 3 outputs; blue

Item no. 770-618

3-way distribution connector; 5-pole; Cod. I; 1 input; 3 outputs; blue

Mounting plate; 5-pole; for distribution connectors; Plastic; black

Item no. 770-625

Mounting plate; 5-pole; for distribution connectors; Plastic; black

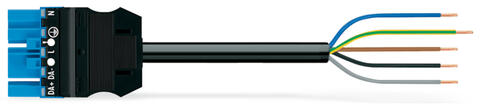

pre-assembled connecting cable; Eca; Plug/open-ended; 5-pole; Cod. I; H05VV-F 5G 1.5 mm²; 2 m; 1,50 mm²; blue

Item no. 771-9985/206-201

pre-assembled connecting cable; Eca; Plug/open-ended; 5-pole; Cod. I; H05VV-F 5G 1.5 mm²; 2 m; 1,50 mm²; blue

pre-assembled interconnecting cable; Eca; Socket/plug; 5-pole; Cod. I; H05VV-F 5G 1.5 mm²; 3 m; 1,50 mm²; blue

Item no. 771-9985/006-301

pre-assembled interconnecting cable; Eca; Socket/plug; 5-pole; Cod. I; H05VV-F 5G 1.5 mm²; 3 m; 1,50 mm²; blue
