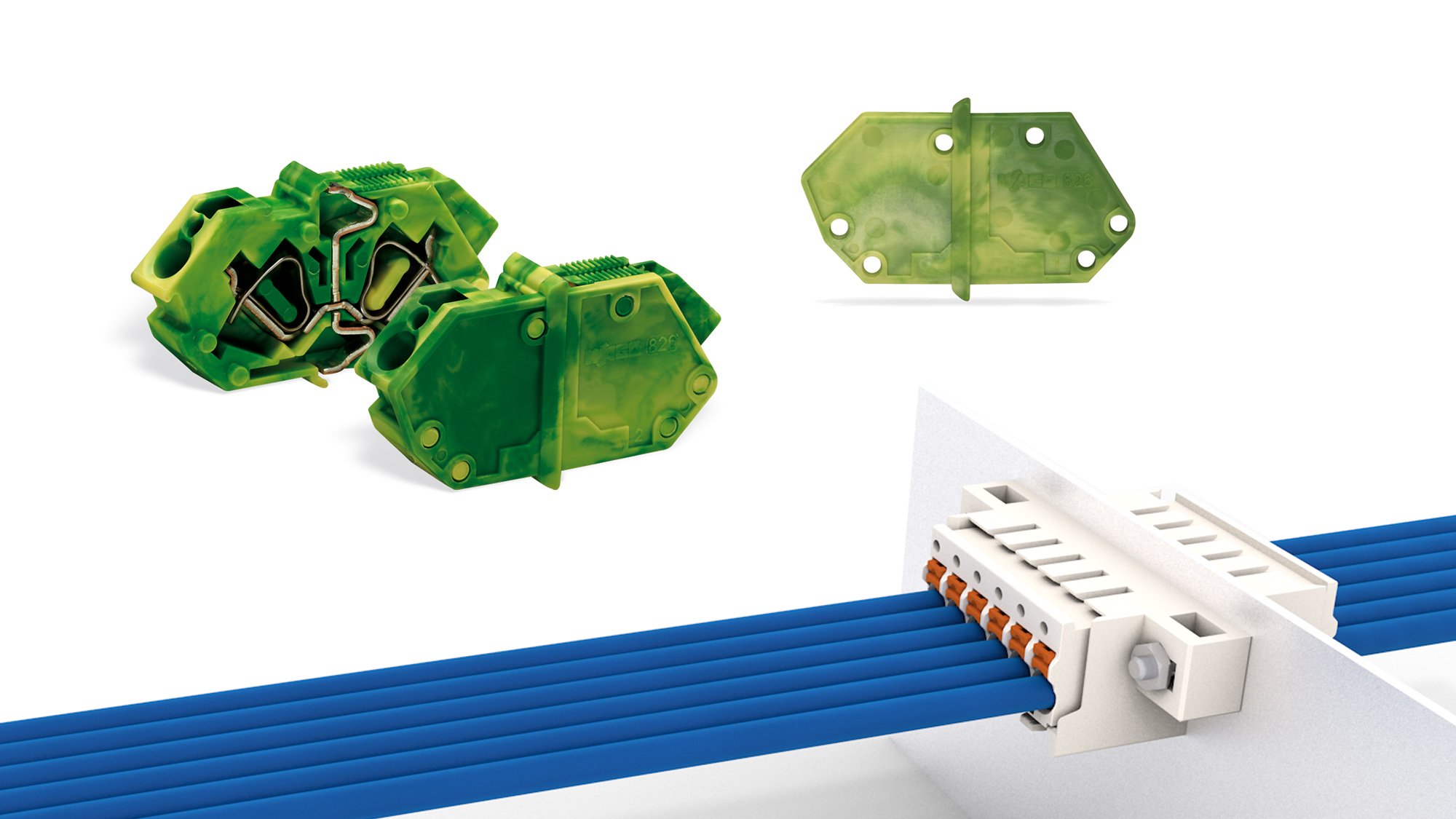

Feedthrough Components

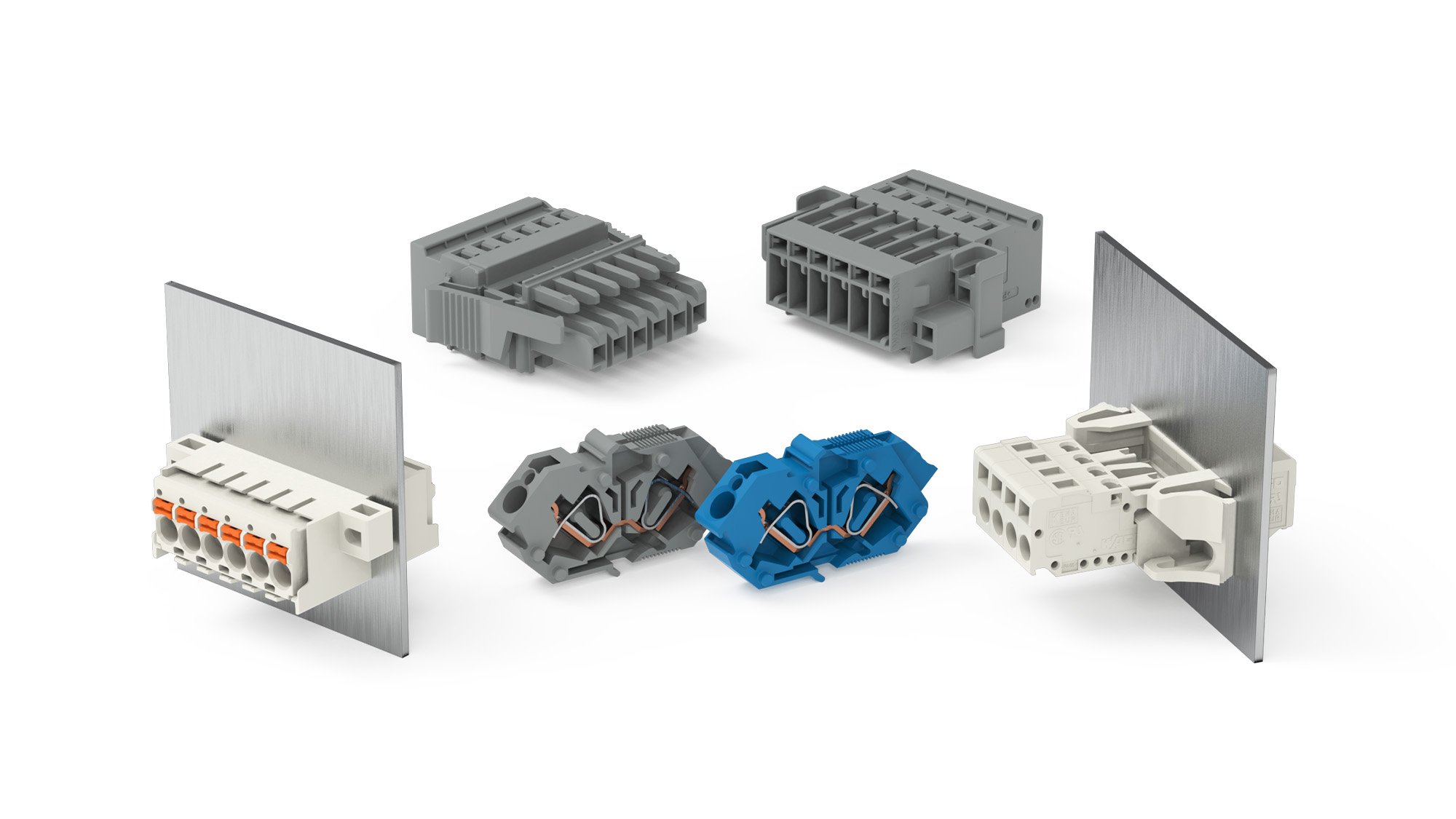

Fast, reliable, pluggable: WAGO's comprehensive range of pluggable connectors for through-panel applications perfectly connects to your devices. The wide product range also includes different types of mounting. A wide selection of different product families in different sizes always offers you the right solution for pluggable device connection.

Your benefits:

• Fast installation, maintenance or exchange of your devices thanks to pluggable solutions

• Universal spring pressure connection for all conductor types

• Soldered connectors (THT and THR) for internal PCB connection

• Connectors with wire connection and mounting flange for internal conductor connection

• Snap-in flange for tool-free through-panel mounting

• For wire-to-board, board-to-wire, wire-to-wire and board-to-board connections

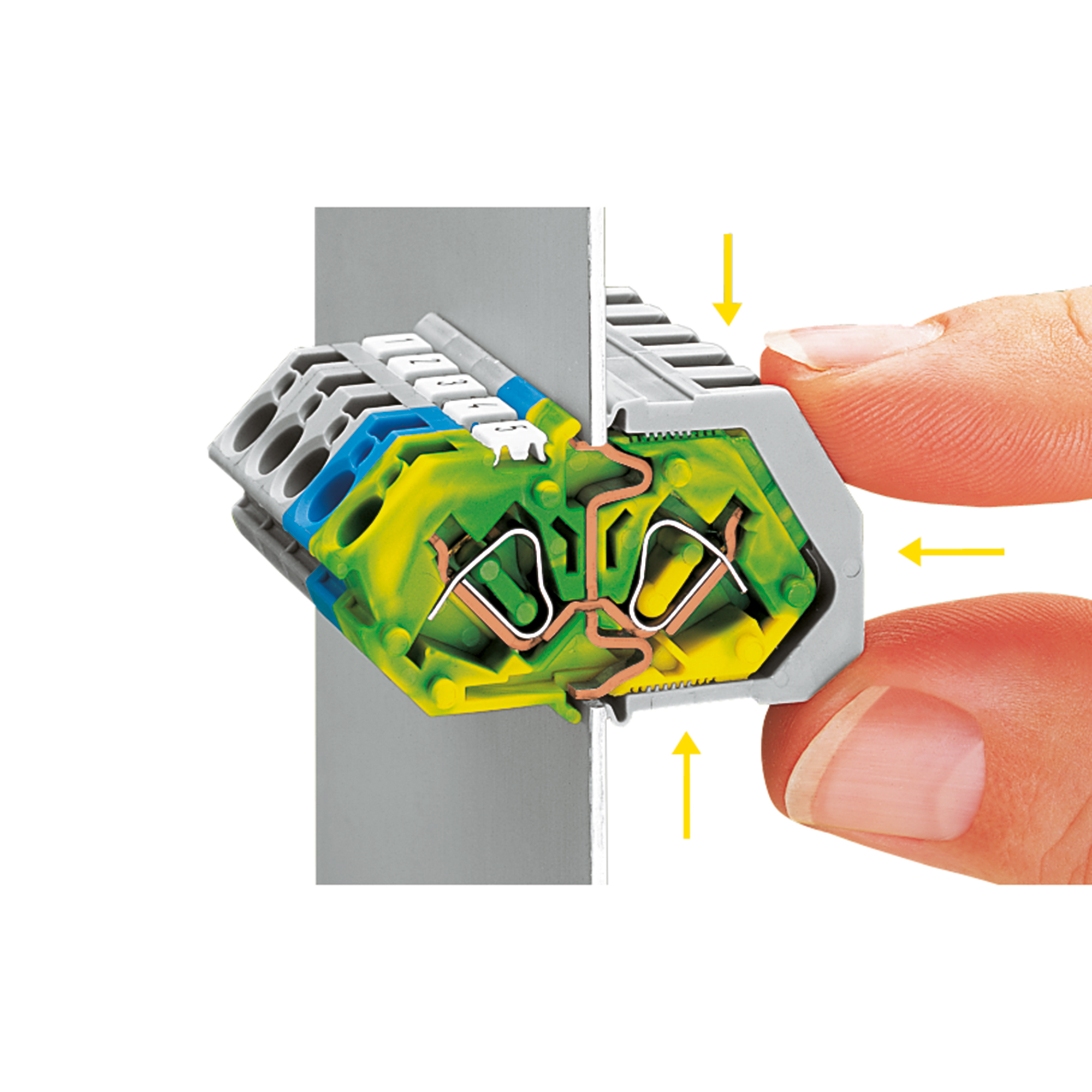

Feedthrough terminal blocks are ideal for internal and external conductor connection. Easy, tool-free assembly provides fast installation. Different color combinations permit custom marking of connection points.

Your benefits:

• Universal spring pressure connection for all conductor types – internal and external up to 16 mm² (6 AWG)

• Easy, tool-free assembly with locking and retaining clips

• 828 Series: Easily open several clamping units at the same time via convenient lever actuation

• Direct ground contact with enclosure/panel (826 Series)

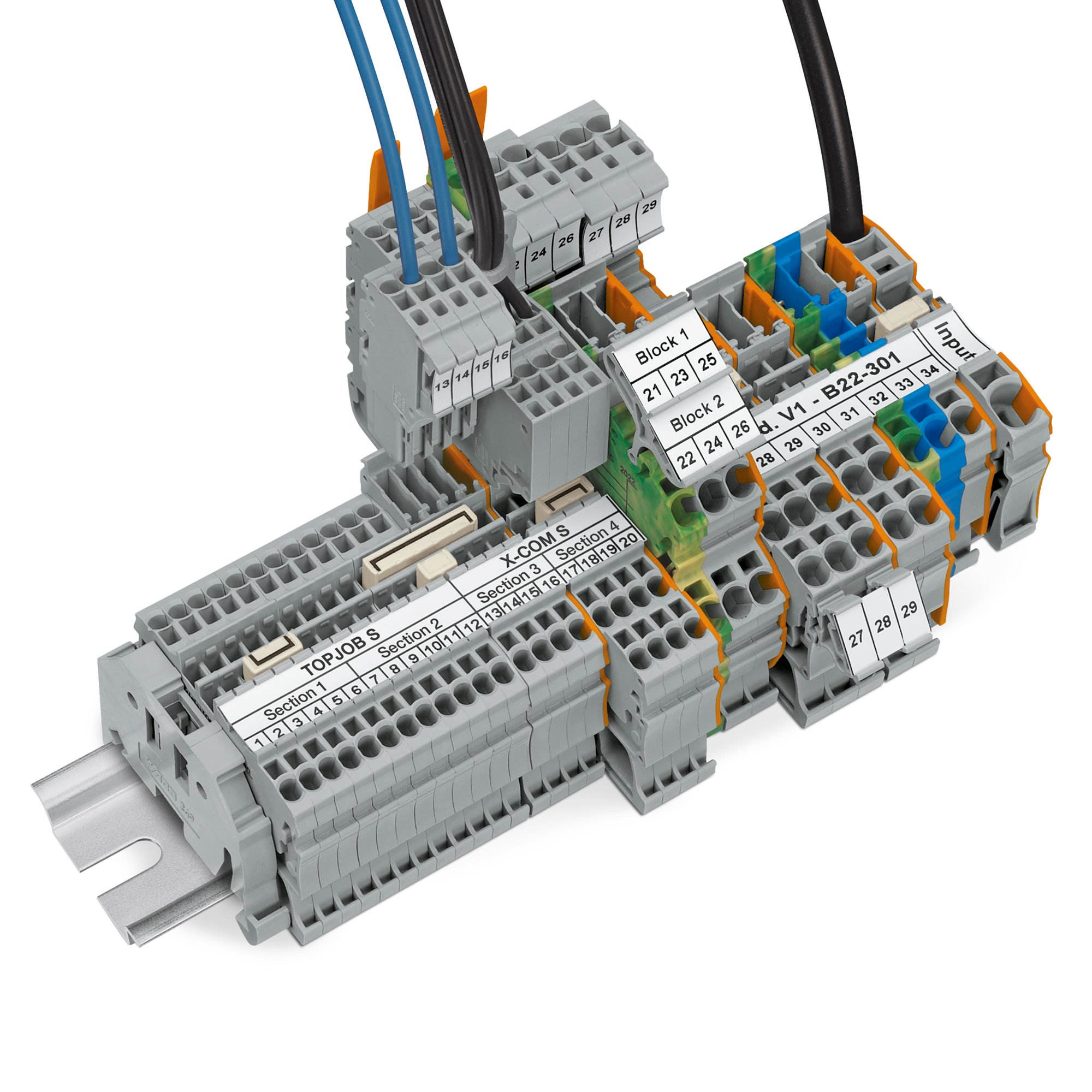

X-COM^®-SYSTEM is a modular system that trims wiring times and costs. In addition to the pluggable rail-mount terminal blocks, the X-COM^®-SYSTEM also includes designs for through-panel and other applications. Male connectors with different mounting options are available: feedthrough flanges for screw or similar mounting methods and snap-in flanges for tool-free assembly. The mating half consists of modular 1- or 2-conductor straight or angled female connectors.

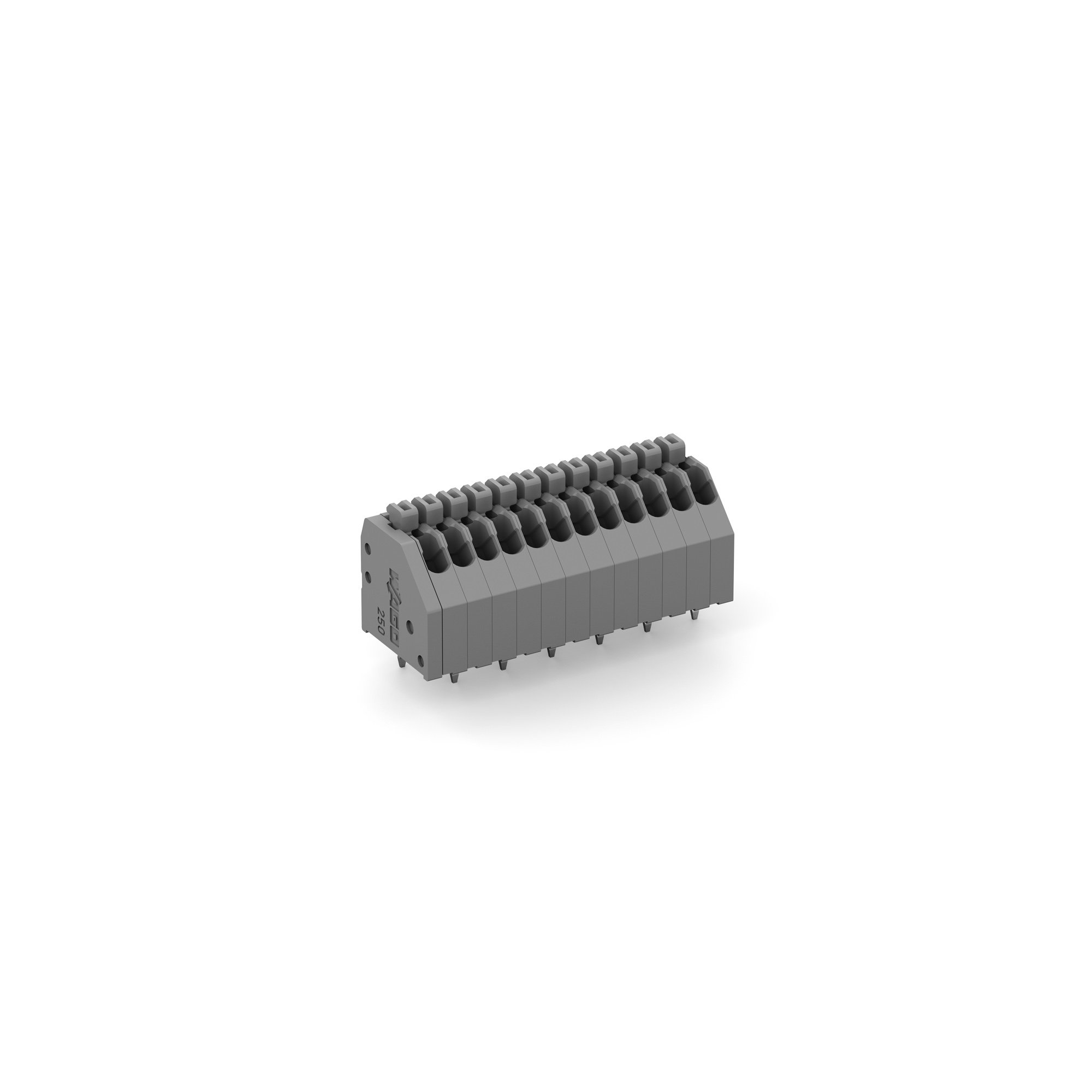

Our PCB terminal blocks for through-panel applications are ideal for flush-mount device connection with front actuation. These PCB terminal blocks are available with 5, 7.5 and 10 mm pin spacing (0.196, 0.295 and 0.394 inch).

• Universal spring pressure connection for all conductor types

• Optional mounting flanges for additional mechanical security in the housing

• Either flush with enclosure or protruding

• Test port parallel to conductor entry

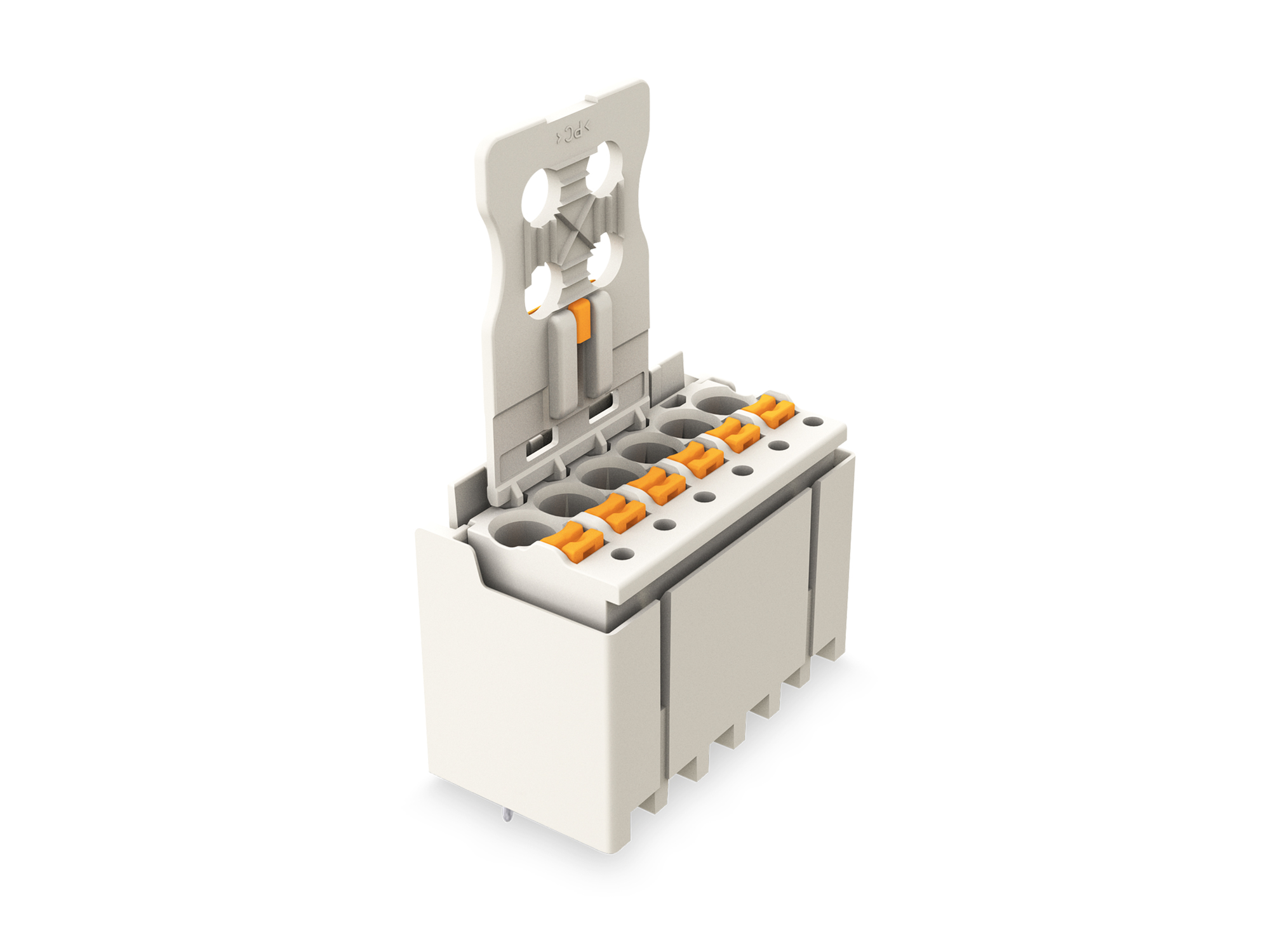

One CrNi spring means double the contact force applied: This principle makes picoMAX^® up to 30% more compact than other connection systems.

• Compact design: Reduces space by up to 30%

• Radically simplified contact system

• Special design, innovative spring pressure connection technology and new insulation material guarantees absolute contact reliability – even at higher ambient temperatures

• Very high vibration resistance of up to 20g for wire-to-board connections, thanks to integrated locking latches and a female connector that's almost fully enshrouded in the male connector

• Efficient testing via test slot parallel to connector entry

Discover the diversity of WAGO's feedthrough components.
