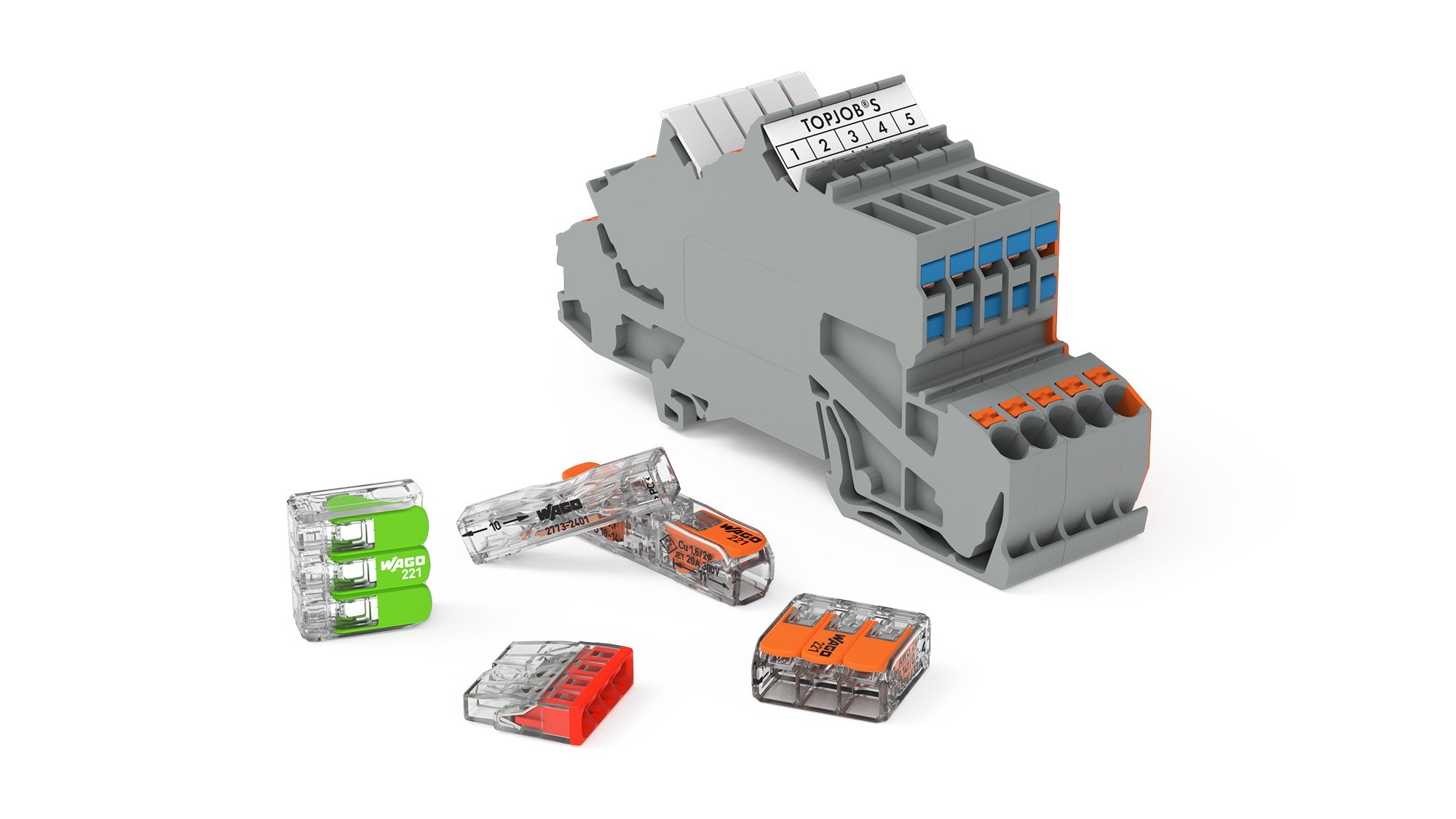

Installation Terminals Blocks: Save Time and Money

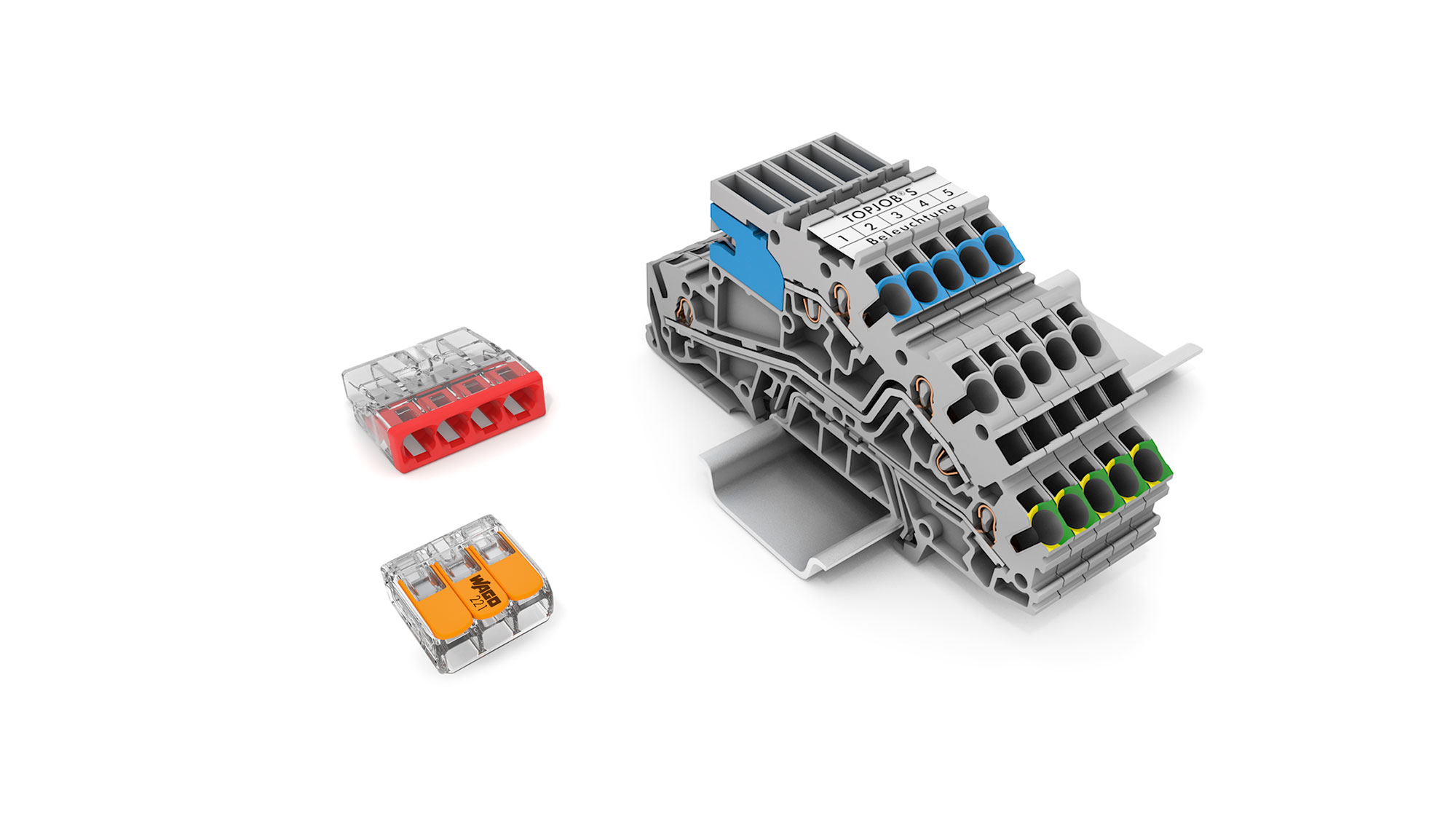

WAGO's TOPJOB^® S Installation Rail-Mount Terminal Blocks with Push-in CAGE CLAMP^® reliability have a large range of cross-sections, offering the right terminal block for all building applications. As the demands on buildings constantly increase and change, TOPJOB^® S enables future-proof installation.

Your Benefits:

• Flexible selection of the actuation variant (operating slot, push-button or hybrid)

• Standards-compliant insulation resistance measurement thanks to reliable, convenient N-disconnect variants

• Push-in CAGE CLAMP^®: push-in termination of solid conductors and fine-stranded conductors with ferrules

• Sufficient wiring space thanks to compact design

• Three-line custom labeling via marking strips provides clear organization – even when wired

• Easy advance planning with the Product Finder for Distribution Boards in Buildings

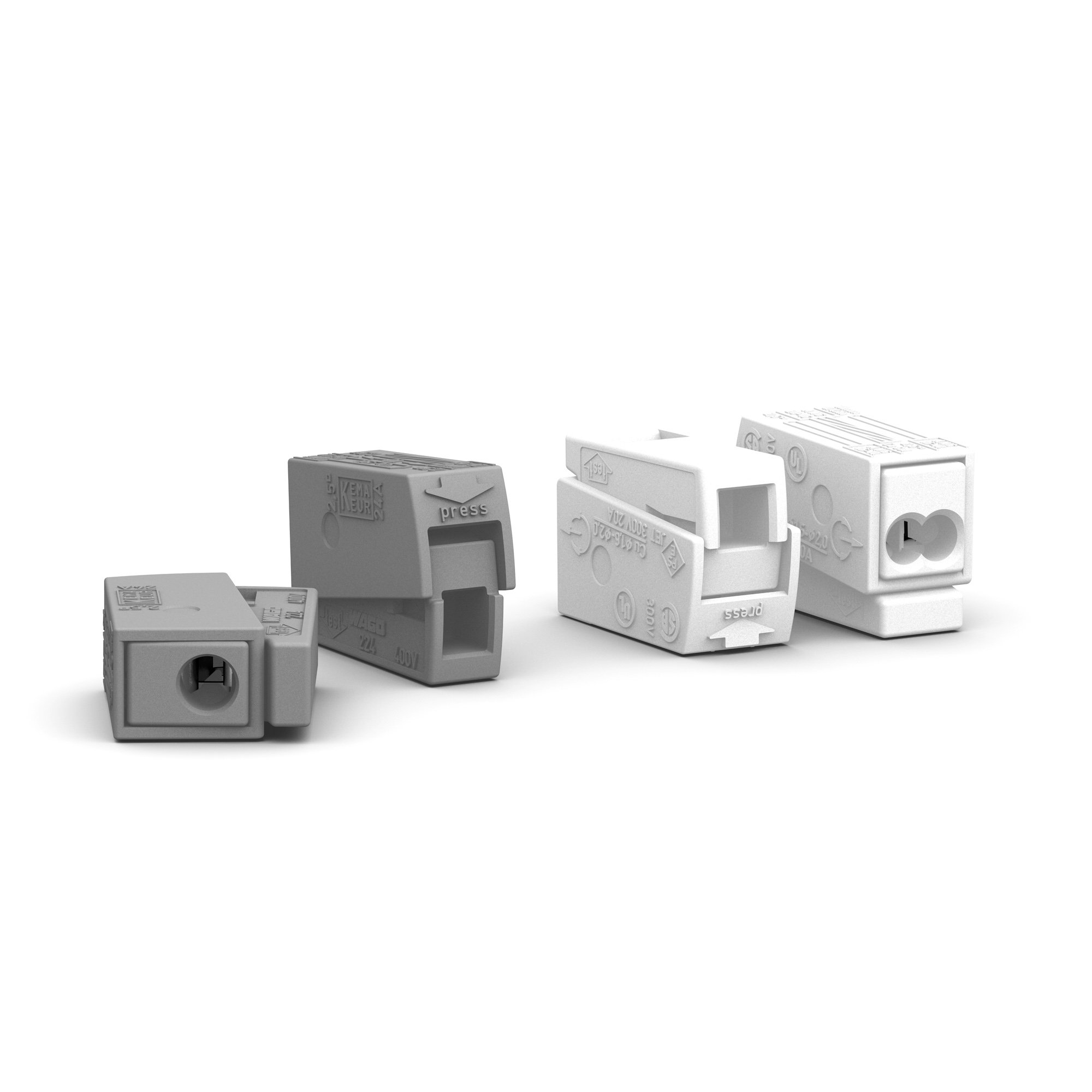

WAGO's lighting connectors are the perfect link between solid and fine-stranded conductors. Thanks to their approval as independent equipment per EN 60998, WAGO's lighting connectors can be used in nearly all household applications and similar building installations where a connection between solid and fine-stranded conductors is required.

Your Benefits:

• Ideally connect solid conductors with fine-stranded conductors

• Simple, tool-free wiring – especially helpful for overhead work

• Support numerous applications, including connecting devices with fine-stranded conductors to fixed installations (e.g., blinds motors)

From intercom system wiring to electrical ovens – connecting different conductor types is quick and easy with WAGO's compact splicing connector (221 Series).

Your Benefits:

• Connect all conductor types without having to first prepare them

• Combine any conductor types and sizes

• Easy-to-use operating lever for tool-free terminations

• High current carrying capacity up to 32 A

• Mounting carrier for use in distribution boxes

• Also for cross-sections up to 6 mm²

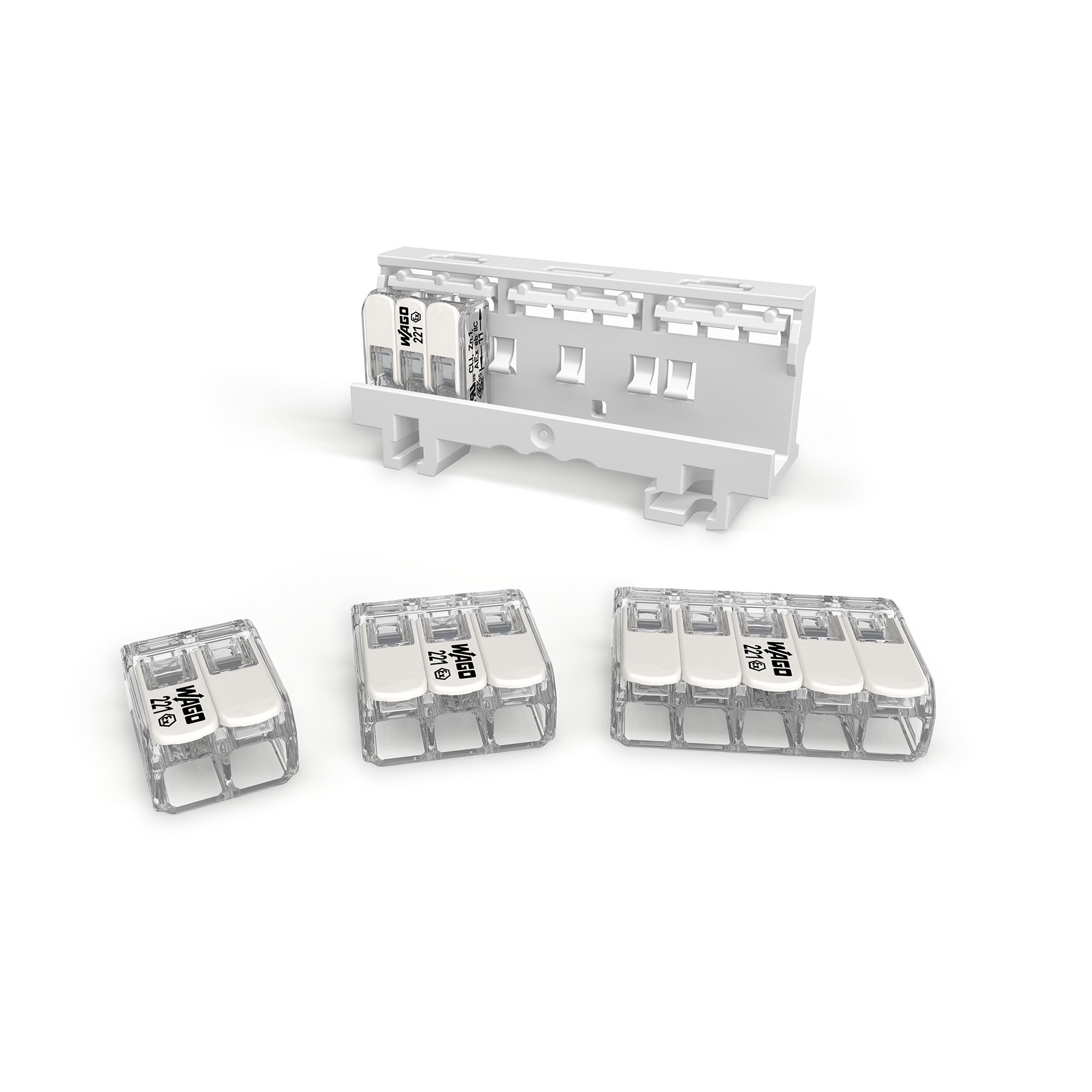

Discover new design possibilities for the manufacturers of junction boxes, luminaires and electronic devices.

Your Benefits:

• Easy to use: Pull the lever up, insert a conductor and push the lever back down

• Available as 2-, 3- and 5-wire connectors

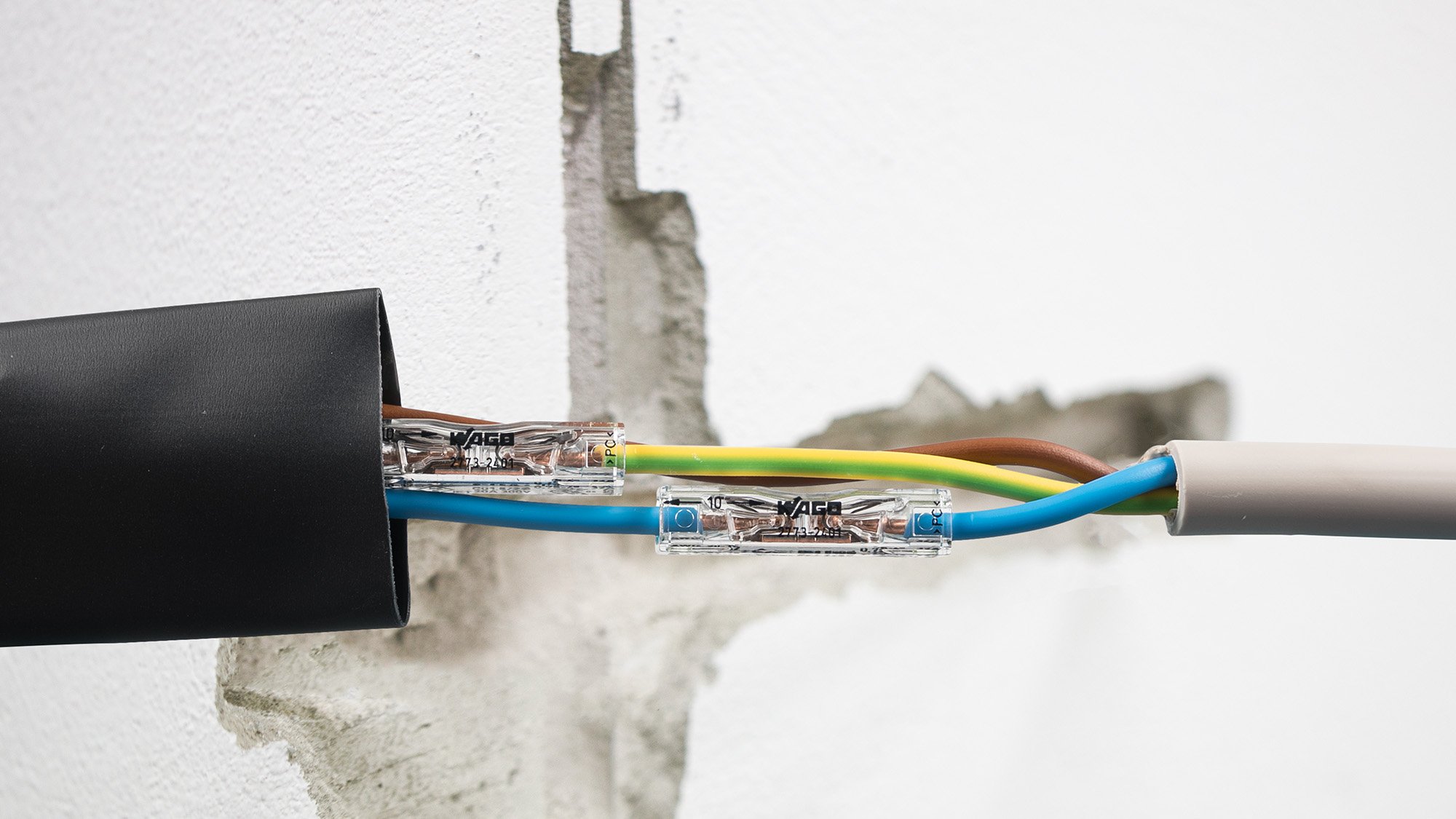

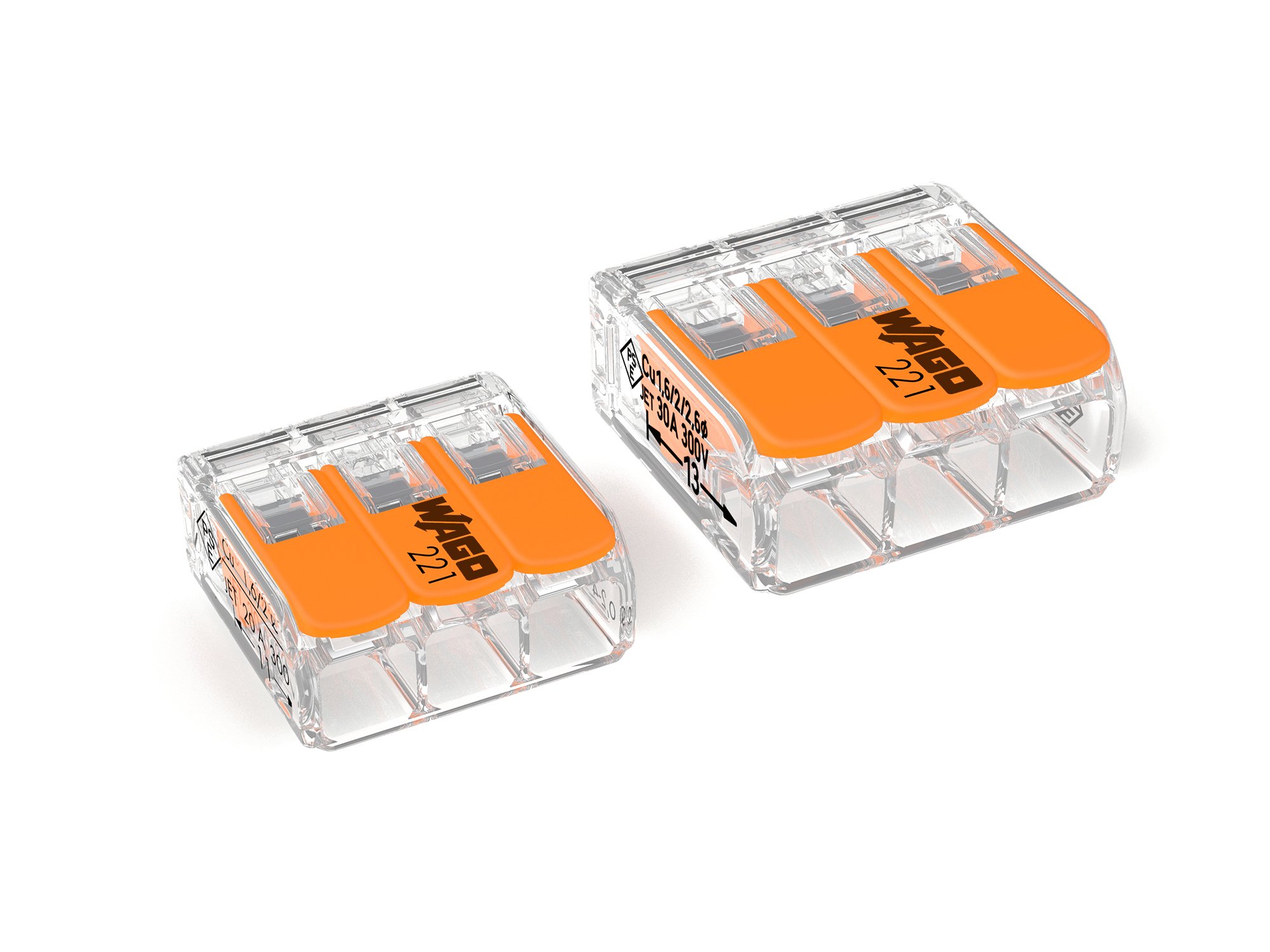

• Two variants, many applications:
  - The 221 Series 4 mm² variant accommodates fine-stranded conductors from 0.14 to 4 mm², as well as solid and stranded conductors from 0.2 to 4 mm² (24–12 AWG).
  - The 221 Series 6 mm² variant connects all conductor types ranging from 0.5 to 6 mm² (20–10 AWG).

• Mounting carrier for installation conforming to standards

• Working voltage of 275 V or 440 V

• Custom carriers are possible

• ATEX (Ex 2 II G), / IECEx (Ex eb IIC Gb) Zone 1, 2

• IECEX (Ex eb IIC Gb), American Ex (AEx eb IICGb) / Class 1, Zone 1

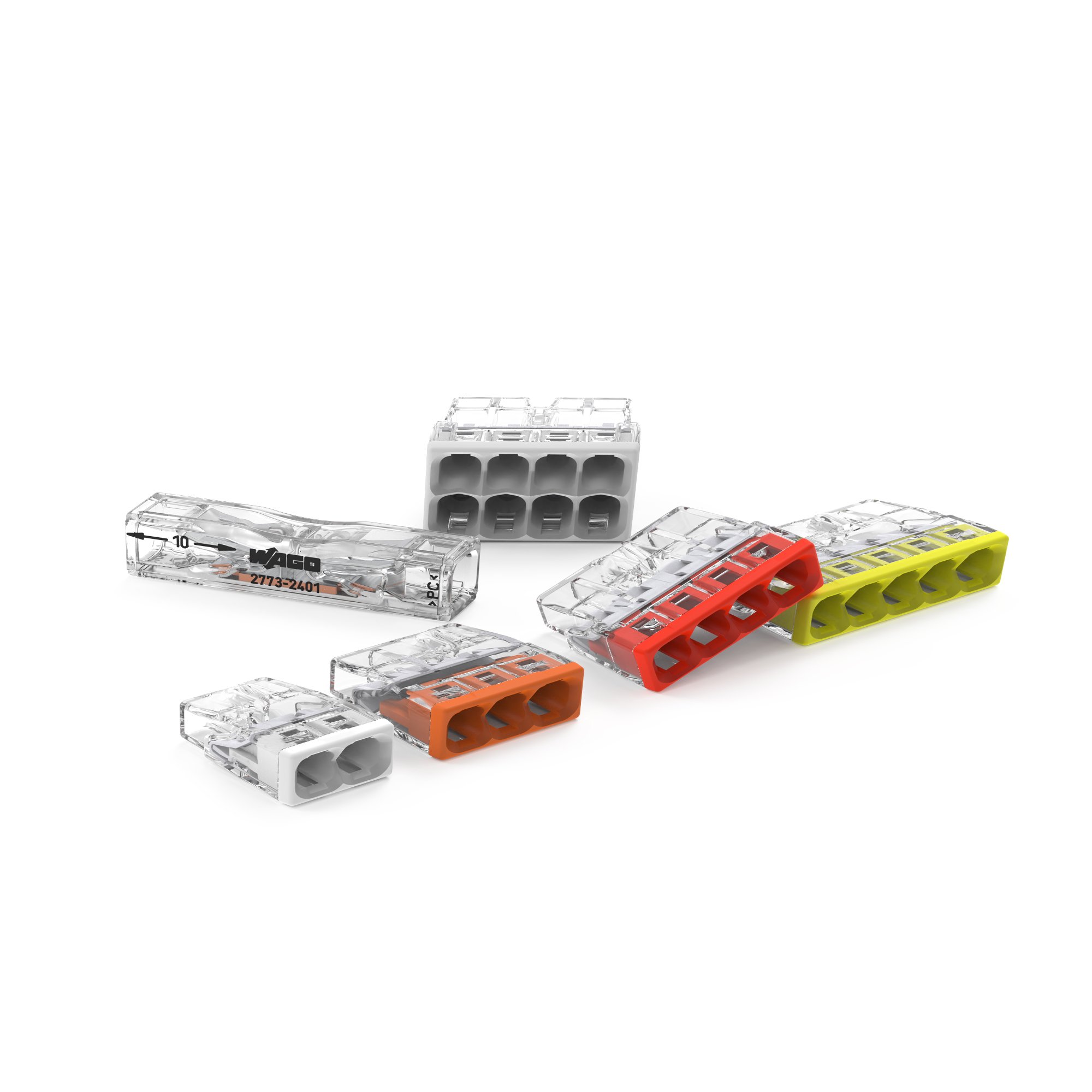

Our product line supports a wide cross section range: The 243 Series MICRO PUSH WIRE® Connectors for Junction Boxes are specifically designed for small diameters (e.g., low-voltage installations). The 2273 Series connects solid conductors up to 2.5 mm² (14 AWG), and the 773 Series up to 4/6 mm² 12/10 AWG. With the 2773 Series, conductors up to 4 mm² can be easily repaired or extended.

Your Benefits:

• Compact size

• Fast wiring via easy push-in termination of solid conductors

• Tool-free conductor termination

• Mounting carrier for use in distribution cabinets

• Reusable

• Transparent housing to visually verify proper conductor insertion

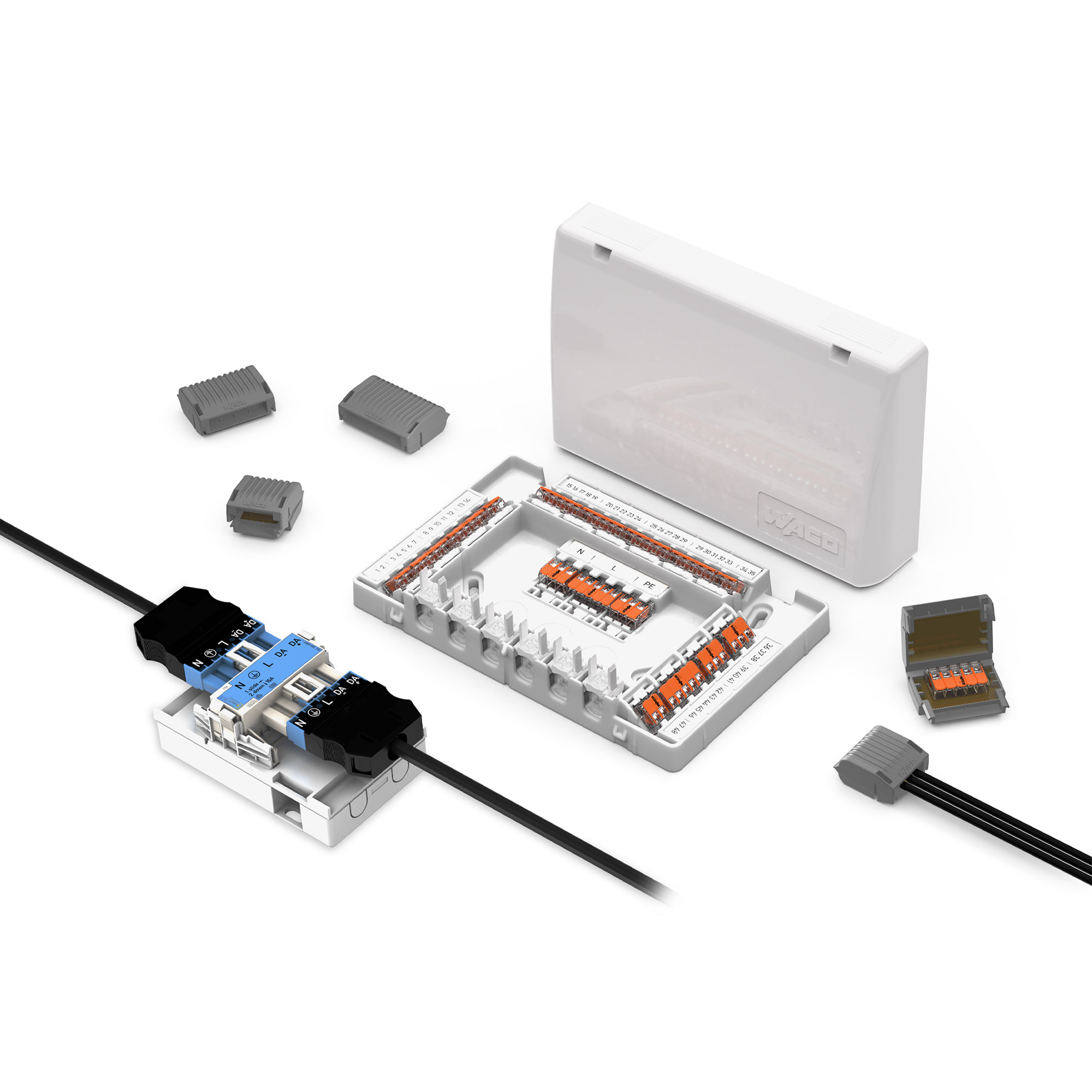

Our boxes for interconnection technology offer greater protection and clearer organization for your electrical installations:

• The WAGO Lighting Connection Box with integrated Linect® interface for the WINSTA^® Pluggable Connection System keeps dust and dirt away from the lights.

• The WAGO Gelbox provides easy protection against moisture for the 2273 and 221 Series Splicing Connectors – per IPX8.

• The WAGO Junction Box for 221 Series Splicing Connectors provides clear organization for connection of up to 60 conductors.
